PX215 - IRRIGATION POWER ... 02 - ENGINE 02-25 - PISTONS - CONNECT...
02-25 - PISTONS - CONNECTING RODS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 6
    A78038
    KIT; Standard, Inc. 1 - 8
  • 1
    1
    J948095

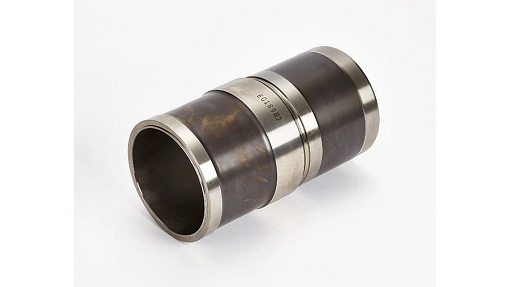

    SLEEVE CYLINDER 114.02mm ID x 130.95mm OD x 234.12mm L;
  • 2
    1
    J907177
    SEAL 118mm ID x 122.32mm OD x 4mm Thk;
  • 1
    J802263
    PISTON & RINGS KIT; Standard, Inc. 3 - 8
  • 3
    1
    NSS
    NOT SOLD SEPARAT; Piston
  • 4
    2
    100-21175
    SNAP RING 1.75'', Int, #175;
  • 5
    1
    J802429
    PISTON RINGS KIT; Standard, Inc. 6 - 8
  • 6
    1
    NSS
    NOT SOLD SEPARAT; Ring, Top
  • 7
    1
    NSS
    NOT SOLD SEPARAT; Ring, Middle
  • 8
    1
    NSS
    NOT SOLD SEPARAT; Ring, Bottom
  • 9
    6
    J934046
    PISTON PIN 45mm OD x 91mm L;
  • 9A
    X
    J924445
    SHIM 126.8mm ID x 130.5mm OD x 0.25mm Thk; (.010'')
  • 9A
    X
    J924446
    SHIM 126.8mm ID x 130.5mm OD x 0.38mm Thk; (.015'')
  • 9A
    X
    J924447
    SHIM 126.8mm ID x 130.5mm OD x 0.5mm Thk; (.020'')
  • 9A
    X
    J924448
    SHIM 0.762mm Thk; (.030'')
  • 9A
    X
    J924449
    SHIM 1.000mm Thk; (.040'')
  • 6
    JC901383
    CORE-ROD CONNECTING; New, Inc. 10 - 13
  • 6
    J901383
    CONNECTING ROD; New, Inc. 10 - 13
  • 6
    JR901383
    REMAN-CONNECTING ROD; New, Inc. 10 - 13
  • 6
    84487529R
    REMAN-CONNECTING ROD CONNECTING ROD; PX190, PX215, PX240 ALL(1/03-), Reman for New P/N J901383
  • -
    84487529C
    CORE-ROD CONNECTING CONNECTING ROD; Return Number
  • 1
    JR901383
    REMAN-CONNECTING ROD; Remanufactured, N.A. Only, Inc. 10 - 13
  • 1
    JC901383
    CORE-ROD CONNECTING; CORE-CONNECTING ROD
  • 10
    1
    NSS
    NOT SOLD SEPARAT; Rod
  • 11
    1
    J913990
    BUSHING 45.03mm ID x 49mm OD x 45mm L;
  • 12
    2
    J928870
    BOLT;
  • 13
    2
    J934864
    NUT;
  • 14
    6
    A77563
    BEARING SET; Standard
  • 14
    6
    A77564
    BEARING SET; Undersize 0,25 mm
  • 14
    6
    A77565
    BEARING SET; Undersize 0,50 mm
  • 14
    6
    A77566
    BEARING SET; Undersize 0,75 mm
  • 14
    6
    A77567
    BEARING SET; Undersize 1,00 mm
Select All

Select

Ref.

Qty

6

Availability

Part #

A78038

Description

KIT; Standard, Inc. 1 - 8


Alts

Select

Ref.

1

Qty

1

Availability

Part #

J948095

Description

SLEEVE CYLINDER 114.02mm ID x 130.95mm OD x 234.12mm L;


Alts

Select

Ref.

2

Qty

1

Availability

Part #

J907177

Description

SEAL 118mm ID x 122.32mm OD x 4mm Thk;


Alts

Select

Ref.

Qty

1

Availability

Part #

J802263

Description

PISTON & RINGS KIT; Standard, Inc. 3 - 8


Alts

Select

Ref.

3

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Piston


Alts

Select

Ref.

4

Qty

2

Availability

Part #

100-21175

Description

SNAP RING 1.75'', Int, #175;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

J802429

Description

PISTON RINGS KIT; Standard, Inc. 6 - 8


Alts

Select

Ref.

6

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Ring, Top


Alts

Select

Ref.

7

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Ring, Middle


Alts

Select

Ref.

8

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Ring, Bottom


Alts

Select

Ref.

9

Qty

6

Availability

Part #

J934046

Description

PISTON PIN 45mm OD x 91mm L;


Alts

Select

Ref.

9A

Qty

X

Availability

Part #

J924445

Description

SHIM 126.8mm ID x 130.5mm OD x 0.25mm Thk; (.010'')


Alts

Select

Ref.

9A

Qty

X

Availability

Part #

J924446

Description

SHIM 126.8mm ID x 130.5mm OD x 0.38mm Thk; (.015'')


Alts

Select

Ref.

9A

Qty

X

Availability

Part #

J924447

Description

SHIM 126.8mm ID x 130.5mm OD x 0.5mm Thk; (.020'')


Alts

Select

Ref.

9A

Qty

X

Availability

Part #

J924448

Description

SHIM 0.762mm Thk; (.030'')


Alts

Select

Ref.

9A

Qty

X

Availability

Part #

J924449

Description

SHIM 1.000mm Thk; (.040'')


Alts

Select

Ref.

Qty

6

Availability

Part #

JC901383

Description

CORE-ROD CONNECTING; New, Inc. 10 - 13


Alts

Select

Ref.

Qty

6

Availability

Part #

J901383

Description

CONNECTING ROD; New, Inc. 10 - 13


Alts

Select

Ref.

Qty

6

Availability

Part #

JR901383

Description

REMAN-CONNECTING ROD; New, Inc. 10 - 13


Alts

Select

Ref.

Qty

6

Availability

Part #

84487529R

Description

REMAN-CONNECTING ROD CONNECTING ROD; PX190, PX215, PX240 ALL(1/03-), Reman for New P/N J901383


Alts

Select

Ref.

Qty

-

Availability

Part #

84487529C

Description

CORE-ROD CONNECTING CONNECTING ROD; Return Number


Alts

Select

Ref.

Qty

1

Availability

Part #

JR901383

Description

REMAN-CONNECTING ROD; Remanufactured, N.A. Only, Inc. 10 - 13


Alts

Select

Ref.

Qty

1

Availability

Part #

JC901383

Description

CORE-ROD CONNECTING; CORE-CONNECTING ROD


Alts

Select

Ref.

10

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Rod


Alts

Select

Ref.

11

Qty

1

Availability

Part #

J913990

Description

BUSHING 45.03mm ID x 49mm OD x 45mm L;


Alts

Select

Ref.

12

Qty

2

Availability

Part #

J928870

Description

BOLT;


Alts

Select

Ref.

13

Qty

2

Availability

Part #

J934864

Description

NUT;


Alts

Select

Ref.

14

Qty

6

Availability

Part #

A77563

Description

BEARING SET; Standard


Alts

Select

Ref.

14

Qty

6

Availability

Part #

A77564

Description

BEARING SET; Undersize 0,25 mm


Alts

Select

Ref.

14

Qty

6

Availability

Part #

A77565

Description

BEARING SET; Undersize 0,50 mm


Alts

Select

Ref.

14

Qty

6

Availability

Part #

A77566

Description

BEARING SET; Undersize 0,75 mm


Alts

Select

Ref.

14

Qty

6

Availability

Part #

A77567

Description

BEARING SET; Undersize 1,00 mm


Alts
