PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1CORE-CLUTCH ASSEMBLY; PTO, 10 inch
-
1CLUTCH; PTO, 10 inch
-
1REMAN-CLUTCH ASSY; PTO, 10 inch
-
11BEARING, BALL 30mm ID x 72mm OD x 30.16mm W; Pilot
-
21NUT; Hub
-
31LOCK WASHER; Tab Lock, Hub Nut
-
41RING; Drive
-
51PLATE; Hub and Backplate
-
66COMPRESSION SPRING; Release
-
71CLUTCH DISC; CLUTCH DISK 10 inch
-
81PLATE; Floating
-
94LEVER; Floating Plate, Finger
-
104PIN; Pivot, Lever
-
114PIN; Cotter, Special
-
128PIN, SPLIT (COTTER); PIN, COTTER Lever Link
-
138AXLE PIN 8mm OD x 26.16mm L; Lever Link
-
148DRAG LINK; Lever Link
-
151HOSE; ASSY., Flexible, 311 mm (12-1/4 inch) long, Inc. 16, 17
-
161ELBOW 90 Degree, 7/16''-24 Inv Fl x 1/8'' NPT;
-
171FITTING;
-
181LOCK WASHER 5/8''; Heavy Duty, Internal Tooth Lock, 5/8 inch
-
191NUT 5/8''-18, G5;
-
202LUBE NIPPLE 1/4'' - 28 NPTF;
-
211HOUSING; Clutch
-
221NOT SOLD SEPARAT; PLATE - Name and Inspection
-
232BOLT Hex, 1/4'' - 20 x 1/2'', Gr 5;
-
242NOT SERVICED; Protector Caps
-
252LUBE NIPPLE 1/8'' - 27 NPTF;
-
272BEARING CUP 110.025 mm OD x 18.875 mm; Tapered Roller Bearing
-
282WOODRUFF KEY #15, 1/4'' x 1'', HT;
-
291SHAFT; Operating Lever
-
301FORK; Throwout
-
311LEVER; Hand
-
321KEY; Square, 5/8 x 4-3/8 inch
-
331SHAFT; Clutch
-
341KEY 1/4'' Sq x 1 1/8'', Par; Square, 1/4 x 1-1/8 inch
-
351RETAINER; Bearing
-
361BEARING LOCK NUT; Bearing Retainer
-
371LOCK WASHER Int Tooth, 5/16''; Heavy Duty, Internal Tooth Lock, 5/16 inch
-
381BOLT Hex, 5/16'' - 18 x 5/8'', Gr 5;
-
391COLLAR; Sleeve
-
401SLEEVE; Sliding
-
411YOKE; UNIVERSAL JOINT YOKE Adjusting
-
421SPRING; Adjustable Lock Pin
-
431PIN; Lock, Adjusting Ring
-
441SET SCREW Hex Soc, 5/16''-18 x 5/16'';
-
452BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 8;
-
462LOCK WASHER 3/8''; Int Tooth, 3/8''
-
471BOLT Hex, 5/16'' - 18 x 5/8'', Gr 5;
-
1LOCK WASHER Int Tooth, 5/16''; 5/16, Not Shown
-
488BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5;
-
498LOCK WASHER 3/8'';
-
5012BOLT Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd;
-
5112LOCK WASHER M10;
-
522BOLT Hex, 1/2'' - 13 x 1/2'', Gr 5;
-
531HANDLE; Rubber
Select All
Select
Ref.
Qty
1Availability
Part #
1347632C1CDescription
CORE-CLUTCH ASSEMBLY; PTO, 10 inchImg
Alts
Select
Ref.
Qty
1Availability
Part #
1347632C1RDescription
REMAN-CLUTCH ASSY; PTO, 10 inchImg
Alts
Select
Ref.
1Qty
1Availability
Part #
1347800C1Description

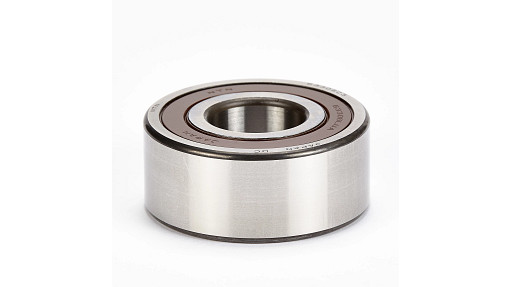

BEARING, BALL 30mm ID x 72mm OD x 30.16mm W; PilotImg
Alts
Select
Ref.
3Qty
1Availability
Part #
51200854Description
LOCK WASHER; Tab Lock, Hub NutImg
Alts
Select
Ref.
7Qty
1Availability
Part #
87418380Description

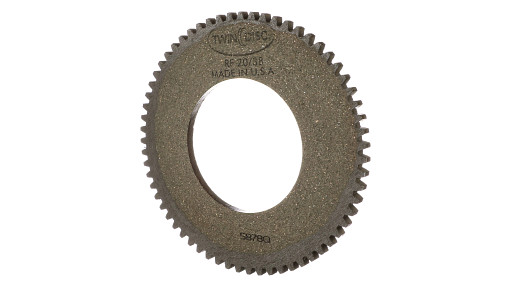

CLUTCH DISC; CLUTCH DISK 10 inchImg
Alts
Select
Ref.
12Qty
8Availability
Part #
A43382Description
PIN, SPLIT (COTTER); PIN, COTTER Lever LinkImg
Alts
Select
Ref.
13Qty
8Availability
Part #
A40192Description

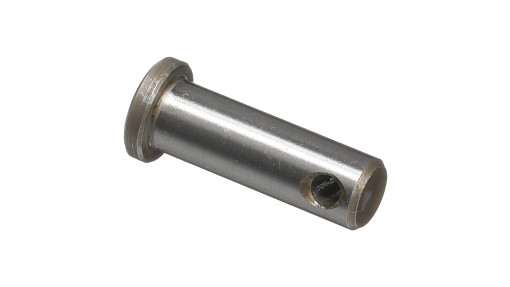

AXLE PIN 8mm OD x 26.16mm L; Lever LinkImg
Alts
Select
Ref.
15Qty
1Availability
Part #
1347801C1Description
HOSE; ASSY., Flexible, 311 mm (12-1/4 inch) long, Inc. 16, 17Img
Alts
Select
Ref.
16Qty
1Availability
Part #
222-1022Description
ELBOW 90 Degree, 7/16''-24 Inv Fl x 1/8'' NPT;Img
Alts
Select
Ref.
18Qty
1Availability
Part #
193-84Description
LOCK WASHER 5/8''; Heavy Duty, Internal Tooth Lock, 5/8 inchImg
Alts
Select
Ref.
22Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; PLATE - Name and InspectionImg
Alts
Select
Ref.
23Qty
2Availability
Part #
413-48Description
BOLT Hex, 1/4'' - 20 x 1/2'', Gr 5;Img
Alts
Select
Ref.
27Qty
2Availability
Part #
A26744Description
BEARING CUP 110.025 mm OD x 18.875 mm; Tapered Roller BearingImg
Alts
Select
Ref.
28Qty
2Availability
Part #
126-124Description
WOODRUFF KEY #15, 1/4'' x 1'', HT;Img
Alts
Select
Ref.
34Qty
1Availability
Part #
Q67Description
KEY 1/4'' Sq x 1 1/8'', Par; Square, 1/4 x 1-1/8 inchImg
Alts
Select
Ref.
36Qty
1Availability
Part #
1347816C1Description
BEARING LOCK NUT; Bearing RetainerImg
Alts
Select
Ref.
37Qty
1Availability
Part #
193-83Description
LOCK WASHER Int Tooth, 5/16''; Heavy Duty, Internal Tooth Lock, 5/16 inchImg
Alts
Select
Ref.
38Qty
1Availability
Part #
413-510Description
BOLT Hex, 5/16'' - 18 x 5/8'', Gr 5;Img
Alts
Select
Ref.
41Qty
1Availability
Part #

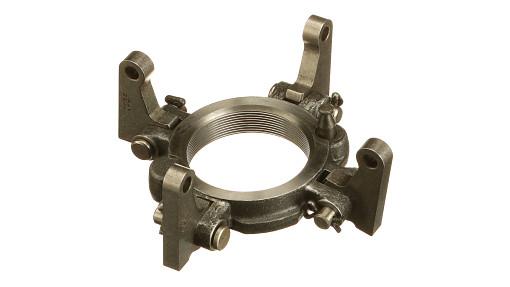

A40189Description
YOKE; UNIVERSAL JOINT YOKE AdjustingImg
Alts
Select
Ref.
44Qty
1Availability
Part #
83-1315Description
SET SCREW Hex Soc, 5/16''-18 x 5/16'';Img
Alts
Select
Ref.
45Qty
2Availability
Part #
326-624Description

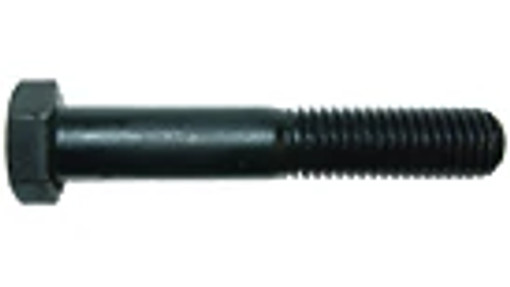

BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 8;Img
Alts
Select
Ref.
46Qty
2Availability
Part #
193-78Description
LOCK WASHER 3/8''; Int Tooth, 3/8''Img
Alts
Select
Ref.
47Qty
1Availability
Part #
413-510Description
BOLT Hex, 5/16'' - 18 x 5/8'', Gr 5;Img
Alts
Select
Ref.
Qty
1Availability
Part #
193-83Description
LOCK WASHER Int Tooth, 5/16''; 5/16, Not ShownImg
Alts
Select
Ref.
48Qty
8Availability
Part #
413-624Description
BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5;Img
Alts
Select
Ref.
50Qty
12Availability
Part #
614-10030Description
BOLT Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd;Img
Alts
Select
Ref.
52Qty
2Availability
Part #
413-88Description
BOLT Hex, 1/2'' - 13 x 1/2'', Gr 5;Img
Alts
