9E-022 - CRANKSHAFT, FLYWHEEL AND BEARINGS, ALL MACHINES EXCEPT 4366 AND 4386 TRACTORS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description

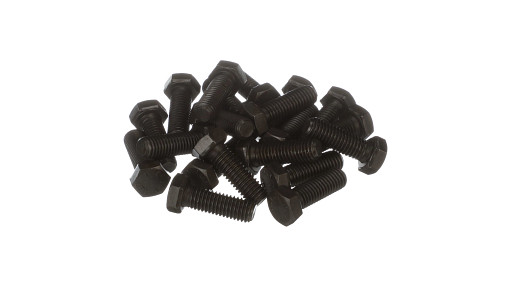

  • 1
    3
    326-824
    BOLT Hex, 1/2'' - 13 x 1-1/2'', Gr 8; BOLT, (Replaces bolt 24862R1) Hex, 1/2''-13 x 1 1/2'', G8, Full Thd
  • 2
    1
    675412C1
    PLATE; PLATE - damper retaining
  • 3
    1
    680275C92
    PULLEY; DAMPER - vibration, used with 3488, 3588 and 6588 tractors
  • 3
    1
    683459C94
    PULLEY; DAMPER - vibration, used with 1480 combines, 3788, 5288, 5488, 6788, 7288 and 7488 tractors
  • 3
    1
    683516C92
    DAMPER; DAMPER - vibration, used with 1470 hillside combines
  • 5
    6
    684570C93
    CRANKSHAFT BEARING; BEARING - crankshaft main, narrow, front and intermediate, two halves, standard, no longer available separately, order bearing kit 243649A1;These narrow bearings are 1.22'' wide. See bul S-4936 JHW cam 12-01;Used with crankshafts stamped with casting numbers 675591C1 and 675591C2, which use narrow bearings.
  • 5
    6
    684573C93
    BEARING SET; BEARING - crankshaft main, narrow, front and intermediate, two halves, 0.010 inch undersize, no longer available separately, order bearing kit 243650A1;These narrow bearings are 1.22'' wide. See bul S-4936 JHW cam 12-01;Used with crankshafts stamped with casting numbers 675591C1 and 675591C2, which use narrow bearings.
  • 5
    6
    687391C3
    BEARING SET; BEARING - crankshaft main, narrow, front and intermediate, two halves, 0.020 inch undersize, no longer available separately, order bearing kit 243651A1;These narrow bearings are 1.22'' wide. See bul S-4936 JHW cam 12-01;Used with crankshafts stamped with casting numbers 675591C1 and 675591C2, which use narrow bearings.
  • 5
    6
    684576C93
    BEARING SET; BEARING - crankshaft main, narrow, front and intermediate, two halves, 0.030 inch undersize;These narrow bearings are 1.22'' wide. See bul S-4936 JHW cam 12-01;Used with crankshafts stamped with casting numbers 675591C1 and 675591C2, which use narrow bearings.
  • 5
    6
    1808069C92
    CRANKSHAFT BEARING; BEARING - crankshaft main, front and intermediate, two halves, standard, no longer available separately, order bearing kit 243640A1;These wide bearings are 1.294'' wide. See bul S-4936 JHW cam 12-01;Used with crankshafts stamped with casting numbers 675591C3, which uses wide bearings.
  • 5
    6
    1808070C92
    CRANKSHAFT BEARING; BEARING - crankshaft main, wide, front and intermediate, two halves, 0.010 inch undersize;These wide bearings are 1.294'' wide. See bul S-4936 JHW cam 12-01;Used with crankshafts stamped with casting numbers 675591C3, which uses wide bearings.
  • 5
    6
    1808071C92
    CRANKSHAFT BEARING; BEARING - crankshaft main, wide, front and intermediate, two halves, 0.020 inch undersize, no longer available separately, order bearing kit 243646A1;These wide bearings are 1.294'' wide. See bul S-4936 JHW cam 12-01;Used with crankshafts stamped with casting numbers 675591C3, which uses wide bearings.
  • 5
    6
    1808072C91
    BEARING LINER; BEARING - crankshaft main, wide, front and intermediate, two halves, 0.030 inch undersize;These wide bearings are 1.294'' wide. See bul S-4936 JHW cam 12-01;Used with crankshafts stamped with casting numbers 675591C3, which uses wide bearings.
  • 6
    1
    684579C93
    CRANKSHAFT BEARING 116.33mm ID x 122.68mm OD x 45.14mm W; BEARING - crankshaft main, rear, two halves, standard. NSS, Order Kit 243649A1 For Narrow Bearings and Kit 243640A1 For Wide Bearings.
  • 6
    1
    684582C93
    CRANKSHAFT BEARING; BEARING - crankshaft main, narrow, rear, two halves, 0.010 inch undersize
  • 6
    1
    687394C3
    CRANKSHAFT BEARING; BEARING - crankshaft main, narrow, rear, two halves, 0.020 inch undersize
  • 6
    1
    684585C93
    BEARING SET; BEARING - crankshaft main, narrow, rear, two halves, 0.030 inch undersize, no longer available separately, order kit 243652A1 for narrow gearings and kit 243648A1 for wide bearings
  • 7
    1
    179197A1
    CRANKSHAFT; CRANKSHAFT - standard, with gear (Replaces crankshaft assembly 681319C93)
  • 7
    1
    681319C93
    CRANKSHAFT; CRANKSHAFT ASSEMBLY - standard, no longer available, order crankshaft 179197A1 plus bearings
  • 7
    1
    735226C92
    REMAN-CRANKSHAFT; CRANKSHAFT ASSEMBLY - standard, no longer available, order crankshaft 179197A1 plus bearings
  • 7
    1
    735227C92
    REMAN-CRANKSHAFT; CRANKSHAFT ASSEMBLY - standard, no longer available, order crankshaft 179197A1 plus bearings
  • 7
    1
    735226C91
    REMAN-CRANKSHAFT; CRANKSHAFT ASSEMBLY - standard, no longer available, order crankshaft 179197A1 plus bearings
  • 7
    1
    735227C91
    REMAN-CRANKSHAFT; CRANKSHAFT ASSEMBLY - standard, no longer available, order crankshaft 179197A1 plus bearings
  • 7
    1
    749656C91
    REMAN-CRANKSHAFT; CRANKSHAFT ASSEMBLY - standard, no longer available, order crankshaft 179197A1 plus bearings
  • 7
    1
    749656C92
    REMAN-CRANKSHAFT; Crankshaft Assembly - standard, remanufactured for crankshaft assembly 681319C93, component parts on this page do not apply to the remanufactured assembly includes main bearings, thrust bearing & connecting rod bearings
  • 7
    1
    1928183C1
    CORE-CRANKSHAFT; Return Part Number - use this part number to return core for credit when using a remanufactured assembly
  • 6
    1808059C92
    CONNECTING ROD 77.74mm ID x 82.8mm OD x 32mm W; BEARING - connecting rod, standard
  • 7A
    1
    17135R1
    LOCK PIN 5/32'' x 5/16'', Slotted; PIN, 5/32'' x 5/16'', Slotted
  • 9
    1
    675406C1
    GEAR; GEAR - crankshaft, 32 tooth
  • 9A
    1
    675364C1
    GEAR; SPLINE - oil pump drive, 41 tooth
  • 10
    1
    683209C92
    FLYWHEEL; FLYWHEEL ASSEMBLY - used with 1470 hillside and 1480 combines, Includes: Ref. 10A, no longer available, order gear 690252C1, item 10A and flywheel 683399C1, item 22
  • 10
    1
    681905C93
    FLYWHEEL; FLYWHEEL ASSEMBLY - used with 1822 and 1844 cotton pickers, Includes: Ref. 10A
  • 10
    1
    672211C91
    EXTENSION; FLYWHEEL ASSEMBLY - used with 3488 tractors, Includes: Ref. 10A
  • 10
    1
    282227A1
    FLYWHEEL; FLYWHEEL ASSEMBLY - used with 5288, 5488, 7288 and 7488 tractors (Replaces flywheel assembly 691677C92), Includes: Ref. 10A
  • 10A
    1
    681926C1
    SLEWING RING; RING, GEAR GEAR - ring, 138 tooth, used with flywheel assembly 681905C93
  • 10A
    1
    690252C1
    GEAR; GEAR - ring, 132 tooth, used with flywheel assembly 683209C92
  • 10A
    1
    341604R1
    GEAR; GEAR - ring, 132 tooth, used with flywheel assembly 672211C91
  • 10A
    1
    1813752C1
    GEAR; GEAR - ring, 138 tooth, used with flywheel assembly 282227A1
  • 11
    8
    25277R1
    BOLT Hex, 1/2'' - 20 x 1 3/4'', Gr 8; BOLT - hex, 1/2 NF x 1-5/8 inch, grade 8 (Replaces bolt 25276R1)
  • 8
    685902C1
    WASHER; WASHER - hardened
  • 11A
    1
    691044C1
    KEY; KEY - Woodruff, 5/16 x 1 inch
  • 15
    1
    100-21206
    SNAP RING 2.062'', Int, #206; Ring, Snap, (Replaces 456736R1) 2.062'', Int, #206

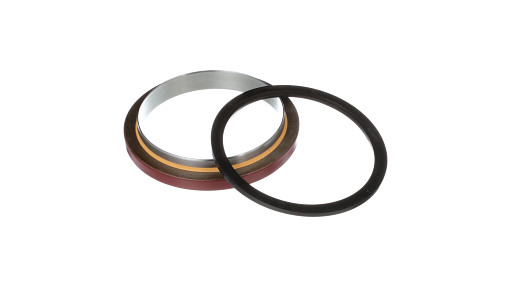

  • 1
    1809964C92
    OIL SEAL; KIT - crankshaft, rear seal and wear sleeve (Replaces kit 691631C91), Includes: Ref. 16 & 17
  • 16
    1
    NSS
    NOT SOLD SEPARAT; SEAL - crankshaft rear oil, order seal and wear sleeve kit 1809964C92
  • 17
    1
    NSS
    NOT SOLD SEPARAT; SLEEVE - oil seal wear, order seal and wear sleeve kit 1809964C92

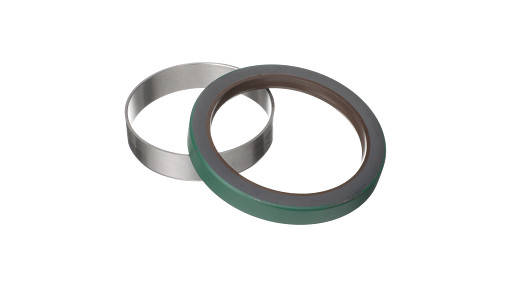

  • 19
    1
    690437C94
    SEAL KIT; KIT - front seal and wear sleeve
  • 20
    1
    682835C1
    PLATE; PLATE - vibration damper, four-hole, used with 1470 hillside combines, 1480 combines, 3788,5288, 5488, 6788, 7288 and 7488 tractors
  • 20
    1
    684431C1
    PLATE; PLATE - vibration damper, three-hole, used with 3488, 3588 and 6588 tractors
  • 4
    326-612
    BOLT Hex, 3/8'' - 16 x 3/4'', Gr 8; BOLT, (Replaces bolt 24839R1) Hex, 3/8''-16 x 3/4'', G8, Full Thd
  • 4
    396-31041
    WASHER 10.31mm ID x 20.63mm OD x 3.4mm Thk; WASHER, (Replaces washer 25544R1) 13/32'' x 13/16'' x .134'', HDN
  • 21
    1
    687024C1
    SEALING WASHER; WASHER - seal
  • 22
    1
    683399C1
    FLYWHEEL; FLYWHEEL - dyno-flex coupling, used with 3588, 3788, 6588 and 6788 tractors
  • -
    138706C3
    COUPLING; dynaflex
