11CAP; - fuel return injector no. 1 (Replaces cap 646547C1)
-

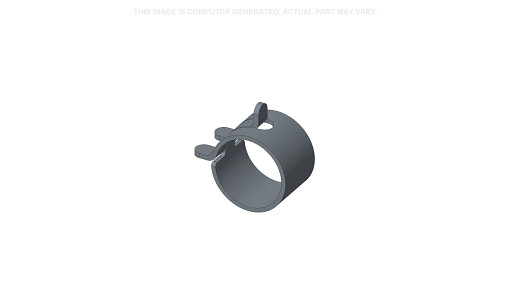

213CLAMP 10.29mm - 12.32mm; - injector leakoff hose (Replaces clamps 677129C1 and 1802453C1)
-
56CLAMP; CRAB - injection nozzle
-
1BOLT; - hex, 5/16 NC x 1-1/16 inch, injector crab (Together with crab 675479C2, replaces bolt 684497C1 and washer 675677C1)
-
66INSTRUCTION; NOZZLE ASSEMBLY - injection, parts list Figure 9D-74
-

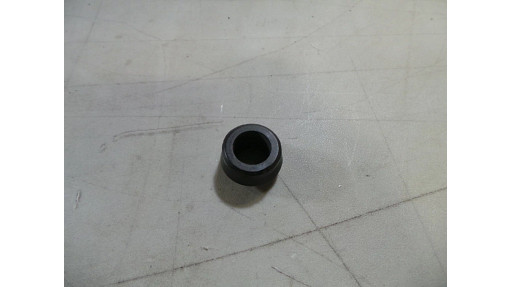

6SEAL; GROMMET - injection dust cover (Replaces grommet 682810C1)
-
71INJECTION PIPE; - injection cylinder no. 6, used with hydro 186 tractors;Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000
-
71PIPE; - injection cylinder no. 6, used with 986 and 3688 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbers
-
71PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection cylinder no. 6, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 1000394 and after, 3388, 5088 and 6388 tractors
-
81PIPE; - injection cylinder no. 5;Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000
-
81PIPE; - injection cylinder no. 5, used with 986 and 3688 tractors, hydro 186 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbers prior to 100394, Hydro 100
-
81PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection cylinder no. 5, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 100394 and after, 3388, 5088 and 6388 tractors
-
91PIPE; - injection cylinder no. 4;Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000
-
91PIPE; - injection cylinder no. 4, used with 986 and 3688 tractors, hydro 186 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbers
-
91PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection cylinder no. 4, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 100394 and after, 3388, 5088 and 6388 tractors
-
101PIPE; - injection cylinder no. 3, used with 986 and 3688 tractors, hydro 186 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbers;Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000;old book shows item # 10 680123c1 is also used on 1566 kl CAM 3/7/2000
-
101PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection cylinder no. 3, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 100394 and after, 3388, 5088 and 6388 tractors
-
101PIPE; PIPE - injection cylinder no. 3; Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000
-
111PIPE; - injection cylinder no. 2;Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000
-
111PIPE; - injection cylinder no. 2, used with 986 and 3688 tractors, hydro 186 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbers
-
111PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection cylinder no. 2, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 100394 and after, 3388, 5088 and 6388 tractors
-
121PIPE; - injection cylinder no. 1;Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000
-
121PIPE; - injection cylinder no. 1, used with 986 and 3688 tractors, hydro 186 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbers
-
121PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection cylinder no. 1, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 100394 and after, 3388, 5088 and 6388 tractors
-
131CLAMP; - fuel line tube
-
2NUT 1/4''-20, GB; NUT, LOCK, (Replaces nut 24468R1) 1/4''-20, GB
-
1BOLT Hex, 1/4'' - 20 x 3/4'', Gr 8; (Replaces bolt 25222R1) Hex, 1/4''-20 x 3/4'', G8, Full Thd
-
1412GROMMET; - injection tube, fourteen used on 986, 1486, 1586, 3688, 5088 and hydro 186 tractors
-
152CLAMP; - duplex tube, three used on 986, 1486, 1586, 3688, 5088 and hydro 186 tractors
-
166CLAMP; - fuel tube, injection pipe, eight used on 986, 1486, 1586, 3688, 5088 and hydro 186 tractors
-
3BOLT Hex, 1/4'' - 20 x 1/2'', Gr 8; (Replaces bolt 25752C1) Hex, 1/4''-20 x 1/2'', G8, Full Thd
-
3NUT; - spring, used with 986, 1486, 1586, 3688 and hydro 186 tractors
-
1SCREW Cross Pan Hd, 1/4''-20 x 3/4''; - machine, pan Phillips, hex, 1/4 NC x 3/4 inch (Replaces screw 113957)
-
3SELF-TAP SCREW Cross Pan Hd, 1/4'' x 1 1/4''; SCREW - slotted head, 1/4 NC x 1-1/4 inch (Replaces screw 113961)
-
4NUT; - spring, 1/4 inch NC, no longer available
-
172HYD CONNECTOR 5/8''-24 x 1/4'' NPTF W/Nut; ADAPTER - primary pump inlet, primary filter to injection pump tube and final filter to injection pump tube, compression, 3/8 tube OD x 1/4 inch PT (Replaces connector 606819C1)
-
181TUBE 0.375'' OD, 28.88'' Length; ASSEMBLY - fuel return lower, Includes: Ref. 18A & Ref. 18B
-
18A2NUT 5/8''-24; NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated
-
18B2SLEEVE 3/8'' Tube; - tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated
-
191TEE; - fuel leakoff, used with 1466, 1566, 4166, 4186 and hydro 100 tractors
-
191TEE; - fuel leakoff, used with 986, 1486, 1586, 3688, 3688, 5088, 6388 and hydro 186 tractors
-
202CLIP; - fuel return tube
-
2BOLT Hex, 3/8'' - 16 x 3/4'', Gr 8; (Replaces bolt 24839R1) Hex, 3/8''-16 x 3/4'', G8, Full Thd
-
2WASHER 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardened
-

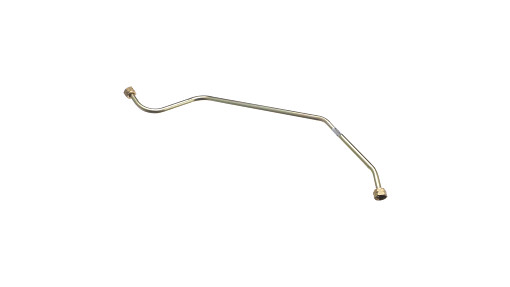

211TUBE 0.375'' OD, 15.75'' Length; ASSEMBLY - primary pump to final filter, will work for 671815C91, Includes: Ref. 21A & 21B
-
211TUBE; ASSEMBLY - primary pump to final filter, used with 5088 tractors, no longer available, order tube 1806487C91 and clamp 1802981C1, Includes: Ref. 21A & 21B
-
21A2NUT 5/8''-24; NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated
-
21B2SLEEVE 3/8'' Tube; - tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated
-
211TUBE 0.375'' OD; - pump to filter (Replaces tube assembly 691887C91)
-
1CLAMP; - tube, used with tube 1806487C91
-
222CLAMP; - primary pump to final filter and primary filter to primary pump tube
-
1BOLT Hex, 1/4'' - 20 x 1/2'', Gr 8; (Replaces bolt 25752R1) Hex, 1/4''-20 x 1/2'', G8, Full Thd
-
1NUT; - speed
-
1WASHER; - primary pump
-
232RUBBER BUSHING; SLEEVE - rubber, fuel pipe, 3/8 inch ID
-
231GROMMET; - injection tube, fuel pipe
-
232GROMMET; CUSHION - fuel pipe (Replaces cushion 536410R1)
-
242ELBOW; - primary filter outlet and final filter inlet, 90 degree compression x 3/8 tube OD x 1/4 inch PT (Replaces elbow 606845C1)
-
251TUBE 0.375'' OD, 22.25'' Length; ASSEMBLY - primary filter to primary pump, Includes: Ref. 25A & 25B
-
251TUBE; ASSEMBLY - primary filter to primary pump, used with 5088 tractors, Includes: Ref. 25A & 25B
-
25A2NUT 5/8''-24; NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated
-
25B2SLEEVE 3/8'' Tube; - tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated
-
1CLAMP 3/8'', Insul, 3/8'' Bolt; (Replaces clamp 299404C1) 3/8'', Insul, 3/8'' Bolt
-
26UARVALVE; - bleeder
-

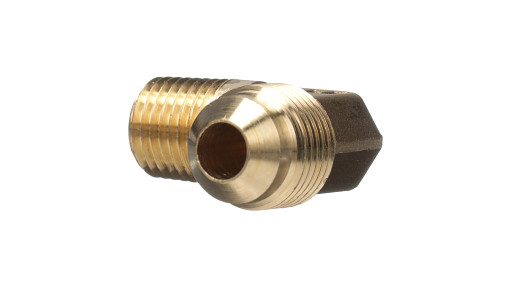

271ELBOW 90 Degree, 5/8''-18, 45 Degree Fl x 1/4'' NPT; - 90 degree x 5/8 inch x 1/4 inch PT, final filter outlet (Replaces elbow 118755)
-
271FITTING; TEE - 45 degree flare, no longer used, order elbow 222-768
-
1PLUG Hex Hd, 1/8''-27, Brass; - hex, 1/8 inch PT (Replaces plug 444614)
-
281HEAD ASSY.; HEADER - fuel filter (Replaces header 676143C2)
-
3BOLT Hex, 3/8'' - 16 x 4-1/4'', Gr 8; (Replaces bolt 25784R1) Hex, 3/8''-16 x 4 1/4'', G8
-
3WASHER 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardened
-
281HEAD; ER - filter, used with 5088 tractors
-
2PLUG Hex Soc, 1/4''-18, Brass; - hex socket, 1/4 inch PT
-
2BOLT Hex, 3/8'' - 16 x 3-1/4'', Gr 8; (Replaces bolt 25500R1) Hex, 3/8''-16 x 3 1/4'', G8
-
2WASHER 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardened
-
291SEPARATOR; FILTER - primary fuel, will work for 625625C1 (Replaces filter 625627C1)
-

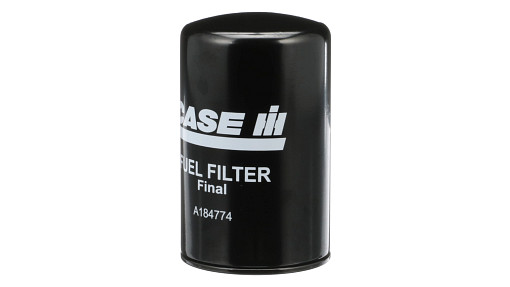

301FUEL FILTER; FILTER - final fuel
-

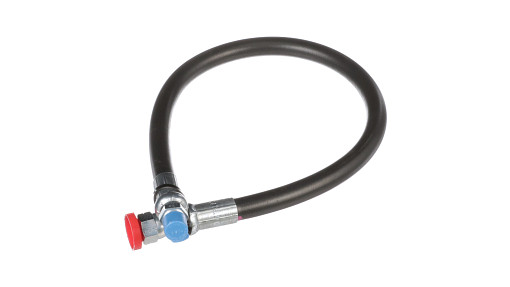

311HOSE; - final filter to injection pump (Replaces hose 684167C1 by also ordering elbow 118755)
-
324CLAMP; - hose, final fuel to injection pump and primary filter to no. 2 injection pipe
-
2BOLT Hex, 1/4'' - 20 x 3/4'', Gr 8; (Replaces bolt 25222R1) Hex, 1/4''-20 x 3/4'', G8, Full Thd
-
2NUT 1/4''-20, GB; NUT, LOCK, (Replaces nut 24468R1) 1/4''-20, GB
-
331ELBOW; - male, 1/8 inch NPT x 90 degree
-
331ELBOW; - flex, side outlet, 90 degree x 1/4 inch tube x 1/8 inch NPT, used with 986, 1486, 1586, 3388, 3688, 6388 and hydro 86 tractors
-
1PLUG Hex Soc, 1/8'' - 27 NPTF; - hex socket, 1/8 inch PT
-
341TUBE 1'' OD; ASSEMBLY - lubricating oil, Includes: Ref. 34A & 34B
-
341TUBE; ASSEMBLY - lubricating oil, used with 986, 1486, 1586, 3388, 3688, 5088, 6388 and hydro 186 tractors, Includes: Ref. 34A & 34B
-
34A2SLEEVE 1/4'' Tube; (Replaces sleeve 915500R1), Not illustrated 1/4'' Tube
-
34B2TUBE NUT 1/2''-24; NUT - hex, 1/4 tube OD x 1/2-24 inch (Replaces nut 915499R1), not illustrated
-
351INSTRUCTION; ELBOW - injection pump hose, furnished as part of injection pump
-
361INSTRUCTION; PUMP ASSEMBLY - fuel injection, parts list Figure 9D-49A
-
37190 ELBOW; - flex lube oil inlet, 1/4 inch NPT x 90 degree
-
381HUB; - injection pump gear
-
391PLATE; - gear retainer
-
3BOLT Hex, 5/16'' - 24 x 1 1/2'', Gr 8; SCREW - hex, 5/16 NC x 1-1/2 inch (Replaces screw 21512R1)
-
401GASKET; - injection pump mounting adapter
-
412STUD; - used only with gray iron adapter 676928C1
-
1ADAPTER; ASSEMBLY - injection pump mounting, used with all tractors except 3388 and 6388 tractors, Includes: Ref. 42 - 45
-
1ADAPTER; ASSEMBLY - injection pump mounting, used with 3388, 5088 and 6388 tractors, Includes: Ref. 42 - 45
-
422PIN; - dowel, 1/4 x 5/8 inch
-
431NOT SOLD SEPARAT; ADAPTER - injection pump, order adapter assembly
-
1DRAIN PLUG Sq Soc, 3/4'' - 14 NPTF; PLUG - hex socket, 1/4 inch PT (Replaces plug 9409949)
-
442STUD; - pump mounting
-
451DOWEL 3/4'' x 1 3/4''; PIN - dowel, 3/4 x 1-3/4 inch
-
462SPACER; - tachometer plate
-
471GEAR; - tachometer drive, 32 tooth
-
481PLATE; - tachometer thrust drive
-
2LOCK NUT 5/16''-24, GC; NUT, LOCK, (Replaces nut 273767) 5/16''-24, GC
-
491GEAR; - injection pump, 33 tooth
-
501CLIP; - electric cable
-
1BOLT Hex, 3/8'' - 16 x 1/2'', Gr 8; - hex lock, 3/8 NC x 1/2 inch, grade 8
-
1WASHER 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardened
-
531ADAPTER 1/4'' NPT x 5/8'' - 24 NPT; FITTING - fuel return tube orifice (Replaces fitting 606819C1 in fuel return line by also ordering elbow 217-21)
-
2NUT 3/8''-24, G8; (Replaces nut 25523R1) 3/8''-24, G8
-
1BOLT Hex, 5/16'' - 18 x 2'', Gr 8; (Replaces bolt 25232R1) Hex, 5/16''-18 x 2'', G8
-
2BOLT Hex, 5/16'' - 18 x 2-1/2'', Gr 8; Adapter to front cover (Replaces bolt 25235R1) Hex, 5/16''-18 x 2 1/2'', G8
-
2BOLT Hex, 5/16'' - 24 x 2 1/4'', Gr 8; SCREW - hex, 5/16 NC x 2-1/4 inch
-
10WASHER 8.74mm ID x 17.48mm OD x 2.26mm Thk; - flat, 11/32 x 11/16 x 3/32 inch, hardened
-
2WASHER 10.31mm ID x 20.63mm OD x 3.4mm Thk; (Replaces washer 25544R1) 13/32'' x 13/16'' x .134'', HDN
-
2WASHER 8.74mm ID x 17.48mm OD x 2.26mm Thk; - flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)
-
2COPPER WASHER 8.33mm ID x 14.28mm OD x 1.58mm Thk; - flat, copper
-
UARHOSE; HOSE - bulk, 10 foot (3048 mm) roll, sold by the foot
Select All
Select
Ref.
1Qty
1Availability
Part #
1802452C1Description
CAP; - fuel return injector no. 1 (Replaces cap 646547C1)Img
Alts
Select
Ref.
2Qty
13Availability
Part #
A180159Description
CLAMP 10.29mm - 12.32mm; - injector leakoff hose (Replaces clamps 677129C1 and 1802453C1)Img
Alts
Select
Ref.
5Qty
6Availability
Part #
675479C2Description
CLAMP; CRAB - injection nozzleImg
Alts
Select
Ref.
Qty
1Availability
Part #
691105C1Description
BOLT; - hex, 5/16 NC x 1-1/16 inch, injector crab (Together with crab 675479C2, replaces bolt 684497C1 and washer 675677C1)Img
Alts
Select
Ref.
6Qty
6Availability
Part #
REFDescription
INSTRUCTION; NOZZLE ASSEMBLY - injection, parts list Figure 9D-74Img
Alts
Select
Ref.
Qty
6Availability
Part #
1342831C1Description
SEAL; GROMMET - injection dust cover (Replaces grommet 682810C1)Img
Alts
Select
Ref.
7Qty
1Availability
Part #
680126C1Description
INJECTION PIPE; - injection cylinder no. 6, used with hydro 186 tractors;Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000Img
Alts
Select
Ref.
7Qty
1Availability
Part #
684516C1Description
PIPE; - injection cylinder no. 6, used with 986 and 3688 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbersImg
Alts
Select
Ref.
7Qty
1Availability
Part #
688856C1Description
PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection cylinder no. 6, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 1000394 and after, 3388, 5088 and 6388 tractorsImg
Alts
Select
Ref.
8Qty
1Availability
Part #
680125C1Description
PIPE; - injection cylinder no. 5;Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000Img
Alts
Select
Ref.
8Qty
1Availability
Part #
684515C1Description
PIPE; - injection cylinder no. 5, used with 986 and 3688 tractors, hydro 186 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbers prior to 100394, Hydro 100Img
Alts
Select
Ref.
8Qty
1Availability
Part #
688855C1Description
PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection cylinder no. 5, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 100394 and after, 3388, 5088 and 6388 tractorsImg
Alts
Select
Ref.
9Qty
1Availability
Part #
680124C1Description
PIPE; - injection cylinder no. 4;Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000Img
Alts
Select
Ref.
9Qty
1Availability
Part #
684514C1Description
PIPE; - injection cylinder no. 4, used with 986 and 3688 tractors, hydro 186 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbersImg
Alts
Select
Ref.
9Qty
1Availability
Part #
688854C1Description
PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection cylinder no. 4, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 100394 and after, 3388, 5088 and 6388 tractorsImg
Alts
Select
Ref.
10Qty
1Availability
Part #
684513C1Description
PIPE; - injection cylinder no. 3, used with 986 and 3688 tractors, hydro 186 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbers;Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000;old book shows item # 10 680123c1 is also used on 1566 kl CAM 3/7/2000Img
Alts
Select
Ref.
10Qty
1Availability
Part #
688853C1Description
PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection cylinder no. 3, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 100394 and after, 3388, 5088 and 6388 tractorsImg
Alts
Select
Ref.
10Qty
1Availability
Part #
680123C1Description
PIPE; PIPE - injection cylinder no. 3; Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000Img
Alts
Select
Ref.
11Qty
1Availability
Part #
680122C1Description
PIPE; - injection cylinder no. 2;Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000Img
Alts
Select
Ref.
11Qty
1Availability
Part #
684512C1Description
PIPE; - injection cylinder no. 2, used with 986 and 3688 tractors, hydro 186 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbersImg
Alts
Select
Ref.
11Qty
1Availability
Part #
688852C1Description
PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection cylinder no. 2, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 100394 and after, 3388, 5088 and 6388 tractorsImg
Alts
Select
Ref.
12Qty
1Availability
Part #
680121C1Description
PIPE; - injection cylinder no. 1;Re. the injection pipes....the numbers beginning with 680 (ie. 680125c1) will work in a 1466/1566 tractor application. kl CAM 3/7/2000Img
Alts
Select
Ref.
12Qty
1Availability
Part #
684511C1Description
PIPE; - injection cylinder no. 1, used with 986 and 3688 tractors, hydro 186 tractors, 1486 tractors with engine serial numbers prior to 100078, 1586 tractors with engine serial numbersImg
Alts
Select
Ref.
12Qty
1Availability
Part #
688851C1Description
PIPE 0.072'' ID, 0.25'' OD, 35.5'' Length; TUBE - injection cylinder no. 1, used with 1486 tractors with engine serial number 100078 and after, 1586 tractors with engine serial number 100394 and after, 3388, 5088 and 6388 tractorsImg
Alts
Select
Ref.
Qty
2Availability
Part #
231-1444Description

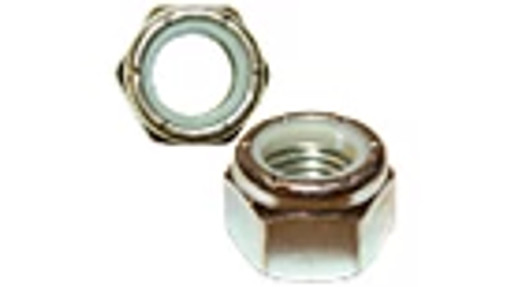

NUT 1/4''-20, GB; NUT, LOCK, (Replaces nut 24468R1) 1/4''-20, GBImg
Alts
Select
Ref.
Qty
1Availability
Part #
326-412Description
BOLT Hex, 1/4'' - 20 x 3/4'', Gr 8; (Replaces bolt 25222R1) Hex, 1/4''-20 x 3/4'', G8, Full ThdImg
Alts
Select
Ref.
14Qty
12Availability
Part #
258079C1Description
GROMMET; - injection tube, fourteen used on 986, 1486, 1586, 3688, 5088 and hydro 186 tractorsImg
Alts
Select
Ref.
15Qty
2Availability
Part #
673577C1Description
CLAMP; - duplex tube, three used on 986, 1486, 1586, 3688, 5088 and hydro 186 tractorsImg
Alts
Select
Ref.
16Qty
6Availability
Part #
673527C1Description
CLAMP; - fuel tube, injection pipe, eight used on 986, 1486, 1586, 3688, 5088 and hydro 186 tractorsImg
Alts
Select
Ref.
Qty
3Availability
Part #
326-48Description
BOLT Hex, 1/4'' - 20 x 1/2'', Gr 8; (Replaces bolt 25752C1) Hex, 1/4''-20 x 1/2'', G8, Full ThdImg
Alts
Select
Ref.
Qty
3Availability
Part #
684548C1Description
NUT; - spring, used with 986, 1486, 1586, 3688 and hydro 186 tractorsImg
Alts
Select
Ref.
Qty
1Availability
Part #
340-12512Description
SCREW Cross Pan Hd, 1/4''-20 x 3/4''; - machine, pan Phillips, hex, 1/4 NC x 3/4 inch (Replaces screw 113957)Img
Alts
Select
Ref.
Qty
3Availability
Part #
1276056C1Description
SELF-TAP SCREW Cross Pan Hd, 1/4'' x 1 1/4''; SCREW - slotted head, 1/4 NC x 1-1/4 inch (Replaces screw 113961)Img
Alts
Select
Ref.
Qty
4Availability
Part #
684548C1Description
NUT; - spring, 1/4 inch NC, no longer availableImg
Alts
Select
Ref.
17Qty
2Availability
Part #
222-27Description
HYD CONNECTOR 5/8''-24 x 1/4'' NPTF W/Nut; ADAPTER - primary pump inlet, primary filter to injection pump tube and final filter to injection pump tube, compression, 3/8 tube OD x 1/4 inch PT (Replaces connector 606819C1)Img
Alts
Select
Ref.
18Qty
1Availability
Part #
680316C91Description
TUBE 0.375'' OD, 28.88'' Length; ASSEMBLY - fuel return lower, Includes: Ref. 18A & Ref. 18BImg
Alts
Select
Ref.
18AQty
2Availability
Part #
222-114Description

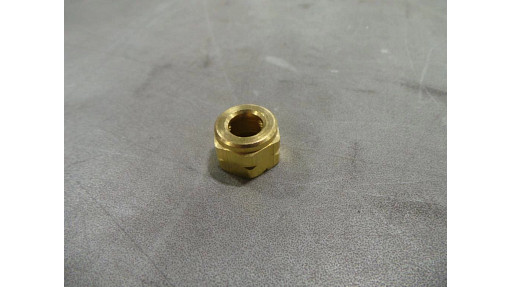

NUT 5/8''-24; NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustratedImg
Alts
Select
Ref.
18BQty
2Availability
Part #
222-104Description
SLEEVE 3/8'' Tube; - tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustratedImg
Alts
Select
Ref.
19Qty
1Availability
Part #
673196C1Description
TEE; - fuel leakoff, used with 1466, 1566, 4166, 4186 and hydro 100 tractorsImg
Alts
Select
Ref.
19Qty
1Availability
Part #
689382C1Description
TEE; - fuel leakoff, used with 986, 1486, 1586, 3688, 3688, 5088, 6388 and hydro 186 tractorsImg
Alts
Select
Ref.
Qty
2Availability
Part #
326-612Description
BOLT Hex, 3/8'' - 16 x 3/4'', Gr 8; (Replaces bolt 24839R1) Hex, 3/8''-16 x 3/4'', G8, Full ThdImg
Alts
Select
Ref.
Qty
2Availability
Part #
396-21041Description
WASHER 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardenedImg
Alts
Select
Ref.
21Qty
1Availability
Part #
684077C91Description
TUBE 0.375'' OD, 15.75'' Length; ASSEMBLY - primary pump to final filter, will work for 671815C91, Includes: Ref. 21A & 21BImg
Alts
Select
Ref.
21Qty
1Availability
Part #
691887C91Description
TUBE; ASSEMBLY - primary pump to final filter, used with 5088 tractors, no longer available, order tube 1806487C91 and clamp 1802981C1, Includes: Ref. 21A & 21BImg
Alts
Select
Ref.
21AQty
2Availability
Part #
222-114Description
NUT 5/8''-24; NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustratedImg
Alts
Select
Ref.
21BQty
2Availability
Part #
222-104Description
SLEEVE 3/8'' Tube; - tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustratedImg
Alts
Select
Ref.
21Qty
1Availability
Part #
1806487C91Description
TUBE 0.375'' OD; - pump to filter (Replaces tube assembly 691887C91)Img
Alts
Select
Ref.
Qty
1Availability
Part #
1802981C1Description
CLAMP; - tube, used with tube 1806487C91Img
Alts
Select
Ref.
22Qty
2Availability
Part #
279830R1Description
CLAMP; - primary pump to final filter and primary filter to primary pump tubeImg
Alts
Select
Ref.
Qty
1Availability
Part #
326-48Description
BOLT Hex, 1/4'' - 20 x 1/2'', Gr 8; (Replaces bolt 25752R1) Hex, 1/4''-20 x 1/2'', G8, Full ThdImg
Alts
Select
Ref.
23Qty
2Availability
Part #
673171C1Description
RUBBER BUSHING; SLEEVE - rubber, fuel pipe, 3/8 inch IDImg
Alts
Select
Ref.
23Qty
1Availability
Part #
258079C1Description
GROMMET; - injection tube, fuel pipeImg
Alts
Select
Ref.
23Qty
2Availability
Part #
397483R1Description
GROMMET; CUSHION - fuel pipe (Replaces cushion 536410R1)Img
Alts
Select
Ref.
24Qty
2Availability
Part #
222-4047Description
ELBOW; - primary filter outlet and final filter inlet, 90 degree compression x 3/8 tube OD x 1/4 inch PT (Replaces elbow 606845C1)Img
Alts
Select
Ref.
25Qty
1Availability
Part #
684075C91Description
TUBE 0.375'' OD, 22.25'' Length; ASSEMBLY - primary filter to primary pump, Includes: Ref. 25A & 25BImg
Alts
Select
Ref.
25Qty
1Availability
Part #
691885C91Description
TUBE; ASSEMBLY - primary filter to primary pump, used with 5088 tractors, Includes: Ref. 25A & 25BImg
Alts
Select
Ref.
25AQty
2Availability
Part #
222-114Description
NUT 5/8''-24; NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustratedImg
Alts
Select
Ref.
25BQty
2Availability
Part #
222-104Description
SLEEVE 3/8'' Tube; - tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustratedImg
Alts
Select
Ref.
Qty
1Availability
Part #
515-2395Description
CLAMP 3/8'', Insul, 3/8'' Bolt; (Replaces clamp 299404C1) 3/8'', Insul, 3/8'' BoltImg
Alts
Select
Ref.
27Qty
1Availability
Part #
222-768Description
ELBOW 90 Degree, 5/8''-18, 45 Degree Fl x 1/4'' NPT; - 90 degree x 5/8 inch x 1/4 inch PT, final filter outlet (Replaces elbow 118755)Img
Alts
Select
Ref.
27Qty
1Availability
Part #
1800602C1Description
FITTING; TEE - 45 degree flare, no longer used, order elbow 222-768Img
Alts
Select
Ref.
Qty
1Availability
Part #
217-84Description
PLUG Hex Hd, 1/8''-27, Brass; - hex, 1/8 inch PT (Replaces plug 444614)Img
Alts
Select
Ref.
28Qty
1Availability
Part #
1809590C91Description
HEAD ASSY.; HEADER - fuel filter (Replaces header 676143C2)Img
Alts
Select
Ref.
Qty
3Availability
Part #
326-668Description

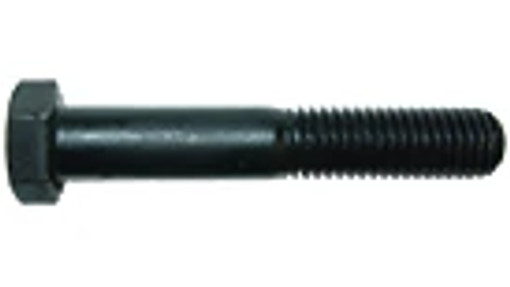

BOLT Hex, 3/8'' - 16 x 4-1/4'', Gr 8; (Replaces bolt 25784R1) Hex, 3/8''-16 x 4 1/4'', G8Img
Alts
Select
Ref.
Qty
3Availability
Part #
396-21041Description
WASHER 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardenedImg
Alts
Select
Ref.
28Qty
1Availability
Part #
688266C1Description
HEAD; ER - filter, used with 5088 tractorsImg
Alts
Select
Ref.
Qty
2Availability
Part #
444693Description
PLUG Hex Soc, 1/4''-18, Brass; - hex socket, 1/4 inch PTImg
Alts
Select
Ref.
Qty
2Availability
Part #
326-652Description
BOLT Hex, 3/8'' - 16 x 3-1/4'', Gr 8; (Replaces bolt 25500R1) Hex, 3/8''-16 x 3 1/4'', G8Img
Alts
Select
Ref.
Qty
2Availability
Part #
396-21041Description
WASHER 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardenedImg
Alts
Select
Ref.
29Qty
1Availability
Part #
A184773Description

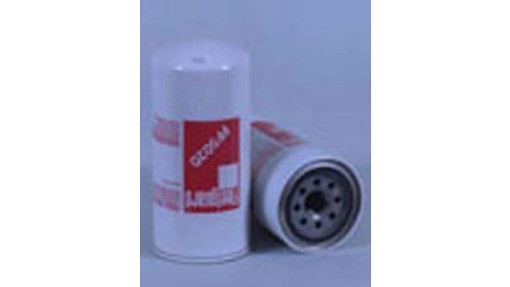

SEPARATOR; FILTER - primary fuel, will work for 625625C1 (Replaces filter 625627C1)Img
Alts
Select
Ref.
30Qty
1Availability
Part #
A184774Description
FUEL FILTER; FILTER - final fuelImg
Alts
Select
Ref.
31Qty
1Availability
Part #
688190C1Description
HOSE; - final filter to injection pump (Replaces hose 684167C1 by also ordering elbow 118755)Img
Alts
Select
Ref.
32Qty
4Availability
Part #
684899C1Description
CLAMP; - hose, final fuel to injection pump and primary filter to no. 2 injection pipeImg
Alts
Select
Ref.
Qty
2Availability
Part #
326-412Description
BOLT Hex, 1/4'' - 20 x 3/4'', Gr 8; (Replaces bolt 25222R1) Hex, 1/4''-20 x 3/4'', G8, Full ThdImg
Alts
Select
Ref.
Qty
2Availability
Part #
231-1444Description
NUT 1/4''-20, GB; NUT, LOCK, (Replaces nut 24468R1) 1/4''-20, GBImg
Alts
Select
Ref.
33Qty
1Availability
Part #
319615R1Description
ELBOW; - male, 1/8 inch NPT x 90 degreeImg
Alts
Select
Ref.
33Qty
1Availability
Part #
686839C1Description
ELBOW; - flex, side outlet, 90 degree x 1/4 inch tube x 1/8 inch NPT, used with 986, 1486, 1586, 3388, 3688, 6388 and hydro 86 tractorsImg
Alts
Select
Ref.
Qty
1Availability
Part #
217-430Description
PLUG Hex Soc, 1/8'' - 27 NPTF; - hex socket, 1/8 inch PTImg
Alts
Select
Ref.
34Qty
1Availability
Part #
673165C91Description
TUBE 1'' OD; ASSEMBLY - lubricating oil, Includes: Ref. 34A & 34BImg
Alts
Select
Ref.
34Qty
1Availability
Part #
688301C91Description
TUBE; ASSEMBLY - lubricating oil, used with 986, 1486, 1586, 3388, 3688, 5088, 6388 and hydro 186 tractors, Includes: Ref. 34A & 34BImg
Alts
Select
Ref.
34AQty
2Availability
Part #
222-102Description
SLEEVE 1/4'' Tube; (Replaces sleeve 915500R1), Not illustrated 1/4'' TubeImg
Alts
Select
Ref.
34BQty
2Availability
Part #
87017024Description
TUBE NUT 1/2''-24; NUT - hex, 1/4 tube OD x 1/2-24 inch (Replaces nut 915499R1), not illustratedImg
Alts
Select
Ref.
35Qty
1Availability
Part #
REFDescription
INSTRUCTION; ELBOW - injection pump hose, furnished as part of injection pumpImg
Alts
Select
Ref.
36Qty
1Availability
Part #
REFDescription
INSTRUCTION; PUMP ASSEMBLY - fuel injection, parts list Figure 9D-49AImg
Alts
Select
Ref.
37Qty
1Availability
Part #
606296C1Description
90 ELBOW; - flex lube oil inlet, 1/4 inch NPT x 90 degreeImg
Alts
Select
Ref.
Qty
3Availability
Part #
27366R1Description
BOLT Hex, 5/16'' - 24 x 1 1/2'', Gr 8; SCREW - hex, 5/16 NC x 1-1/2 inch (Replaces screw 21512R1)Img
Alts
Select
Ref.
40Qty
1Availability
Part #
675609C2Description

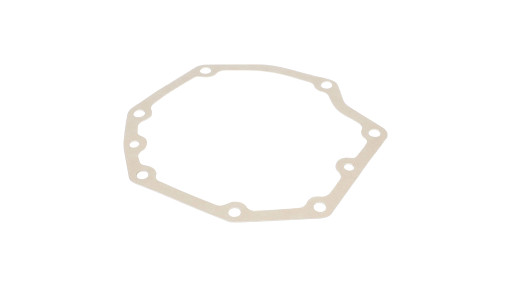

GASKET; - injection pump mounting adapterImg
Alts
Select
Ref.
41Qty
2Availability
Part #
670364C2Description
STUD; - used only with gray iron adapter 676928C1Img
Alts
Select
Ref.
Qty
1Availability
Part #
676942C93Description
ADAPTER; ASSEMBLY - injection pump mounting, used with all tractors except 3388 and 6388 tractors, Includes: Ref. 42 - 45Img
Alts
Select
Ref.
Qty
1Availability
Part #
689146C91Description
ADAPTER; ASSEMBLY - injection pump mounting, used with 3388, 5088 and 6388 tractors, Includes: Ref. 42 - 45Img
Alts
Select
Ref.
43Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; ADAPTER - injection pump, order adapter assemblyImg
Alts
Select
Ref.
Qty
1Availability
Part #
217-469Description

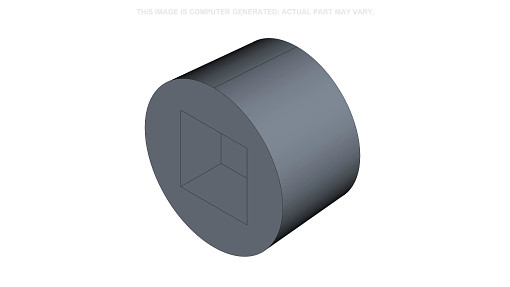

DRAIN PLUG Sq Soc, 3/4'' - 14 NPTF; PLUG - hex socket, 1/4 inch PT (Replaces plug 9409949)Img
Alts
Select
Ref.
45Qty
1Availability
Part #
19968R1Description
DOWEL 3/4'' x 1 3/4''; PIN - dowel, 3/4 x 1-3/4 inchImg
Alts
Select
Ref.
47Qty
1Availability
Part #
676938C1Description
GEAR; - tachometer drive, 32 toothImg
Alts
Select
Ref.
48Qty
1Availability
Part #
676937C1Description
PLATE; - tachometer thrust driveImg
Alts
Select
Ref.
Qty
2Availability
Part #
232-4615Description
LOCK NUT 5/16''-24, GC; NUT, LOCK, (Replaces nut 273767) 5/16''-24, GCImg
Alts
Select
Ref.
49Qty
1Availability
Part #
676922C2Description
GEAR; - injection pump, 33 toothImg
Alts
Select
Ref.
Qty
1Availability
Part #
27431R1Description
BOLT Hex, 3/8'' - 16 x 1/2'', Gr 8; - hex lock, 3/8 NC x 1/2 inch, grade 8Img
Alts
Select
Ref.
Qty
1Availability
Part #
396-21041Description
WASHER 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardenedImg
Alts
Select
Ref.
53Qty
1Availability
Part #
687426C1Description

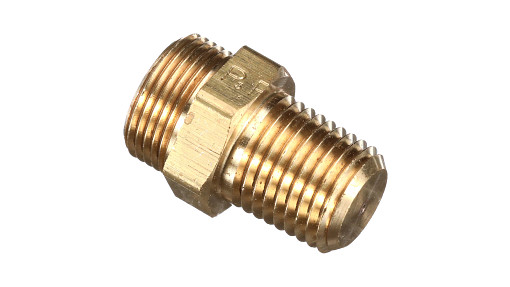

ADAPTER 1/4'' NPT x 5/8'' - 24 NPT; FITTING - fuel return tube orifice (Replaces fitting 606819C1 in fuel return line by also ordering elbow 217-21)Img
Alts
Select
Ref.
Qty
2Availability
Part #
329-116Description
NUT 3/8''-24, G8; (Replaces nut 25523R1) 3/8''-24, G8Img
Alts
Select
Ref.
Qty
1Availability
Part #
326-532Description
BOLT Hex, 5/16'' - 18 x 2'', Gr 8; (Replaces bolt 25232R1) Hex, 5/16''-18 x 2'', G8Img
Alts
Select
Ref.
Qty
2Availability
Part #
326-540Description
BOLT Hex, 5/16'' - 18 x 2-1/2'', Gr 8; Adapter to front cover (Replaces bolt 25235R1) Hex, 5/16''-18 x 2 1/2'', G8Img
Alts
Select
Ref.
Qty
2Availability
Part #
27292R1Description
BOLT Hex, 5/16'' - 24 x 2 1/4'', Gr 8; SCREW - hex, 5/16 NC x 2-1/4 inchImg
Alts
Select
Ref.
Qty
10Availability
Part #
396-21034Description
WASHER 8.74mm ID x 17.48mm OD x 2.26mm Thk; - flat, 11/32 x 11/16 x 3/32 inch, hardenedImg
Alts
Select
Ref.
Qty
2Availability
Part #
396-31041Description
WASHER 10.31mm ID x 20.63mm OD x 3.4mm Thk; (Replaces washer 25544R1) 13/32'' x 13/16'' x .134'', HDNImg
Alts
Select
Ref.
Qty
2Availability
Part #
396-21034Description
WASHER 8.74mm ID x 17.48mm OD x 2.26mm Thk; - flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)Img
Alts
Select
Ref.
Qty
2Availability
Part #
302861R1Description
COPPER WASHER 8.33mm ID x 14.28mm OD x 1.58mm Thk; - flat, copperImg
Alts
Select
Ref.
Qty
UARAvailability
Part #
680246CXDescription

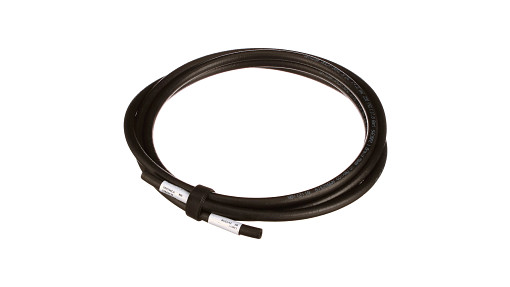

HOSE; HOSE - bulk, 10 foot (3048 mm) roll, sold by the footImg
Alts
