Ref.
Qty
Part #
Alts
Description
-
1ENGINE; - block, short, remanufactured (North America only), component parts do not apply to the remanufactured assembly, no longer available
-
1CORE-ENGINE; RETURN NUMBER - use this part number to return engine for credit when using a remanufactured assembly
-
1ENGINE; - block, short, new;Consists of: Camshaft with gear and bearings, connecting rods with bearings, crankcase assembly, crankshaft with bearings, gear and seals, oil pump, pistons with pins and rings, rear bearing cap filler plugs, tappets, no longer available
-
1KIT; KIT - gasket, crankcase, Includes: Ref. 1 - 16A, no longer available as a kit, order components (Replaces gasket set 332652R91)
-
11GASKET; - push rod cover
-
21GASKET; - crankcase front cover
-
31GASKET; - crankcase front plate
-
41GASKET; - crankcase oil pan
-
51GASKET; - injection pump adapter
-
61GASKET; - injection pump gear cover
-
71GASKET; - lubricating oil filter base
-
81GASKET; - lubricating oil pressure, relief valve plug
-
91MANIFOLD GASKET; - oil cooler manifold
-
101RING; GASKET - oil filter case
-
1GASKET; - oil pan drain plug
-
1GASKET; - oil pan shaft support
-
111GASKET; - oil pump body
-
121GASKET; - breather pipe flange
-
1GASKET; - relief valve plug
-
131GASKET; - water pump
-
141GASKET; - water trap
-
2O-RING 18.6mm ID x 3.53mm Thk, NBR; Oil cooler to manifold -210, 70 Duro, .734'' ID x .139'' Thk
-
1GASKET; - center tube
-
151GASKET; - crankcase front cover
-
1GASKET; - hydraulic gear pump
-
1O-RING 26.6mm ID x 3.53mm Thk, NBR; - pump adapter, 1-1/16 ID x 1/8 inch (Replaces O-ring 254954R1)
-
161GASKET; - water pump plate
-
16A2PLUG; - rear bearing cap filler, Not Shown
-
1GASKET KIT; KIT - gasket, valve grinding (Replaces kit 310446R95), Includes: Ref. 17 - 21
-
171CYLINDER HEAD GASKET; - cylinder head (Replaces gasket 601509C1)
-
182MANIFOLD GASKET; - exhaust manifold center
-
192MANIFOLD GASKET; - exhaust manifold ends
-
201MANIFOLD GASKET; - intake manifold
-
1GASKET; - thermostat housing
-
211GASKET 1.19mm Thk; - valve cover
-
4WASHER; - valve cover
Select All
Ref.
Qty
1Availability
Part #
749151C91Description
ENGINE; - block, short, remanufactured (North America only), component parts do not apply to the remanufactured assembly, no longer availableImg
Alts
Ref.
Qty
1Availability
Part #
1928035C1Description
CORE-ENGINE; RETURN NUMBER - use this part number to return engine for credit when using a remanufactured assemblyImg
Alts
Ref.
Qty
1Availability
Part #
345245R92Description
ENGINE; - block, short, new;Consists of: Camshaft with gear and bearings, connecting rods with bearings, crankcase assembly, crankshaft with bearings, gear and seals, oil pump, pistons with pins and rings, rear bearing cap filler plugs, tappets, no longer availableImg
Alts
Ref.
Qty
1Availability
Part #
530035R91Description
KIT; KIT - gasket, crankcase, Includes: Ref. 1 - 16A, no longer available as a kit, order components (Replaces gasket set 332652R91)Img
Alts
Ref.
7Qty
1Availability
Part #
349039R1Description
GASKET; - lubricating oil filter baseImg
Alts
Ref.
8Qty
1Availability
Part #
601790C2Description
GASKET; - lubricating oil pressure, relief valve plugImg
Alts
Ref.
9Qty
1Availability
Part #
349038R2Description
MANIFOLD GASKET; - oil cooler manifoldImg
Alts
Ref.
Qty
2Availability
Part #
238-5210Description

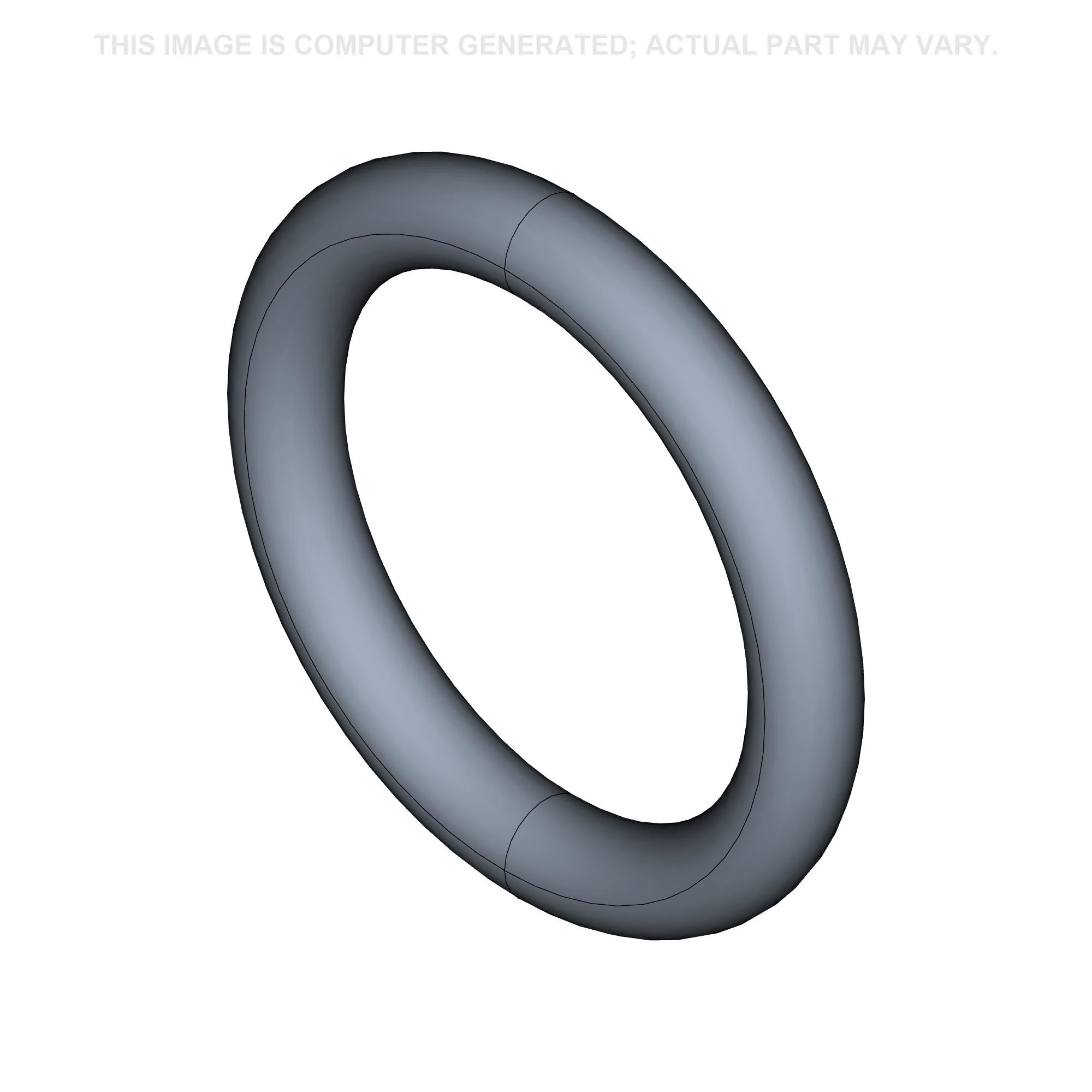

O-RING 18.6mm ID x 3.53mm Thk, NBR; Oil cooler to manifold -210, 70 Duro, .734'' ID x .139'' ThkImg
Alts
Ref.
Qty
1Availability
Part #
238-5215Description
O-RING 26.6mm ID x 3.53mm Thk, NBR; - pump adapter, 1-1/16 ID x 1/8 inch (Replaces O-ring 254954R1)Img
Alts
Ref.
16AQty
2Availability
Part #
310665R1Description
PLUG; - rear bearing cap filler, Not ShownImg
Alts
Ref.
Qty
1Availability
Part #
134403A1Description
GASKET KIT; KIT - gasket, valve grinding (Replaces kit 310446R95), Includes: Ref. 17 - 21Img
Alts
Ref.
17Qty
1Availability
Part #
134400A1Description
CYLINDER HEAD GASKET; - cylinder head (Replaces gasket 601509C1)Img
Alts
Ref.
18Qty
2Availability
Part #
278314R1Description
MANIFOLD GASKET; - exhaust manifold centerImg
Alts
Ref.
19Qty
2Availability
Part #
278313R3Description
MANIFOLD GASKET; - exhaust manifold endsImg
Alts
