Ref.
Qty
Part #
Alts
Description
-
11COVER; - valve housing
-
4BOLT Hex, 5/16'' - 18 x 4-1/2'', Gr 5; - hex, 5/16 NC x 4-1/2 inch (Replaces bolt 187953)
-
21GASKET; - valve housing cover
-
34RING 7.5mm ID x 15mm OD x 4mm Thk; - valve housing cover bolt
-
44ADAPTER; - valve housing cover, used only wth cylinder heads 3055050R1, 3055051R2, 3055656R1 and 3055656R2
-
51SHAFT; - rocker arm
-
2PLUG M14, Conical; - cup, expansion
-
64CUP WASHER; WASHER - valve housing cover
-
711BUSHING 22mm ID x 30mm OD x 6.8mm L; - spacer, distance
-
812ADJUSTMENT SCREW; Rocker arm
-
96NOT SOLD SEPARAT; ARM - intake rocker, order kit 3132292R92, see below
-
1012BUSHING 21.15mm ID x 26.09mm OD x 25.4mm L; - rocker arm, used only with arms having bushing
-
1112THRUST WASHER; - thrust rocker arm
-
126SPRING; - rocker arm
-
136NOT SOLD SEPARAT; ARM - exhaust rocker, order kit 3132293R92
-
147SUPPORT; BRACKET - rocker arm shaft
-
7LOCK WASHER 5/16''; WASHER, LOCK, (Replaces washer 3050129R1) 5/16''
-
7BOLT Hex, 5/16'' - 18 x 1-1/2'', Gr 5; - hex, 5/16 NC x 1-1/2 inch (Replaces bolt 179822)
-
7BOLT Hex, 1/2'' - 13 x 3-1/4'', Gr 5; - hex, 1/2 NC x 3-1/4 inch (Replaces bolt 179894)
-
157STUD 1/2'' - 20 x 3.18''; - rocker shaft bracket
-
7NUT 1/2''-20, G5; - hex, 1/2 inch NF (Replaces nut 103028)
-
1612BOLT Cyl Hd, 9/16'' - 12 x 123mm; - hex, 9/16 NC x 5 inch (Replaces bolt 3132704R2)
-
1714BOLT Flng, 9/16'' - 12 x 5-3/4''; BOLT - hex, 9/16 NC x 5-3/4 inch (Replaces bolt 3132705R2)
-
6CYLINDER HEAD; HEAD ASSEMBLY - cylinder, used with all machines except 715 combines, 686 and hydro 86 tractors, Includes: Ref. 18 - 20
-
1HEAD; ASSEMBLY - cylinder, used with 715 combines, 686 and hydro 86 tractors, Includes: Ref. 18 - 20
-
181NOT SOLD SEPARAT; HEAD - cylinder, order head assembly
-
18A12GUIDE; - valve stem (Replaces guide 3055022R2)
-
196CINTRE; PIPE - cooling
-
19A6GUIDE RING; - nozzle holder, used with 3055368R98
-
19A6SLEEVE; INSERT - nozzle holder, used with 3055655R95
-
6NOT SOLD SEPARAT; SEAT - exhaust valve insert, order head assembly
-
206PLUG M52, Conical; - expansion, 2.05 inch, engine serial numbers 020144 and after, 55-S-1 and after, 57-S-1 and after
-
202PLUG M50, Conical; - expansion, 1.97 inch, engine serial numbers prior to 020144, prior to 55-S-1, prior to 57-S-1
-
211SEALING RING M10 x 16 x 1; Ring (25/64 x 5/8 x 3/64'') M10 x 16 x 1
-
221PLUG Hex, M10 x 1;
-
236PLUG M32, Tapered; - expansion, 32 mm (Replaces plug 933750R1)
-
236PLUG M34, Conical; - expansion, 34 mm, used only with cylinder heads 3055050R1, 3055051R2, 3055656R1, and 3055656R2
-
236PLUG M25, Tapered; - cup, expansion, 25 mm, used only with cylinder heads 3055050R3 and 3055656R3 (Replaces plug 933537R1)
-
246OVERSIZE INLET VALVE; VALVE - intake
-
256STD EXHAUST VALVE; VALVE - exhaust
-
2624ROCKER ARM COTTER; LOCK - valve spring
-
2712SPRING CUP; CAP - valve spring retainer
-
2812CAP; ROTATOR - valve
-
2812SPACER; - valve spring, no longer used, order rotator 3055059R91
-
2912SPRING; - valve, used with 715 combines, 686 and hydro 86 tractors, also used for 706 and 756 tractors;Ref# 29a P/N# 3055060r1 is also used for 706 & 756 tractors. CAM (db) 5-6-99
-
2912VALVE SPRING; SPRING - valve, used with 616 and 622 cotton pickers, 95 cotton harvesters and 782 cotton pickers
-
301DICHTUNGSSATZ; KIT - valve stem seal
-
311VALVE SEAT; INSERT - exhaust valve seat, 0.15 mm oversize (Replaces insert 3055219R1)
-
316INSERT; - exhaust valve seat, 0.40 mm oversize
-
3212STUD; - exhaust manifold (Replaces stud 3055663R1)
-
3312STUD; - water collecting pipe, used only with cylinder heads 3055050R1, 3055050R2, 3055656R1, 3055656R2
-
341CYLINDER HEAD GASKET; GASKET - cylinder head, standard (Replaces gasket 3144182R2)
-
12NUT 5/16''-24, G5; - hex, 5/16 inch NF (Replaces nut 103025)
-
341GASKET KIT; - cylinder head, 0.25 mm thinner than standard gasket 3228019R2;Caution, for use only where piston protrusion is less than .022 inch.
-
3712STUD; - nozzle holder, used with head 3059458R94
-
3712GOUJON; - nozzle holder, used with head 3055368R98 and 3132605R94, no longer available, order stud 3055412R1, item 37 above
-
381PLAQUE; SHACKLE - engine mounting right-hand, not used with 616 and 622 cotton pickers with hydrostatic transmission
-
1VIS Hex, 3/4'' - 10 x 1-1/8'', Gr 5; (Replaces bolt 271604) Hex, 3/4''-10 x 1 1/8'', G5
-
391ETRIER; SHACKLE - engine mounting, front, not used with 616 and 622 cotton pickers with hydrostatic transmission
-
1VIS Hex, 3/4'' - 10 x 1-1/8'', Gr 5; (Replaces bolt 271604) Hex, 3/4''-10 x 1 1/8'', G5
-
4026ECROU; - cylinder head stud, used only on crankcase 3055004R21, 3132604R91 and 3055991R92
-
1CULBUTEUR; KIT - rocker arm, Includes: Ref. 9 & 13
-
411KIT; HEATER - engine block, 115 volt, used with hydro 86, 686, 706 and 756 tractors, 715 combines
-

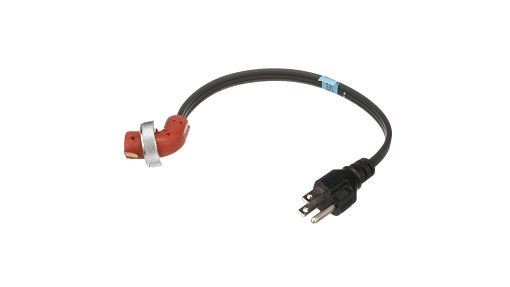

421CABLE EXTENSION; CABLE - engine block heater, 12 inch (305 mm) long (Replaces cable 71150C1);Ref #42: A44813 is 1ft. long. For 6ft. long cord, order J905113 or 196466A1. 4/12/02 CJK-TSG
-
8A12PORCA M10 x 1.5, Cl 10.9; Adjusting, Rocker Arm (Replaces nut 3132138R1) M10, Cl 10
Select All
Select
Ref.
Qty
4Availability
Part #
413-572Description
BOLT Hex, 5/16'' - 18 x 4-1/2'', Gr 5; - hex, 5/16 NC x 4-1/2 inch (Replaces bolt 187953)Img
Alts
Select
Ref.
2Qty
1Availability
Part #
3138688R2Description

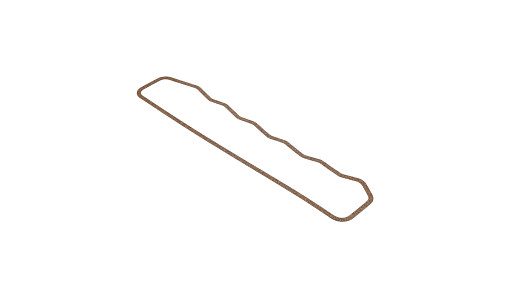

GASKET; - valve housing coverImg
Alts
Select
Ref.
3Qty
4Availability
Part #
3138638R1Description
RING 7.5mm ID x 15mm OD x 4mm Thk; - valve housing cover boltImg
Alts
Select
Ref.
4Qty
4Availability
Part #
3132764R1Description
ADAPTER; - valve housing cover, used only wth cylinder heads 3055050R1, 3055051R2, 3055656R1 and 3055656R2Img
Alts
Select
Ref.
Qty
2Availability
Part #
933565R1Description
PLUG M14, Conical; - cup, expansionImg
Alts
Select
Ref.
6Qty
4Availability
Part #
3138637R1Description

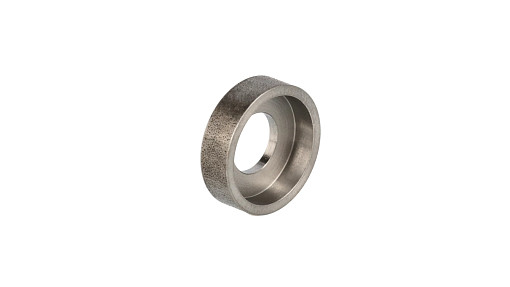

CUP WASHER; WASHER - valve housing coverImg
Alts
Select
Ref.
7Qty
11Availability
Part #
3055068R1Description
BUSHING 22mm ID x 30mm OD x 6.8mm L; - spacer, distanceImg
Alts
Select
Ref.
8Qty
12Availability
Part #
3132137R1Description
ADJUSTMENT SCREW; Rocker armImg
Alts
Select
Ref.
9Qty
6Availability
Part #
NSSDescription
NOT SOLD SEPARAT; ARM - intake rocker, order kit 3132292R92, see belowImg
Alts
Select
Ref.
10Qty
12Availability
Part #
3132019R1Description
BUSHING 21.15mm ID x 26.09mm OD x 25.4mm L; - rocker arm, used only with arms having bushingImg
Alts
Select
Ref.
11Qty
12Availability
Part #
3055669R1Description
THRUST WASHER; - thrust rocker armImg
Alts
Select
Ref.
13Qty
6Availability
Part #
NSSDescription
NOT SOLD SEPARAT; ARM - exhaust rocker, order kit 3132293R92Img
Alts
Select
Ref.
14Qty
7Availability
Part #
3055077R6Description
SUPPORT; BRACKET - rocker arm shaftImg
Alts
Select
Ref.
Qty
7Availability
Part #
492-11031Description
LOCK WASHER 5/16''; WASHER, LOCK, (Replaces washer 3050129R1) 5/16''Img
Alts
Select
Ref.
Qty
7Availability
Part #
413-524Description
BOLT Hex, 5/16'' - 18 x 1-1/2'', Gr 5; - hex, 5/16 NC x 1-1/2 inch (Replaces bolt 179822)Img
Alts
Select
Ref.
Qty
7Availability
Part #
413-852Description
BOLT Hex, 1/2'' - 13 x 3-1/4'', Gr 5; - hex, 1/2 NC x 3-1/4 inch (Replaces bolt 179894)Img
Alts
Select
Ref.
15Qty
7Availability
Part #
3055220R1Description
STUD 1/2'' - 20 x 3.18''; - rocker shaft bracketImg
Alts
Select
Ref.
Qty
7Availability
Part #
425-118Description

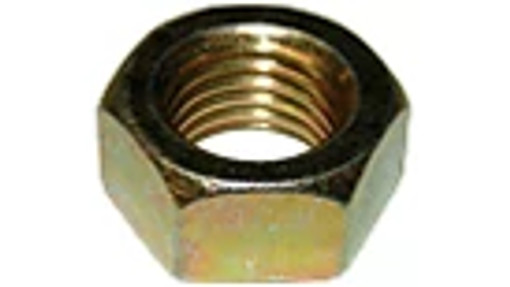

NUT 1/2''-20, G5; - hex, 1/2 inch NF (Replaces nut 103028)Img
Alts
Select
Ref.
16Qty
12Availability
Part #
3138747R1Description

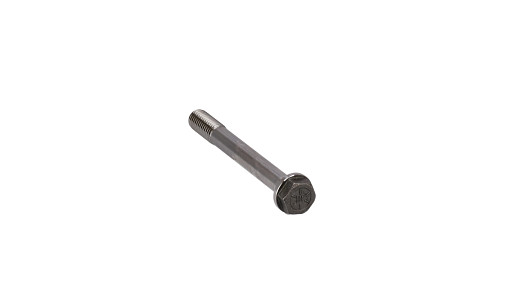

BOLT Cyl Hd, 9/16'' - 12 x 123mm; - hex, 9/16 NC x 5 inch (Replaces bolt 3132704R2)Img
Alts
Select
Ref.
17Qty
14Availability
Part #
3138748R1Description

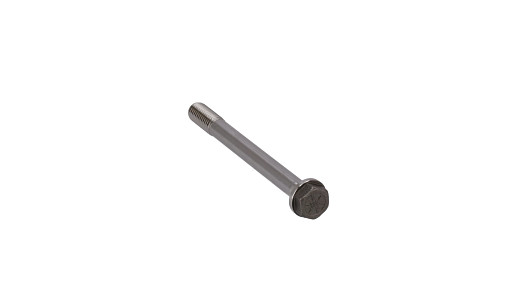

BOLT Flng, 9/16'' - 12 x 5-3/4''; BOLT - hex, 9/16 NC x 5-3/4 inch (Replaces bolt 3132705R2)Img
Alts
Select
Ref.
Qty
6Availability
Part #
3055368R98Description
CYLINDER HEAD; HEAD ASSEMBLY - cylinder, used with all machines except 715 combines, 686 and hydro 86 tractors, Includes: Ref. 18 - 20Img
Alts
Select
Ref.
Qty
1Availability
Part #
3055655R95Description
HEAD; ASSEMBLY - cylinder, used with 715 combines, 686 and hydro 86 tractors, Includes: Ref. 18 - 20Img
Alts
Select
Ref.
18Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; HEAD - cylinder, order head assemblyImg
Alts
Select
Ref.
18AQty
12Availability
Part #
129322A1Description
GUIDE; - valve stem (Replaces guide 3055022R2)Img
Alts
Select
Ref.
19AQty
6Availability
Part #
3132025R1Description

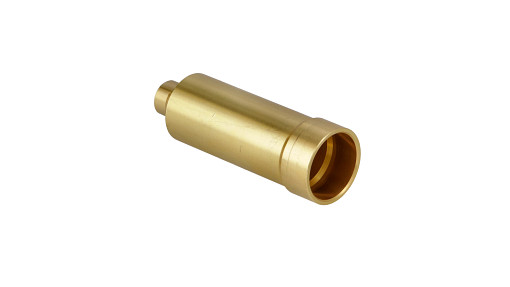

GUIDE RING; - nozzle holder, used with 3055368R98Img
Alts
Select
Ref.
19AQty
6Availability
Part #
3055344R1Description

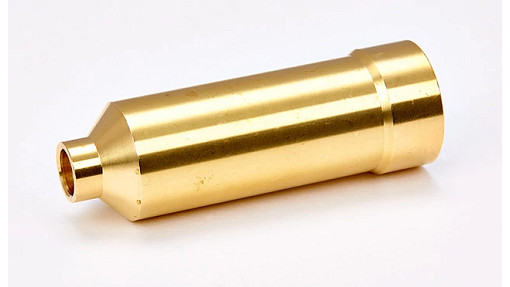

SLEEVE; INSERT - nozzle holder, used with 3055655R95Img
Alts
Select
Ref.
Qty
6Availability
Part #
NSSDescription
NOT SOLD SEPARAT; SEAT - exhaust valve insert, order head assemblyImg
Alts
Select
Ref.
20Qty
6Availability
Part #
934003R1Description
PLUG M52, Conical; - expansion, 2.05 inch, engine serial numbers 020144 and after, 55-S-1 and after, 57-S-1 and afterImg
Alts
Select
Ref.
20Qty
2Availability
Part #
933574R1Description
PLUG M50, Conical; - expansion, 1.97 inch, engine serial numbers prior to 020144, prior to 55-S-1, prior to 57-S-1Img
Alts
Select
Ref.
21Qty
1Availability
Part #
718743R1Description
SEALING RING M10 x 16 x 1; Ring (25/64 x 5/8 x 3/64'') M10 x 16 x 1Img
Alts
Select
Ref.
23Qty
6Availability
Part #
933573R1Description
PLUG M32, Tapered; - expansion, 32 mm (Replaces plug 933750R1)Img
Alts
Select
Ref.
23Qty
6Availability
Part #
934804R1Description
PLUG M34, Conical; - expansion, 34 mm, used only with cylinder heads 3055050R1, 3055051R2, 3055656R1, and 3055656R2Img
Alts
Select
Ref.
23Qty
6Availability
Part #
30591R1Description
PLUG M25, Tapered; - cup, expansion, 25 mm, used only with cylinder heads 3055050R3 and 3055656R3 (Replaces plug 933537R1)Img
Alts
Select
Ref.
24Qty
6Availability
Part #
3055055R2Description
OVERSIZE INLET VALVE; VALVE - intakeImg
Alts
Select
Ref.
25Qty
6Availability
Part #
3055056R2Description

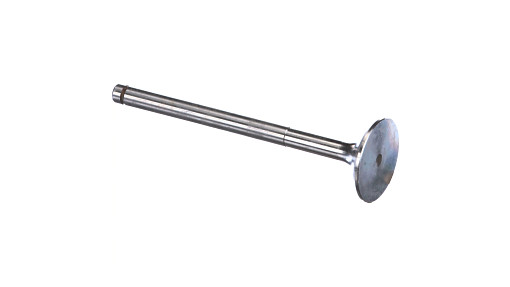

STD EXHAUST VALVE; VALVE - exhaustImg
Alts
Select
Ref.
26Qty
24Availability
Part #
3055057R91Description

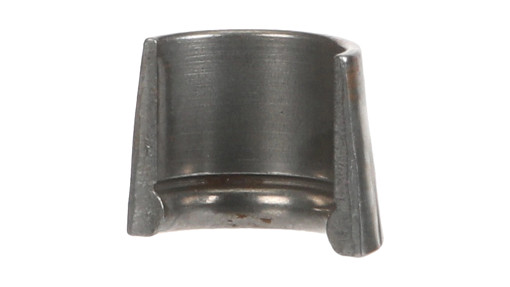

ROCKER ARM COTTER; LOCK - valve springImg
Alts
Select
Ref.
27Qty
12Availability
Part #
3055058R2Description
SPRING CUP; CAP - valve spring retainerImg
Alts
Select
Ref.
28Qty
12Availability
Part #
3218069R1Description
SPACER; - valve spring, no longer used, order rotator 3055059R91Img
Alts
Select
Ref.
29Qty
12Availability
Part #
3055060R1Description

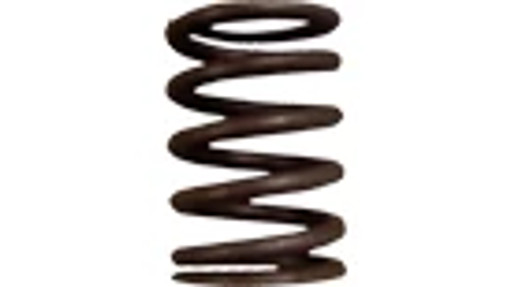

SPRING; - valve, used with 715 combines, 686 and hydro 86 tractors, also used for 706 and 756 tractors;Ref# 29a P/N# 3055060r1 is also used for 706 & 756 tractors. CAM (db) 5-6-99Img
Alts
Select
Ref.
29Qty
12Availability
Part #
3136000R1Description
VALVE SPRING; SPRING - valve, used with 616 and 622 cotton pickers, 95 cotton harvesters and 782 cotton pickersImg
Alts
Select
Ref.
30Qty
1Availability
Part #
3218399R91Description

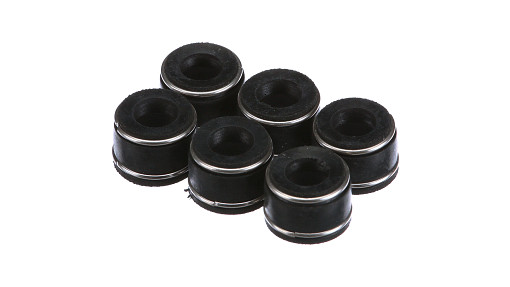

DICHTUNGSSATZ; KIT - valve stem sealImg
Alts
Select
Ref.
31Qty
1Availability
Part #
3132362R1Description
VALVE SEAT; INSERT - exhaust valve seat, 0.15 mm oversize (Replaces insert 3055219R1)Img
Alts
Select
Ref.
31Qty
6Availability
Part #
3132361R1Description
INSERT; - exhaust valve seat, 0.40 mm oversizeImg
Alts
Select
Ref.
32Qty
12Availability
Part #
3228189R1Description

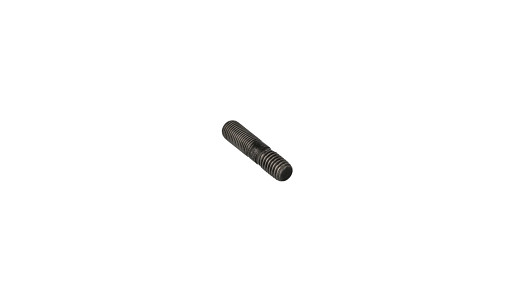

STUD; - exhaust manifold (Replaces stud 3055663R1)Img
Alts
Select
Ref.
33Qty
12Availability
Part #
3055221R1Description

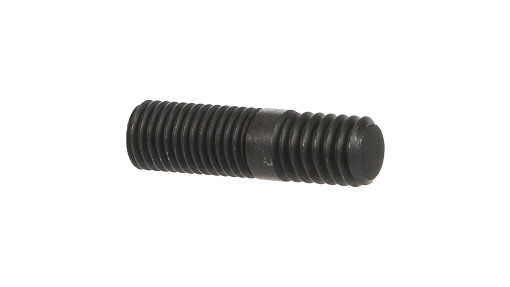

STUD; - water collecting pipe, used only with cylinder heads 3055050R1, 3055050R2, 3055656R1, 3055656R2Img
Alts
Select
Ref.
34Qty
1Availability
Part #
3228019R2Description
CYLINDER HEAD GASKET; GASKET - cylinder head, standard (Replaces gasket 3144182R2)Img
Alts
Select
Ref.
Qty
12Availability
Part #
425-115Description
NUT 5/16''-24, G5; - hex, 5/16 inch NF (Replaces nut 103025)Img
Alts
Select
Ref.
34Qty
1Availability
Part #
247989A1Description
GASKET KIT; - cylinder head, 0.25 mm thinner than standard gasket 3228019R2;Caution, for use only where piston protrusion is less than .022 inch.Img
Alts
Select
Ref.
37Qty
12Availability
Part #
3055412R1Description
STUD; - nozzle holder, used with head 3059458R94Img
Alts
Select
Ref.
37Qty
12Availability
Part #
3055584R1Description
GOUJON; - nozzle holder, used with head 3055368R98 and 3132605R94, no longer available, order stud 3055412R1, item 37 aboveImg
Alts
Select
Ref.
38Qty
1Availability
Part #
3055369R1Description
PLAQUE; SHACKLE - engine mounting right-hand, not used with 616 and 622 cotton pickers with hydrostatic transmissionImg
Alts
Select
Ref.
Qty
1Availability
Part #
13-1218Description
VIS Hex, 3/4'' - 10 x 1-1/8'', Gr 5; (Replaces bolt 271604) Hex, 3/4''-10 x 1 1/8'', G5Img
Alts
Select
Ref.
39Qty
1Availability
Part #
3055370R1Description
ETRIER; SHACKLE - engine mounting, front, not used with 616 and 622 cotton pickers with hydrostatic transmissionImg
Alts
Select
Ref.
Qty
1Availability
Part #
13-1218Description
VIS Hex, 3/4'' - 10 x 1-1/8'', Gr 5; (Replaces bolt 271604) Hex, 3/4''-10 x 1 1/8'', G5Img
Alts
Select
Ref.
40Qty
26Availability
Part #
3055227R1Description
ECROU; - cylinder head stud, used only on crankcase 3055004R21, 3132604R91 and 3055991R92Img
Alts
Select
Ref.
Qty
1Availability
Part #
3132292R92Description
CULBUTEUR; KIT - rocker arm, Includes: Ref. 9 & 13Img
Alts
Select
Ref.
41Qty
1Availability
Part #
130085C91Description
KIT; HEATER - engine block, 115 volt, used with hydro 86, 686, 706 and 756 tractors, 715 combinesImg
Alts
Select
Ref.
42Qty
1Availability
Part #
A44813Description
CABLE EXTENSION; CABLE - engine block heater, 12 inch (305 mm) long (Replaces cable 71150C1);Ref #42: A44813 is 1ft. long. For 6ft. long cord, order J905113 or 196466A1. 4/12/02 CJK-TSGImg
Alts
Select
Ref.
8AQty
12Availability
Part #
829-1410Description
PORCA M10 x 1.5, Cl 10.9; Adjusting, Rocker Arm (Replaces nut 3132138R1) M10, Cl 10Img
Alts
