TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1ENGINE, EXCHANGE; ENGINE - block, short, remanufactured for 674955C92 (North America only), used with 766 and 866 tractors, 453 hillside combines, component parts do not apply to the remanufactured assembly
-
1CORE-ENGINE; RETURN NUMBER - use this part number to return engine core for credit when using a remanufactured assembly, no longer used
-
1CORE-ENGINE; ENGINE - block, short, consists of: camshaft, connecting rods and bearings, crankcase, crankshaft and bearings, sleves, pistons, pin and rings, valve tappets, no longer available, order remanufactured assembly 749235C92
-
1ENGINE ASSEMBLY; ENGINE - block, short, consists of: camshaft, connecting rods and bearings, crankcase, crankshaft and bearings, sleves, pistons, pin and rings, valve tappets, no longer available, order remanufactured assembly 749235C92
-
1ENGINE, EXCHANGE; ENGINE - block, short, consists of: camshaft, connecting rods and bearings, crankcase, crankshaft and bearings, sleves, pistons, pin and rings, valve tappets, no longer available, order remanufactured assembly 749235C92
-
1GASKET; KIT - crankcase gasket, Includes: Parts Listed Below
-
11GASKET; - flywheel housing
-
1WASHER 22.62mm ID x 32.54mm OD x 1.72mm Thk; GASKET - oil pan drain plug
-
21GASKET; BAFFLE - breather
-
1O-RING; - breather pipe
-
31GASKET; - injection pump mounting adapter
-
41GASKET; - oil filter base
-
2OIL SEAL; SEAL - oil cooler mounting
-
1GASKET; - regulator valve cap
-
1RING; - camshaft seal
-
1GASKET KIT; KIT - front cover gasket
-
1GASKET KIT; KIT - cylinder head gasket (Replaces kit 674397C93), Includes: Parts Listed Below
-
56GASKET; - exhaust manifold (Replaces gasket 688928C1)
-
61MANIFOLD GASKET; - intake manifold
-
71GASKET; - turbocharger (Replaces gasket 670073C1)
-
81GASKET; - turbocharger oil inlet tube (Replaces gasket 253660R1)
-
1GASKET; - oil drain tube (Replaces gasket 670079C3)
-
1GASKET; - thermostat housing (Replaces gasket 675384C1)
-
91CYLINDER HEAD GASKET; - cylinder head (Replaces gasket 676967C1)
-
101GASKET; - valve cover
-
116GASKET; - nozzle, injector (Replaces gasket 675477C1)
-
6SEAL; GROMMET - injection dust cover (Replaces grommet 682810C1)
-
6SEAL; GROMMET - valve cover (Replaces grommet 677692C1)
Select All
Select
Ref.
Qty
1Availability
Part #
749235C92Description
ENGINE, EXCHANGE; ENGINE - block, short, remanufactured for 674955C92 (North America only), used with 766 and 866 tractors, 453 hillside combines, component parts do not apply to the remanufactured assemblyImg
Alts
Select
Ref.
Qty
1Availability
Part #
1928039C1Description
CORE-ENGINE; RETURN NUMBER - use this part number to return engine core for credit when using a remanufactured assembly, no longer usedImg
Alts
Select
Ref.
Qty
1Availability
Part #
1928039C1Description
CORE-ENGINE; ENGINE - block, short, consists of: camshaft, connecting rods and bearings, crankcase, crankshaft and bearings, sleves, pistons, pin and rings, valve tappets, no longer available, order remanufactured assembly 749235C92Img
Alts
Select
Ref.
Qty
1Availability
Part #
674955C92Description
ENGINE ASSEMBLY; ENGINE - block, short, consists of: camshaft, connecting rods and bearings, crankcase, crankshaft and bearings, sleves, pistons, pin and rings, valve tappets, no longer available, order remanufactured assembly 749235C92Img
Alts
Select
Ref.
Qty
1Availability
Part #
749235C92Description
ENGINE, EXCHANGE; ENGINE - block, short, consists of: camshaft, connecting rods and bearings, crankcase, crankshaft and bearings, sleves, pistons, pin and rings, valve tappets, no longer available, order remanufactured assembly 749235C92Img
Alts
Select
Ref.
Qty
1Availability
Part #
674399C96Description
GASKET; KIT - crankcase gasket, Includes: Parts Listed BelowImg
Alts
Select
Ref.
Qty
1Availability
Part #

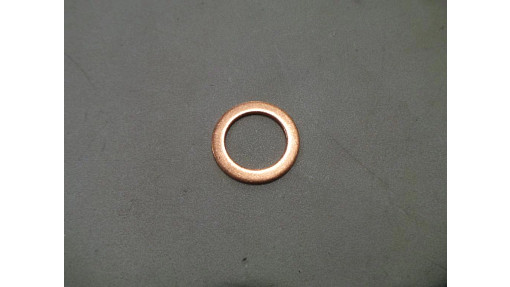

59658DDescription
WASHER 22.62mm ID x 32.54mm OD x 1.72mm Thk; GASKET - oil pan drain plugImg
Alts
Select
Ref.
3Qty
1Availability
Part #
675609C2Description
GASKET; - injection pump mounting adapterImg
Alts
Select
Ref.
Qty
2Availability
Part #

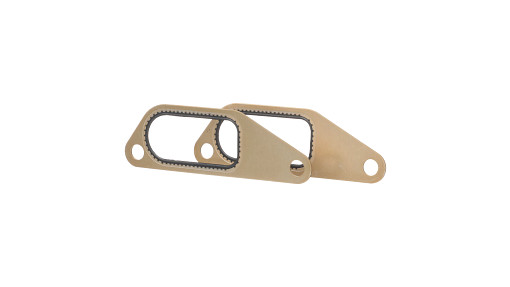

675513C1Description
OIL SEAL; SEAL - oil cooler mountingImg
Alts
Select
Ref.
Qty
1Availability
Part #
680084C97Description
GASKET KIT; KIT - front cover gasketImg
Alts
Select
Ref.
Qty
1Availability
Part #
176395A1Description
GASKET KIT; KIT - cylinder head gasket (Replaces kit 674397C93), Includes: Parts Listed BelowImg
Alts
Select
Ref.
5Qty
6Availability
Part #

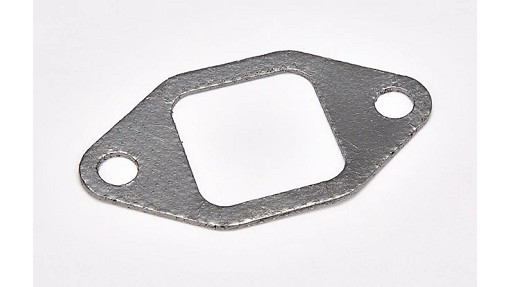

1349062C1Description
GASKET; - exhaust manifold (Replaces gasket 688928C1)Img
Alts
Select
Ref.
6Qty
1Availability
Part #
682198C2Description
MANIFOLD GASKET; - intake manifoldImg
Alts
Select
Ref.
7Qty
1Availability
Part #

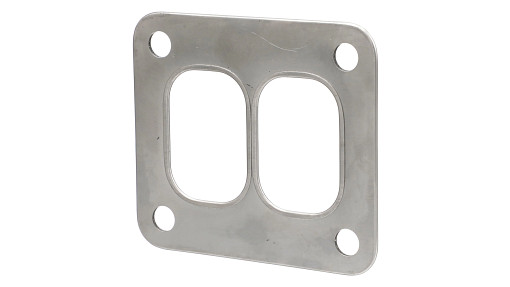

1342826C1Description
GASKET; - turbocharger (Replaces gasket 670073C1)Img
Alts
Select
Ref.
8Qty
1Availability
Part #

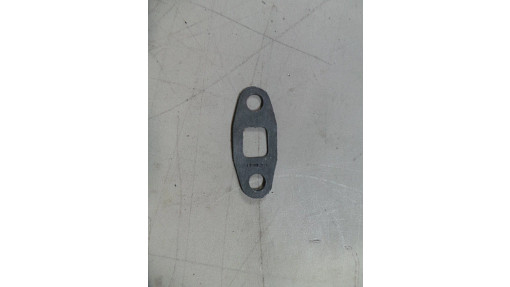

1342834C1Description
GASKET; - turbocharger oil inlet tube (Replaces gasket 253660R1)Img
Alts
Select
Ref.
Qty
1Availability
Part #

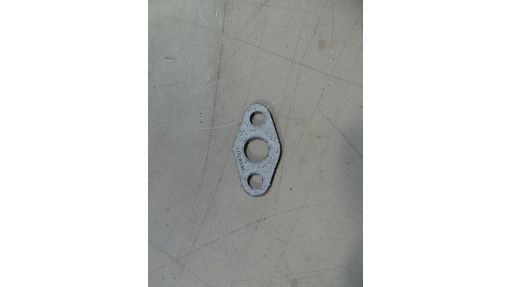

1342835C1Description
GASKET; - oil drain tube (Replaces gasket 670079C3)Img
Alts
Select
Ref.
Qty
1Availability
Part #

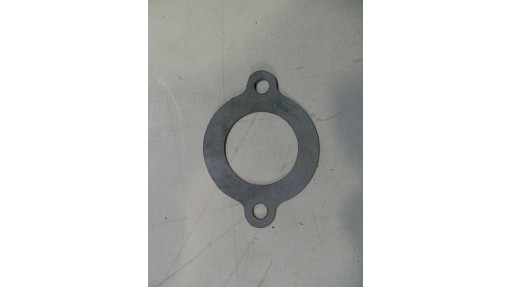

1342836C1Description
GASKET; - thermostat housing (Replaces gasket 675384C1)Img
Alts
Select
Ref.
9Qty
1Availability
Part #
179206A1Description
CYLINDER HEAD GASKET; - cylinder head (Replaces gasket 676967C1)Img
Alts
Select
Ref.
11Qty
6Availability
Part #

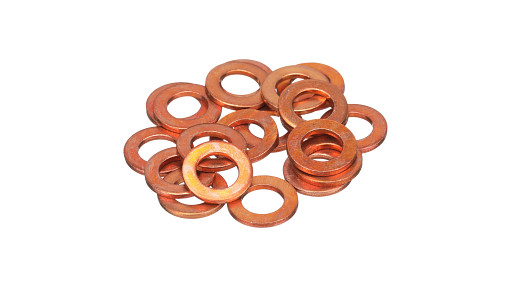

1342829C1Description
GASKET; - nozzle, injector (Replaces gasket 675477C1)Img
Alts
Select
Ref.
Qty
6Availability
Part #
1342831C1Description
SEAL; GROMMET - injection dust cover (Replaces grommet 682810C1)Img
Alts
Select
Ref.
Qty
6Availability
Part #
1342830C1Description

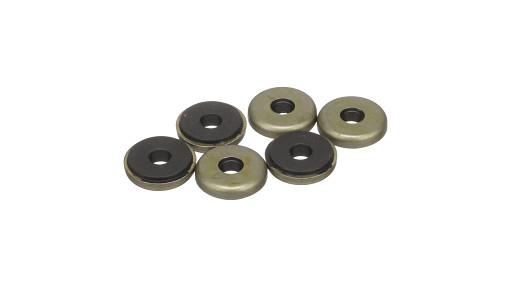

SEAL; GROMMET - valve cover (Replaces grommet 677692C1)Img
Alts
