TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11BAR; BRACE - alternator-generator, Farmall 706 Tractors with Engine Serial Number 37237 and After
-
1LOCK WASHER 5/16''; WASHER, LOCK, 5/16''
-
1BOLT Hex, 5/16'' - 18 x 1-1/4'', Gr 5; - hex, 5/16 NC x 1-1/4 inch (Replaces bolt 180081)
-
1NUT 5/16''-18 NC, G5; - hex, 5/16 inch NC
-
21SPACER; - alternator-generator brace, not required for 715 combine, Farmall 706 Tractors with Engine Serial Number 37237 and After
-
1BOLT Hex, 5/16'' - 18 x 1-1/4'', Gr 5; - hex, 5/16 NC x 1-1/4 inch (Replaces screw 179820)
-
1LOCK WASHER 5/16''; WASHER, LOCK, (Replaces washer 103320) 5/16''
-
31BRACKET; - alternator-generator, no longer available (Replaces bracket 3132268R12), Farmall 706 Tractors with Engine Serial Number 37237 and After
-
2BOLT Hex, 5/16'' - 18 x 2-1/2'', Gr 5; - hex, 5/16 NC x 2-1/2 inch (Replaces screw 179828)
-
2NUT 5/16''-18 NC, G5; - hex, 5/16 inch NC (Replaces nut 102634)
-
2LOCK WASHER 5/16''; WASHER, LOCK, (Replaces washer 103320) 5/16''
-
41BRACKET; - generator, 706 Tractors
-
1BOLT Hex, 5/16'' - 18 x 7/8'', Gr 5; (Replaces screw 179817) Hex, 5/16''-18 x 7/8'', G5, Full Thd
-
1LOCK WASHER 5/16''; WASHER, LOCK, (Replaces washer 103320) 5/16''
-
1LOCK WASHER 7/16''; WASHER, LOCK, (Replaces washer 103322) 7/16''
-
2BOLT Hex, 5/16'' - 18 x 1'', Gr 5; - hex, 5/16 NC x 1 inch (Replaces bolt 179818)
-
2LOCK WASHER 5/16''; WASHER, LOCK, (Replaces washer 103320) 5/16''
-
61SPACER; - generator brace, 706 Tractors
Select All
Ref.
1Qty
1Availability
Part #
396359R2Description
BAR; BRACE - alternator-generator, Farmall 706 Tractors with Engine Serial Number 37237 and AfterImg
Alts
Ref.
Qty
1Availability
Part #
492-11031Description
LOCK WASHER 5/16''; WASHER, LOCK, 5/16''Img
Alts
Ref.
Qty
1Availability
Part #
413-520Description
BOLT Hex, 5/16'' - 18 x 1-1/4'', Gr 5; - hex, 5/16 NC x 1-1/4 inch (Replaces bolt 180081)Img
Alts
Ref.
Qty
1Availability
Part #
425-105Description
NUT 5/16''-18 NC, G5; - hex, 5/16 inch NCImg
Alts
Ref.
2Qty
1Availability
Part #
280185R1Description
SPACER; - alternator-generator brace, not required for 715 combine, Farmall 706 Tractors with Engine Serial Number 37237 and AfterImg
Alts
Ref.
Qty
1Availability
Part #
413-520Description
BOLT Hex, 5/16'' - 18 x 1-1/4'', Gr 5; - hex, 5/16 NC x 1-1/4 inch (Replaces screw 179820)Img
Alts
Ref.
Qty
1Availability
Part #
492-11031Description
LOCK WASHER 5/16''; WASHER, LOCK, (Replaces washer 103320) 5/16''Img
Alts
Ref.
3Qty
1Availability
Part #
3139173R91Description
BRACKET; - alternator-generator, no longer available (Replaces bracket 3132268R12), Farmall 706 Tractors with Engine Serial Number 37237 and AfterImg
Alts
Ref.
Qty
2Availability
Part #
413-540Description
BOLT Hex, 5/16'' - 18 x 2-1/2'', Gr 5; - hex, 5/16 NC x 2-1/2 inch (Replaces screw 179828)Img
Alts
Ref.
Qty
2Availability
Part #
425-105Description
NUT 5/16''-18 NC, G5; - hex, 5/16 inch NC (Replaces nut 102634)Img
Alts
Ref.
Qty
2Availability
Part #
492-11031Description
LOCK WASHER 5/16''; WASHER, LOCK, (Replaces washer 103320) 5/16''Img
Alts
Ref.
Qty
1Availability
Part #
413-514Description

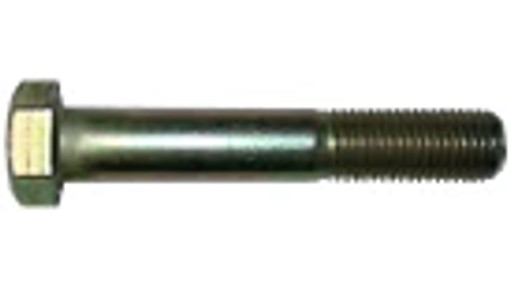

BOLT Hex, 5/16'' - 18 x 7/8'', Gr 5; (Replaces screw 179817) Hex, 5/16''-18 x 7/8'', G5, Full ThdImg
Alts
Ref.
Qty
1Availability
Part #
492-11031Description
LOCK WASHER 5/16''; WASHER, LOCK, (Replaces washer 103320) 5/16''Img
Alts
Ref.
Qty
1Availability
Part #
492-11044Description

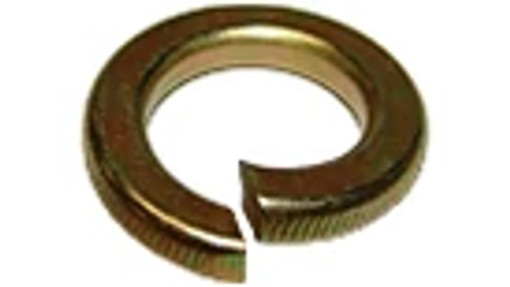

LOCK WASHER 7/16''; WASHER, LOCK, (Replaces washer 103322) 7/16''Img
Alts
Ref.
Qty
2Availability
Part #
413-516Description
BOLT Hex, 5/16'' - 18 x 1'', Gr 5; - hex, 5/16 NC x 1 inch (Replaces bolt 179818)Img
Alts
Ref.
Qty
2Availability
Part #
492-11031Description
LOCK WASHER 5/16''; WASHER, LOCK, (Replaces washer 103320) 5/16''Img
Alts
Ref.
6Qty
1Availability
Part #
280185R1Description
SPACER; - generator brace, 706 TractorsImg
Alts
