13-07 - OIL FILTER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    3136458R91
    ENGINE OIL FILTER; FILTER, OIL 433, 533, 633+V+E, SU-633, SU-533
  • 1
    1
    3136459R91

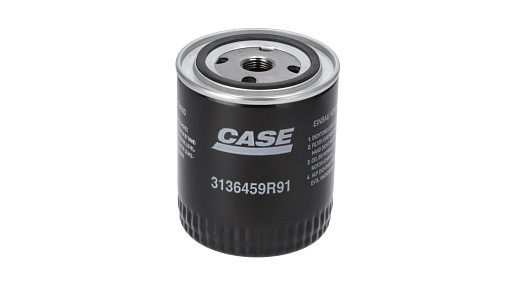

    ENGINE OIL FILTER Single pkg qty. For multi pkg [qty.10] order 3136459R91MP; 733+V+E, 743+XL, 745S, 745XL, 844S, 844XL, 262 F.A.I.
  • 2
    1
    3136046R93

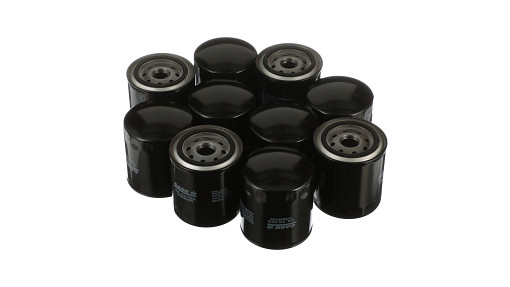

    ENGINE OIL FILTER; FILTER, OIL 258-585XL, 268-685XL, H84-785XL, 248, 484, 2530TC
  • 3
    1
    3132737R93
    FILTER, ENGINE OIL; FILTER, OIL 955-1056XL, SU-644
  • 4
    1
    3055237R1
    GASKET;
  • 5
    1
    3055238R92
    PRESSURE SWITCH; OIL PRESSURE
  • 6
    1
    3136047R1
    HEAD; SOCKET, OIL FILTER 955-1056XL, 248, 484, 258-585XL, H84-785XL, SU-644
  • 2
    179839
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
  • 2
    3144513R1
    SPRING WASHER; SPRING 3/8
  • 7
    1
    3144910R2
    HEAD; SOCKET, OIL FILTER 433-733+V+E, SU-633
  • 2
    NLS
    NO LONGER SERVICED;
  • 2
    3144513R1
    SPRING WASHER; SPRING 3/8
  • 8
    1
    3055232R2
    PEDESTAL; SOCKET, OIL FILTER - 743+XL, 745S, 745XL, 844S, 844XL, SU-533, 262 F.A.I.
  • 2
    179839
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
  • 2
    3144513R1
    SPRING WASHER; SPRING 3/8
  • 9
    1
    445684
    PLUG; 1/8
  • 10
    1
    3055238R92
    PRESSURE SWITCH; OIL PRESSURE - SU-644
