A-31[A] - EXHAUST MANIFOLD, VERTICAL 454 AND 464 TRACTORS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    3136250R1

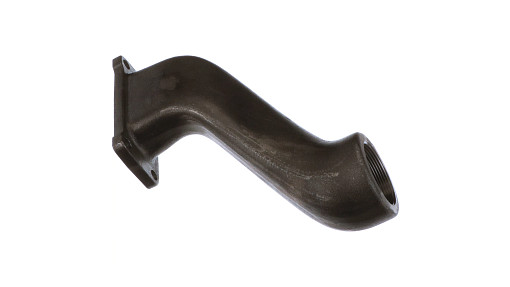

    ELBOW; exhaust manifold
  • 2
    1
    3136248R1

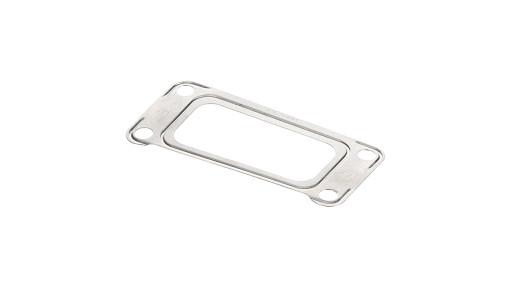

    MANIFOLD GASKET 0.5mm Thk; exhaust manifold elbow
  • 3
    1
    3136069R12
    MANIFOLD; W/FOUR STUDS, exhaust
  • 6
    103026
    NUT 3/8''-24, G5;
  • 6
    20285H
    WASHER; 13/32 x 3/4 x 11 ga
  • 4
    103026
    NUT 3/8''-24, G5;
  • 4
    103321
    LOCK WASHER 3/8''; WASHER, LOCK, 3/8'';REF#4C NUT- SHOULD BE PART 129-103 8/19/96 REF #4 STUD OF 3056663R1 SHOULD BE 3055663R1
  • 5
    3
    3132434R1

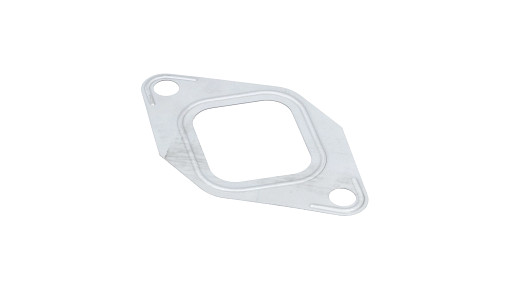

    GASKET 0.5mm Thk; exhaust manifold
