9-12 - TOOL BAR CARRYING WHEELS, FOR 6 AND 8 ROW CULTIVATORS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    465418R2
    HUB; - wheel
  • 2
    2
    465423R1
    PIPE; SPACER - pipe
  • 3
    4
    611050R91
    BALL BEARING 0.638'' ID x 1.5748'' OD x 0.72''; - ball
  • 4
    2
    T25852
    RIM; WHEEL - 14 inch (Replaces 463036R1)
  • 4
    2
    455169R92
    WHEEL; - 15 inch
  • 5
    8
    414-824
    BOLT Hex, 1/2'' - 20 x 1-1/2'', Gr 5; - hex, 1/2 x 1-1/2 inch
  • 8
    453770R1
    WHEEL NUT; - wheel hub
  • 6
    2
    542308R1
    ARM; - wheel, left
  • 7
    2
    542309R1
    ARM; - wheel, right
  • 2
    24-10192
    BOLT Hex, 5/8'' - 11 x 12'', Gr 2; - hex, 5/8 x 12 inch
  • 2
    492-11062
    LOCK WASHER 5/8''; WASHER, LOCK, 5/8''
  • 2
    425-1010
    NUT 5/8''-11, G5;
  • 8
    4
    1250812C1

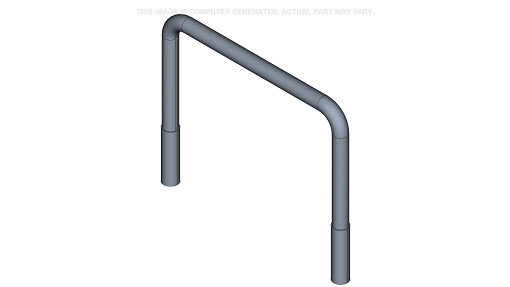

    U-BOLT 5/8'' - 11 x 182.40mm W x 160.50mm L; - mounting (4 and 6 row cultivators)
  • 8
    4
    1250813C1

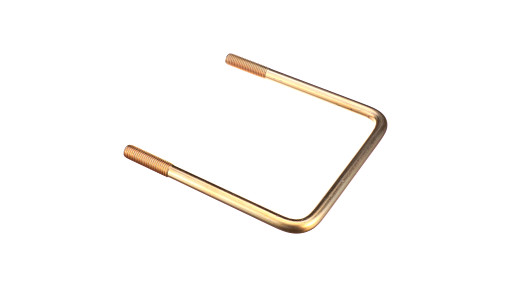

    U-BOLT; - mounting (8 row cultivators)
  • 8
    425-1010
    NUT 5/8''-11, G5;
  • 9
    1
    REF
    INSTRUCTION; FRAME ASSEMBLY - main (See Page 9-3)
Select All

Select

Ref.

1

Qty

2

Availability

Part #

465418R2

Description

HUB; - wheel


Alts

Select

Ref.

2

Qty

2

Availability

Part #

465423R1

Description

PIPE; SPACER - pipe


Alts

Select

Ref.

3

Qty

4

Availability

Part #

611050R91

Description

BALL BEARING 0.638'' ID x 1.5748'' OD x 0.72''; - ball


Alts

Select

Ref.

4

Qty

2

Availability

Part #

T25852

Description

RIM; WHEEL - 14 inch (Replaces 463036R1)


Alts

Select

Ref.

4

Qty

2

Availability

Part #

455169R92

Description

WHEEL; - 15 inch


Alts

Select

Ref.

5

Qty

8

Availability

Part #

414-824

Description

BOLT Hex, 1/2'' - 20 x 1-1/2'', Gr 5; - hex, 1/2 x 1-1/2 inch


Alts

Select

Ref.

Qty

8

Availability

Part #

453770R1

Description

WHEEL NUT; - wheel hub


Alts

Select

Ref.

6

Qty

2

Availability

Part #

542308R1

Description

ARM; - wheel, left


Alts

Select

Ref.

7

Qty

2

Availability

Part #

542309R1

Description

ARM; - wheel, right


Alts

Select

Ref.

Qty

2

Availability

Part #

24-10192

Description

BOLT Hex, 5/8'' - 11 x 12'', Gr 2; - hex, 5/8 x 12 inch


Alts

Select

Ref.

Qty

2

Availability

Part #

492-11062

Description

LOCK WASHER 5/8''; WASHER, LOCK, 5/8''


Alts

Select

Ref.

Qty

2

Availability

Part #

425-1010

Description

NUT 5/8''-11, G5;


Alts

Select

Ref.

8

Qty

4

Availability

Part #

1250812C1

Description

U-BOLT 5/8'' - 11 x 182.40mm W x 160.50mm L; - mounting (4 and 6 row cultivators)


Alts

Select

Ref.

8

Qty

4

Availability

Part #

1250813C1

Description

U-BOLT; - mounting (8 row cultivators)


Alts

Select

Ref.

Qty

8

Availability

Part #

425-1010

Description

NUT 5/8''-11, G5;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

REF

Description

INSTRUCTION; FRAME ASSEMBLY - main (See Page 9-3)


Alts
