Ref.
Qty
Part #
Alts
Description
-
12BOLT U, 5/8'' - 11 x 8.12''; U, 5/8'' NC, 5'' x 8''
-
24LOCK NUT 5/8''-11, GA; hex, self-locking, 5/8'' NC
-
31BRACKET; guide fin, left
-
41BRACKET; guide fin, right
-
54BAR; SPACER; (SN Break) Between frame, and bracket
-
64BOLT Hex, 5/8'' - 11 x 3'', Gr 5;
-
74LOCK NUT Hex, 5/8''-11, GB;
-
81FRAME; rolling guide
-
91SPACER; guide fin
-
102HUB; guide fin
-
112LUBE NIPPLE 1/4''-28 x .52'' lg;
-
124BOLT Hex, 1/2'' - 13 x 1-1/2'', Gr 8;
-
134WASHER 17/32'' x 1'' x .120''; flat, 17/32'' x 1'' x 7/64''
-
144FLANGE NUT Flg, 1/2''-13; hex flange, self-locking, 1/2'' NC
-
152BALL BEARING 16.03mm ID x 45.23mm OD x 18.69mm W; ball
-
162SPACER; hub
-
171BOLT Hex, 5/8'' - 11 x 7'', Gr 5; hex, 5/8'' NC x 7''
-
181LOCK NUT Hex, 5/8''-11, GB;
-
191DISC; guide fin
Select All
Ref.
1Qty
2Availability
Part #
542404R1Description
BOLT U, 5/8'' - 11 x 8.12''; U, 5/8'' NC, 5'' x 8''Img
Alts
Ref.
2Qty
4Availability
Part #
230-42110Description
LOCK NUT 5/8''-11, GA; hex, self-locking, 5/8'' NCImg
Alts
Ref.
5Qty
4Availability
Part #
101143A1Description
BAR; SPACER; (SN Break) Between frame, and bracketImg
Alts
Ref.
12Qty
4Availability
Part #
426-824Description

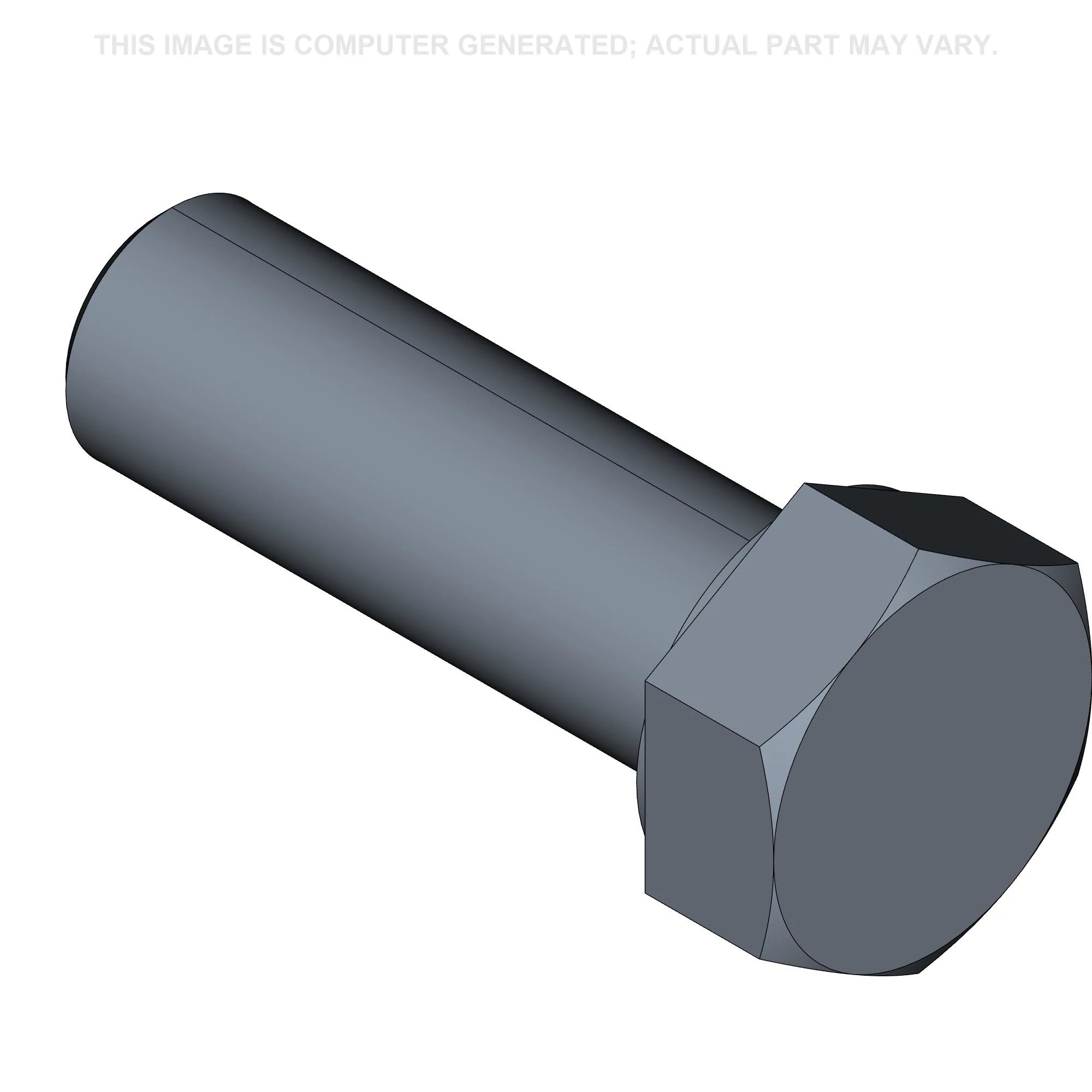

BOLT Hex, 1/2'' - 13 x 1-1/2'', Gr 8;Img
Alts
Ref.
13Qty
4Availability
Part #
495-81021Description
WASHER 17/32'' x 1'' x .120''; flat, 17/32'' x 1'' x 7/64''Img
Alts
Ref.
14Qty
4Availability
Part #
232-5318Description
FLANGE NUT Flg, 1/2''-13; hex flange, self-locking, 1/2'' NCImg
Alts
Ref.
15Qty
2Availability
Part #
1277585C91Description
BALL BEARING 16.03mm ID x 45.23mm OD x 18.69mm W; ballImg
Alts
Ref.
17Qty
1Availability
Part #
413-10112Description
BOLT Hex, 5/8'' - 11 x 7'', Gr 5; hex, 5/8'' NC x 7''Img
Alts
