35.100.04 - LIFT-ASSIST WHEEL HYDRAULICS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    25335101
    HYDRAULIC CYLINDER Double Acting, 31.75mm Rod, 254mm Stroke; Hydraulics, 3-1/2'' x 10'',3000 PSI
  • 2
    2
    25610645
    HYDRAULIC HOSE; 3/8'' x 80'' Long
  • 3
    2
    25600692
    HYDRAULIC HOSE 0.38'' ID x 108.00'', SAE 100R17; Long
  • 4
    2
    25600646
    ГИДРАВЛИЧЕСКИЙ ШЛАНГ 0.38'' ID x 118.00'', SAE 100R17; Long
  • 5
    2
    25707521
    КОЛЕНО; 3/4'' JICM x 3/4'' SAEM 90 degree
  • 6
    3
    218-594
    Т-ОБРАЗНАЯ ДЕТАЛЬ 3/4''-16, 37 Degree; JICM
  • 7
    2
    25705041
    СОЕДИНЕНИЕ; ISO 3/4'' SAEF, Hydraulic
  • 8
    2
    04632700
    ПОДКОС; Cylinder, 9-3/4''
  • 9
    2
    14810251

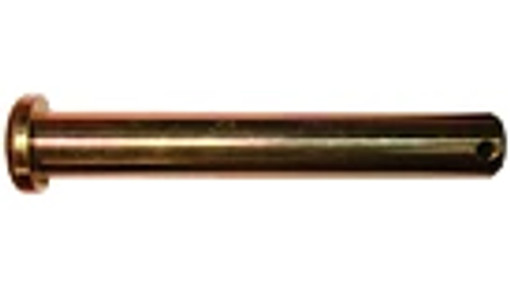

    ШТИФТ С ГОЛОВКОЙ 15.88mm OD x 96.77mm L; 5/8'' x 3-1/4''
  • 10
    2
    NSS
    НЕ ПРОДАНА ОТДЕЛЬНАЯ; Hair Pin, 1/8'' x 2''
