Y-10 - GAUGE WHEEL, 530 PLOW
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 2
    1
    520620R1
    AXLE PIN; PIN, retaining
  • 3
    1
    520175R1
    CLIP; PIN, quick-attachable cot
  • .
    1
    472634R1
    WASHER; 25/32 x 1-3/4 x 11 GA WASHER
  • 5
    1
    651194R1
    CAP; hub
  • 7
    1
    455169R92
    WHEEL; RIM, 15 x 4-1/2 KB wheel
  • 9
    1
    472220R11
    HUB; W/SET SCREW, 1963 & up
  • 10
    4
    453769R2
    BOLT Round, 1/2'' - 20 x 1 5/8'', Grade 8; 1/2UNF x 1-5/8 special; (SN Break) Between 1961 and 1962
  • .
    4
    453770R1
    WHEEL NUT; 1/2UNF CONICAL NUT
  • 11
    1
    652769R91

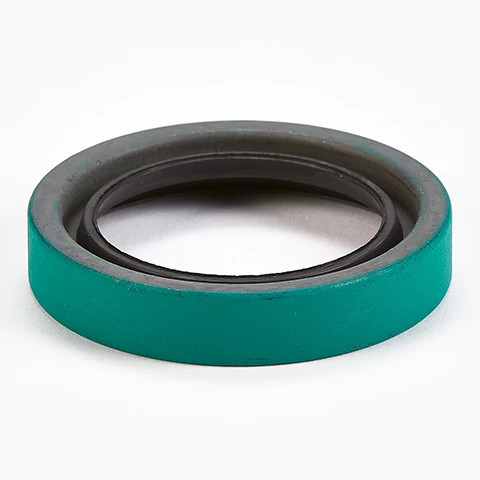

    OIL SEAL; wheel hub oil
  • 12
    1
    602957R91
    BEARING ASSY Tapered Roller, 31.75mm ID x 59.13mm OD x 16mm W; ASSY, inner cone, 1961 to 1962
  • 12
    1
    651818R91
    ROLLER BEARING 31.77 mm ID x 16.08 mm; BEARING ASSY, inner cone, 1963 & up
  • 13
    1
    651817R1
    BEARING CUP; BEARING, inner cup
  • 14
    1
    651814R1
    BEARING CUP; BEARING ASSY, outer cone
  • 15
    1
    651815R91
    BEARING ASSY 7.508'' ID x 17.82'' OD x 6''; CONE, outer rolling crg
  • 15
    1
    651815R91GV
    BEARING CONE; Value, Cone Bearing
  • 16
    1
    69442D
    NUT; 3/4 unf slt
  • 17
    1
    86636814
    LUBE NIPPLE 1/4''-28 x .52'' lg; FITTING, 1/4 str lub, 1963 & up
  • 18
    1
    472221R91
    SEAL 39.57mm ID x 58.6mm OD x 7.37mm Thk; wheel hub oil, 1963 & up
  • 19
    1
    472222R1
    SLEEVE; oil seal wear, 1963 & up
Select All

Select

Ref.

2

Qty

1

Availability

Part #

520620R1

Description

AXLE PIN; PIN, retaining


Alts

Select

Ref.

3

Qty

1

Availability

Part #

520175R1

Description

CLIP; PIN, quick-attachable cot


Alts

Select

Ref.

.

Qty

1

Availability

Part #

472634R1

Description

WASHER; 25/32 x 1-3/4 x 11 GA WASHER


Alts

Select

Ref.

5

Qty

1

Availability

Part #

651194R1

Description

CAP; hub


Alts

Select

Ref.

7

Qty

1

Availability

Part #

455169R92

Description

WHEEL; RIM, 15 x 4-1/2 KB wheel


Alts

Select

Ref.

9

Qty

1

Availability

Part #

472220R11

Description

HUB; W/SET SCREW, 1963 & up


Alts

Select

Ref.

10

Qty

4

Availability

Part #

453769R2

Description

BOLT Round, 1/2'' - 20 x 1 5/8'', Grade 8; 1/2UNF x 1-5/8 special; (SN Break) Between 1961 and 1962


Alts

Select

Ref.

.

Qty

4

Availability

Part #

453770R1

Description

WHEEL NUT; 1/2UNF CONICAL NUT


Alts

Select

Ref.

11

Qty

1

Availability

Part #

652769R91

Description

OIL SEAL; wheel hub oil


Alts

Select

Ref.

12

Qty

1

Availability

Part #

602957R91

Description

BEARING ASSY Tapered Roller, 31.75mm ID x 59.13mm OD x 16mm W; ASSY, inner cone, 1961 to 1962


Alts

Select

Ref.

12

Qty

1

Availability

Part #

651818R91

Description

ROLLER BEARING 31.77 mm ID x 16.08 mm; BEARING ASSY, inner cone, 1963 & up


Alts

Select

Ref.

13

Qty

1

Availability

Part #

651817R1

Description

BEARING CUP; BEARING, inner cup


Alts

Select

Ref.

14

Qty

1

Availability

Part #

651814R1

Description

BEARING CUP; BEARING ASSY, outer cone


Alts

Select

Ref.

15

Qty

1

Availability

Part #

651815R91

Description

BEARING ASSY 7.508'' ID x 17.82'' OD x 6''; CONE, outer rolling crg


Alts

Select

Ref.

15

Qty

1

Availability

Part #

651815R91GV

Description

BEARING CONE; Value, Cone Bearing


Alts

Select

Ref.

16

Qty

1

Availability

Part #

69442D

Description

NUT; 3/4 unf slt


Alts

Select

Ref.

17

Qty

1

Availability

Part #

86636814

Description

LUBE NIPPLE 1/4''-28 x .52'' lg; FITTING, 1/4 str lub, 1963 & up


Alts

Select

Ref.

18

Qty

1

Availability

Part #

472221R91

Description

SEAL 39.57mm ID x 58.6mm OD x 7.37mm Thk; wheel hub oil, 1963 & up


Alts

Select

Ref.

19

Qty

1

Availability

Part #

472222R1

Description

SLEEVE; oil seal wear, 1963 & up


Alts
