TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11TRAILER HITCH; PULL HITCH
-
31CLEVIS; TONGUE
-
41SLOTTED NUT 1 1/2''-6, G5; 1-1/2-6 SLOTTED NUT
-
61SNAP RING #250, Ext; Ring, Snap, #250, Ext
-
81HAIR PIN COTTER Int, 7/16'' x .177''; 3/16 HAIR PIN COTTER ZP
-
91ROD; RADIUS ROD
-
111NUT Crown, 5/8''-11; 5/8-11 ACORN NUT ZP
-
121JAM NUT Jam, 1 1/4''-7, G5; 1-1/4-7 JAM NUT ZP
-
141PIN; MAST PIN ZP
-
161SPLIT PIN/SAFETY PIN; 1/4 HAIR PIN COTTER ZP
-
171BOLT Hex, 5/8'' - 11 x 4'', Gr 5; 5/8-11 x 4 HHCS GR. 5 ZP
-
211NUT 3/4''-10, G5;
-
221LOCK WASHER 3/4''; WASHER, LOCK, 3/4''
-
231BOLT Hex, 3/4'' - 10 x 6-1/2'', Gr 5;
-
241LOCK WASHER 5/8''; WASHER, LOCK, 5/8''
-
251NUT 5/8''-11, G5;
-
261SPRING; INNER SPRING
-
271CAP; SPRING CAP
-
281LOCK NUT 7/8''-9, GA; 7/8-9 LOCK NUT ZP
-
291SPRING; OUTER SPRING
-
301ROD; COULTER GANG ADJUSTMENT ROD
-
311PIN 3/16'' x 2 1/4''; Split (Cotter), 3/16'' x 2 1/4''
-
321PIN; CLEVIS P[IN ZP
-
331PIN 11.18mm OD; QUICK PIN ZP
-
341BUSHING; 3-POINT HITCH BUSHING
-
351LOCK PIN 3/8'' x 4'', Slotted; Pin, 3/8'' x 4'', Slotted
-
361PIN; 3-POINT LOWER HITCH PIN ZP
-
371PIN; PIVOT PIN ZP
-
381LOCK PIN 3/8'' x 2'', Slotted; 1/2-13 x 2 HHCS GR. 5 ZP
-
411ARM; LEFT GAUGE WHEEL ASSY. (Not shown)
-
421PIN; EXTENDED PIN ZP
-
431PIN; LOCK OUT PIN ZP
-
441TAPERED BEARING 38.1 mm ID x 18.034 mm; INNER BEARING CONE
-
451SEAL;
-
461BEARING CUP; INNER BEARING CUP
-
471HUB;
-
481BEARING CUP 59.156 mm OD x 11.862 mm; OUTER BEARING CUP
-
491BEARING, ROLLER 31.763 mm ID x 16.84 mm; OUTER BEARING CONE
-
501WASHER 1'' x 2'' x .134''; 1'' FLAT WASHER
-
511COTTER PIN 5/32'' x 1 3/4''; PIN, SPLIT (COTTER), 5/32'' x 1 1/4''
-
521NUT 1''-14, G5; NUT, SLOTTED, 1''-14, G5
-
531CAP; DUST CAP
-
541BOLT; WHEEL BOLT
-
561PIN 21.43mm OD x 209.55mm L; SPRING SHANK PIVOT PIN
-
571PIN; SPRING PIN 1/4 x 1-1/2 ZP
-
581BOLT Hex, 1/2'' - 13 x 4'', Gr 5;
-
591LOCK WASHER 7/8''; 7/8''
-
601NUT 7/8''-9, G5;
-
611CLAMP; BOTTOM CLAMP
-
631BOLT Hex, 5/8'' - 11 x 6'', Gr 5; 5/8-11 x 6 HHCS GR. 5 ZP
-
641MOUNT; SHANK MOUNTING ASSEMBLY
-
651PIN; REAR PIN
-
661BOLT Hex, 7/8'' - 9 x 3'', Gr 5; 7/8-9 x 3 HHCS GR. 5 ZP
-
671LOCK WASHER 1/2''; WASHER, LOCK, 1/2''
-
681NUT Hex, 1/2'' - 13, Gr 5;
-
691CLAMP; AJUSTING CASTING
-
701SPRING;
-
711ROD; SPRING ROD
-
721ADJUSTER; SPRING CLAMP CASTING
-
731PIN; SPRING CLAMP PIN
-
741WASHER 3/4''; 3/4 FLAT WASHER ZP
-
751LOCK NUT 3/4''-10, GA; 3/4-10 LOCK NUT ZP
-
761SHANK; 1-1/4 x 2 x 26 SHANK
-
771BASE; RIGHT
-
771BASE; LEFT (Not shown)
-
781POINT; RIGHT
-
781POINT; LEFT (Not shown)
-
791BOLT; 1/2-13 x 1-3/8 CLIPPED HEAD BOLT
-
801PLOW BOLT; 1/2-13 x 3 PLOW BOLT GR. 5 ZP
-
811BLADE; MOLD BOARD RIGHT
-
811BLADE; MOLD BOARD LEFT (Not shown)
-
821PLATE; TOP PLATE
-
831BOLT Hex, 7/8'' - 9 x 4'', Gr 5; 7/8-9 x 4 HHCS ZP
-
841CLAMP; RIGID CLAMP
-
851SPACER; RIGID CLAMP SPACER
-
861ANCHOR; CYLINDER ANCHOR ASSY. LEFT (Not shown)
-
871JACK SCREW; LEFT HAND RADIUS ROD SCREW
-
901COTTER PIN 1/4'' x 2 1/2''; Pin, Split (Cotter), 1/4'' x 2 1/2''
-
911HALF BLADE; RIGHT HAND HELICAL BLADE
-
911HALF BLADE; LEFT HAND HELICAL BLADE (Not shown)
Select All
Select
Ref.
4Qty
1Availability
Part #
25-1224Description
SLOTTED NUT 1 1/2''-6, G5; 1-1/2-6 SLOTTED NUTImg
Alts
Select
Ref.
6Qty
1Availability
Part #
T33700Description
SNAP RING #250, Ext; Ring, Snap, #250, ExtImg
Alts
Select
Ref.
8Qty
1Availability
Part #
136-251Description
HAIR PIN COTTER Int, 7/16'' x .177''; 3/16 HAIR PIN COTTER ZPImg
Alts
Select
Ref.
11Qty
1Availability
Part #
129-881Description
NUT Crown, 5/8''-11; 5/8-11 ACORN NUT ZPImg
Alts
Select
Ref.
12Qty
1Availability
Part #
129-152Description

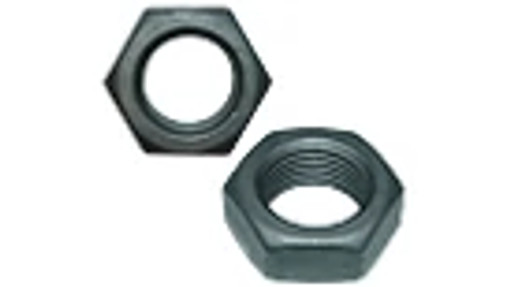

JAM NUT Jam, 1 1/4''-7, G5; 1-1/4-7 JAM NUT ZPImg
Alts
Select
Ref.
16Qty
1Availability
Part #
T40222Description
SPLIT PIN/SAFETY PIN; 1/4 HAIR PIN COTTER ZPImg
Alts
Select
Ref.
17Qty
1Availability
Part #
113-618Description
BOLT Hex, 5/8'' - 11 x 4'', Gr 5; 5/8-11 x 4 HHCS GR. 5 ZPImg
Alts
Select
Ref.
22Qty
1Availability
Part #
192-27Description
LOCK WASHER 3/4''; WASHER, LOCK, 3/4''Img
Alts
Select
Ref.
23Qty
1Availability
Part #
113-728Description
BOLT Hex, 3/4'' - 10 x 6-1/2'', Gr 5;Img
Alts
Select
Ref.
24Qty
1Availability
Part #
192-25Description
LOCK WASHER 5/8''; WASHER, LOCK, 5/8''Img
Alts
Select
Ref.
28Qty
1Availability
Part #
131-1132Description
LOCK NUT 7/8''-9, GA; 7/8-9 LOCK NUT ZPImg
Alts
Select
Ref.
30Qty
1Availability
Part #
T56104Description
ROD; COULTER GANG ADJUSTMENT RODImg
Alts
Select
Ref.
31Qty
1Availability
Part #
132-101Description
PIN 3/16'' x 2 1/4''; Split (Cotter), 3/16'' x 2 1/4''Img
Alts
Select
Ref.
35Qty
1Availability
Part #
138-186Description
LOCK PIN 3/8'' x 4'', Slotted; Pin, 3/8'' x 4'', SlottedImg
Alts
Select
Ref.
36Qty
1Availability
Part #
T55402Description
PIN; 3-POINT LOWER HITCH PIN ZPImg
Alts
Select
Ref.
38Qty
1Availability
Part #
138-177Description
LOCK PIN 3/8'' x 2'', Slotted; 1/2-13 x 2 HHCS GR. 5 ZPImg
Alts
Select
Ref.
41Qty
1Availability
Part #
T56110Description
ARM; LEFT GAUGE WHEEL ASSY. (Not shown)Img
Alts
Select
Ref.
44Qty
1Availability
Part #
H747758Description
TAPERED BEARING 38.1 mm ID x 18.034 mm; INNER BEARING CONEImg
Alts
Select
Ref.
46Qty
1Availability
Part #
H751370Description
BEARING CUP; INNER BEARING CUPImg
Alts
Select
Ref.
48Qty
1Availability
Part #
B12408Description
BEARING CUP 59.156 mm OD x 11.862 mm; OUTER BEARING CUPImg
Alts
Select
Ref.
49Qty
1Availability
Part #
B12409Description
BEARING, ROLLER 31.763 mm ID x 16.84 mm; OUTER BEARING CONEImg
Alts
Select
Ref.
50Qty
1Availability
Part #
195-53Description
WASHER 1'' x 2'' x .134''; 1'' FLAT WASHERImg
Alts
Select
Ref.
51Qty
1Availability
Part #
432-1028Description
COTTER PIN 5/32'' x 1 3/4''; PIN, SPLIT (COTTER), 5/32'' x 1 1/4''Img
Alts
Select
Ref.
52Qty
1Availability
Part #
25-1316Description

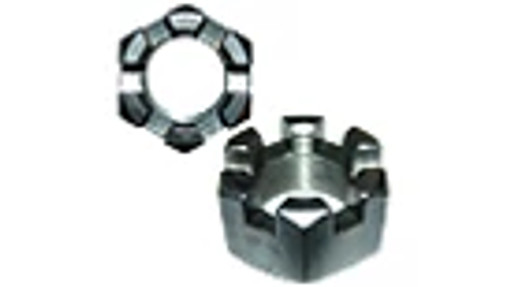

NUT 1''-14, G5; NUT, SLOTTED, 1''-14, G5Img
Alts
Select
Ref.
56Qty
1Availability
Part #
T56133Description
PIN 21.43mm OD x 209.55mm L; SPRING SHANK PIVOT PINImg
Alts
Select
Ref.
58Qty
1Availability
Part #
86505993Description
BOLT Hex, 1/2'' - 13 x 4'', Gr 5;Img
Alts
Select
Ref.
63Qty
1Availability
Part #
113-630Description
BOLT Hex, 5/8'' - 11 x 6'', Gr 5; 5/8-11 x 6 HHCS GR. 5 ZPImg
Alts
Select
Ref.
66Qty
1Availability
Part #
113-808Description
BOLT Hex, 7/8'' - 9 x 3'', Gr 5; 7/8-9 x 3 HHCS GR. 5 ZPImg
Alts
Select
Ref.
67Qty
1Availability
Part #
192-23Description
LOCK WASHER 1/2''; WASHER, LOCK, 1/2''Img
Alts
Select
Ref.
74Qty
1Availability
Part #
195-109Description
WASHER 3/4''; 3/4 FLAT WASHER ZPImg
Alts
Select
Ref.
75Qty
1Availability
Part #
131-1131Description
LOCK NUT 3/4''-10, GA; 3/4-10 LOCK NUT ZPImg
Alts
Select
Ref.
79Qty
1Availability
Part #
T63271Description
BOLT; 1/2-13 x 1-3/8 CLIPPED HEAD BOLTImg
Alts
Select
Ref.
80Qty
1Availability
Part #
T19483Description
PLOW BOLT; 1/2-13 x 3 PLOW BOLT GR. 5 ZPImg
Alts
Select
Ref.
81Qty
1Availability
Part #
T63266Description
BLADE; MOLD BOARD LEFT (Not shown)Img
Alts
Select
Ref.
83Qty
1Availability
Part #
113-809Description
BOLT Hex, 7/8'' - 9 x 4'', Gr 5; 7/8-9 x 4 HHCS ZPImg
Alts
Select
Ref.
86Qty
1Availability
Part #
T56131Description
ANCHOR; CYLINDER ANCHOR ASSY. LEFT (Not shown)Img
Alts
Select
Ref.
87Qty
1Availability
Part #
T56132Description
JACK SCREW; LEFT HAND RADIUS ROD SCREWImg
Alts
Select
Ref.
90Qty
1Availability
Part #
132-352Description
COTTER PIN 1/4'' x 2 1/2''; Pin, Split (Cotter), 1/4'' x 2 1/2''Img
Alts
Select
Ref.
91Qty
1Availability
Part #
T56938Description
HALF BLADE; RIGHT HAND HELICAL BLADEImg
Alts
Select
Ref.
91Qty
1Availability
Part #
T56937Description
HALF BLADE; LEFT HAND HELICAL BLADE (Not shown)Img
Alts
