690 - CONSER-TILL 690 (09... 00 - COMPLETE MACHINE 75.200.03 - FRONT DISK GA...
75.200.03 - FRONT DISK GANG - 5 SHANK ASSEMBLY (QUANTITIES FOR ONE GANG ASSEMBLY) 2006 MODELS & PRIOR
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    395097A1
    TUBE; Front Gang Tube, Lh 5-Shank
  • 1
    395098A1
    TUBE; Front Gang Tube, Rh 5-Shank
  • 2
    1
    311864A1
    REFLECTOR REFLECTOR RETROREFLECTIVE AMBER (2 X 9 ) CNH865477; Amber
  • 3
    1
    395008A1
    ANGLE; Scraper, Lh
  • 1
    395007A1
    ANGLE; Scraper, Rh
  • 4
    5
    404767A1
    BRACKET; Scraper Assembly - Disk, Lh
  • 5
    5

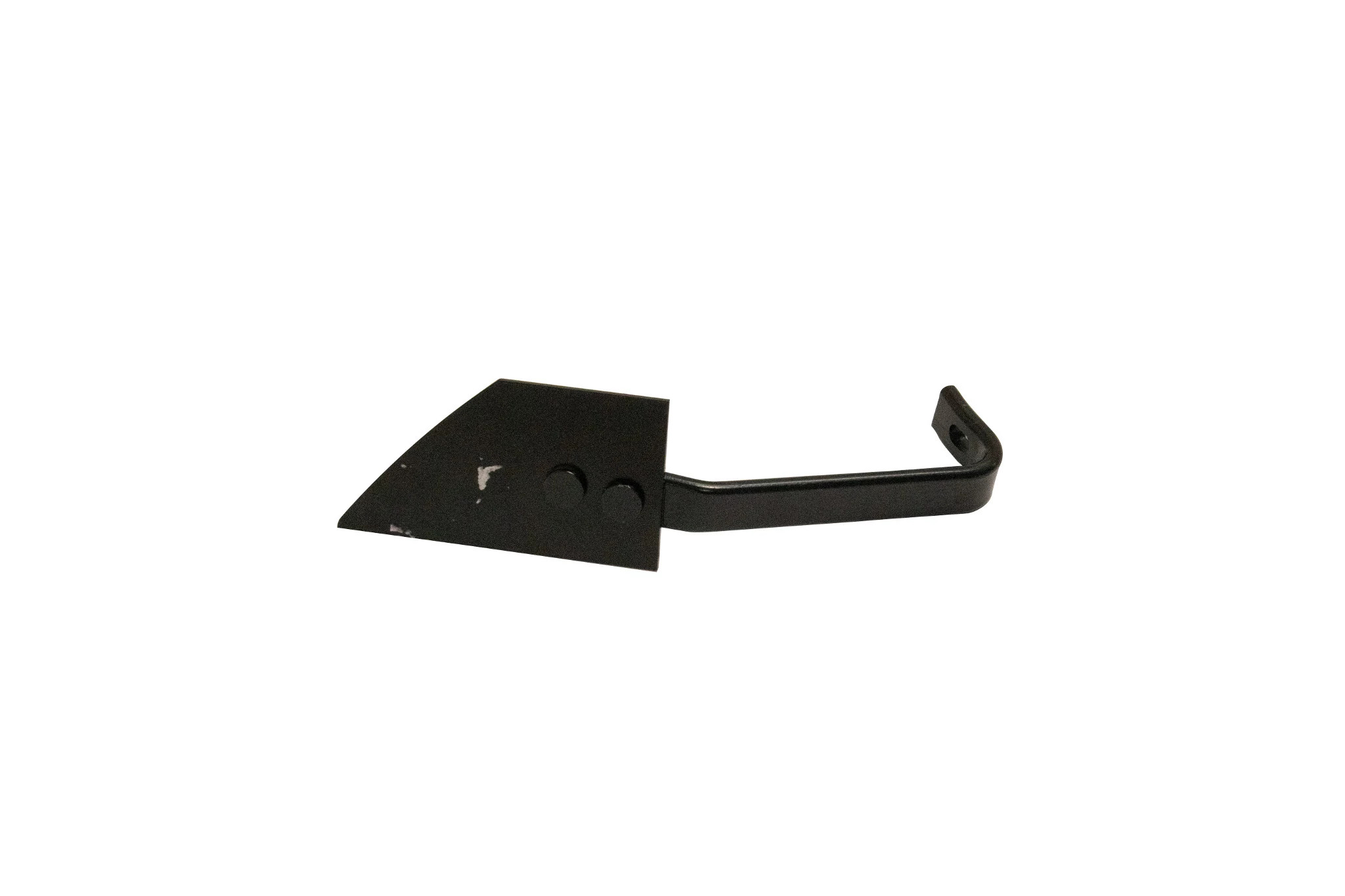

    404768A1
    BRACKET; Scraper Assembly - Disk, Rh
  • 6
    1
    404069A1
    PLOW BOLT; Arbor, 1-1/2 inch sq.
  • 7
    1

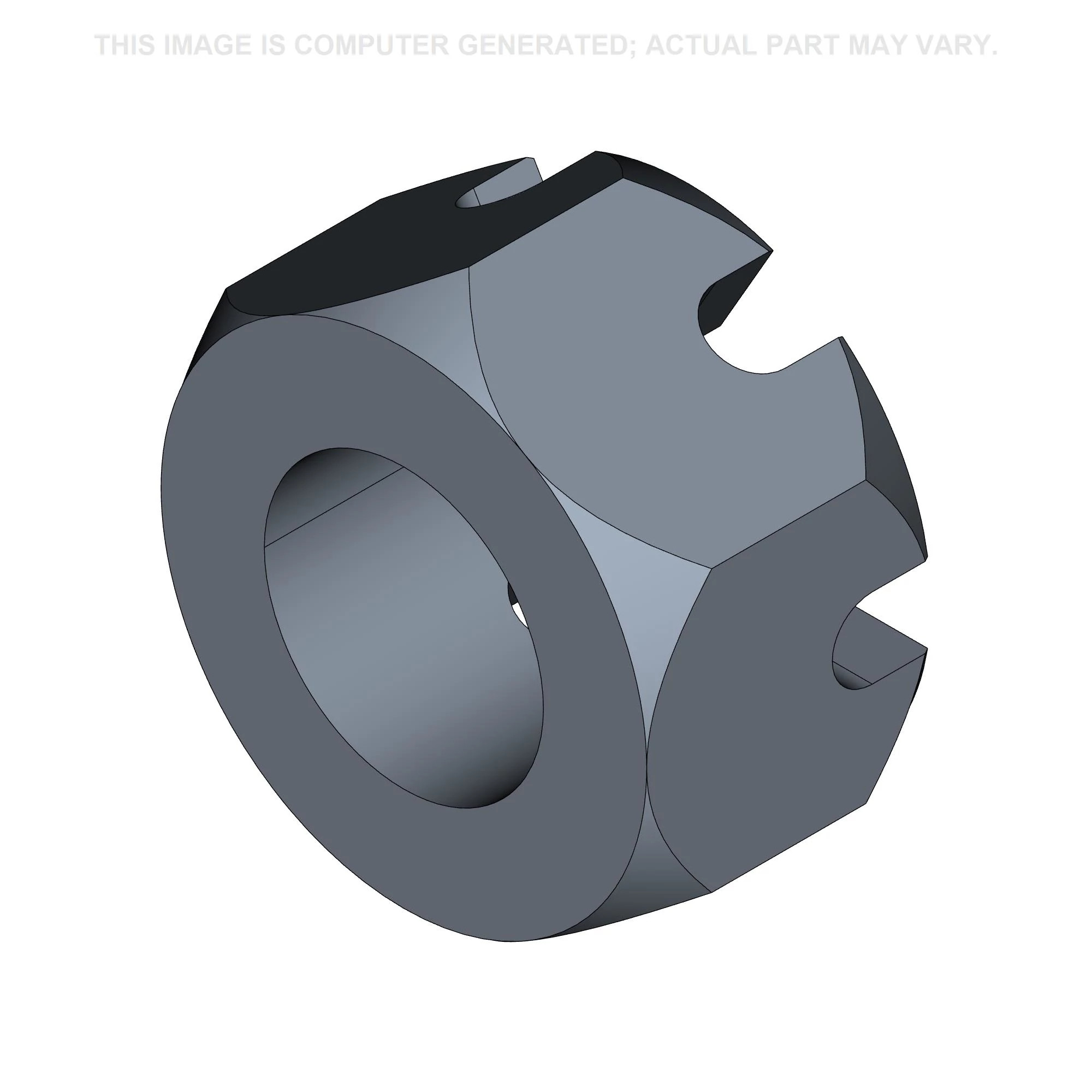

    425-1224
    SLOTTED NUT 1 1/2''-6, G5;
  • 8
    1

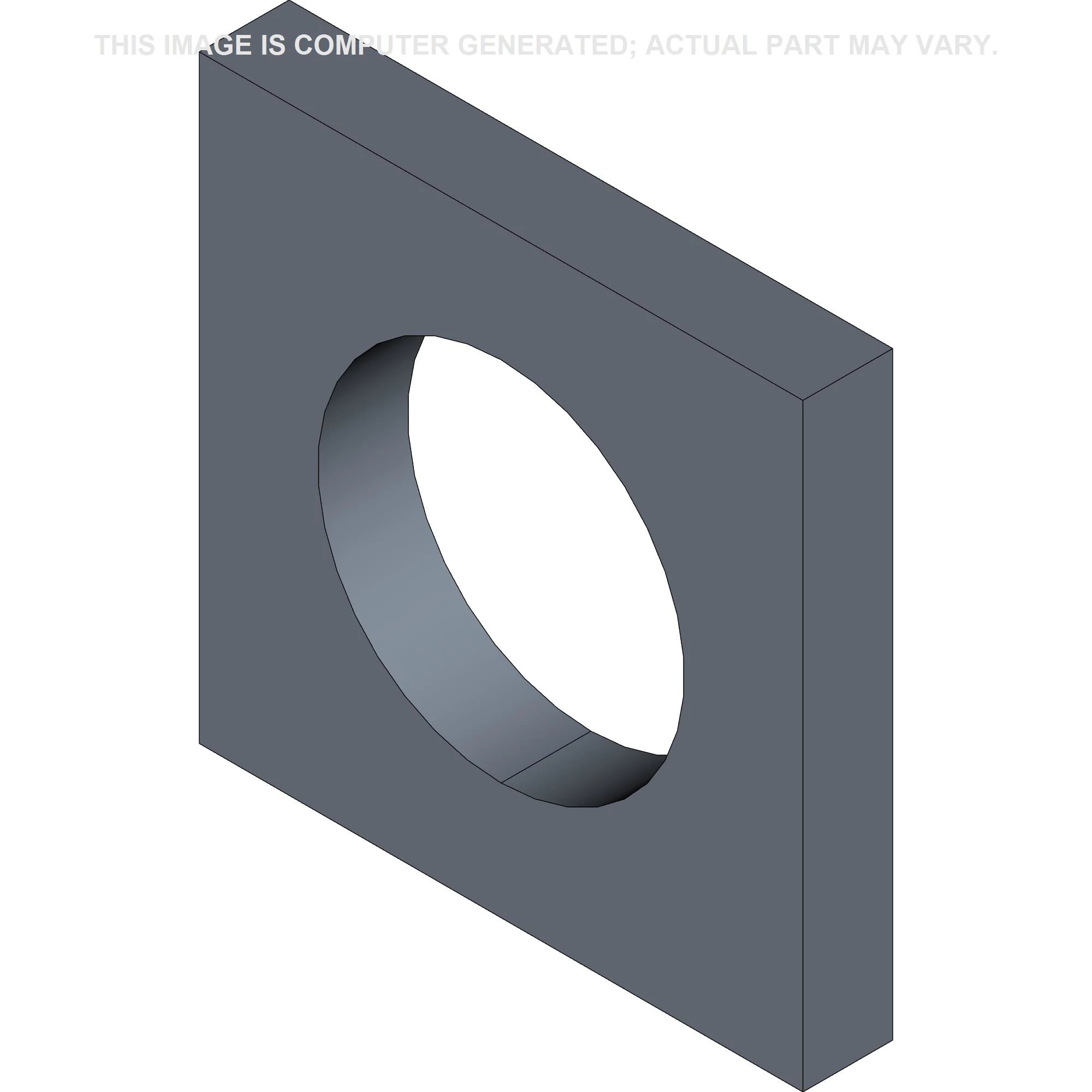

    488836R2
    NUT; Nut
  • 9
    1
    549973R2
    SQ HOLE WASHER; End
  • 10
    1
    60615C1
    WASHER; Head
  • 11
    3

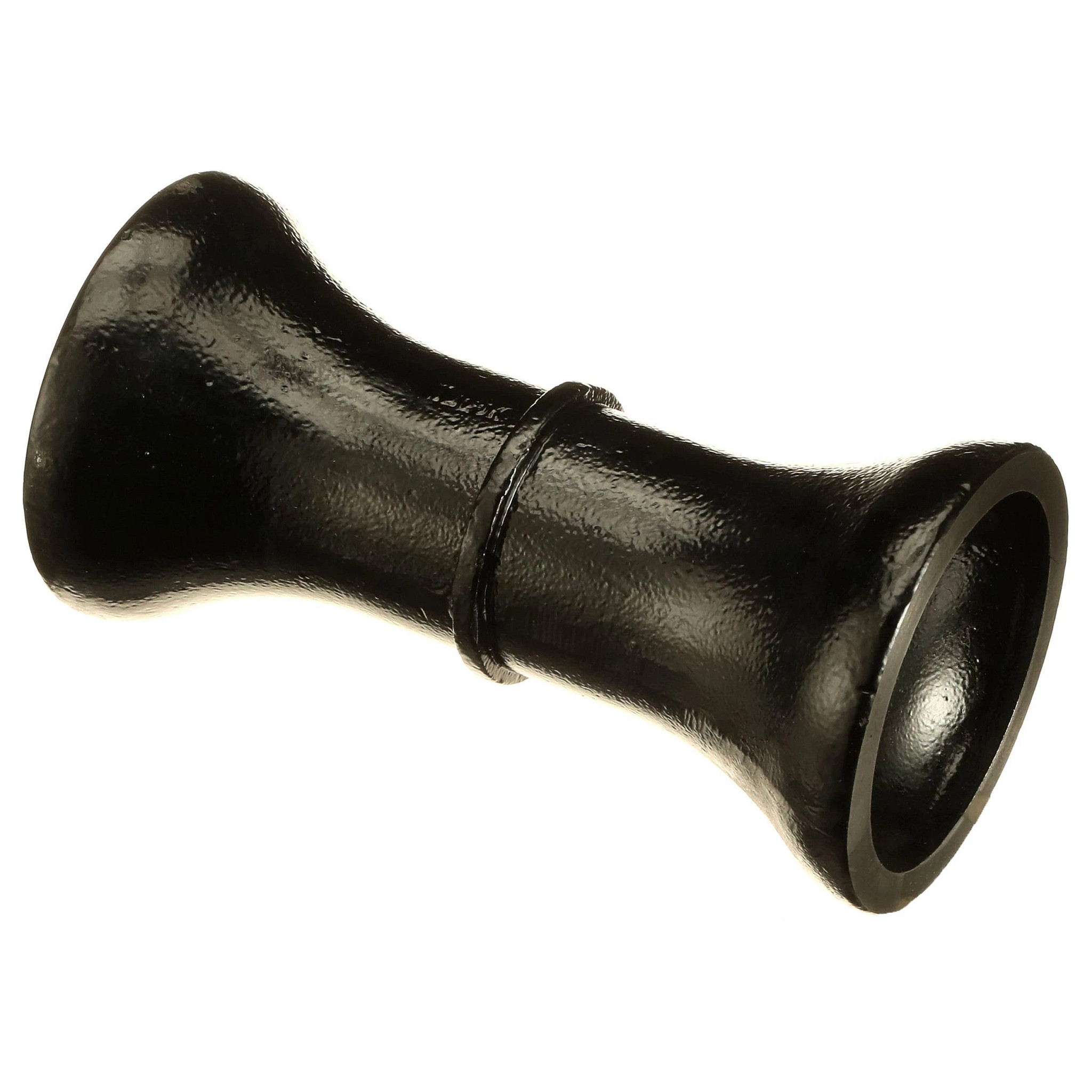

    403931A1
    SPOOL; Spacing, 12
  • 12
    2
    409807A1
    SPOOL; Bearing, long, 12
  • 13
    2
    409806A1
    SPOOL; Bearing, Short, 12
  • 2
    NSS
    NOT SOLD SEPARAT; Cusion - Bearing & Standard, Trunnion (409577A1)
  • 14
    4
    195109A1
    TRUNNION; Pivot
  • 15
    4
    197334A1
    BUSHING 32.13mm ID x 63.83mm OD x 25.91mm L; Special Bonded
  • 2
    NSS
    NOT SOLD SEPARAT; Bearing Assembly - Trunnion (409555A1)
  • 16
    2
    409556A1
    BALL BEARING 55.5mm ID x 110mm OD x 55.5mm W; Bearing - Trunnion
  • 17
    2

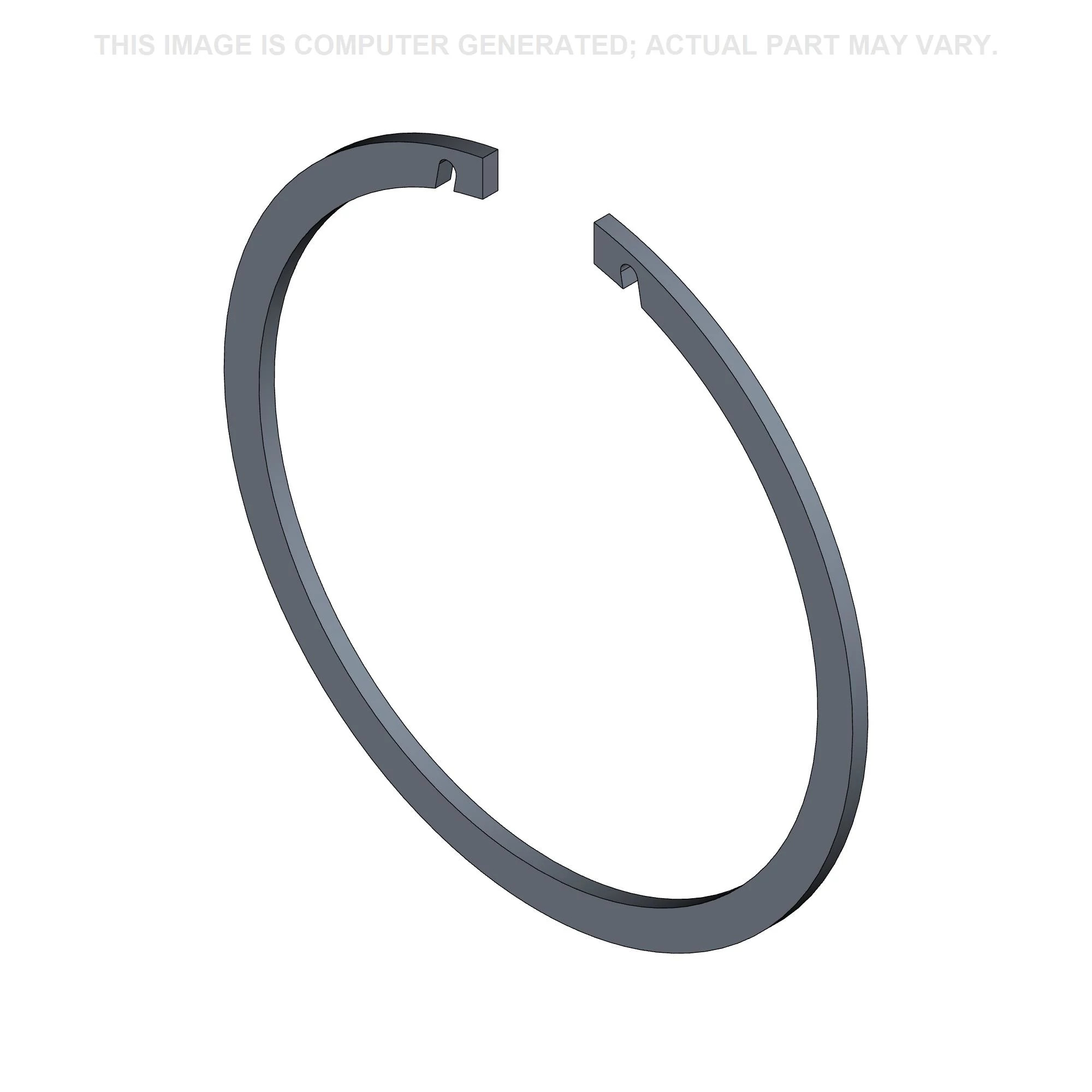

    101-21433
    SNAP RING #433, 4.641'', Int;
  • 18
    2
    193929A1
    WASHER 79 mm ID x 109 mm OD x 3.35 mm; Bearing Retainer
  • 19
    2
    193907A1
    BEARING HOUSING 109.971 mm ID x 133 mm OD x 64 mm; Trunnion
  • 20
    2
    219-87
    LUBE NIPPLE 1/4'' - 28 NPTF;
  • 21
    2
    193831A1
    HANGER; Bearing Standard
  • 22
    4
    413-1244
    BOLT Hex, 3/4'' - 10 x 2-3/4'', Gr 5;
  • 23
    4
    492-11075
    LOCK WASHER 3/4'';
  • 24
    4
    495-21081
    WASHER 3/4'';
  • 25
    2
    403922A1
    SLEEVE 49.276mm ID x 55.17mm OD x 197mm L; Arbor Bolt Support
  • 26
    5
    87443006
    PLOW DISC; DISK, 24''X6.5MM CC 920ROC
  • 27
    1
    87443002
    PLOW DISC; DISK, 22''X6.5MM CC 920ROC
  • 28
    2
    410081A1
    BAR; Gang Holder, Top
  • 29
    2
    409775A1
    WEAR PLATE; Mount - Scraper Angle
  • 30
    2
    410082A1
    STRAP; Gang Holder
  • 31
    4
    413-12120
    BOLT Hex, 3/4'' - 10 x 7-1/2'', Gr 5;
  • 32
    4
    280375
    NUT 3/4'' - 10, Gr C; 3/4, NC Stover
  • 33
    2
    413-14112
    BOLT Hex, 7/8'' - 9 x 7'', Gr 5;
  • 34
    2
    87681198
    NUT Hex, 7/8''-9, 0.45 high; 7/8, NC Stover
  • 35
    2
    433-1032
    CARRIAGE BOLT Sq Nk, 5/8'' - 11 x 2'', Gr 5;
  • 36
    2
    1256884C1
    NUT; 5/8, NC Flange Lock
  • 37
    5
    231425A1
    BOLT 1/2 - 13 x 38mm, Gr 5; 1/2, NC Special
  • 38
    5
    86512371
    SERRATED NUT Flg, USR, 1/2''-13;
  • 2
    NSS
    NOT SOLD SEPARAT; Cushion - Bearing & Standard, Rh, Flange (406684A1)
  • 2
    NSS
    NOT SOLD SEPARAT; Cushion - Bearing & Standard, Lh, Flange (409177A1)
  • 39
    2

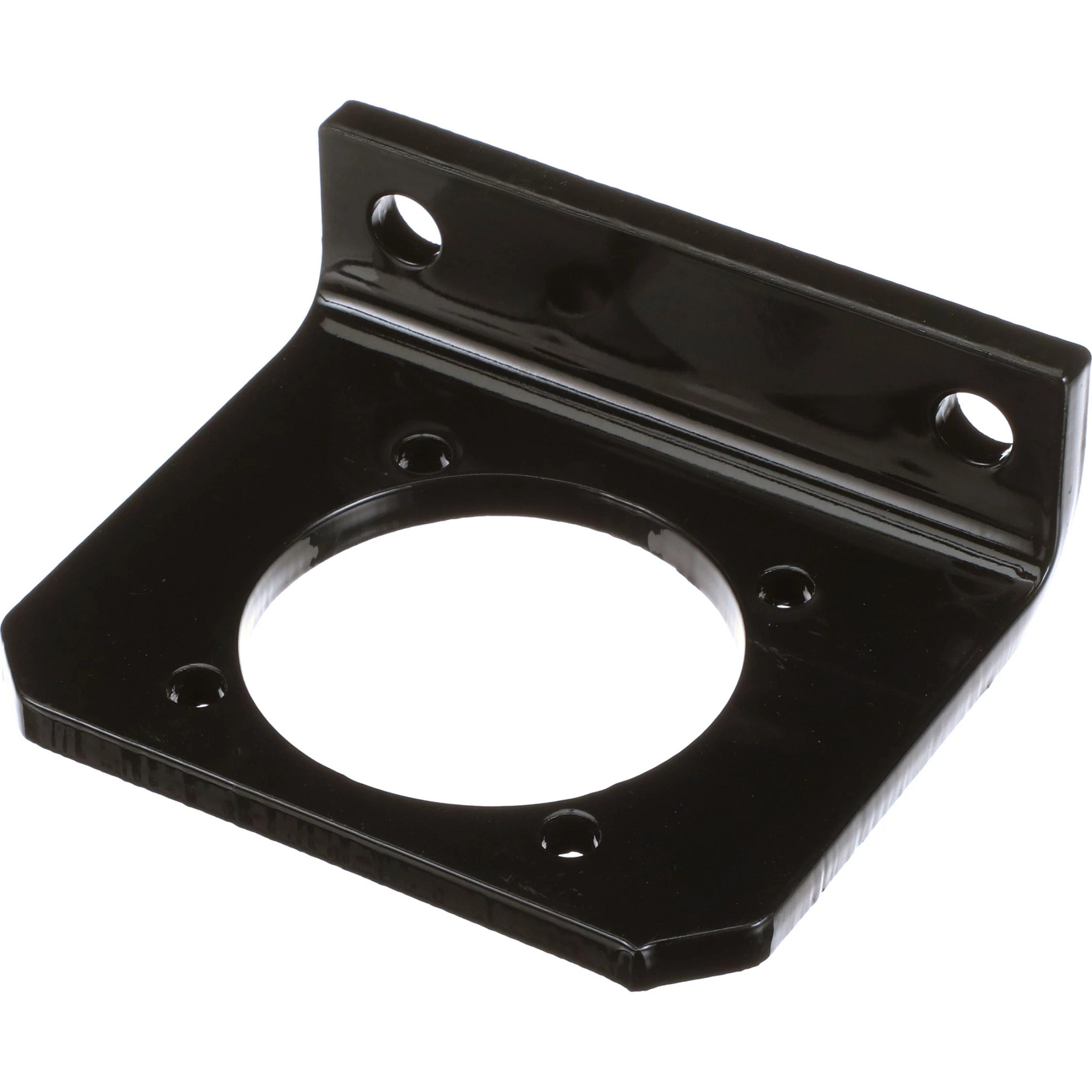

    405202A1
    PLATE; Bearing Support
  • 40
    2
    ST740B
    BALL BEARING 55.58mm ID; Flange
  • 40
    2
    ST740BGV
    BEARING ASSY; Value, Ball Bearing
  • 41
    2
    193831A1
    HANGER; Bearing Standard
  • 42
    8
    413-824
    BOLT Hex, 1/2'' - 13 x 1-1/2'', Gr 5;
  • 43
    8
    86992215
    LOCK NUT 1/2''-13, GC; Stover
  • 44
    4
    413-1248
    BOLT Hex, 3/4'' - 10 x 3'', Gr 5;
  • 45
    4
    280375
    NUT 3/4'' - 10, Gr C; 3/4, NC Stover
  • 46
    4
    495-21081
    WASHER 3/4'';
  • 47
    UAR
    87412142
    WASHER 40mm ID x 75mm OD x 6.5mm Thk; Arbor, 1-1/2 Dia.
  • 48
    1
    438-12036
    LOCK PIN 5/16'' x 2 1/4'', Slotted;
