1CYLINDER; ASSY, hydraulic
-
11BACK-UP RING; o-ring back-up
-
22CLIP; PIN, quick attachable cot.
-
32PIN; ASSY, cyl pivot
-
42BACK-UP RING; WASHER, o-ring back-up
-
54ROD 5/8'' - 11 x 14''; tie
-
61HEAD; rear
-
72O-RING 3.234'' ID x 0.139'' Width; 3-1/4 x 3-1/2 x 1/8 front & rear head
-
92BACK-UP RING 0.594'' ID x 0.36'' Width; o-ring back-up
-
101O-RING 0.139'' Thk x 0.984'' ID, -214, Cl 6, 90 Duro; 1 x 1-1/4 x 1/8 piston rod
-
111TUBE; cyl return
-
1LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
122BACK-UP RING; WASHER, o-ring back-up
-
131O-RING 0.21'' Thk x 3.1'' ID, -338, Cl 6, 90 Duro; 3-1/8 x 3-1/2 x 1/8 piston
-
141NUT; 1-1/8-12 hex. lock
-
151PISTON;
-
171LOCK VALVE; VALVE ASSY, limit stop
-
181O-RING 0.103'' Thk x 0.612'' ID, -114, Cl 6, 90 Duro; 5/8 x 13/16 x 3/32 limit stop valve housing
-
191O-RING 0.07'' Thk x 0.176'' ID, -8, Cl 6, 90 Duro; 3/16 x 5/16 x 1/16 limit stop valve housing
-
201HOUSING; ASSY, limit stop valve
-
211PLATE; limit stop valve retainer
-
2BOLT Hex, 1/4'' - 20 x 9/16''; SCREW, 1/4-20 x 9/16 hex-hd cap
-
221RING; quad
-
231WASHER; WIPER, piston rod
-
241SEALING WASHER; RETAINER, piston rod wiper
-
251BACK-UP RING; limit stop valve housing o-ring back-up
-
261CLAMP; ASSY, stroke limit
-
1BOLT Hex, 5/16'' - 24 x 3/4'', Gr 5; SCREW, 5/16-24 x 3/4 C-Z hex-hd cap
-
271RETAINER; limit stop valve o-ring
-
281ROD; ASSY, piston
-
292O-RING 0.103'' Thk x 0.549'' ID, -113, Cl 6, 90 Duro; 9/16 x 3/4 x 3/32 return tube
-
302O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 5/8 OD tube
-
312PLUG; 7/8-14 str thd o-ring boss
-
322BACK-UP RING; WASHER, quad ring back-up
-
332PLUG; front head
-
342O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk, 3/8 OD tube
-
1KIT; PACKAGE, o-ring service;Consists of, (1) o-ring 21590R1, (1) o-ring 364839R1, (1) ring 400744R1, (2) o-ring 343940R1, (2) washer 371218R2, (2) washer 375936R1, (2) o-ring 377952R1, (1) o-ring 378827R1, (1) o-ring 380794R1, (1) wiper 383770R1, (2) washer 403622R1, (2) washer 404015R1, (1) washer 404026R1, (1) washer 404028R1, (1) o-ring 606271C1
Select All
Select
Ref.
2Qty
2Availability
Part #
520175R1Description
CLIP; PIN, quick attachable cot.Img
Alts
Select
Ref.
4Qty
2Availability
Part #
404015R1Description

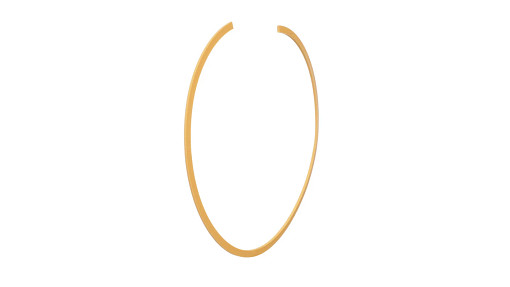

BACK-UP RING; WASHER, o-ring back-upImg
Alts
Select
Ref.
7Qty
2Availability
Part #
343940R1Description
O-RING 3.234'' ID x 0.139'' Width; 3-1/4 x 3-1/2 x 1/8 front & rear headImg
Alts
Select
Ref.
9Qty
2Availability
Part #
371218R2Description

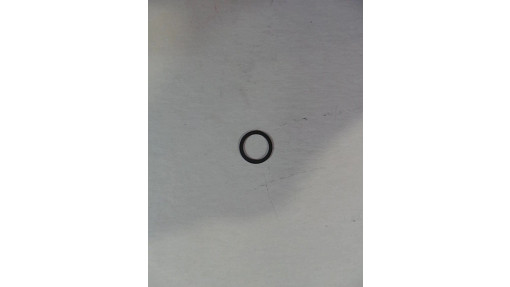

BACK-UP RING 0.594'' ID x 0.36'' Width; o-ring back-upImg
Alts
Select
Ref.
10Qty
1Availability
Part #
380794R1Description
O-RING 0.139'' Thk x 0.984'' ID, -214, Cl 6, 90 Duro; 1 x 1-1/4 x 1/8 piston rodImg
Alts
Select
Ref.
Qty
1Availability
Part #
103321Description
LOCK WASHER 3/8''; WASHER, LOCK, 3/8''Img
Alts
Select
Ref.
12Qty
2Availability
Part #
375936R1Description

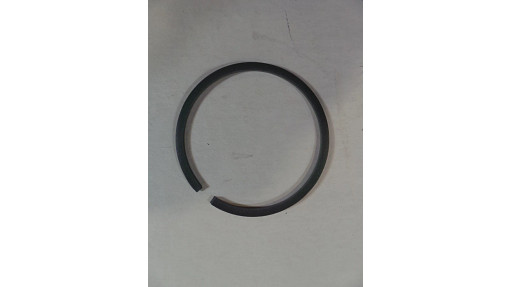

BACK-UP RING; WASHER, o-ring back-upImg
