D-12 - GAUGE WHEEL AND BRACKET
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 2
    1
    520620R1
    AXLE PIN; PIN, retaining
  • 3
    1
    520175R1
    CLIP; PIN, auick-attachable cot
  • 4
    1
    467474R92
    SUPPORT; STANDARD w/spindle
  • .
    1
    472634R1
    WASHER; 25/32 x 1-3/4 x 11 GA WASHER
  • 5
    1
    651194R1
    CAP; hub
  • 7
    1
    455169R92
    WHEEL; 15 x 4-1/2 KB, for 6.700 x 15 tire
  • 7
    1
    463036R1
    WHEEL (STEERING); WHEEL, 14 x 5 KB, for 14 tire
  • 9
    1
    472220R11
    HUB; ASSY, wheel
  • .
    4

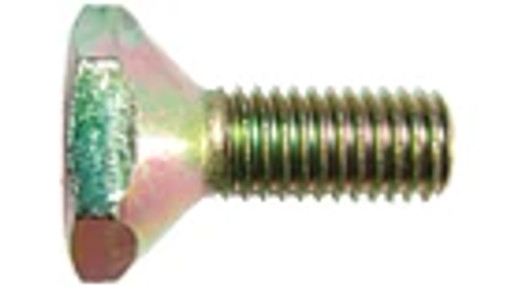

    351079R1
    BOLT Hex Counter Shank, 1/2'' - 20 x 23/32''; 1/2UNF X 5/16 CONICAL, HD BOLT
  • 11
    1
    651818R91
    ROLLER BEARING 31.77 mm ID x 16.08 mm; BEARING, inner roller cone
  • 12
    1

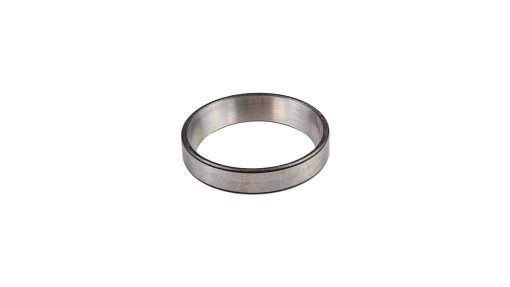

    651817R1
    BEARING CUP; BEARING, inner roller cup
  • 13
    1
    651814R1
    BEARING CUP; BEARING, outer roller cup
  • 14
    1
    651815R91
    BEARING ASSY 7.508'' ID x 17.82'' OD x 6''; BEARING ASSY, outer roller cup
  • 14
    1
    651815R91GV
    BEARING CONE; Value, Cone Bearing
  • 15
    1
    69442D
    NUT; 3/4 hex, slt
  • 16
    1
    472221R91
    SEAL 39.57mm ID x 58.6mm OD x 7.37mm Thk; wheel hub oil, 1963 & up
  • 17
    1
    472222R1
    SLEEVE; oil seal wear, 1963 & up
  • 19
    1
    86636814
    LUBE NIPPLE 1/4''-28 x .52'' lg; FITTING, 1/4 str lub, 1963 & up
