9-94 - WINGS AND BLOCKS, SHATTER, MODEL 10, 14, 6810 AND 6814 RIPPERS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    -
    183781A1
    BLOCK; subsoiler, left hand tooth, alloy cast
  • 2
    1
    183758A1
    BLOCK; subsoiler, right hand tooth, alloy cast
  • 3
    2
    413-1044
    BOLT Hex, 5/8'' - 11 x 2-3/4'', Gr 5; 5/8 x 2-3/4
  • 4
    2

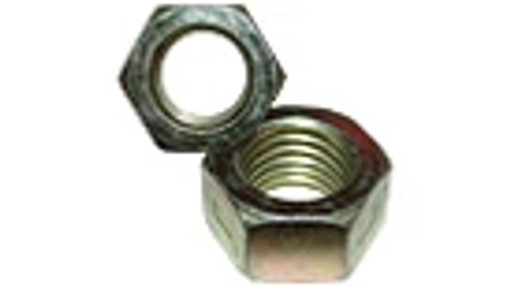

    231-4218
    LOCK NUT 1/2''-13, GB; LOCKNUT, 1/2
  • 5
    1

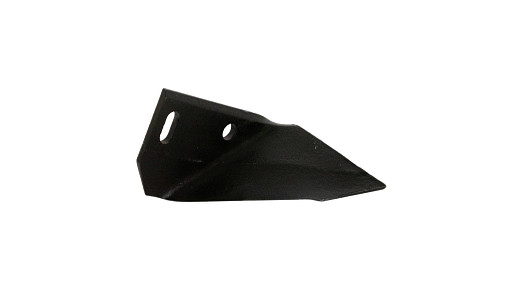

    183774A1
    SHARE; WING, shatter, subsoiler, left hand, without hard face
  • 6
    1
    183780A1
    SHARE; WING, shatter, subsoiler, right hand, without hard face
  • 7
    2
    413-1044
    BOLT Hex, 5/8'' - 11 x 2-3/4'', Gr 5; 5/8 x 2-3/4
  • 8
    2
    231-4218
    LOCK NUT 1/2''-13, GB; LOCKNUT, 1/2
  • 9
    1
    192713A1
    SHARE; WING, ripper, left hand, hard face
  • 10
    1

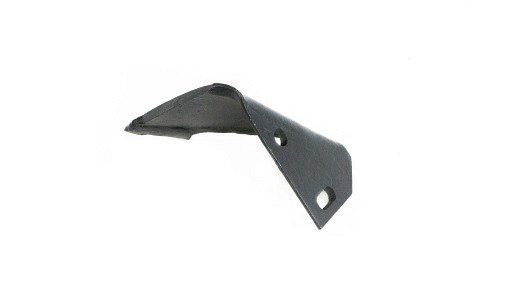

    192714A1
    SHARE; WING, ripper, right hand, hard face
  • 11
    1
    1284097C1
    SUPPORT; WING, root cutter, left hand, without hard face
  • 12
    1
    1284098C1
    SUPPORT; WING, root cutter, right hand, without hard face
  • 13
    1
    245777A1
    BLADE; WING, root cutter, left hand, hard face, not illustrated
  • 14
    1

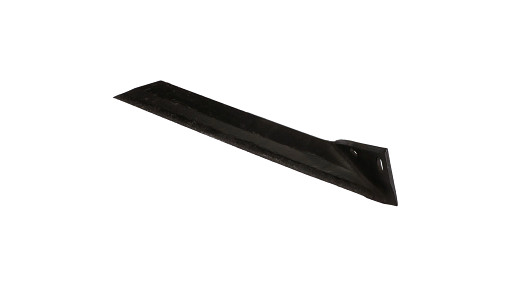

    245778A1
    BLADE; WING, root cutter, right hand, hard face, not illustrated
