HSES - CASE MOLDBOARD PLO... 00 - COMPLETE MACHINE 9-78 - LANDSIDES, SUPER C...
9-78 - LANDSIDES, SUPER CHIEF AND TERRA FLOW
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    1980672C2
    PLATE; LANDSIDE, standard, right hand, front, see note
  • 1
    1
    1980671C2
    PLATE; LANDSIDE, standard, left hand, front, not illustrated, see note
  • 2
    1
    1980514C1
    PLATE; LANDSIDE, special, right hand, used with John Deere and Massey Fergusson conversion bottom assemblies, see note
  • 2
    1
    1980515C2
    PLATE; LANDSIDE, special, left hand, used with John Deere and Massey Fergusson conversion bottom assemblies, not illustrated, see not
  • 3
    1
    522342R2
    LANDSIDE; cast, right hand, front, order 1980672C2 (ref 1)
  • 3
    1
    464592R1
    LANDSIDE; special, left hand, front, not illustrated, order 1980671C2 (ref 1)
  • 4
    2
    420-3724
    PLOW BOLT #3, 7/16'' - 14 x 1 1/2'', Gr 8; BOLT, plow, 7/16 x 1-1/2
  • 5
    2
    429-107
    NUT 7/16'' - 14, G8;
  • 6
    1
    489465R1
    LANDSIDE; steel, right hand, front, order 1980672C2 (ref 1)
  • 6
    1
    542417R1
    LANDSIDE; steel, left hand, front, not illustrated, order 1980671C2 (ref 1)
  • 7
    X
    62178C1
    PLOW BOLT; BOLT, plow, 7/16 x 1-3/4, 8
  • 7
    X
    420-3724
    PLOW BOLT #3, 7/16'' - 14 x 1 1/2'', Gr 8; BOLT, plow, 7/16 x 1-1/2
  • 8
    X
    429-107
    NUT 7/16'' - 14, G8;
  • 9
    1
    484912R2
    PLATE; LANDSIDE, thick cast, right hand, front, order 1980672C2 (ref 1), 59058C2 (ref 17)
  • 10
    X
    62179C1
    PLOW BOLT; BOLT, plow, 7/16 x 2-1/8, 8
  • 10
    X
    62178C1
    PLOW BOLT; BOLT, plow, 7/16 x 1-3/4, 8
  • 11
    X
    429-107
    NUT 7/16'' - 14, G8;
  • 12
    1
    59057C1
    LANDSIDE; standard padded, front, two-piece, for left hand replacement order 1980671C2 and 1980947C2 pad, for right hand replacement order 1980672C2 and 59058C2 pad, see note
  • 13
    1
    526777R3

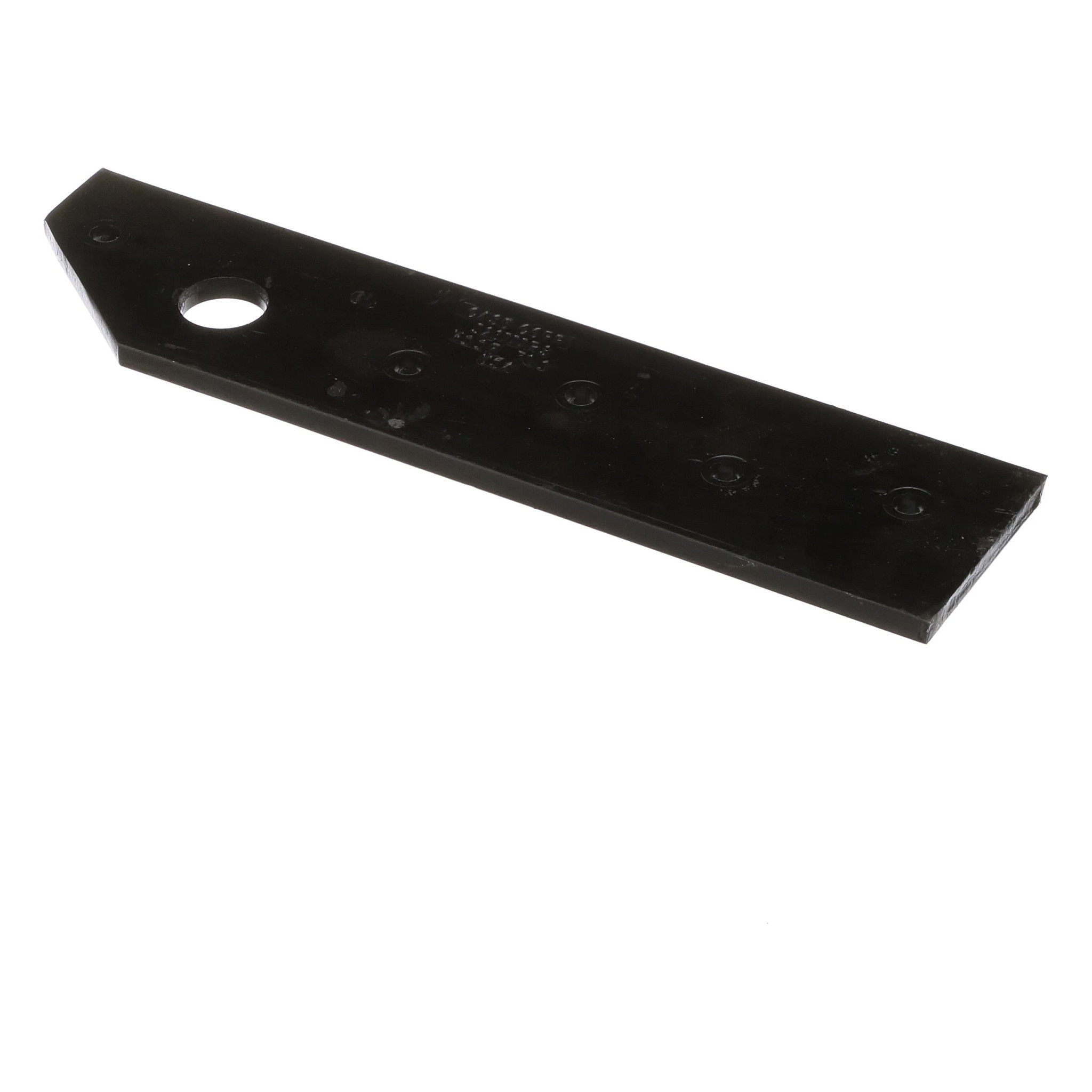

    LANDSIDE; dual pads, right hand, rear, see note;NOTE- LANDSIDES REF#13 ARE 516.3MM LONG.
  • 13
    1
    464594R2
    LANDSIDE; dual pads, left hand, rear, not illustrated, see note
  • 14
    1
    522343R2
    LANDSIDE; cast rib, right hand, rear
  • 15
    2
    420-3724
    PLOW BOLT #3, 7/16'' - 14 x 1 1/2'', Gr 8; BOLT, plow, 7/16 x 1-1/2
  • 16
    2
    429-107
    NUT 7/16'' - 14, G8;
  • 17
    1
    59058C2
    PLATE; wear, right hand
  • 17
    1
    1980947C2
    PAD; wear, left hand, not illustrated
  • 18
    X
    59055C3
    PLOW BOLT Spcl Hd, 7/16'' - 14 x 28mm; BOLT, special, 7/16 x 1-3/32
  • 18
    X
    59056C3
    PLOW BOLT; BOLT, special, 7/16 x 2
  • 19
    X
    429-107
    NUT 7/16'' - 14, G8;
  • 20
    X
    491899R1
    SHIM; use when severe overcutting is encountered, beam
