A.30.A[04] - ELECTRICAL - CONNECTOR SERVICE KIT
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 0
    1
    13345V2
    KIT; electrical connector;Includes the following items which may be ordered separately
  • 1
    2
    425264A1

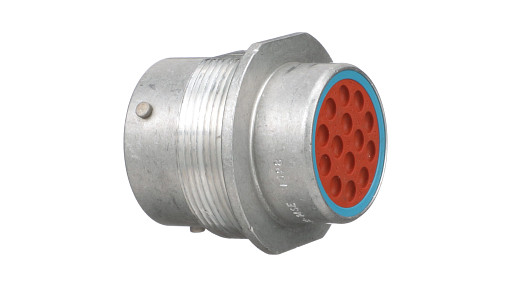

    ELEC CONNECTOR 14 Pin; metal 14c receptacle
  • 2
    2
    425290A1

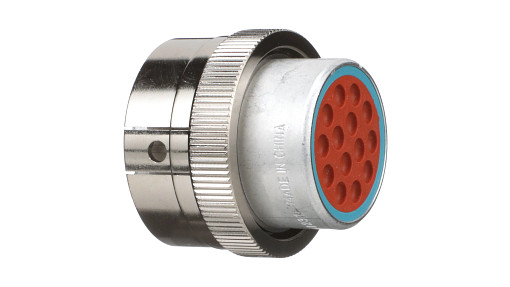

    PLUG; connector, elec metal 14c
  • 3
    2
    225227C1
    ELEC CONNECTOR Female, 9 Pin; Plastic 9c Plug
  • 4
    2
    245329C1
    ELEC CONNECTOR; CONNECTOR elec metal 23c plug
  • 5
    2
    225224C1
    ELEC CONNECTOR Female, 5 Pin; plastic 5c plug
  • 6
    2
    795231
    TERMINAL CONNECTOR Female, 16 SAE; plastic 3c plug
  • 7
    2
    225222C1
    ELEC CONNECTOR Male, 5 Pin; plastic 5c receptacle fl
  • 8
    20
    86500036

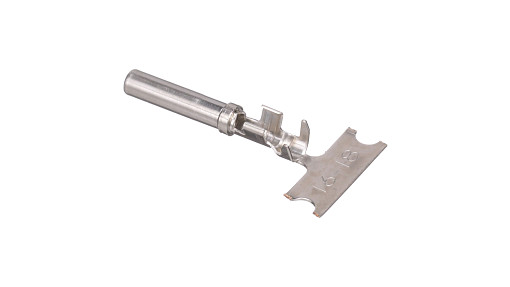

    TERMINAL Female, Nickel, 0.75 - 2mm; 16-18awg
  • 9
    20
    225348C1
    PLOT Type NS, Male, Nickel, 0.8 - 1.0mm Wire; pin 16-18awg
  • 10
    20
    225404C1
    BORNE Type MS, Female, Nickel, 1.0 - 2.0mm Wire; socket 14-16awg
  • 11
    20
    225406C1
    STECKERSTIFT Type NS, Male, Nickel, 1.0 - 2.0mm Wire; pin 14-16awg
  • 12
    10
    84068583

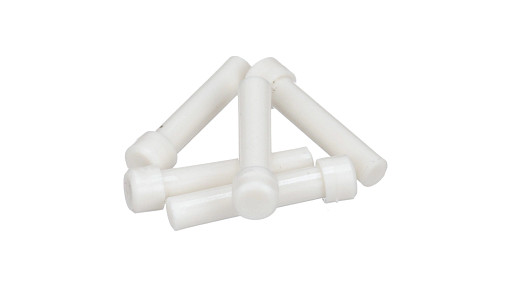

    BOUCHON 12 - 16 Ga, White; connector cavity white plastic
  • 13
    2
    225226C1
    CONNECTOR, ELEC; CONNECTOR elec plastic 9c receptacle
  • 14
    5
    51200869
    TOOL; extraction Deutsch size 16
  • 15
    1
    425266A1
    OUTIL; hand crimp - Deutsch
  • 20
    5
    245715C1

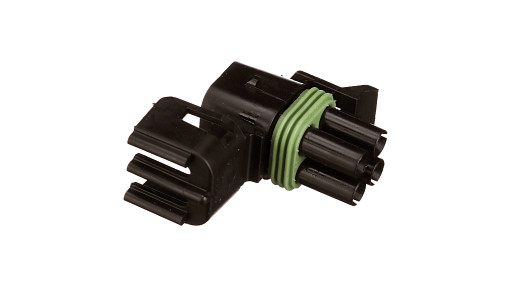

    CONNECTEUR ELECTRIQU 4 Pin; plastic 4c plug
  • 21
    5
    87692855

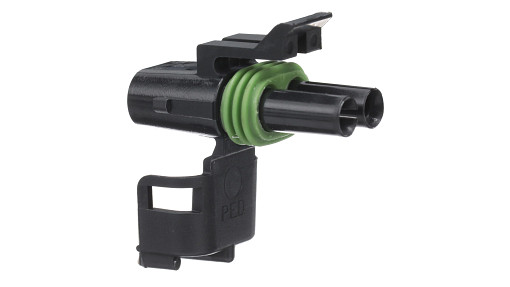

    CONNETTORE ELETTRICO Male, 2 Cavities; plastic 2c plug
  • 22
    5
    87644909

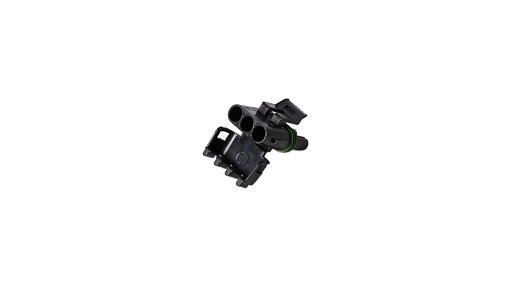

    WIRE CONNECTOR Female, 3 Pins; plastic 3c plug
  • 23
    5
    87692877

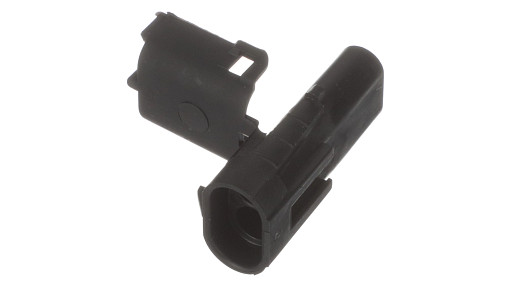

    ELEC CONNECTOR Male, 2 Cavities; plastic 2c receptacle
  • 24
    5
    245485C1

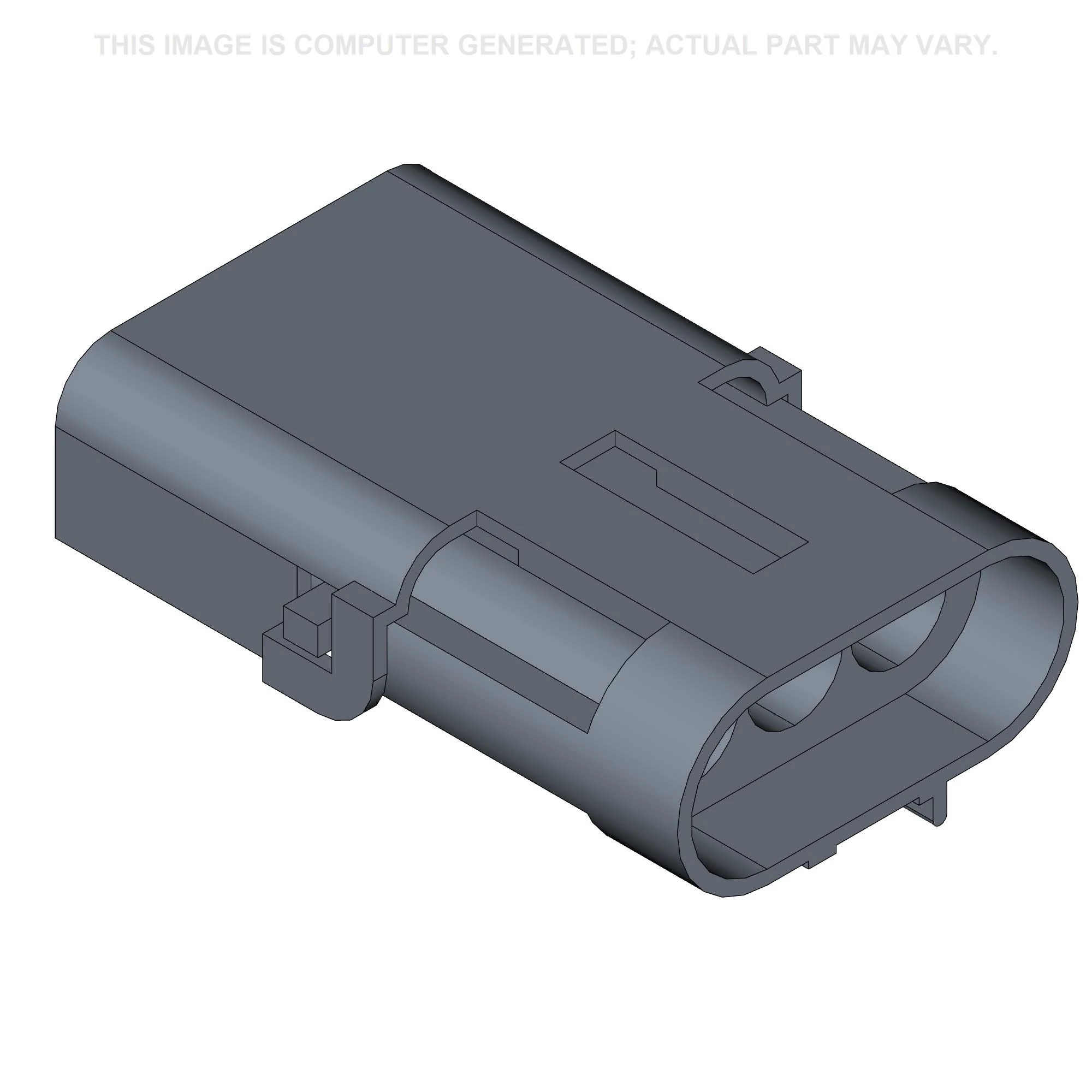

    ELEC CONNECTOR Male, 3 Pin; plastic 3c receptacle
  • 25
    5
    245716C1

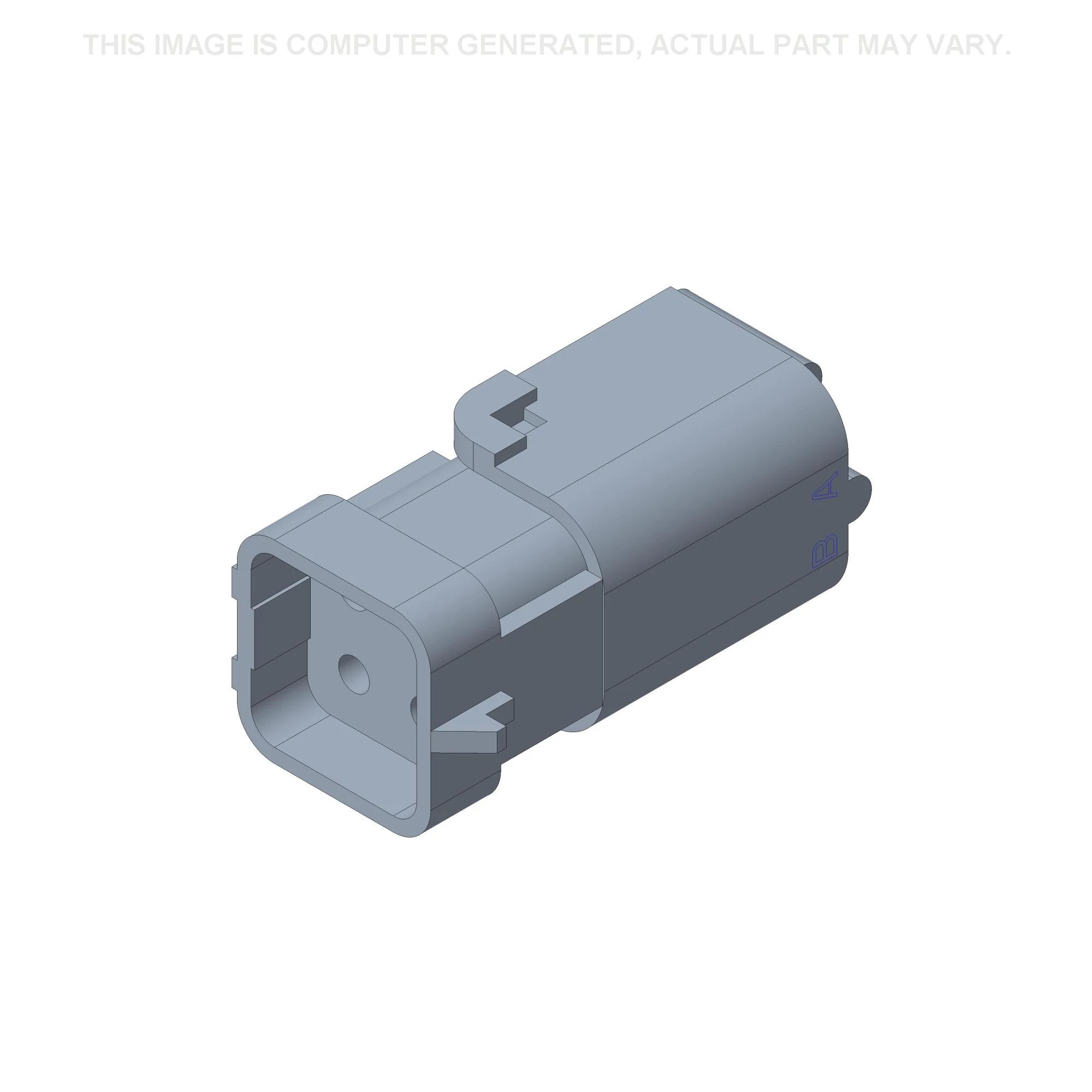

    ELEC CONNECTOR Male, 4 Pin; plastic 4c receptacle
  • 26
    5
    872290R1

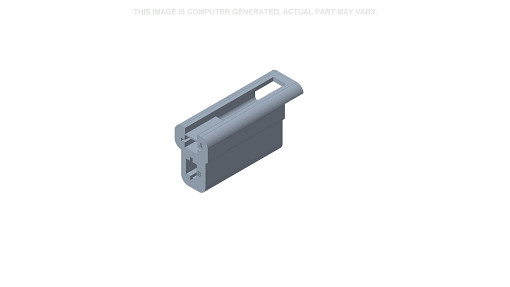

    ELEC CONNECTOR Male; Plastic 2c Receptacle
  • 27
    10
    225123C1

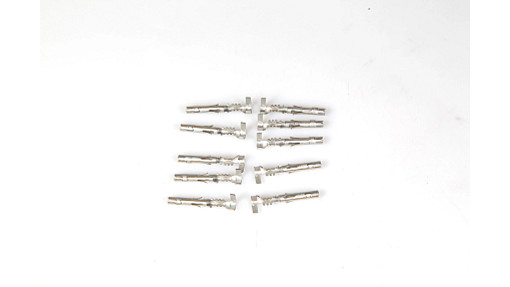

    TERMINAL Type U, Tin, 0.8mm; socket 18-20awg
  • 28
    10
    225122C1

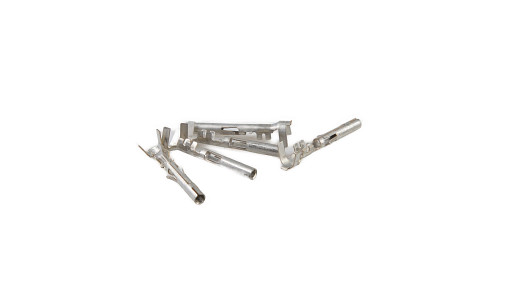

    TERMINAL Type U, Tin, 1.0 - 2.0mm Wire; socket 14-16awg
  • 29
    10
    225119C1
    TERMINAL Type T, 1.0 - 2.0mm Wire; 14-16awg
  • 30
    10
    225120C1

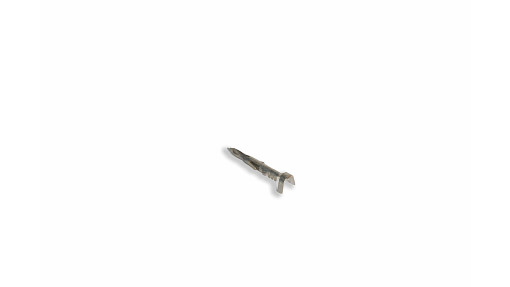

    TERMINAL Type T, Tin, 0.8mm Wire; 18-20awg
  • 31
    10
    1120922C1
    TERMINAL Male, Type E, 1.0 - 2.0mm Wire; blade 14-16awg
  • 32
    20
    225124C1

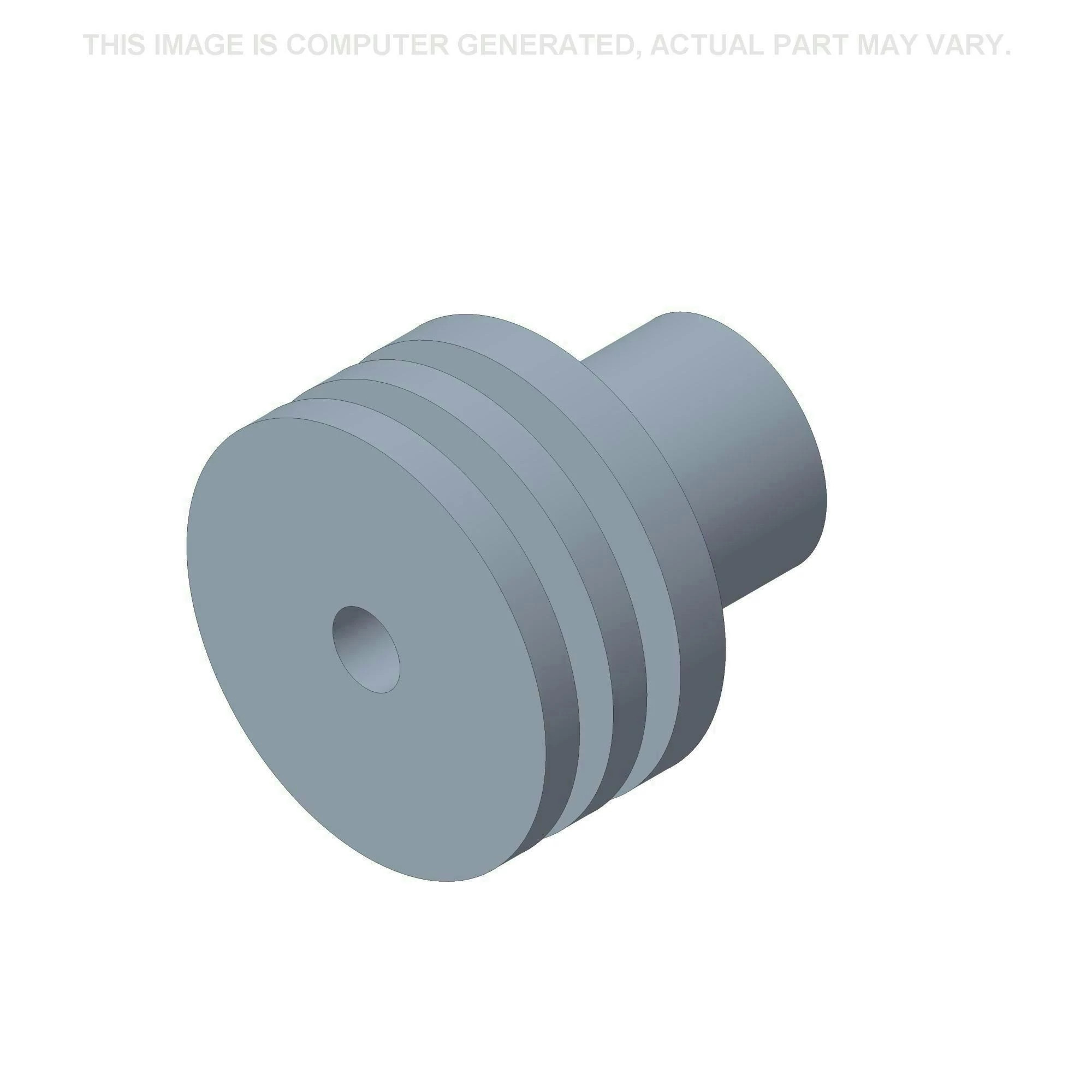

    SEAL 0.5 - 1.0mm Wire; seal grn 2.8-2 omm
  • 33
    10
    225125C1
    SEAL 1.0mm Wire; Connector Grey 3.49 - 2.81 mm
  • 34
    5
    1964525C1
    OUTIL; extraction - Packard, weather pack
  • 35
    1
    425267A1
    TOOL; hand crimp - Packard, weather pack
  • 40
    2
    425057A1
    ELEC CONNECTOR 4 Pin; plastic 4c plug
  • 41
    2
    10565
    ELEC CONNECTOR 4 Pin; plastic 4c receptacle
  • 42
    10
    700718605
    TERMINAL; pin 20-24awg
  • 43
    30
    225109C1
    POWER SOCKET Gold, 0.8 - 1.0mm; socket 16-18awg
  • 44
    2
    1964524C1
    TOOL KIT; Removal
  • 45
    1
    ZJI2
    TOOL; hand crimp - amp type III+
  • 50
    1
    51200018
    PLIERS; cutter/stripper;Not sold separately
  • 51
    1
    425268A1
    TOOL BOX; complete
  • 52
    6
    221731A1
    ELEC CONNECTOR Female, 24 Pin; plastic 24c plug
  • 53
    6
    225171C1

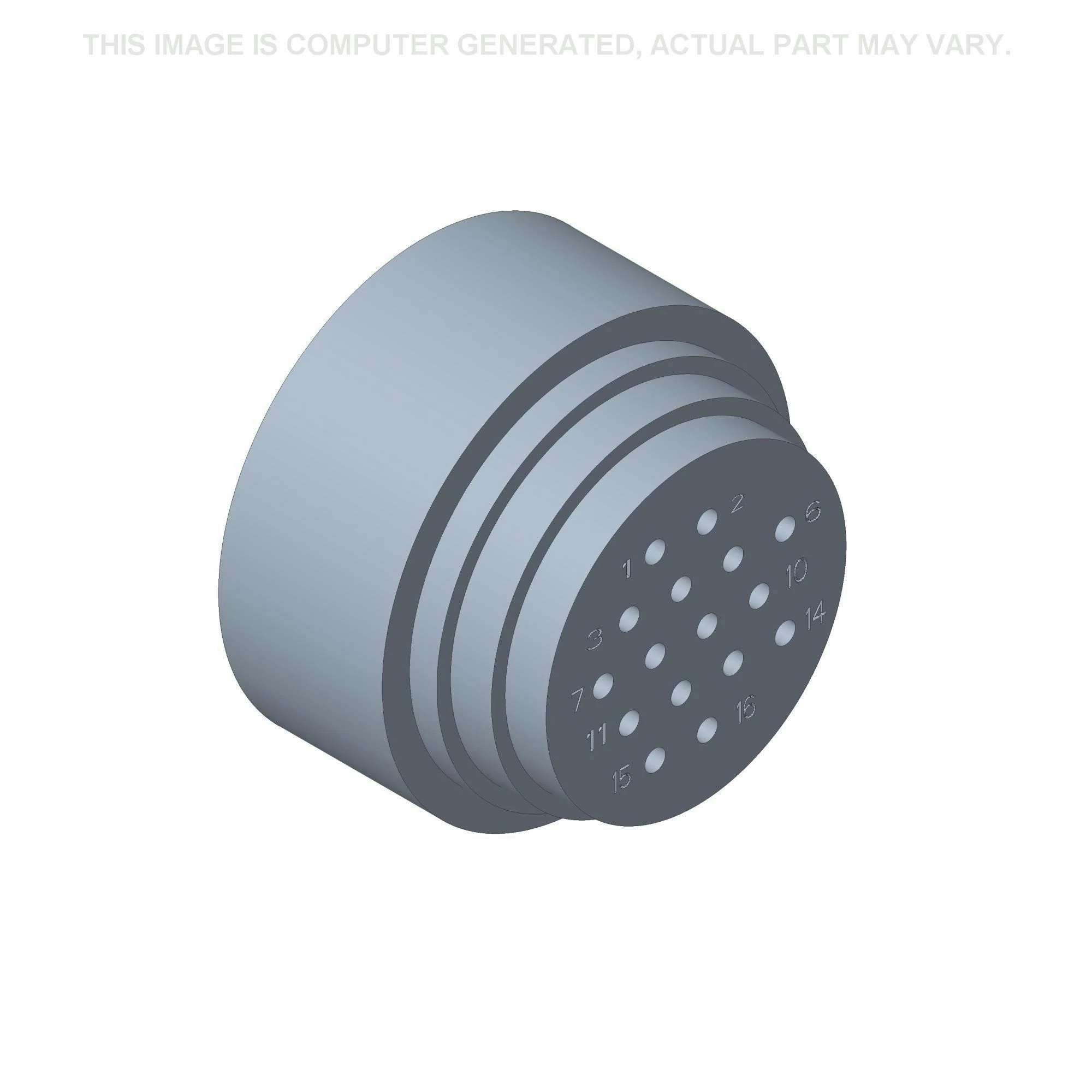

    ELEC CONNECTOR Female, 16 Pin; plastic 16c plug
  • 54
    6
    87675194

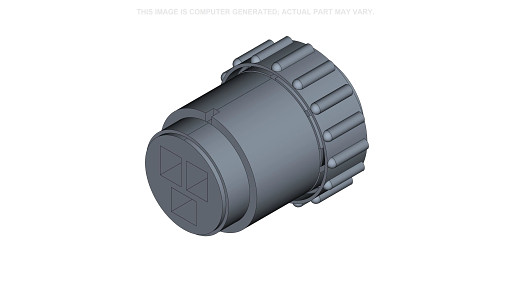

    MULTIPOLE CONNECTOR Female, 3 Pole; plastic 3c plug
  • 55
    24
    425260A1
    CONTACT HOUSING; socket 20-24awg
  • 56
    10
    445518
    TERMINAL CONNECTOR Tin, 5.00 - 8.00mm; socket 8-10awg
  • 57
    10
    425265A1
    CONTACT HOUSING; socket 14-18awg
  • 58
    1
    425097A1
    MANUALE; reference card, connector service kit
