03-004 - WATER PUMP SYSTEM
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 0
    1
    J285323C
    CORE-WATER PUMP WATER PUMP; Kit
  • 0
    1
    J800976
    WATER PUMP; Kit
  • 1
    J800976R

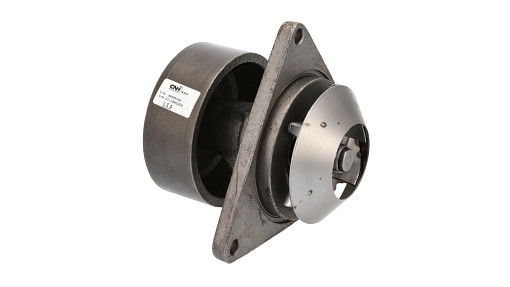

    REMAN-WATER PUMP REMAN-WATER PUMP; SPX4260 (11/01-6/04)
  • 1
    J800976C
    CORE-WATER PUMP CORE-WATER PUMP; Return Number
  • 1
    90380503R
    REMAN-WATER PUMP; Reman Option for new sub of J800976
  • 1
    90380503C
    CORE-WATER PUMP; Core Return
  • 1
    1
    NSS
    NOT SOLD SEPARAT; Pump - Water, New
  • 2
    1
    NSS
    NOT SOLD SEPARAT; Pulley - Water Pump
  • 3
    1
    J902089

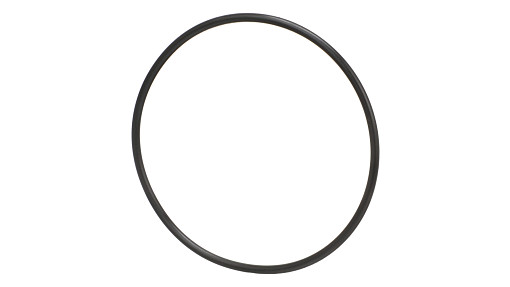

    SEAL 0.139'' Thk x 3.859'' ID, -241; O-Ring
  • 4
    3
    J934054
    FLANGE BOLT; Hex, Special, 8 - 1.25 X 28 MM
  • 5
    1
    J929458
    SUPPORT; Assembly - Fan
  • 6
    1
    J907769
    BOLT Hex, M10 x 70mm, Cl 12.9; hex, special, M10 x 70 mm, class 12.9
  • 7
    1
    J923044
    RETAINER; Fan Hub
  • 8
    2
    100-21250
    SNAP RING 2.50'', Int, #250;
  • 9
    1
    J910739

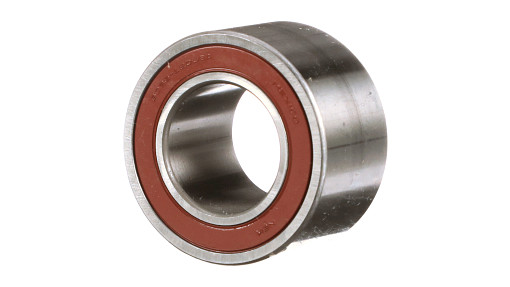

    BALL BEARING 42.7mm ID x 64mm OD x 37mm W;
  • 10
    1
    J911924
    HUB; Fan
  • 11
    4
    87015867
    BOLT Hvy Hex, M8 x 50mm, Cl 8.8;
  • 12
    1
    J914461
    PULLEY; fan, 207 mm diameter, 0.87 to 1 ratio
  • 13
    1
    J919472
    SUPPORT; Bracket - Belt Tensioner
  • 14
    2
    J925186
    SCREW Torx, M8 x 1.25 x 25mm, Cl 10.9;
  • 16
    1
    J936203
    BELT TENSIONER;
  • 17
    1
    J928848
    FLANGE BOLT Hex, M10 x 1.5 x 70mm; Bolt - Heavy Hex Flange, 10 - 1.5 X 70 MM, Class 10.9
Select All

Select

Ref.

0

Qty

1

Availability

Part #

J285323C

Description

CORE-WATER PUMP WATER PUMP; Kit


Alts

Select

Ref.

0

Qty

1

Availability

Part #

J800976

Description

WATER PUMP; Kit


Alts

Select

Ref.

Qty

1

Availability

Part #

J800976R

Description

REMAN-WATER PUMP REMAN-WATER PUMP; SPX4260 (11/01-6/04)


Alts

Select

Ref.

Qty

1

Availability

Part #

J800976C

Description

CORE-WATER PUMP CORE-WATER PUMP; Return Number


Alts

Select

Ref.

Qty

1

Availability

Part #

90380503R

Description

REMAN-WATER PUMP; Reman Option for new sub of J800976


Alts

Select

Ref.

Qty

1

Availability

Part #

90380503C

Description

CORE-WATER PUMP; Core Return


Alts

Select

Ref.

1

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Pump - Water, New


Alts

Select

Ref.

2

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Pulley - Water Pump


Alts

Select

Ref.

3

Qty

1

Availability

Part #

J902089

Description

SEAL 0.139'' Thk x 3.859'' ID, -241; O-Ring


Alts

Select

Ref.

4

Qty

3

Availability

Part #

J934054

Description

FLANGE BOLT; Hex, Special, 8 - 1.25 X 28 MM


Alts

Select

Ref.

5

Qty

1

Availability

Part #

J929458

Description

SUPPORT; Assembly - Fan


Alts

Select

Ref.

6

Qty

1

Availability

Part #

J907769

Description

BOLT Hex, M10 x 70mm, Cl 12.9; hex, special, M10 x 70 mm, class 12.9


Alts

Select

Ref.

7

Qty

1

Availability

Part #

J923044

Description

RETAINER; Fan Hub


Alts

Select

Ref.

8

Qty

2

Availability

Part #

100-21250

Description

SNAP RING 2.50'', Int, #250;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

J910739

Description

BALL BEARING 42.7mm ID x 64mm OD x 37mm W;


Alts

Select

Ref.

10

Qty

1

Availability

Part #

J911924

Description

HUB; Fan


Alts

Select

Ref.

11

Qty

4

Availability

Part #

87015867

Description

BOLT Hvy Hex, M8 x 50mm, Cl 8.8;


Alts

Select

Ref.

12

Qty

1

Availability

Part #

J914461

Description

PULLEY; fan, 207 mm diameter, 0.87 to 1 ratio


Alts

Select

Ref.

13

Qty

1

Availability

Part #

J919472

Description

SUPPORT; Bracket - Belt Tensioner


Alts

Select

Ref.

14

Qty

2

Availability

Part #

J925186

Description

SCREW Torx, M8 x 1.25 x 25mm, Cl 10.9;


Alts

Select

Ref.

16

Qty

1

Availability

Part #

J936203

Description

BELT TENSIONER;


Alts

Select

Ref.

17

Qty

1

Availability

Part #

J928848

Description

FLANGE BOLT Hex, M10 x 1.5 x 70mm; Bolt - Heavy Hex Flange, 10 - 1.5 X 70 MM, Class 10.9


Alts
