39.130.AA[01.1] - BOOM LIFT, PARALLEL LINKAGE, 80'/90' BOOM
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    47850200
    HITCH; Upper Link
  • 2
    1
    48138206
    HITCH; Lower Link, With Side Bracket
  • 3
    1
    47365358
    HITCH; Lower Link

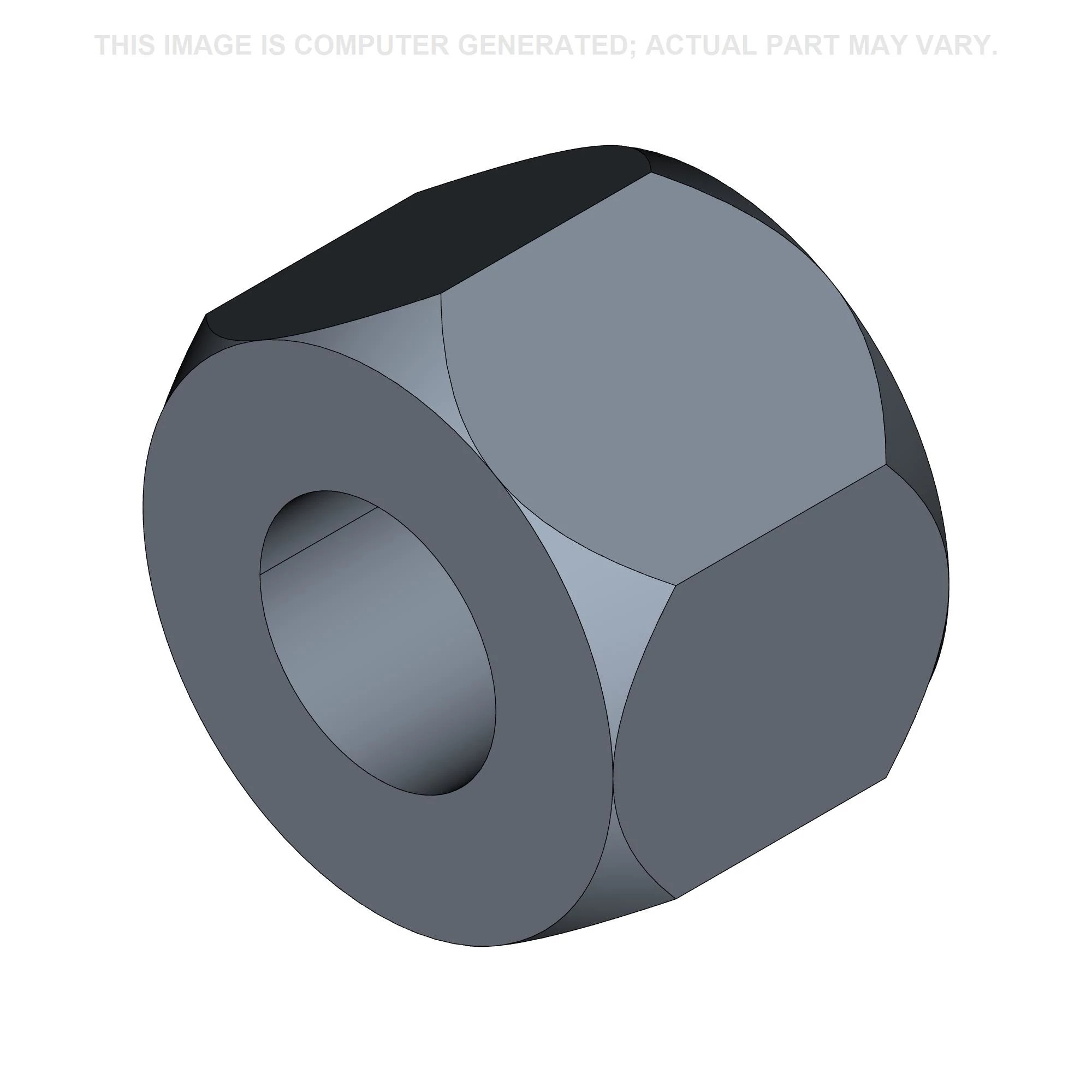

  • 4
    1
    47575188
    LOCK NUT NUT PREV TORQUE; 5/16'' SST

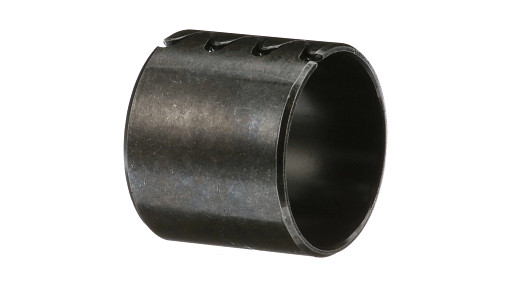

  • 5
    8
    BN321132
    BUSHING 50.8mm ID x 57.96mm OD x 50.8mm L; Spring

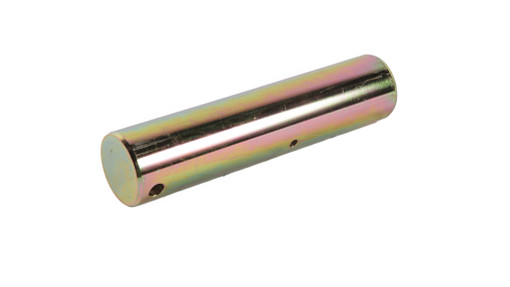

  • 6
    4
    343354A1
    PIN; Boom Hitch, 2'' x 8 3/4''
  • 7
    2
    84397664
    HITCH PIN; Parallel Linkage, Top; (SN Break) Up to YKT048958
  • 7
    2
    51557827
    PIN; Parallel Linkage, Top; (SN Break) From YKT048959

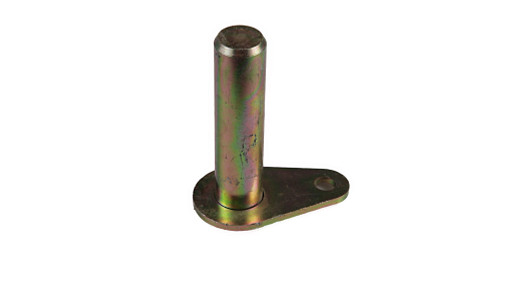

  • 8
    2
    87271475
    PIN; Parallel Linkage, Bottom; (SN Break) Up to YKT048958

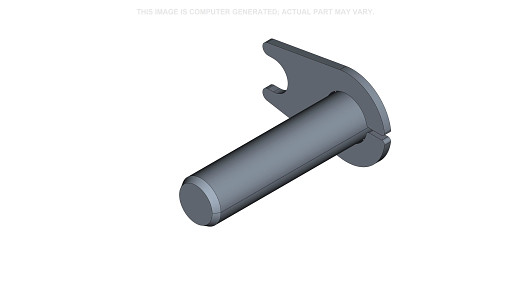

  • 8
    2
    51557829

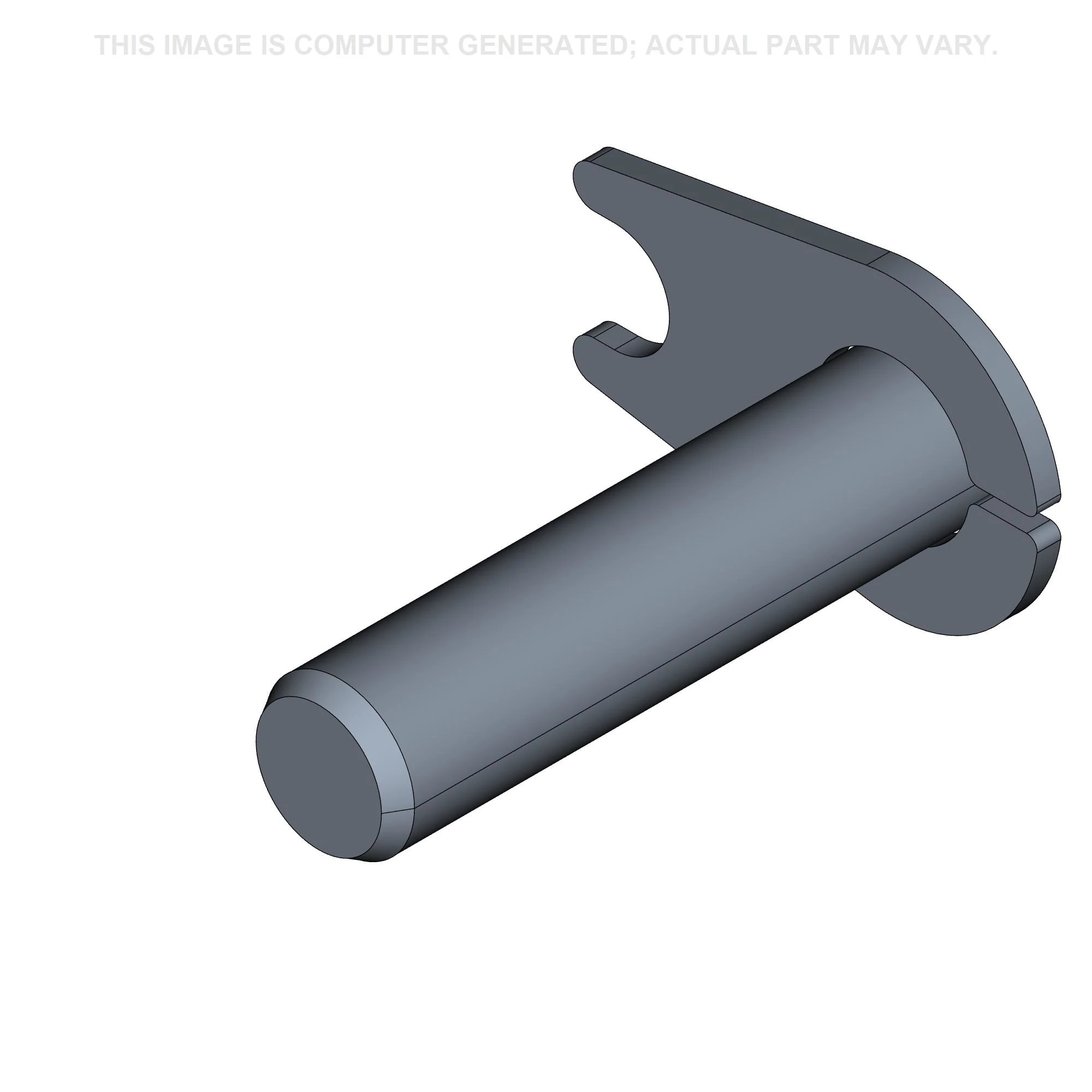

    PIN; Parallel Linkage, Bottom; (SN Break) From YKT048959
  • 9
    4
    87529312
    WASHER WASHER 11 X 24 X 3MM HDN DOR;
  • 10
    1
    BN50142
    WASHER 5/16'', Stainless Steel;
  • 11
    4
    86980515
    LOCK NUT NUT P/T ALL MTL M10 8 DOR;
  • 12
    4
    87341848

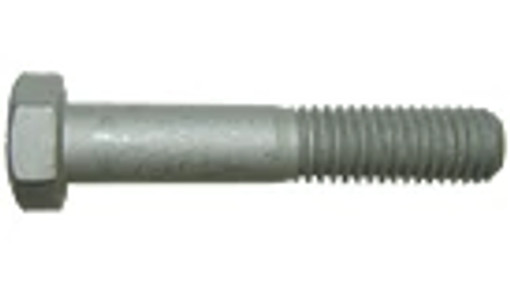

    BOLT Hex, M10 x 1.5 x 100mm, Cl 10.9; DOR
  • 13
    4
    87342014
    BOLT M12 x 1.75 x 35mm, Class 10.9; DOR; (SN Break) Up to YKT048958
  • 13
    4
    87022683
    BOLT BOLT M12X40 FULL 10.9 DOR; (SN Break) From YKT048959
  • 14
    4
    86980516
    LOCK NUT NUT P/T ALL MTL M12 8 DOR;
  • 14
    4
    87695422
    LOCK NUT; M12

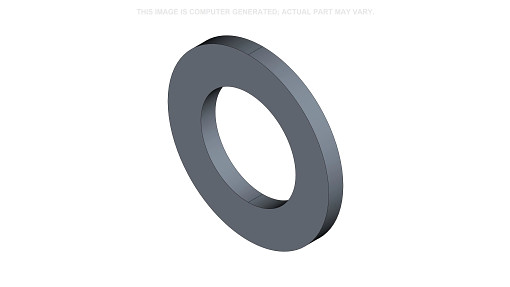

  • 15
    8
    87529309
    WASHER 33mm ID x 56mm OD x 5mm Thk, HTS, DOR;
  • 16
    4
    219-55
    LUBE NIPPLE 90 Degree Elbow, 1/8'' - 27 NPTF;
  • 17
    1
    87021161
    CLAMP 76.2mm, Coat, 8.7mm Bolt Hole, P Type;

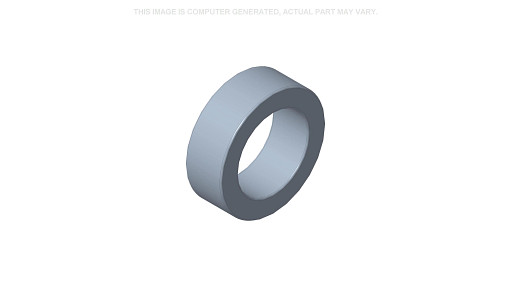

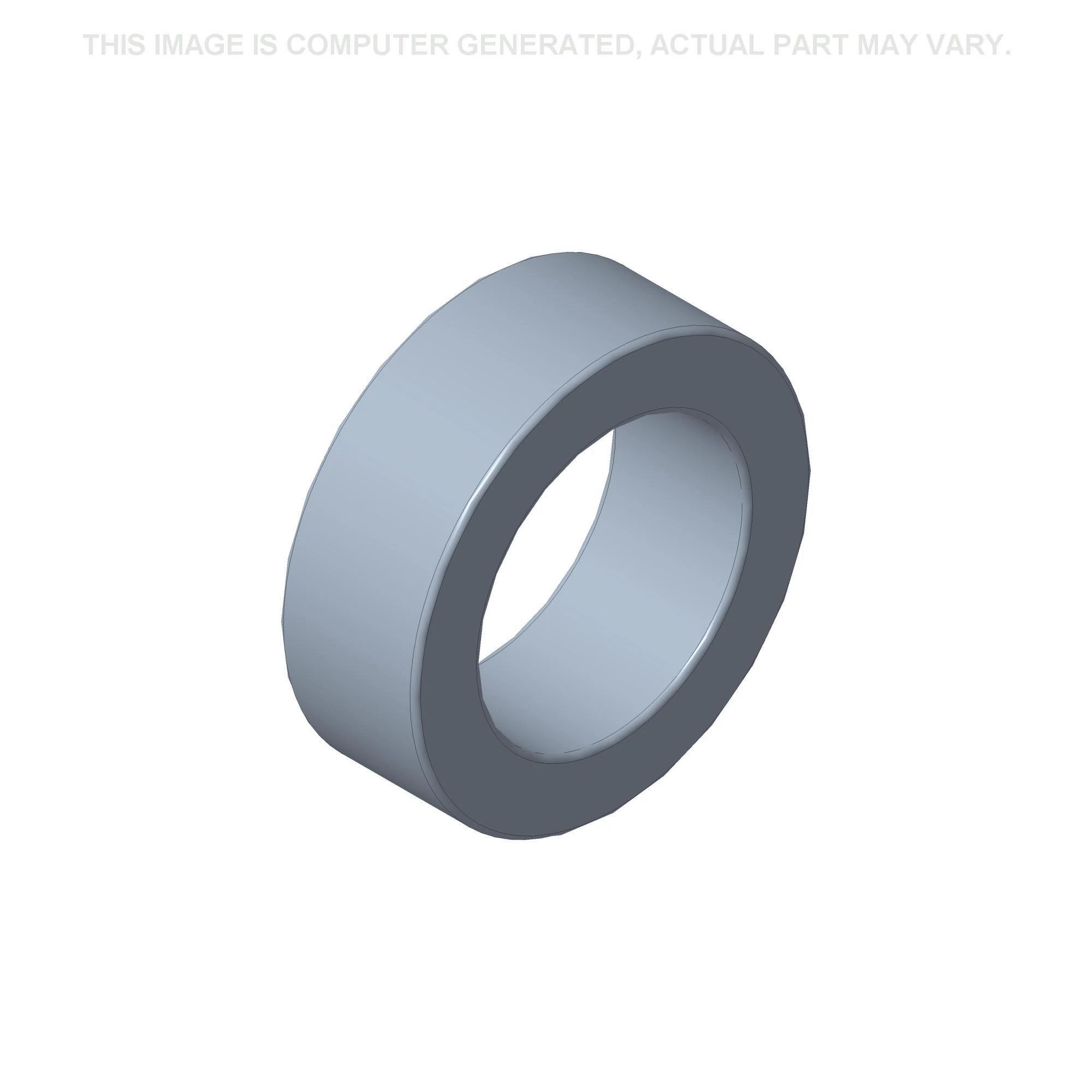

  • 18
    4
    51557935
    BUSHING; Flag Pin; (SN Break) From YKT048959
  • 19
    8
    87529310
    WASHER WASHER 13.5 X 28 X 4 HDN DOR;
