A-16 - MAIN DRIVE PARTS
TABLE OF CONTENTS
DIAGRAM
PART LIST
ALLE LÖSCHEN
Seriennummerfenster
Erstellungsdatum
Alle auswählen
Ref.
Menge
Teilenummer
Alts
Beschreibung
  • 1
    1
    603120R1
    BEARING; counter shaft inner (2 used 16 x 6) (3 used 12 x 7 & 13 x 7) (4 used 20 x 6, 24 x 6, 16 x 7, 18, 7, 16 x 8, 20 x 8 & 16 x 10)
  • 1
    80711

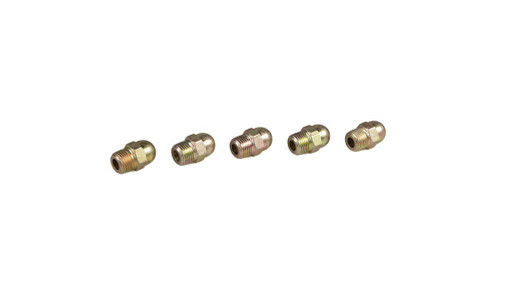

    LUBE NIPPLE 65 Degree, 1/8'' NPT x 7/8'' lg; 1/8'' - 65 DEGREE ELBOW LUB-FITTING (1 per brg)
  • 1
    180078
    ŚRUBA Hex, 5/16'' - 18 x 7/8'', Gr 5; 5/16 X 7/8'' BOLT
  • 1
    180179
    ŚRUBA Hex, 1/2'' - 13 x 1 3/4'', Gr 5; 5/16 X 1'' BOLT (Not 16 x 6, 12 x 7 & 13 x 7)
  • 1
    120376
    NAKRĘTKA 5/16''-18, G5; (1 per bolt) 5/16''-18, G5
  • 1
    80681
    PODKŁADKA ZABEZPIECZ 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, , 1 used per bolt 5/16''
  • 1
    103409
    SWORZEŃ 3/16'' x 1 1/2''; 1 per shaft 3/16'' x 1 1/2''
  • 1
    576485R1
    SWORZEŃ BLOKUJĄCY 1/4'' x 1 1/4'', Slotted; 1 per shaft 1/4'' x 1 1/4'', Slotted
  • 3
    1
    603116R1
    ZACISK KOŁNIERZA; COLLAR, 8T grain drive clutch (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 10)
  • 4
    1
    603265R1
    PODKŁADKA; 2 x 3-1/8 x 14 ga clutch (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)
  • 5
    1
    603181R1
    SUPPORTO; EXTENSION, grain drive clutch rod (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8 20 x 8 & 16 x 10)
  • 6
    1
    603151R1
    ASTA; grain drive clutch shifter (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)
  • 1
    120377
    DADO 3/8'' - 16, Gr 5; (2 per rod) 3/8''-16, G5
  • 7
    1
    603133R1

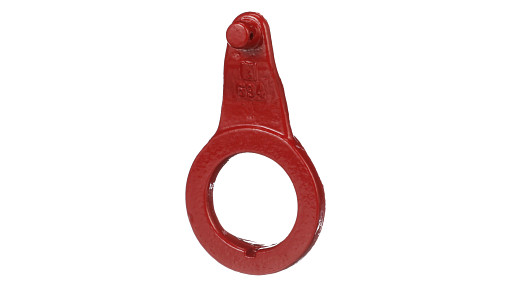

    CAM; grain drive clutch throw out (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)
  • 1
    80711
    LUBE NIPPLE 65 Degree, 1/8'' NPT x 7/8'' lg; 1/8'' - 65 DEGREE ELBOW LUB-FITTING (1 used per cam)
  • 1
    21782R1
    WASHER; 21/32 X 1-1/2 X 16 GA WASHER (1 used per cam)
  • 1
    103385
    COTTER PIN 1/8'' x 1''; PIN, SPLIT (COTTER), , 1 used per cam 1/8'' x 1''
  • 8
    1
    603132R1
    TWORNIK; ARM, clutch shifter rod (1 used on 12 x 7 & 13 x 7) ( 2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)
  • 1
    18676R1
    ŚRUBA PODSADZANA Sq Nk, 5/16'' - 18 x 2 1/4'', Gr 2; 5/16 X 2-1/4'' CRG BOLT (1 per arm)
  • 1
    80681
    PODKŁADKA ZABEZPIECZ 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, , 1 used per bolt 5/16''
  • 1
    120376
    NAKRĘTKA 5/16''-18, G5; (1 per bolt) 5/16''-18, G5
  • 9
    1
    603131R1
    PLATE ASSY.; PLATE, clutch throw out cam (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)
  • 10
    1
    4A
    MOLLA; chain tightener (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)
  • 1
    113-206
    BULLONE Hex, 3/8'' - 16 x 3/4'', Gr 5, Full Thd; 3/8 X 3/4'' BOLT (2 per bracket)
  • 1
    120377
    NUT 3/8'' - 16, Gr 5; (1 used per bolt) 3/8''-16, G5
  • 1
    120382
    LOCK WASHER Helical Spring, 3/8''; WASHER, LOCK, , 1 per bolt 3/8''
  • 12
    1
    606253R91
    ARM; chain tightener (1962 & since) (1 used 12 x 7 & 13 x 7) (2 used 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)
  • 6
    178373R1
    WASHER; 17/32 X 1 X 16 GA WASHER
  • 7
    103385
    COTTER PIN 1/8'' x 1''; PIN, SPLIT (COTTER), 1/8'' x 1''
  • 13
    1
    603118R1
    ROLKA; drive chain tightener large (1 used 12 x 7 & 13 x 7) (2 used 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)
  • 13
    1
    3240A
    ROLKA; drive chain tightener small (1 used 12 x 7 & 13 x 7) (2 used 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)
  • 16
    1
    35AC
    SPRĘŻYNA; drive clutch (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)
  • 17
    1
    603117R1
    ZACISK KOŁNIERZA; COLLAR, drive clutch spg (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)
  • 1
    576485R1
    SWORZEŃ BLOKUJĄCY 1/4'' x 1 1/4'', Slotted;
  • 18
    1
    603115R1
    KOŁO ŁAŃCUCHOWE; SPROCKET, 8T grain drive (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 16 x 8, 20 x 8 & 16 x 10)
  • 19
    AR
    Q3481
    PODKŁADKA; 1-1/32 x 1-1/2 x 16 ga
  • 20
    2
    603121R1
    NASADKA PIASTY; BEARING, countershaft outer
  • 2
    80711
    SMEERNIPPEL 65 Degree, 1/8'' NPT x 7/8'' lg; 1/8'' - 65 DEGREE ELBOW LUB-FITTING
  • 4
    495967R1
    SLOTBOUT Short NK, 3/8''-16 x 1'', G5, Full Thd; 3/8 X 1'' CRG BOLT
  • 4
    120382
    BORGRING Helical Spring, 3/8''; WASHER, LOCK, 3/8''
  • 4
    120377
    MOER 3/8'' - 16, Gr 5;
  • 2
    113782
    SLEUTEL; 1/4 X 1'' NO. 15 WOODRUFF KEY
  • 2
    NLS
    NIET MEER VERKRIJGBA; SPLIT (COTTER), 3/16'' x 2''
  • 22
    2
    603301R1
    KOLO LANC NAPEDOWE; SPROCKET, 20T drive (12 x 7 & 13 x 7)
  • 2
    109461
    SMAROWNICZKA 1/8''-27 x .66 lg; NIPPLE, LUBE, 1/8''-27 x .66 lg
  • 23
    4
    3589A
    ZAPADKA; ratchet (12 x 7 & 13 x 7)
  • 24
    4
    606245R1
    SPRĘŻYNA; SPRIING, pawl (12 x 7 & 13 x 7)
  • 2
    617978R1
    SWORZEŃ 3/8'' x 2 1/2'', Coiled;
  • 26
    2
    Q3480
    PODKŁADKA; 1-1/32 x 1-1/2 x 11 ga (12 x 7 & 13 x 7)
