2130 - STACKER PLANTER 16... 05 - SERVICE & MAINTENANC... 05.100.04[10] - CROP SEED...
05.100.04[10] - CROP SEED DISC KIT, SUGAR BEETS/ONIONS, EDIBLE BEANS, CANOLA, PEANUTS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

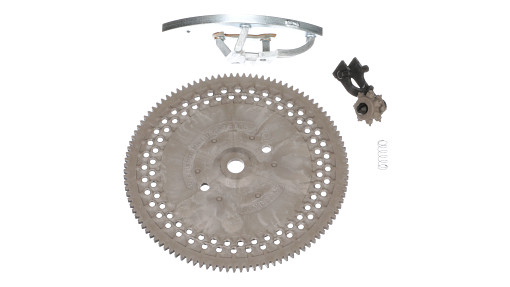

Part #

47779569

Description

DISC; Soybean, 80 Hole, Incl 2 - 4


Alts

Select

Ref.

2

Qty

1

Availability

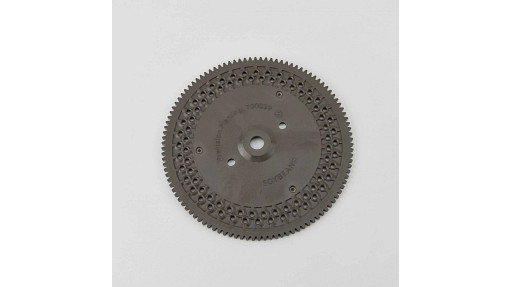

Part #

73368263

Description

KIT Soybean Disc; 80 Hole, 0.155'' Hole Size


Alts

Select

Ref.

3

Qty

1

Availability

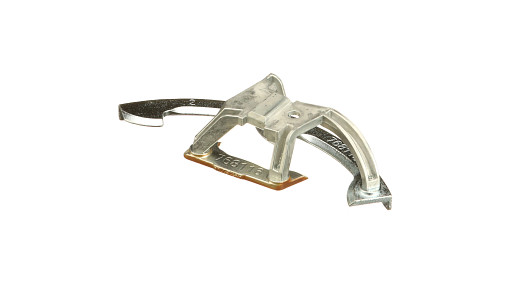

Part #

47852593

Description

SINGULATOR;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

47779570

Description

EJECTOR;


Alts

Select

Ref.

5

Qty

UAR

Availability

Part #

47946742

Description

DEFLECTOR; Only Needed For Speedtube Configurations On 80 Hole Discs


Alts

Select

Ref.

6

Qty

1

Availability

Part #

51479757

Description

KIT; Soybean, 56 Hole, Incl 7, 9


Alts

Select

Ref.

7

Qty

1

Availability

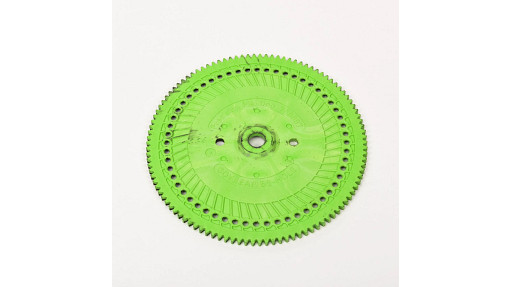

Part #

51479743

Description

DISK; 56 Hole, 0.155'' Hole Size


Alts

Select

Ref.

8

Qty

1

Availability

Part #

47852593

Description

SINGULATOR; Not Included In Kit Ref 6


Alts

Select

Ref.

9

Qty

1

Availability

Part #

51478891

Description

EJECTOR;


Alts

Select

Ref.

10

Qty

UAR

Availability

Part #

84594223

Description

BAFFLE; 2130 12 Row, 3,200 RPM


Alts

Select

Ref.

11

Qty

UAR

Availability

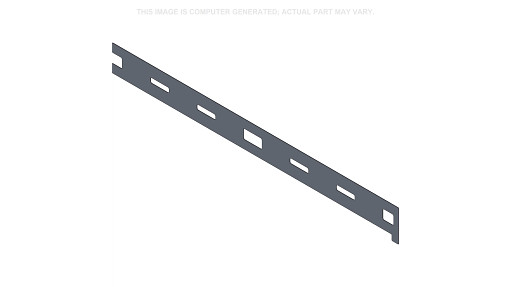

Part #

51533810

Description

PLATE; 2130 16 Row, 3,200 RPM


Alts

Select

Ref.

12

Qty

UAR

Availability

Part #

51530439

Description

BASE PLATE; 2140, 3,600 RPM


Alts

Select

Ref.

13

Qty

UAR

Availability

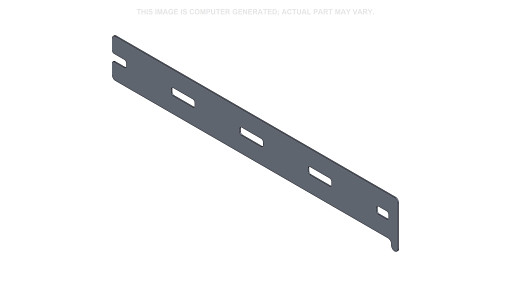

Part #

84594215

Description

BAFFLE; 2150 12 / 16 Row, 3,300 RPM


Alts

Select

Ref.

14

Qty

UAR

Availability

Part #

84594223

Description

BAFFLE; 2150 24 Row, 3,300 RPM


Alts

Select

Ref.

15

Qty

UAR

Availability

Part #

51570223

Description

BAFFLE; 2160 32 Row, 36 Row, 3,000 RPM


Alts

Select

Ref.

16

Qty

UAR

Availability

Part #

51570223

Description

BAFFLE; 2160 24 Row, 47 Row, 3,100 RPM


Alts
