2130 - STACKER PLANTER 16... 05 - SERVICE & MAINTENANC... 05.100.04[06] - CROP SEED...
05.100.04[06] - CROP SEED DISC KIT, SUGAR BEET & ONION
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

47818859

Description

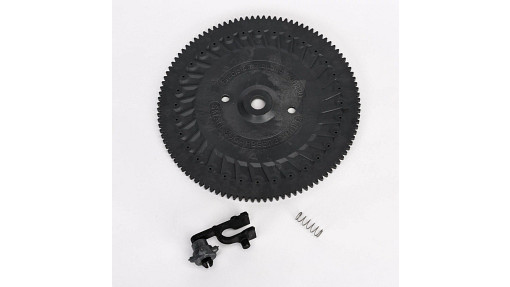

KIT; Small Sugar Beet, Incl 2, 3


Alts

Select

Ref.

2

Qty

1

Availability

Part #

73368271

Description

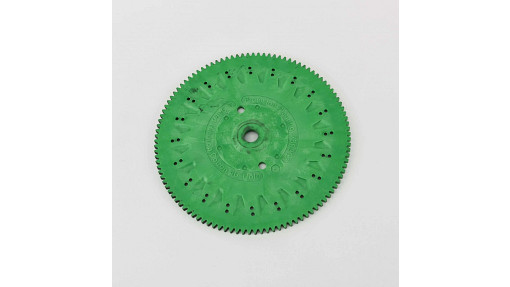

KIT Small Sugarbeet Disc; 32 Hole, 0.062'' Hole Size


Alts

Select

Ref.

3

Qty

1

Availability

Part #

47780005

Description

EJECTOR; Sugar Beet


Alts

Select

Ref.

4

Qty

1

Availability

Part #

47779567

Description

SINGULATOR; Corn


Alts

Select

Ref.

5

Qty

1

Availability

Part #

47818862

Description

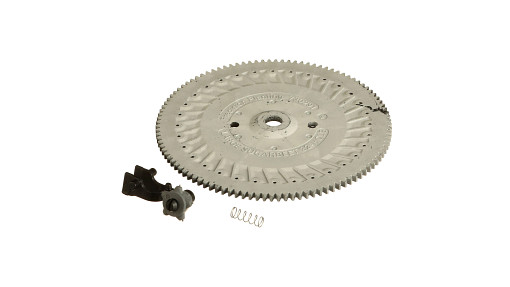

KIT; Large Sugar Beet, Incl 6, 7


Alts

Select

Ref.

6

Qty

1

Availability

Part #

73368267

Description

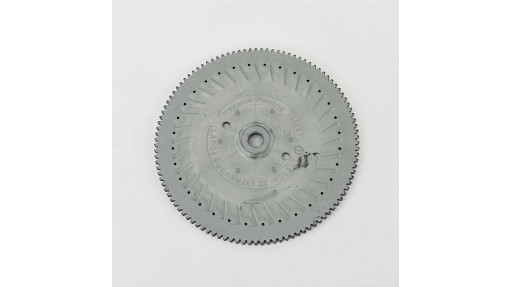

DISK Large Sugarbeet Disc; 32 Hole, 0.086'' Hole Size


Alts

Select

Ref.

7

Qty

1

Availability

Part #

47780005

Description

EJECTOR; Sugar Beet


Alts

Select

Ref.

8

Qty

1

Availability

Part #

47779567

Description

SINGULATOR; Corn


Alts

Select

Ref.

9

Qty

1

Availability

Part #

47397656

Description

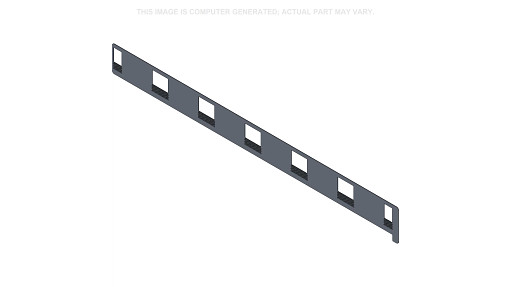

BAFFLE; 2130, 12 Row, 3,200 RPM


Alts

Select

Ref.

10

Qty

1

Availability

Part #

47397656

Description

BAFFLE; 2130, 16 Row, 3,200 RPM


Alts

Select

Ref.

11

Qty

1

Availability

Part #

47397652

Description

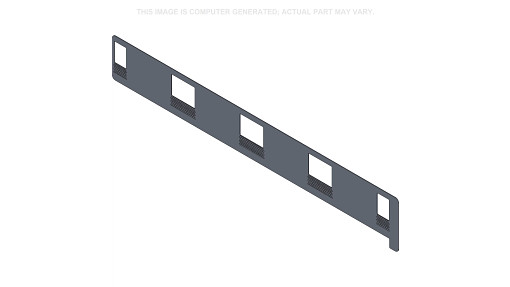

BAFFLE; 2140, 3,200 RPM


Alts

Select

Ref.

12

Qty

1

Availability

Part #

47397652

Description

BAFFLE; 2150, 12/16 Row, 3,200 RPM


Alts

Select

Ref.

13

Qty

1

Availability

Part #

47397656

Description

BAFFLE; 2150, 24 Row, 3,200 RPM


Alts

Select

Ref.

14

Qty

1

Availability

Part #

47397660

Description

BAFFLE; 2160, 32 Row & 36 Row, 2,500 RPM


Alts
