TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
4BOLT Hex, 3/4'' - 10 x 2'', Gr 5; SCREW, 3/4 x 2 znd hex-hd cap
-
4BOLT Hex, 1/2'' - 13 x 1'', Gr 5; 1/2-13 x 1 znd hex-hd cap
-
4LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4''
-
4WASHER 1/2''; LOCK, 1/2''
-
4NUT 3/4'' - 10, Gr 5;
-
4NUT Hex, 1/2'' - 13, Gr 5; NUT, 1/2''-13, G5
-
2WASHER; .531 x 1.25 x 11 ga znd
-
4BOLT Hex, 1/2'' - 13 x 1 1/4'', Gr 5; SCREW, 1/2 x 1-1/4 znd hex-hd cap
-
1BOLT Hex, 1/2'' - 13 x 1 1/2'', Gr 5; SCREW, 1/2 x 1-1/2 znd hex-hd cap
-
5WASHER 1/2''; LOCK, 1/2''
-
5NUT Hex, 1/2'' - 13, Gr 5; NUT, 1/2''-13, G5
-
51BOX; GEAR BOX
-
4BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5; SCREW, 3/8 x 1-1/4 znd hex-hd cap
-
4LOCK WASHER Helical Spring, 3/8''; WASHER, LOCK, 3/8''
-
4NUT 3/8'' - 16, Gr 5;
-
61PINION; GEAR, drum drive, 24 teeth, will work for 55580C3 when used w/gear 128760C1
-
81BUSHING; drive, for use w/shaft 546532R1
-
91SHAFT; gear drum drive, for replacement order shaft 128806C1, washer Q3858, ring 202306R1 and ring 659380R1
-
1LUBE NIPPLE 90 Degree Elbow, 1/8'' - 27 NPTF; FITTING, 1/8-27 x 90 deg STR lub
-
1LUBE NIPPLE Angled Con. Head, 90?, M10 x 1 x 18mm L, Self Tapping; FITTING, 1/8-27PTF x 90 deg lub
-
2WASHER; 1-13/32 x 2 x 16 ga C-Z
-
2WASHER; 1-13/32 x 2 x 20 ga C-Z
-
2WASHER; 1.406 x 2.250 x .054 znd
-
101SHAFT; gear box, replaces 58261C1
-
123BEARING ASSY; w/BUSHING
-
3FITTING; 3/16 x 45 deg drive lub
-
3WASHER; 29/32 x 1-1/2 x 16 ga C-Z
-
3COTTER PIN 1/4'' x 1 1/4''; Pin, Split (Cotter), 1/4'' x 1-1/4''
-
3COTTER PIN 3/16'' x 1''; PIN, SPLIT (COTTER), 3/16'' x 1''
-
131PIN; drive
-
1KNIFE; 1/8'' x 3/4''
-
141COUPLING; drum drive
-
2HEADED PIN 1/4'' x 1 11/16''; PIN, 1/4 x 1.81 znd std-hd
-
2KNIFE; 1/8'' x 3/4''
-
2WASHER 1/4'', SAE; .281 x .625 x .051
-
151SPROCKET; SPROCKET, 16T, 1979 and below
-
151SPROCKET ASSY.; SPROCKET, 16T, 1980 and above
-
151SPROCKET ASSY.; SPROCKET, 14T, 1979 and below
-
151SPROCKET; SPROCKET, 14T, 1980 and above
-
151SPROCKET ASSY.; SPROCKET, 18T, 1979 and below
-
151SPROCKET ASSY.; SPROCKET, 18T, 1980 and above
-
151SPROCKET ASSY.; SPROCKET, 15T, 1979 and below
-
151SPROCKET ASSY.; SPROCKET, 15T, 1980 and above
-
151SPROCKET; SPROCKET, 11T, 1979 and below
-
151SPROCKET; SPROCKET, 22T, 1980 and above
-
151SPROCKET ASSY.; SPROCKET, 10T, 1979 and below
-
151SPROCKET ASSY.; SPROCKET, 10T, 1980 and above
-
151SPROCKET ASSY.; SPROCKET, 8T, 1979 and below
-
151SPROCKET ASSY.; SPROCKET, 8T, 1980 and above
-
151SPROCKET; SPROCKET, 12T, 1979 and below
-
151SPROCKET; SPROCKET, 12T, 1980 and above
-
151SPROCKET ASSY.; SPROCKET, 17T, 1979 and below
-
151SPROCKET ASSY.; SPROCKET, 17T, 1980 and above
-
1WASHER; .906 x 2.000 x .105
-
162HUB; sprocket drive
-
2LOCK PIN 1/4'' x 1 3/4'', Slotted; Pin, 1/4'' x 1 3/4'', Slotted
-
171PIN ASSY.; PIN, quick attachable snap
-
1CLIP; PIN, 3/16 quick attachable cot.
-
181PLATE; ASSY, chain tightener
-
1FITTING 3/16'' x .47'' lg, Drive; 3/16 STR drive lub
-

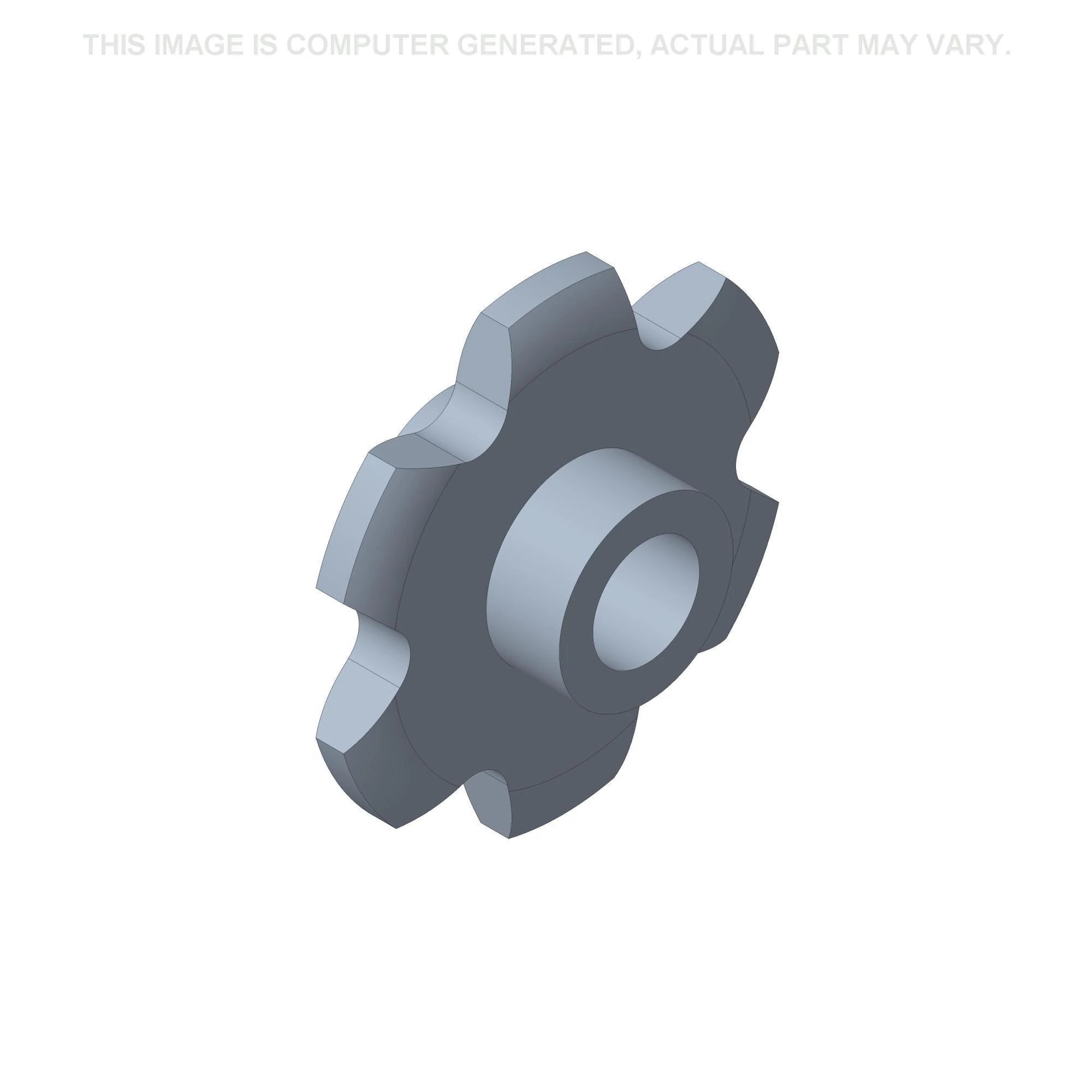

192SPROCKET; 6T idler
-
201BUSHING;
-
211SPRING;
-
1BOLT Hex, 1/2'' - 13 x 2 3/4'', Gr 5; SCREW, 1/2 x 2-3/4 znd hex-hd cap
-
1WASHER 1/2''; LOCK, 1/2''
-
2WASHER; 17/32 x 1-1/4 x 16 ga znd
-
1NUT Hex, 1/2'' - 13, Gr 5; NUT, 1/2''-13, G5
-
2LOCK WASHER 5/8''; WASHER, LOCK, 5/8''
-
2BOLT Hex, 5/8'' - 11 x 1 1/4'', Gr 5; SCREW, 5/8 x 1-1/4 znd hex-hd cap
-
1BOLT Hex, 3/4'' - 10 x 1 3/4'', Gr 5, Full Thd;
-
1LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4''
-
251SNAP RING #162, Ext; Ring, Snap, #162, Ext
-
261SHAFT; gear drum drive
-
1WASHER; 1.406 x 2.250 x .033 pln
-
1WASHER; 1.406 x 2.000 x .054
-
1WASHER; 1.656 x 2.250 x .054
-
2WASHER; 1.406 x 2.000 x .033
-
2WASHER; 1.406 x 2.250 x .054
-
1SCREW; FITTING, 1/8 PTF short 90D lub
-
1LUBE NIPPLE Angled Con. Head, 90?, M10 x 1 x 18mm L, Self Tapping; FITTING, 1/8 PTF short 90D lub
-
271SNAP RING #137, Ext; Ring, Snap, #137, Ext
Select All
Ref.
Qty
4Availability
Part #
413-1232Description
BOLT Hex, 3/4'' - 10 x 2'', Gr 5; SCREW, 3/4 x 2 znd hex-hd capImg
Alts
Ref.
Qty
4Availability
Part #
180173Description
BOLT Hex, 1/2'' - 13 x 1'', Gr 5; 1/2-13 x 1 znd hex-hd capImg
Alts
Ref.
Qty
4Availability
Part #
87340Description
LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4''Img
Alts
Ref.
Qty
4Availability
Part #
120378Description
NUT Hex, 1/2'' - 13, Gr 5; NUT, 1/2''-13, G5Img
Alts
Ref.
Qty
4Availability
Part #
180175Description
BOLT Hex, 1/2'' - 13 x 1 1/4'', Gr 5; SCREW, 1/2 x 1-1/4 znd hex-hd capImg
Alts
Ref.
Qty
1Availability
Part #
180177Description
BOLT Hex, 1/2'' - 13 x 1 1/2'', Gr 5; SCREW, 1/2 x 1-1/2 znd hex-hd capImg
Alts
Ref.
Qty
5Availability
Part #
120378Description
NUT Hex, 1/2'' - 13, Gr 5; NUT, 1/2''-13, G5Img
Alts
Ref.
Qty
4Availability
Part #
180124Description
BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5; SCREW, 3/8 x 1-1/4 znd hex-hd capImg
Alts
Ref.
Qty
4Availability
Part #
120382Description
LOCK WASHER Helical Spring, 3/8''; WASHER, LOCK, 3/8''Img
Alts
Ref.
6Qty
1Availability
Part #
128763C1Description
PINION; GEAR, drum drive, 24 teeth, will work for 55580C3 when used w/gear 128760C1Img
Alts
Ref.
8Qty
1Availability
Part #
55579C3Description
BUSHING; drive, for use w/shaft 546532R1Img
Alts
Ref.
9Qty
1Availability
Part #
546532R1Description
SHAFT; gear drum drive, for replacement order shaft 128806C1, washer Q3858, ring 202306R1 and ring 659380R1Img
Alts
Ref.
Qty
1Availability
Part #
219-56Description
LUBE NIPPLE 90 Degree Elbow, 1/8'' - 27 NPTF; FITTING, 1/8-27 x 90 deg STR lubImg
Alts
Ref.
Qty
1Availability
Part #
332040Description
LUBE NIPPLE Angled Con. Head, 90?, M10 x 1 x 18mm L, Self Tapping; FITTING, 1/8-27PTF x 90 deg lubImg
Alts
Ref.
Qty
3Availability
Part #
217973Description
COTTER PIN 1/4'' x 1 1/4''; Pin, Split (Cotter), 1/4'' x 1-1/4''Img
Alts
Ref.
Qty
3Availability
Part #
18481R1Description
COTTER PIN 3/16'' x 1''; PIN, SPLIT (COTTER), 3/16'' x 1''Img
Alts
Ref.
Qty
2Availability
Part #
385098R1Description
HEADED PIN 1/4'' x 1 11/16''; PIN, 1/4 x 1.81 znd std-hdImg
Alts
Ref.
15Qty
1Availability
Part #
546432R1Description
SPROCKET; SPROCKET, 16T, 1979 and belowImg
Alts
Ref.
15Qty
1Availability
Part #
134240C1Description
SPROCKET ASSY.; SPROCKET, 16T, 1980 and aboveImg
Alts
Ref.
15Qty
1Availability
Part #
546433R1Description
SPROCKET ASSY.; SPROCKET, 14T, 1979 and belowImg
Alts
Ref.
15Qty
1Availability
Part #
134238C1Description
SPROCKET; SPROCKET, 14T, 1980 and aboveImg
Alts
Ref.
15Qty
1Availability
Part #
546515R1Description
SPROCKET ASSY.; SPROCKET, 18T, 1979 and belowImg
Alts
Ref.
15Qty
1Availability
Part #
134242C1Description
SPROCKET ASSY.; SPROCKET, 18T, 1980 and aboveImg
Alts
Ref.
15Qty
1Availability
Part #
546516R1Description
SPROCKET ASSY.; SPROCKET, 15T, 1979 and belowImg
Alts
Ref.
15Qty
1Availability
Part #
134239C1Description
SPROCKET ASSY.; SPROCKET, 15T, 1980 and aboveImg
Alts
Ref.
15Qty
1Availability
Part #
546518R1Description
SPROCKET; SPROCKET, 11T, 1979 and belowImg
Alts
Ref.
15Qty
1Availability
Part #
134236C1Description
SPROCKET; SPROCKET, 22T, 1980 and aboveImg
Alts
Ref.
15Qty
1Availability
Part #
546514R1Description
SPROCKET ASSY.; SPROCKET, 10T, 1979 and belowImg
Alts
Ref.
15Qty
1Availability
Part #
134235C1Description
SPROCKET ASSY.; SPROCKET, 10T, 1980 and aboveImg
Alts
Ref.
15Qty
1Availability
Part #
546517R1Description
SPROCKET ASSY.; SPROCKET, 8T, 1979 and belowImg
Alts
Ref.
15Qty
1Availability
Part #
134234C1Description
SPROCKET ASSY.; SPROCKET, 8T, 1980 and aboveImg
Alts
Ref.
15Qty
1Availability
Part #
484197R2Description
SPROCKET; SPROCKET, 12T, 1979 and belowImg
Alts
Ref.
15Qty
1Availability
Part #
134237C1Description
SPROCKET; SPROCKET, 12T, 1980 and aboveImg
Alts
Ref.
15Qty
1Availability
Part #
484196R2Description
SPROCKET ASSY.; SPROCKET, 17T, 1979 and belowImg
Alts
Ref.
15Qty
1Availability
Part #
134241C1Description
SPROCKET ASSY.; SPROCKET, 17T, 1980 and aboveImg
Alts
Ref.
Qty
2Availability
Part #
22098R1Description
LOCK PIN 1/4'' x 1 3/4'', Slotted; Pin, 1/4'' x 1 3/4'', SlottedImg
Alts
Ref.
17Qty
1Availability
Part #
373025R91Description
PIN ASSY.; PIN, quick attachable snapImg
Alts
Ref.
Qty
1Availability
Part #
20691R1Description
FITTING 3/16'' x .47'' lg, Drive; 3/16 STR drive lubImg
Alts
Ref.
Qty
1Availability
Part #
180188Description
BOLT Hex, 1/2'' - 13 x 2 3/4'', Gr 5; SCREW, 1/2 x 2-3/4 znd hex-hd capImg
Alts
Ref.
Qty
1Availability
Part #
120378Description
NUT Hex, 1/2'' - 13, Gr 5; NUT, 1/2''-13, G5Img
Alts
Ref.
Qty
2Availability
Part #
492-11062Description
LOCK WASHER 5/8''; WASHER, LOCK, 5/8''Img
Alts
Ref.
Qty
2Availability
Part #
271546Description
BOLT Hex, 5/8'' - 11 x 1 1/4'', Gr 5; SCREW, 5/8 x 1-1/4 znd hex-hd capImg
Alts
Ref.
Qty
1Availability
Part #
88725Description
BOLT Hex, 3/4'' - 10 x 1 3/4'', Gr 5, Full Thd;Img
Alts
Ref.
Qty
1Availability
Part #
87340Description
LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4''Img
Alts
Ref.
25Qty
1Availability
Part #
202306R1Description
SNAP RING #162, Ext; Ring, Snap, #162, ExtImg
Alts
Ref.
Qty
1Availability
Part #
332040Description
LUBE NIPPLE Angled Con. Head, 90?, M10 x 1 x 18mm L, Self Tapping; FITTING, 1/8 PTF short 90D lubImg
Alts
Ref.
27Qty
1Availability
Part #
659380R1Description
SNAP RING #137, Ext; Ring, Snap, #137, ExtImg
Alts
