Ref.
Qty
Part #
Alts
Description
-
06PISTON & RINGS KIT; Standard
-
11SLEEVE CYLINDER 114.02mm ID x 130.95mm OD x 234.12mm L;
-
21SEAL 118mm ID x 122.32mm OD x 4mm Thk; Sealing
-
2A1PISTON & RINGS KIT; Standard;Contains Refs. 3 & 5
-
31NOT SOLD SEPARAT; Piston -
-
42SNAP RING 1.75'', Int, #175;
-
51PISTON RINGS KIT; Standard
-
61NOT SOLD SEPARAT; Ring - Top
-
71NOT SOLD SEPARAT; Ring - Middle
-
81NOT SOLD SEPARAT; Ring - Bottom
-
96PISTON PIN 45mm OD x 91mm L;
-
9AARSHIM 126.8mm ID x 130.5mm OD x 0.25mm Thk;
-
9AARSHIM 126.8mm ID x 130.5mm OD x 0.38mm Thk;
-
9AARSHIM 126.8mm ID x 130.5mm OD x 0.5mm Thk;
-
9AARSHIM 0.762mm Thk;
-
9AARSHIM 1.000mm Thk;
-
9B6REMAN-CONNECTING ROD; Remanufactured, North America Only, Component Parts Shown On This Fig. Do Not Apply To The Remanufactured Assembly
-
9C1CORE-ROD CONNECTING; CORE-CONNECTING ROD Return Number - Use This Part Number To Return Connecting Rod For Credit When Using A Remanufactured Assembly
-
9D6CORE-ROD CONNECTING;
-
9D6CONNECTING ROD;
-
9D6REMAN-CONNECTING ROD;
-
6REMAN-CONNECTING ROD CONNECTING ROD; FLX4300, FLX4375 Both(9/02 - 6/03), Reman for New P/N J901383
-
-CORE-ROD CONNECTING CONNECTING ROD; Return Number
-
101NOT SOLD SEPARAT; Rod - Connecting
-
121BUSHING 45.03mm ID x 49mm OD x 45mm L; Connecting Rod
-
132BOLT; connecting rod
-
142NUT; Hex, Rod Bolt
-
156CONNECTING ROD; Kit - Upper And Lower, Standard
-
156BEARING LINER; Kit - Upper And Lower, 0.25 mm Undersize
-
156BEARING SET; Kit - Connecting Rod, 0.50 mm Undersize
-
156CONNECTING ROD; Kit - Upper and Lower, 0.75 mm Undersize
-
156BEARING LINER; Kit - Connector Rod, 1.00 mm Undersize
Select All
Select
Ref.
1Qty
1Availability
Part #
J948095Description
SLEEVE CYLINDER 114.02mm ID x 130.95mm OD x 234.12mm L;Img
Alts
Select
Ref.
2Qty
1Availability
Part #
J907177Description
SEAL 118mm ID x 122.32mm OD x 4mm Thk; SealingImg
Alts
Select
Ref.
2AQty
1Availability
Part #
J800320Description
PISTON & RINGS KIT; Standard;Contains Refs. 3 & 5Img
Alts
Select
Ref.
9AQty
ARAvailability
Part #
J924445Description
SHIM 126.8mm ID x 130.5mm OD x 0.25mm Thk;Img
Alts
Select
Ref.
9AQty
ARAvailability
Part #
J924446Description
SHIM 126.8mm ID x 130.5mm OD x 0.38mm Thk;Img
Alts
Select
Ref.
9AQty
ARAvailability
Part #
J924447Description
SHIM 126.8mm ID x 130.5mm OD x 0.5mm Thk;Img
Alts
Select
Ref.
9BQty
6Availability
Part #
JR901383Description
REMAN-CONNECTING ROD; Remanufactured, North America Only, Component Parts Shown On This Fig. Do Not Apply To The Remanufactured AssemblyImg
Alts
Select
Ref.
9CQty
1Availability
Part #
JC901383Description
CORE-ROD CONNECTING; CORE-CONNECTING ROD Return Number - Use This Part Number To Return Connecting Rod For Credit When Using A Remanufactured AssemblyImg
Alts
Select
Ref.
Qty
6Availability
Part #
84487529RDescription
REMAN-CONNECTING ROD CONNECTING ROD; FLX4300, FLX4375 Both(9/02 - 6/03), Reman for New P/N J901383Img
Alts
Select
Ref.
Qty
-Availability
Part #
84487529CDescription
CORE-ROD CONNECTING CONNECTING ROD; Return NumberImg
Alts
Select
Ref.
10Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Rod - ConnectingImg
Alts
Select
Ref.
12Qty
1Availability
Part #
J913990Description
BUSHING 45.03mm ID x 49mm OD x 45mm L; Connecting RodImg
Alts
Select
Ref.
15Qty
6Availability
Part #
87443389Description

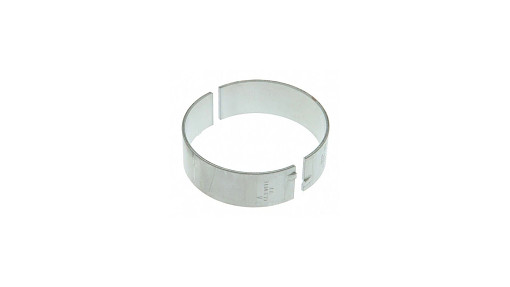

CONNECTING ROD; Kit - Upper And Lower, StandardImg
Alts
Select
Ref.
15Qty
6Availability
Part #
87443529Description
BEARING LINER; Kit - Upper And Lower, 0.25 mm UndersizeImg
Alts
Select
Ref.
15Qty
6Availability
Part #
A77565Description
BEARING SET; Kit - Connecting Rod, 0.50 mm UndersizeImg
Alts
Select
Ref.
15Qty
6Availability
Part #
84156221Description
CONNECTING ROD; Kit - Upper and Lower, 0.75 mm UndersizeImg
Alts
Select
Ref.
15Qty
6Availability
Part #
87443534Description
BEARING LINER; Kit - Connector Rod, 1.00 mm UndersizeImg
