DRY - FERTILIZER UNITS (4... 00 - COMPLETE MACHINE A-096 - DRY FERTILIZERS, ...
A-096 - DRY FERTILIZERS, AUGER AND RELATED PARTS, FOR 4 ROW W/715 LB. CAPACITY HOPPERS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    520177R1
    PIN; quick attachable cotter
  • 2
    2
    472415R1
    SPACER; COUPLING, short auger
  • 2
    89375H
    CLEVIS PIN; PIN, 1/4 x 1-19/32 rod end
  • 2
    112726
    COTTER PIN 1/16'' x 1/2''; PIN, SPLIT (COTTER), 1/16'' x 1/2''
  • 3
    4
    472417R1
    BEARING; auger
  • 4
    2
    484278R2
    BAR; auger feed
  • 2
    21650R1
    LOCK PIN 5/16'' x 2 1/2'', Slotted; Pin, 5/16'' x 2 1/2'', Slotted
  • 8
    187988
    COTTER PIN 3/16'' x 1 1/4''; PIN, SPLIT (COTTER), 3/16'' x 1 1/4''
  • 6
    1
    484506R1
    ROLLER; auger bearing LH
  • 7
    1
    472420R1
    AUGER; low rate left outer;472420R1 8.94'' 2.25'' 2.12'' LH, HAS A .640/.680'' SQUARE HOLE. 8/4/01 BW CAM
  • 7
    1
    472421R1
    AUGER; low rate right outer;472421R1 8.94'' 2.25'' 2.12'' RH, HAS A .640/.680'' SQUARE HOLE. 8/4/01 BW CAM

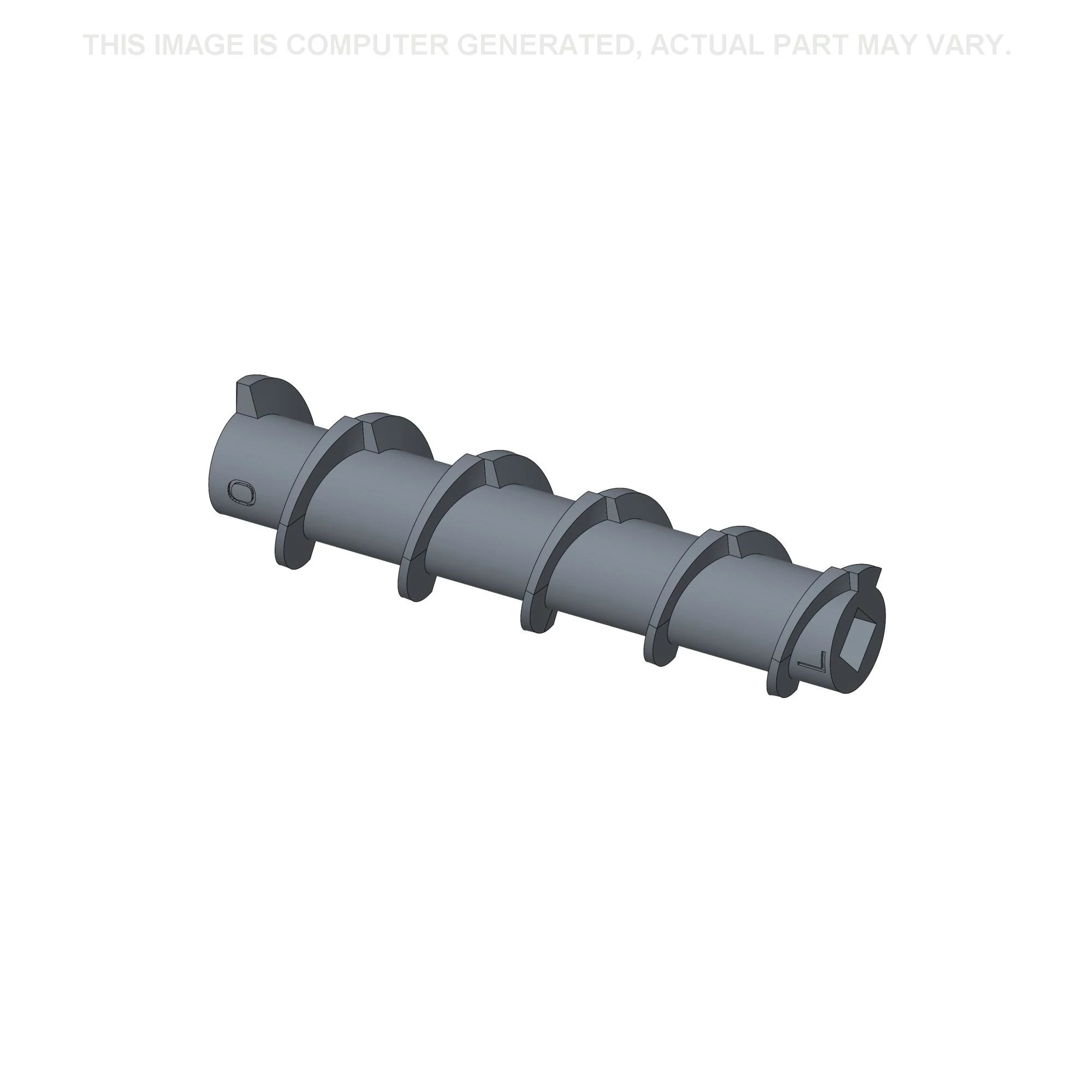

  • 7
    1
    472424R1
    AUGER; high rate left outer;472424R1 8.94'' 2.25'' 1.88'' LH, HAS A .640/.680'' SQUARE HOLE. 8/4/01 BW CAM

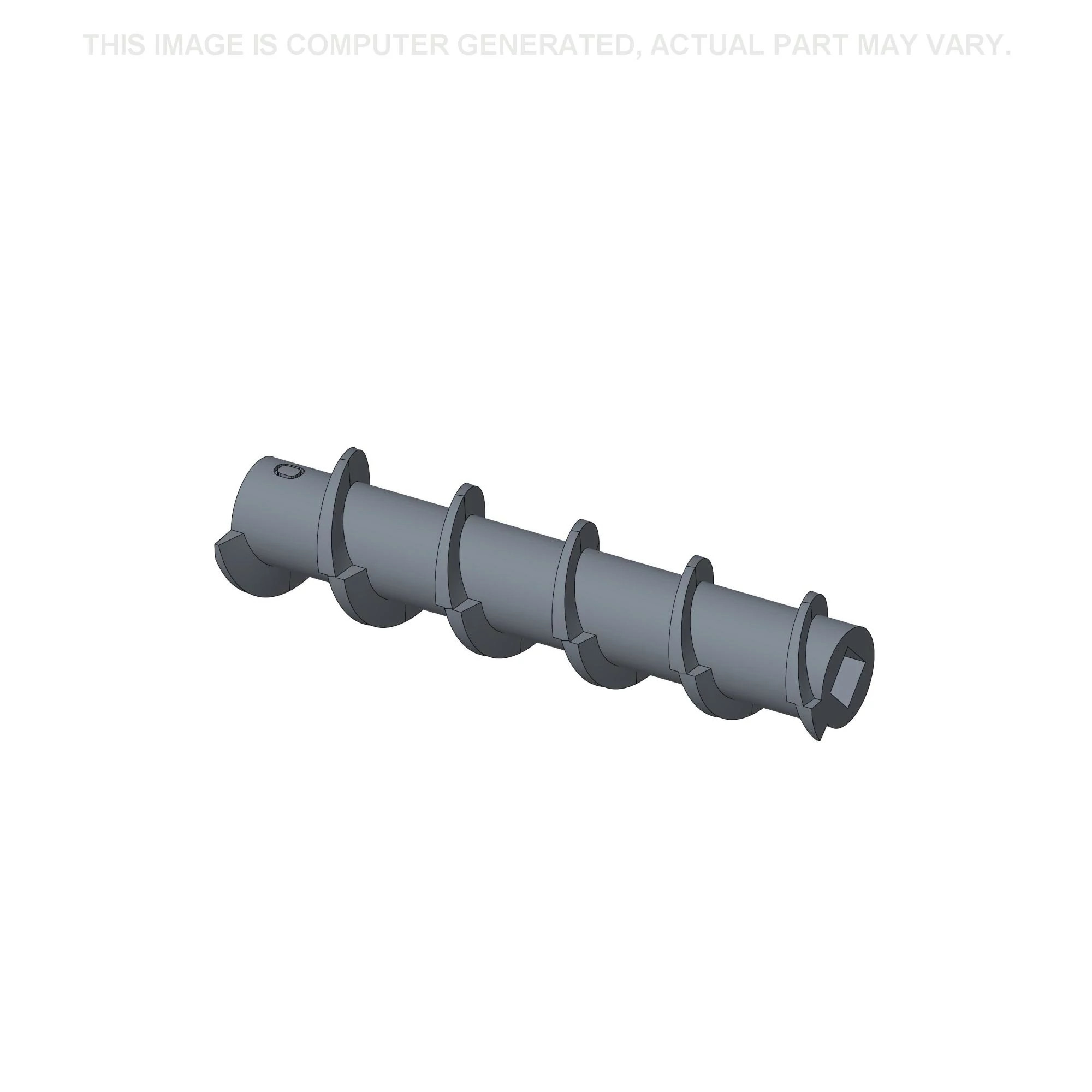

  • 7
    1
    472425R1
    AUGER; high rate right outer;472425R1 8.94'' 2.25'' 1.88'' RH, HAS A .640/.680'' SQUARE HOLE. 8/4/01 BW CAM
  • 8
    1
    472418R1
    AUGER; low rate left inner;472418R1 8.94'' 2.12'' 2.00'' LH, HAS A .640/.680'' SQUARE HOLE. 8/4/01 BW CAM
  • 8
    1
    472419R1
    AUGER; low rate right inner;472419R1 8.94'' 2.12'' 2.00'' RH, HAS A .640/.680'' SQUARE HOLE. 8/4/01 BW CAM
  • 8
    1
    472422R1
    AUGER; high rate left inner
  • 8
    1
    472423R1
    AUGER; high rate right inner
  • 8
    1
    472424R1
    AUGER; extra high rate left inner;472424R1 8.94'' 2.25'' 1.88'' LH, HAS A .640/.680'' SQUARE HOLE. 8/4/01 BW CAM
  • 8
    1
    472425R1
    AUGER; extra high rate right inner;472425R1 8.94'' 2.25'' 1.88'' RH, HAS A .640/.680'' SQUARE HOLE. 8/4/01 BW CAM

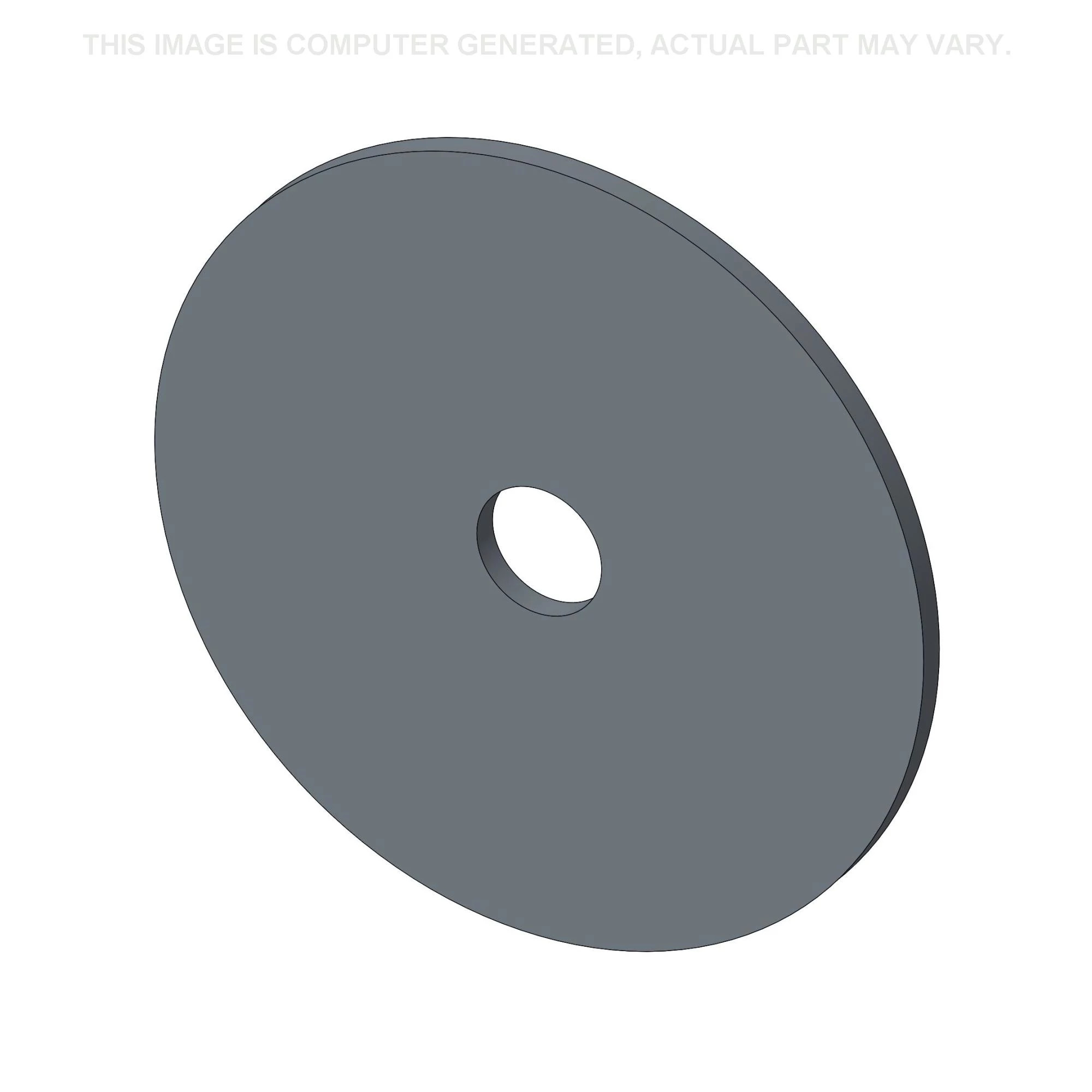

  • 9
    4
    480100R1
    WASHER; housing plug
  • 2
    18767R1
    BOLT Hex, 5/16''-18 x 2'', G2; 5/16 x 2 C-Z hex-hd mach
  • 2
    120376
    NUT 5/16''-18, G5;
  • 2
    80681
    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''
  • 11
    1
    488997R1
    AUGER; extra high rate LH
  • 12
    1
    488998R1
    AUGER; extra high rate RH
  • 13
    2
    21762R1
    WASHER; 29/32 x 1-3/8 x 10 ga C-Z, for outer augers
  • 15
    1
    488998R1
    AUGER; extra high rate LH
  • 15
    1
    488997R1
    AUGER; extra high rate RH
  • 16
    1
    480151R1
    AUGER; low rate left inner short;480151R1 7.94'' 2.11'' 2.00'' LH, HAS A .640/.680'' SQUARE HOLE. 8/4/01 BW CAM
  • 16
    1
    480152R1
    AUGER; low rate right inner short;480152R1 7.94'' 2.11'' 2.00'' RH, HAS A .640/.680'' SQUARE HOLE. 8/4/01 BW CAM

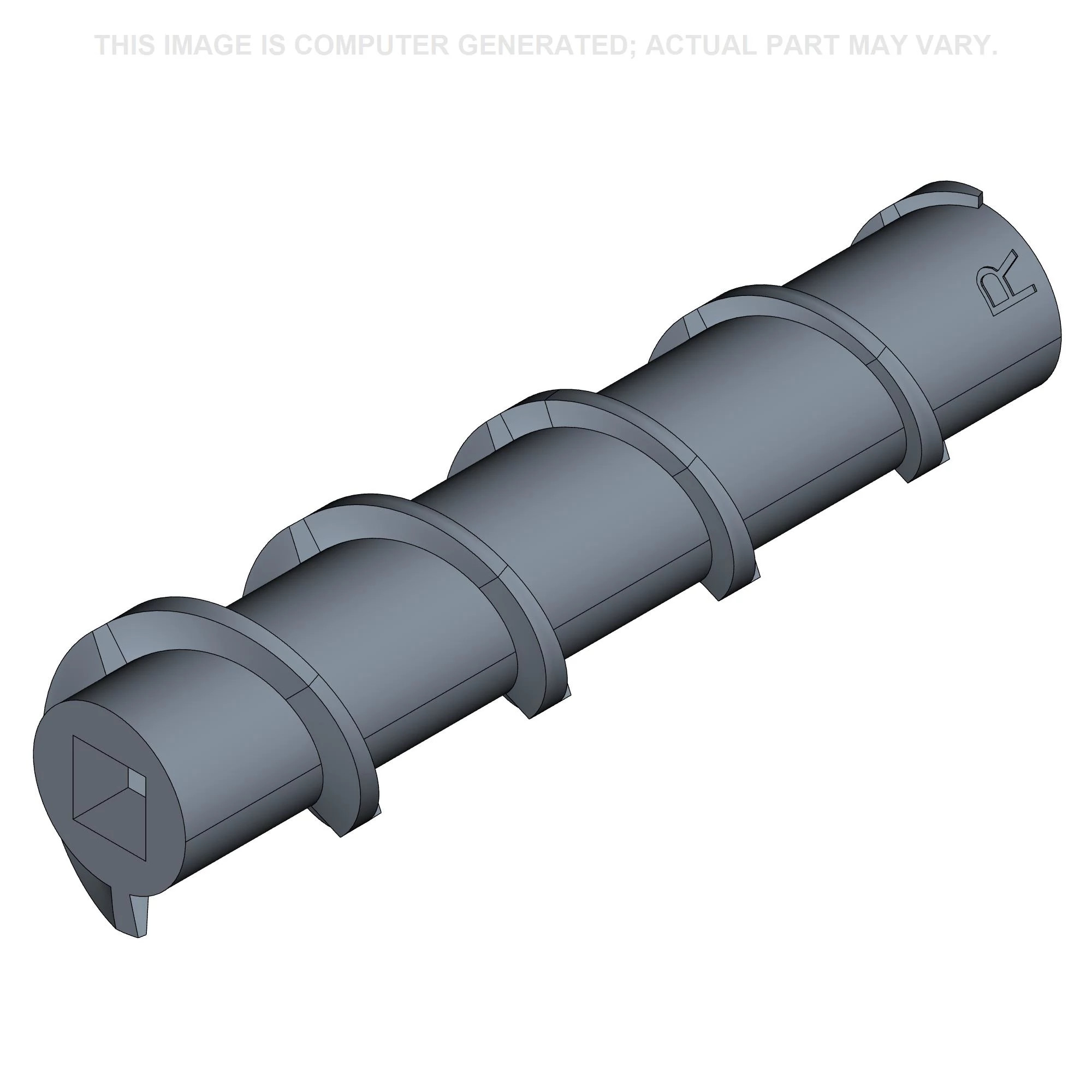

  • 16
    1
    480106R1
    AUGER; high rate left inner short;480106R1 7.94'' 2.00'' 1.56'' LH, HAS A .640/.680'' SQUARE HOLE. 8/4/01 BW CAM

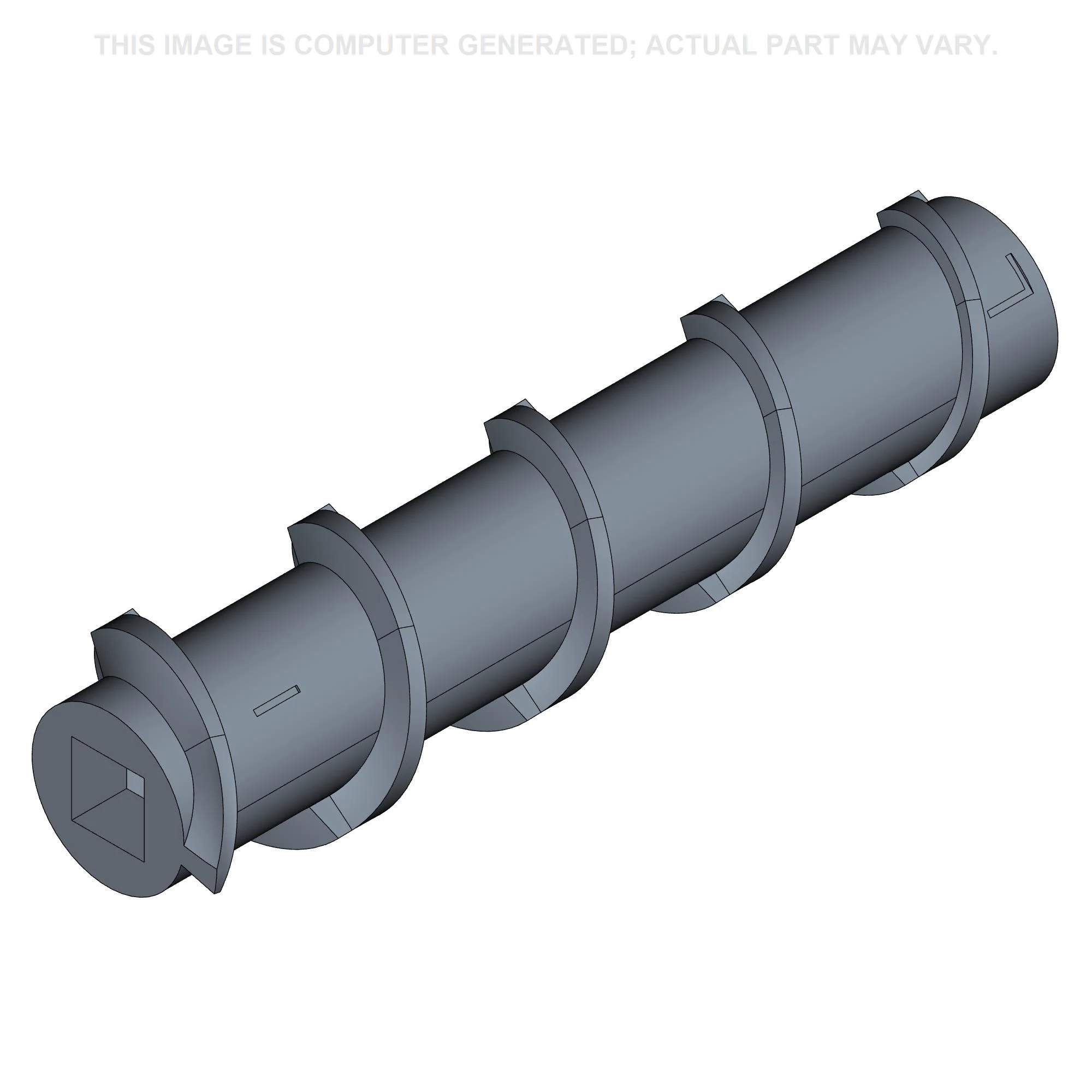

  • 16
    1
    480107R1
    AUGER; high rate right inner short;480107R1 7.94'' 2.00'' 1.56'' RH, HAS A .640/.680'' SQUARE HOLE. 8/4/01 BW CAM
  • 16
    1
    487033R1
    AUGER; extra high rate left inner short
  • 16
    1
    487032R1
    AUGER; extra high rate right inner short
  • 17
    1
    480151R1
    AUGER; low rate left inner short;480151R1 7.94'' 2.11'' 2.00'' LH, HAS A .640/.680'' SQUARE HOLE. 8/4/01 BW CAM
  • 17
    1
    480152R1
    AUGER; low rate right inner short;480152R1 7.94'' 2.11'' 2.00'' RH, HAS A .640/.680'' SQUARE HOLE. 8/4/01 BW CAM
  • 17
    1
    480106R1
    AUGER; high rate left inner short;480106R1 7.94'' 2.00'' 1.56'' LH, HAS A .640/.680'' SQUARE HOLE. 8/4/01 BW CAM
  • 17
    1
    480107R1
    AUGER; high rate right inner short;480107R1 7.94'' 2.00'' 1.56'' RH, HAS A .640/.680'' SQUARE HOLE. 8/4/01 BW CAM
  • 17
    1
    487033R1
    AUGER; extra high rate left inner short
  • 17
    1
    487032R1
    AUGER; extra high rate right inner short
  • 18
    1
    488997R1
    AUGER; low, high & extra high rate LH
  • 18
    1
    488998R1
    AUGER; low, high & extra high rate RH
  • 19
    1
    484507R1
    ROLLER; auger bearing RH
