E12 - DRIVE LINE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    1025089
    COUPLING; ASSY - coupler
  • 2
    1
    1025073
    DRIVE SHAFT; SHAFT - drive
  • 3
    12
    1011601
    BOLT; BOLT - hex: .38 x 1.25 NC GR5 ZP (Order 413-620)
  • 4
    4
    1013134
    CLAMP; - hose: S.S.#28 1.32-2.25
  • 7
    4
    1012978
    SEAL; WASHER - rubber
  • 8
    4

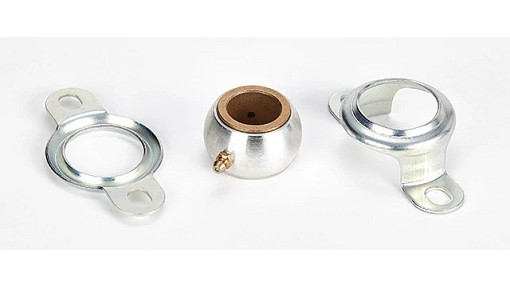

    1012986
    BEARING ASSY 25.4mm ID; BEARING FLANGE/A
  • 10
    2
    1021609
    AIR HOSE 1.50'' ID x 72.00''; 1.50'' ID x 72.00''
  • 12
    1
    1020645
    SPROCKET ASSY.; SPROCKET - 60B23 x 1.00 bore
  • 13
    2
    1012975
    KEY; : .25 x .25 x 1.25
  • 14
    2
    1018683
    LINK; - offset: #60 OL
  • 14
    2
    1022965
    LINK, CONNECTING; LINK - connector: #60 .750 PTCH
  • 14
    1
    1025332
    CHAIN; CHAIN - roller: 35 links #60
  • 15
    1
    0100908
    GEARBOX ASSY; ASSY - bevel gear drive
  • 16
    4
    1011599
    BOLT; BOLT - hex: .38 x .75, NC, GR5, ZP (Order 413-612)
  • 18
    1
    1013042
    TUBE 1.017'' ID, 1.5'' OD; - coupler 1.5 x 1.00 x 3.00
  • 19
    1
    1013218
    PIN; Shear, Brass
  • 20
    1
    1013044
    SET SCREW; SCREW - set: .25 x .25 NC GR8 NP
  • 21
    1
    1013221
    STRIP; - shear pin
  • 22
    1
    1013243
    BOLT; BOLT - hex: .25 x .50 NC GR5 ZP
  • 24
    1
    0100979
    WASHER; - flat: SAE .25 ZP
  • 25
    2
    1013418
    COLLAR; - set: 1.00
  • 27
    8
    1033266
    WASHER; - flat: .38 SS
  • 28
    8

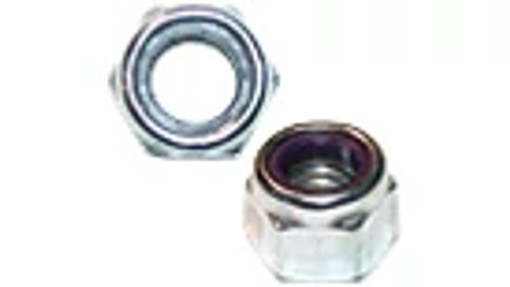

    232-1446
    NUT 3/8''-16, GC; NUT - nylock: .38 NC GR6 ZP
  • 29
    1
    1032466
    CRANK; ASSY - crank
  • 30
    7
    1011725
    BOLT; BOLT - hex: .38 x 2.00 NC GR5 ZP
  • 31
    5
    232-1446
    NUT 3/8''-16, GC; NUT - nylock: .38 NC GR6 ZP
  • 32
    1
    1013301
    JOINT; - universal (Rework)
  • 33
    1
    1025467
    MOUNT; MOUNT - bearing
  • 34
    1
    1025074
    TUBE 1.03'' ID, 1.5'' OD; - coupler
  • 35
    2
    1030961
    FLANGED BEARING 25.63mm ID; BEARING FLANGE/A
  • 36
    1
    290354A1
    BRACKET; / W shaft sensor (See M200 elec. for hardware)
  • 37
    1
    290353A1
    SENSOR; SMART SHAFT
  • 38
    1
    290356A1
    RING; SENSOR MAGNETIC RING
