A.50.A[47] - SERIAL CABLE ASSEMBLY
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    412736A1
    HARNESS; assy 4 m serial - extension
  • 2
    6
    84068583
    PLUG 12 - 16 Ga, White; connector cavity white plastic
  • 3
    1
    291658A1

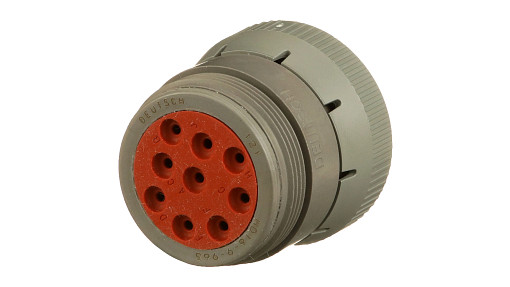

    ELEC CONNECTOR Female, 9 Pin; plastic 9c plug
  • 4
    1
    425445A1
    ELEC CONNECTOR; cable clamp d-type 1
  • 5
    1
    425444A1
    ELEC CONNECTOR; cab metal d-type 9-cond
  • 6
    3
    425443A1
    CONTACT HOUSING; 20-24awg
  • 7
    3
    86500036
    TERMINAL Female, Nickel, 0.75 - 2mm; 16-18awg
