00.100.02 - INITIAL STOCKING LIST (ISL)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    87506452
    ACTUATOR;
  • 2
    4
    CA-123
    AGITATOR;
  • 3
    6
    51200149
    BEARING ASSY Ball, 50mm ID x 80mm OD x 16mm W; NTN 6010LLC/2AQT
  • 4
    1
    9828
    BALL BEARING 25 mm ID x 52 mm OD x 15 mm;
  • 5
    4
    8289
    WASHER Thrust, 12.95mm ID x 20.7mm OD; .5 ID .82 OD .09
  • 6
    3
    3290
    V-BELT; 3V X 425
  • 7
    10
    88206
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5; Capscrew
  • 8
    1
    425281A1
    BUSHING; Puck Meter Roller
  • 9
    8
    4731
    CAP; Vinyl 2.5 ID 1 LG BLK
  • 10
    1
    9754
    CARTRIDGE; Fitting Steel Check
  • 11
    1
    GE-202
    CLAMP; For Two .75 Couplers, Only Used; (SN Break) Between Up and 430BU
  • 12
    5
    507586
    HOSE CLAMP 20.6mm - 44.4mm, Worm Gear;
  • 13
    5
    214-1444
    HOSE CLAMP 58.6mm - 82.5mm; 2-5/16-3-1/4''
  • 14
    1
    9412
    QUICK MALE COUPLING;
  • 15
    1
    6936
    QUICK MALE COUPLING 3/4'' - 14 NPTF; .75M-Tip .75FP
  • 16
    1
    6935
    QUICK FEMALE COUPLING; Fitting PIO.75F-Tip .75FP
  • 17
    1
    9359
    QUICK FEMALE COUPLING; Fitting PIO Coupler Dust Plug 1
  • 18
    1
    1994568C1
    QUICK FEMALE COUPLING;
  • 19
    1
    432633A1
    EYEBOLT; .25 X 2.5 GR5 YZD
  • 20
    1
    GD-673

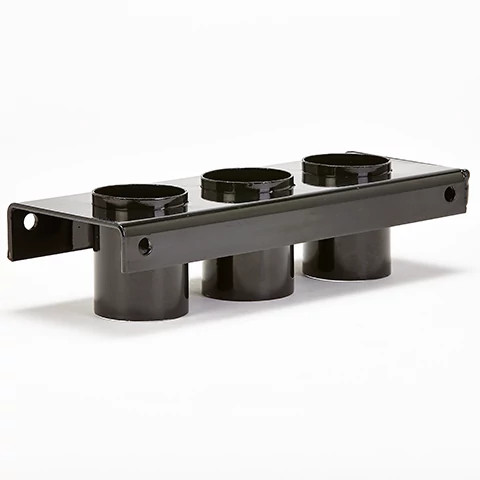

    FITTING; 2.5 IN
  • 21
    1
    9861
    GASKET; Rubber SE59
  • 22
    1
    51200017
    GASKET 25.4mm ID x 1.6mm Thk; 25MM ID 2.5MM THI
  • 23
    UAR
    86992286
    HOSE 2.50'' ID x 100.00'; Bulk 100' Sold By Foot
  • 24
    UAR
    86992913
    HOSE; Bulk 100 Feet, Sold By Foot
  • 25
    1
    87504387
    HOSE; Auger Discharge
  • 26
    1
    87506288
    HUB CAP; Dust DC28 Bolt On Painted, Only Used Up To 230BU
  • 27
    1
    87488819R
    REMAN-HYD MOTOR HYD MOTOR; Rexroth 19cc Ultra
  • 27
    1
    87488819C
    CORE-MOTOR HYDRAULIC HYD MOTOR; Rexroth 19cc Ultra
  • 27
    1
    9926C
    CORE-MOTOR HYDRAULIC; Rexroth 19cc Ultra
  • 27
    1
    87488819
    HYDRAULIC MOTOR; Rexroth 19cc Ultra
  • 28
    3
    6893K
    KIT; Cam Follower Stud Type .5 OD
  • 29
    4
    6909
    KNOB; Plastic 4-Prong
  • 30
    1
    8190
    LATCH; Clamp Over Center
  • 31
    2
    8192
    LATCH;
  • 32
    2
    87500855
    HYDRAULIC CYLINDER Double Acting, 28.57mm Rod, 304.8mm Stroke; 2X12 MON 2500PDI W/O PIND
  • 33
    1
    87445140
    ELECTRIC MOTOR; 121RPM @12V 1/15HP
  • 33
    1
    22540KV2C
    CORE-ELECTRIC MOTOR CORE-ELECTRIC MOTOR; 121RPM @12V 1/15HP
  • 1
    87445140R
    REMAN-ELECTRIC MOTOR ELECTRIC MOTOR; 3580 (3/10-)
  • -
    87445140C
    CORE-ELECTRIC MOTOR ELECTRIC MOTOR; Return Number
  • 34
    1
    GM-363
    HYDRAULIC MOTOR TORQUE GEN 2.2 IN3/REV; Hydraulic Torque Generator 2.2 IN3/REV
  • 35
    2
    51200142
    O-RING 2.375'' ID x 2.5'' OD x 0.63''; 1.125 ID 1.25 OD .0625, Only Used Up to 430BU
  • 36
    5
    49861
    O-RING 9.2mm ID x 2.62mm Thk, NBR; .375 ID .563 OD .0938
  • 37
    4
    9680
    O-RING 0.375'' ID x 0.5'' OD x 0.063''; .375 ID .5 OD .063
  • 38
    1
    8826
    RUBBER PAD; Meter Roller Puck Inner
  • 39
    1
    GD-919

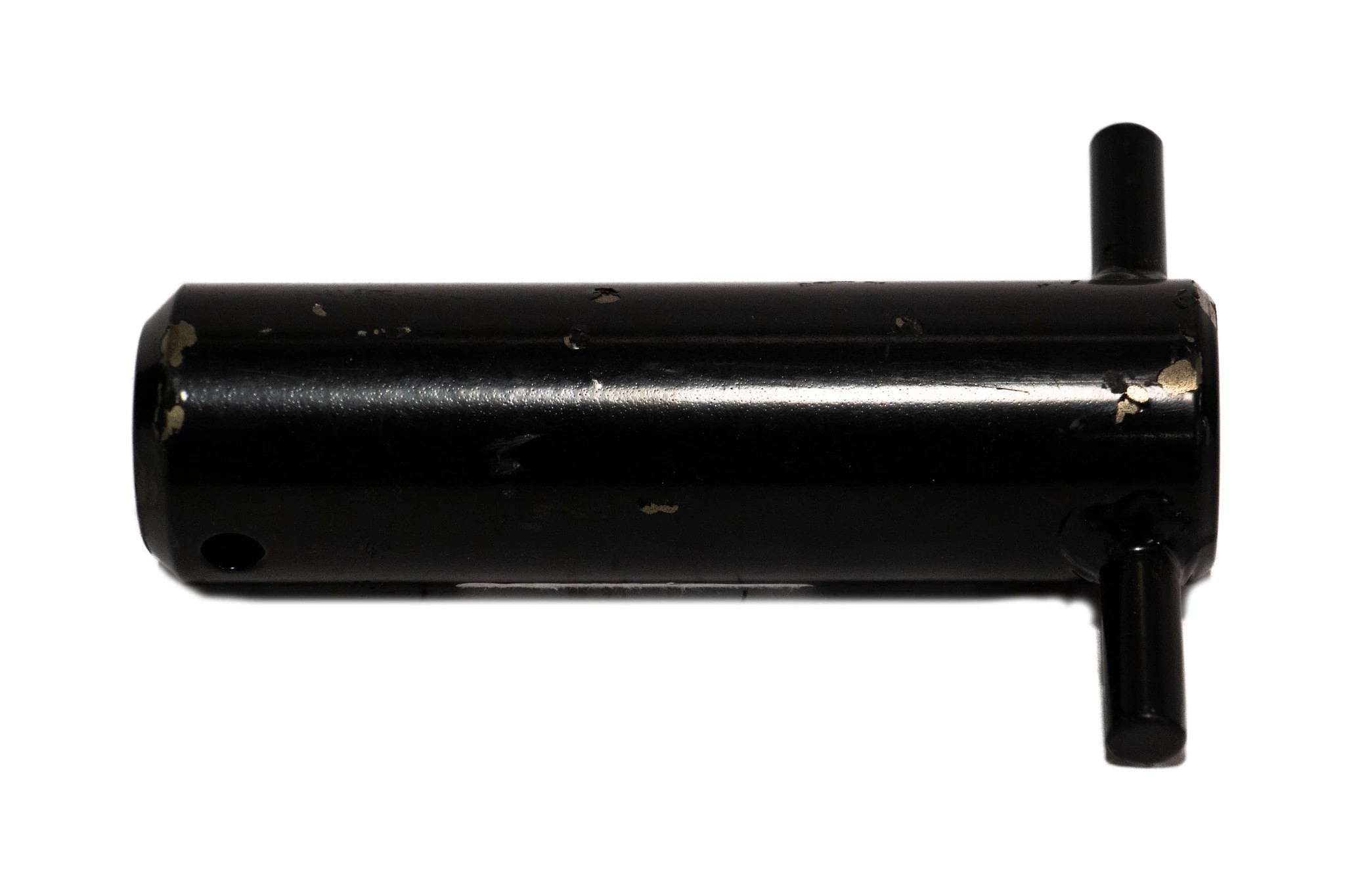

    PIN; Rear Draw
  • 40
    10
    86523960
    COTTER PIN 3/8'' x 3'';
  • 41
    1
    9478

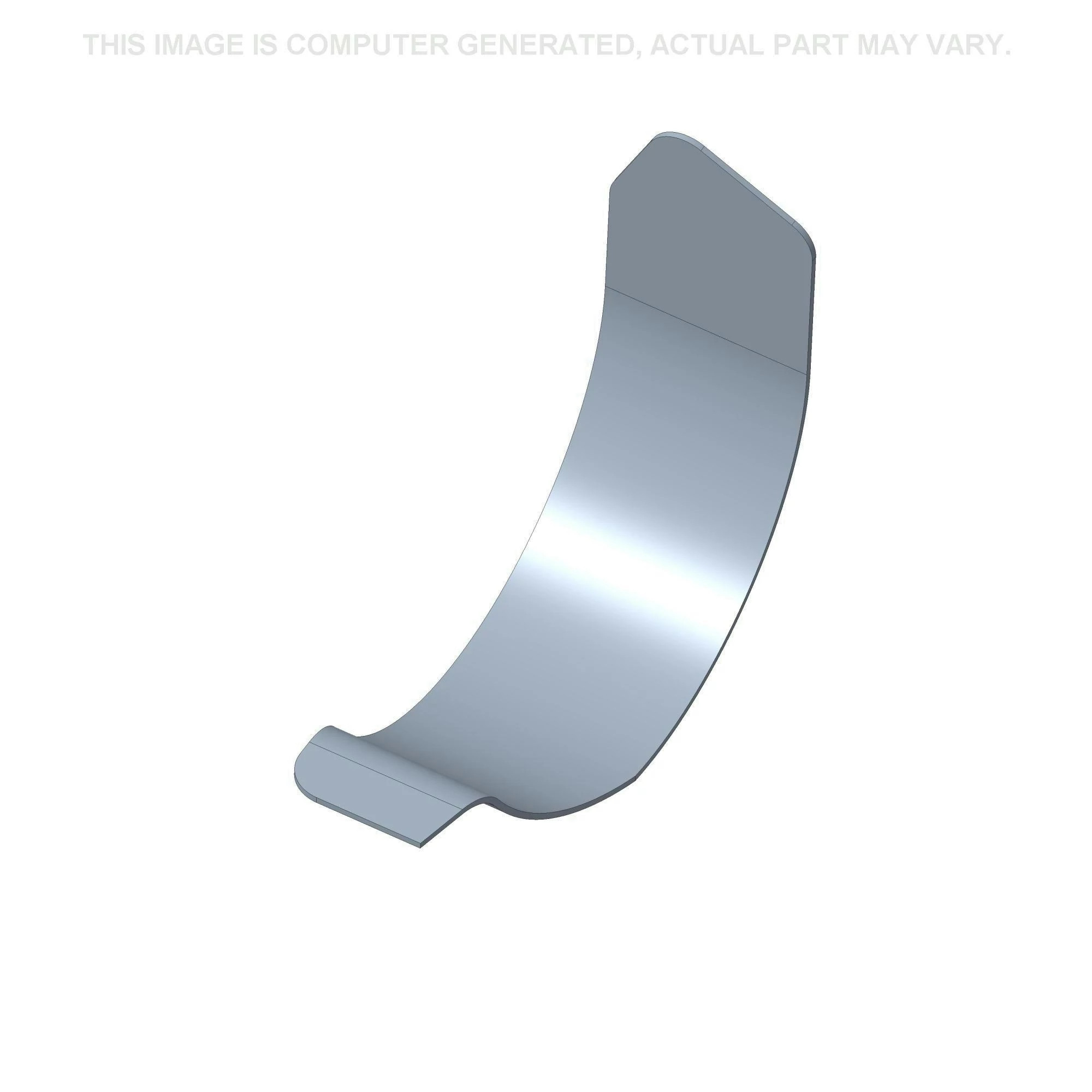

    WEAR PLATE; Poly Lower Saddle Surface
  • 42
    1
    6934
    PLUG; Dust Cap
  • 43
    2
    7187
    PLUG; Manifold Transition
  • 44
    1
    9360
    PLUG; Dust
  • 45
    1
    GD-189
    CONNECTING ROD; Inner, Only Used On 40S
  • 46
    4
    7245

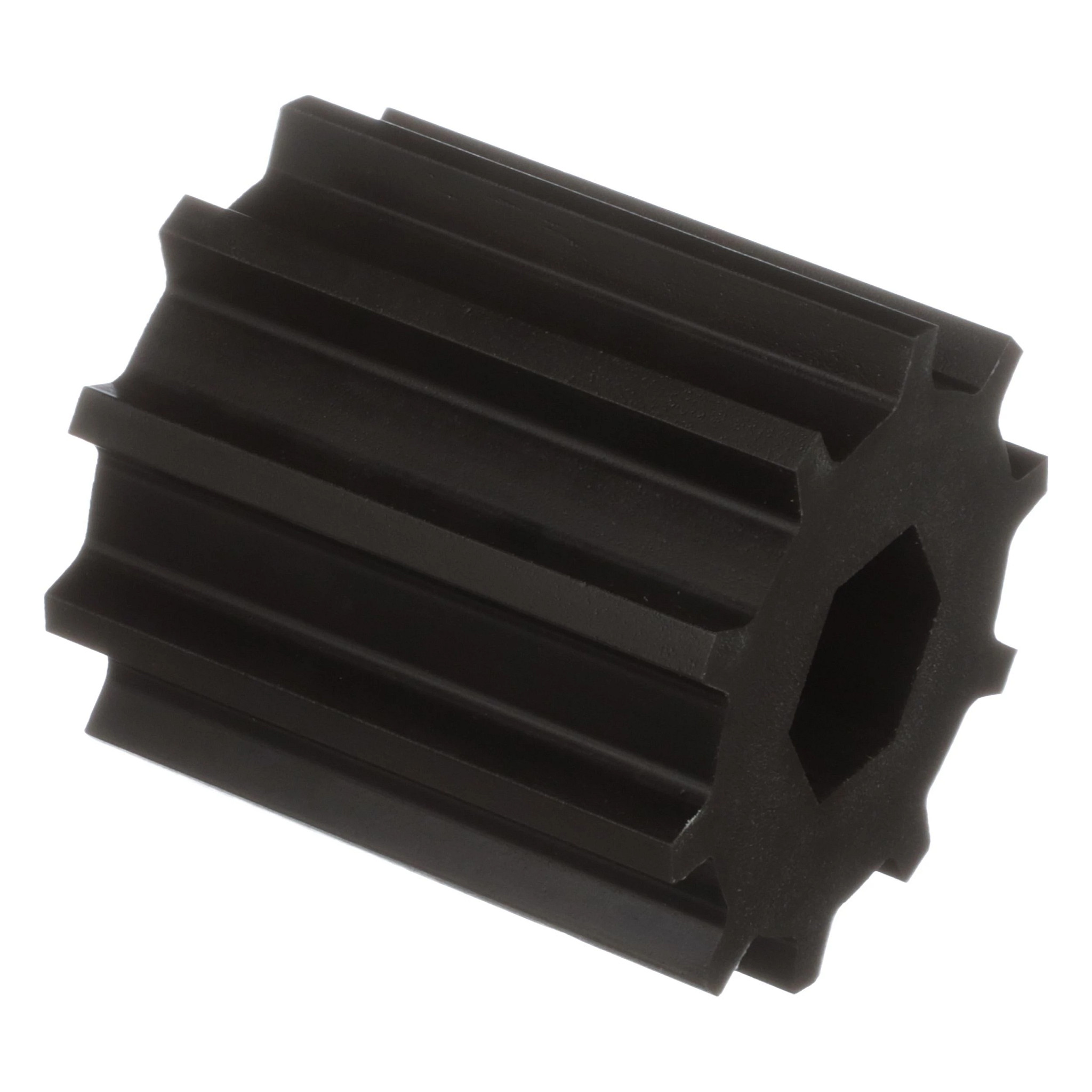

    ROLLER; Meter Section Fine 3.170'' WI
  • 47
    4
    7246
    ROLLER; Meter Section Coarse 3.17''
  • 48
    4
    4648
    SEAL; Double Lip -Metric, Only Used Up To 430BU
  • 49
    3
    6177
    OIL SEAL; 2.5 ID X 3.25 OD Double Lip
  • 50
    4
    CA-133
    SEAL;
  • 51
    2
    CA-145
    SEAL;
  • 52
    1
    9864
    OIL SEAL; Spindle
  • 53
    UAR
    84181721
    SEAL; 3/4'' Wide X 1'' Thick/Bulk 300''
  • 54
    1
    CA-220

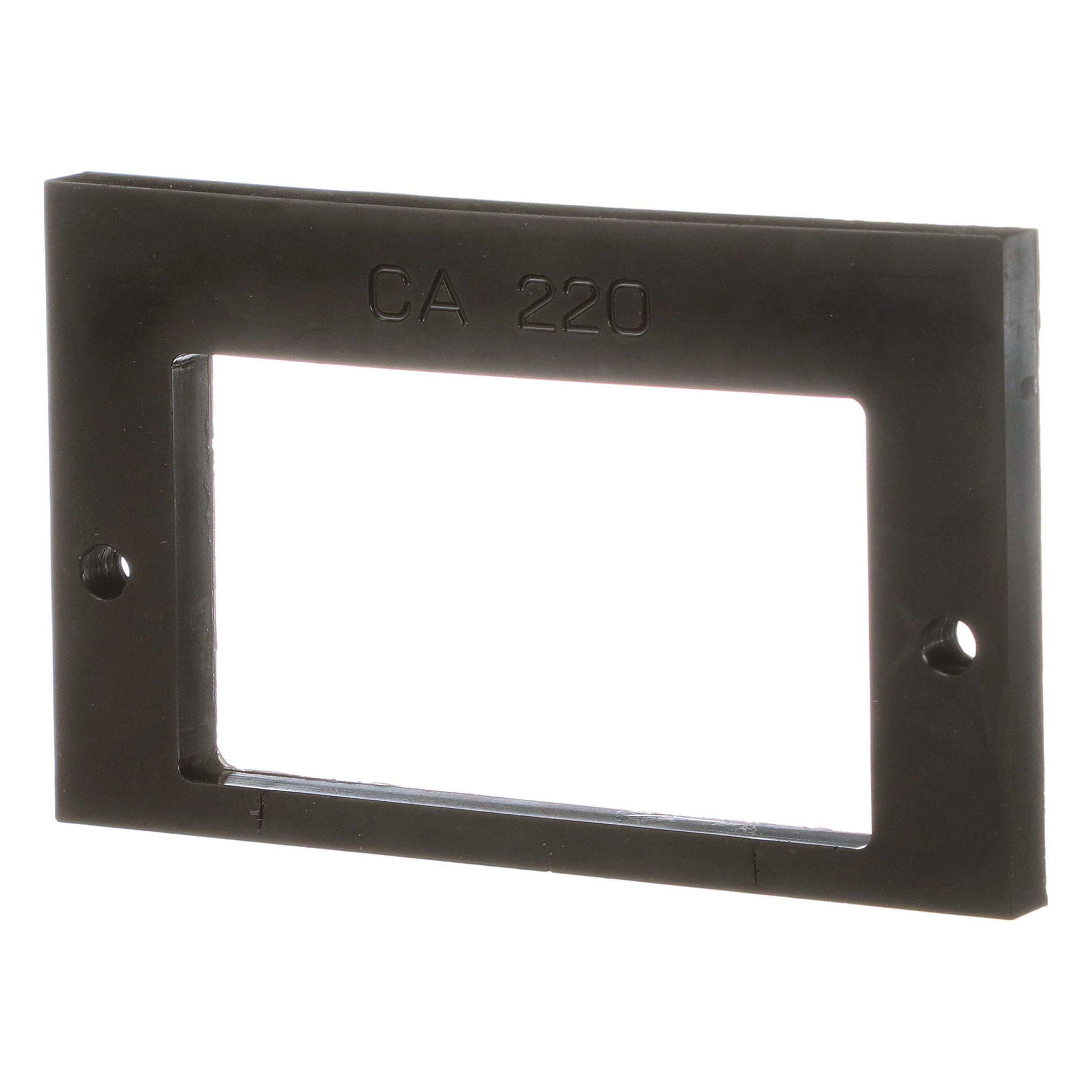

    SEAL; Flange Dual Fan
  • 55
    UAR
    86992328
    SEAL PRICED BY FOOT; 25' Roll Sold By Foot
  • 56
    1
    13637V2
    SENSOR;
  • 57
    4
    GH-891

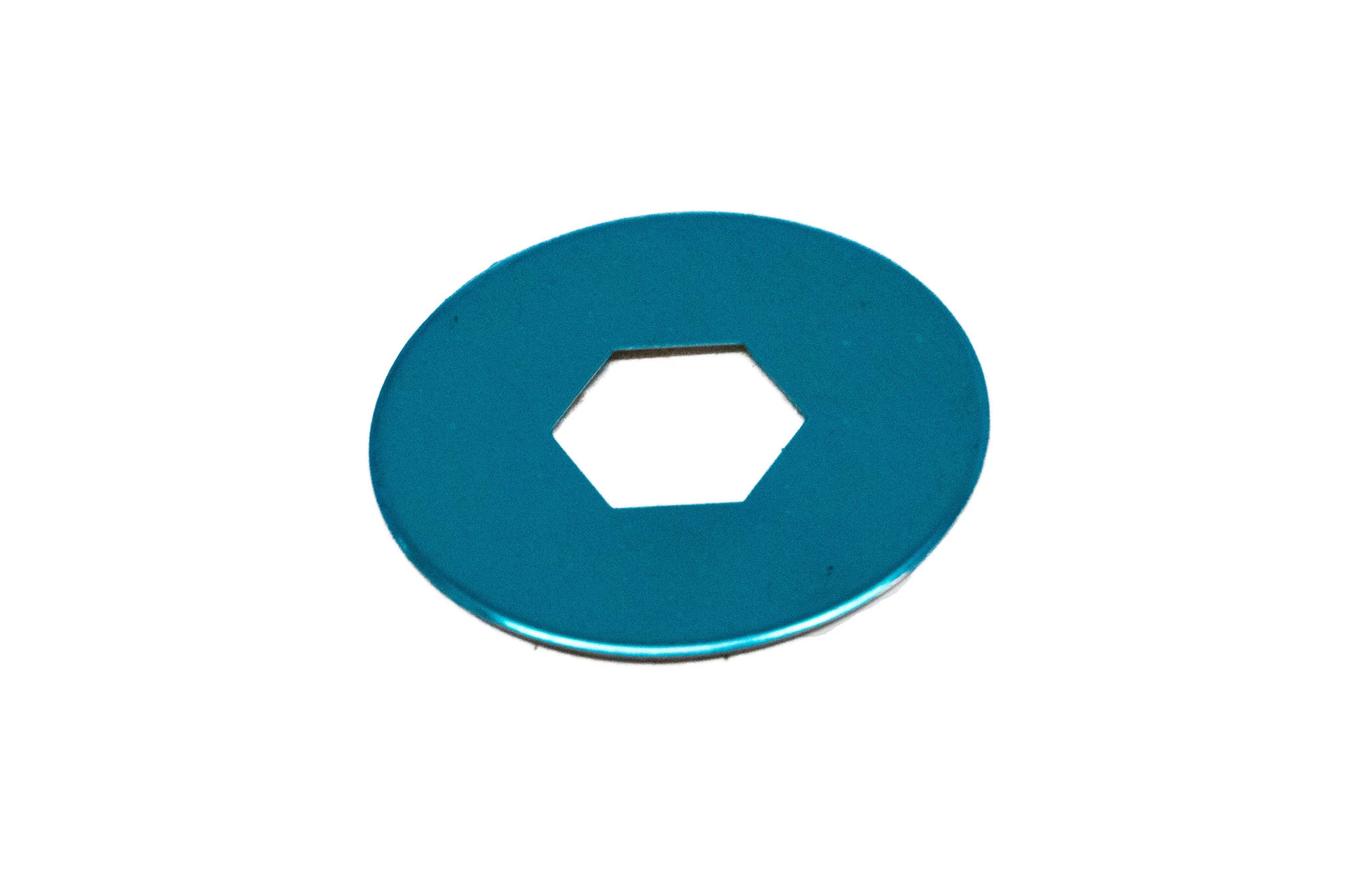

    BEARING COVER;
  • 58
    1
    9531\C
    COMPRESSION SPRING; .625 Wire 4.125 OD
  • 59
    1
    87506237
    COMPRESSION SPRING;
  • 60
    1
    7301
    TORSION SPRING; CW .092X1.425IDx1.01B
  • 61
    1
    8433
    SWITCH; Micro - Remote
  • 62
    2
    425040A1
    ADHESIVE STRIP; Anti-Slip
  • 63
    2
    448080A1
    VALVE; Single Double Shoot
  • 64
    1
    9755

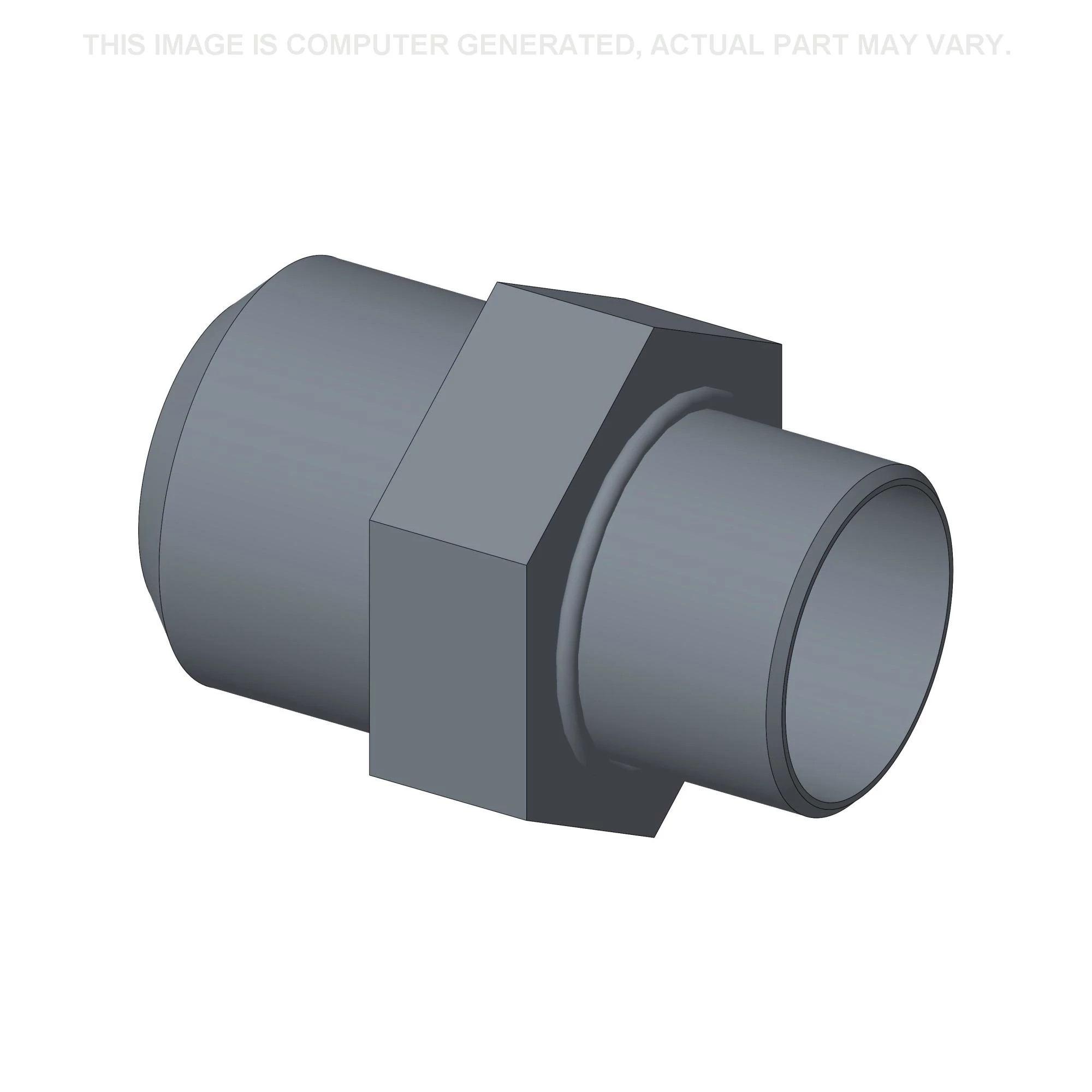

    CHECK VALVE; Fitting Steel 16 SAE 1MJ
  • 65
    1
    412764A1
    HYDRAULIC VALVE 3/8'' FPT x 3/8'' FPT;
  • 66
    2
    51200897
    LINKAGE YOKE; .375-24 X 2.5 LG .3
  • 67
    1
    87506224
    HYDRAULIC MOTOR; 10IN Auger
  • 67
    1
    9437C

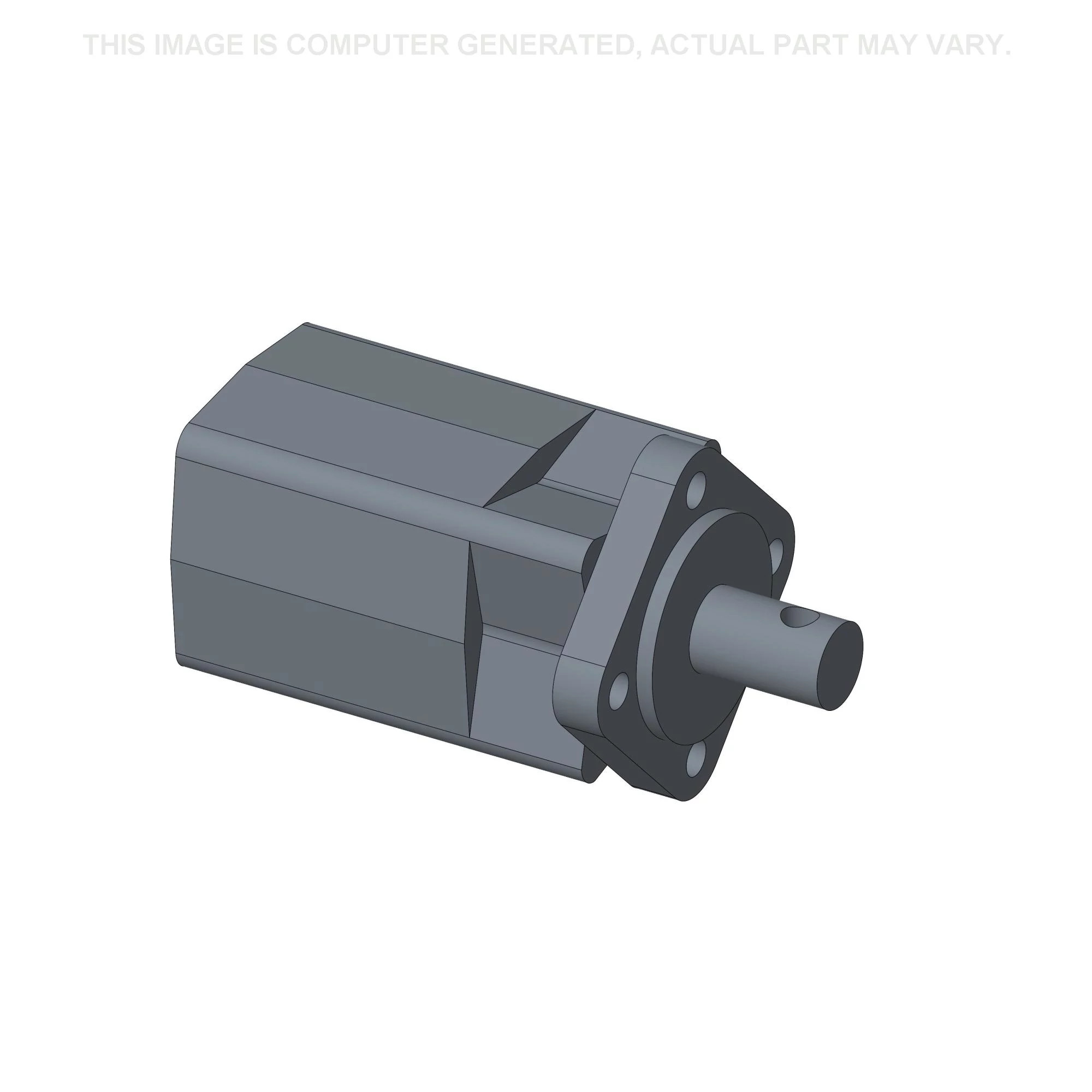

    CORE-MOTOR HYDRAULIC MOTOR HYDRAULIC; 10IN Auger
  • 1
    87506224R
    REMAN-HYD MOTOR HYD MOTOR; 3580 (3/10-)
  • -
    87506224C
    CORE-MOTOR HYDRAULIC HYD MOTOR; Return Number
