A-69 - GENERATOR, DELCO REMY, 6 VOLT
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 2
    2
    120368
    NUT 5/16''-24, G5; WASHER, thru bolt lock
  • 3
    121841
    LOCK WASHER #8; WASHER, LOCK, #8
  • 4
    1
    817220
    GASKET; cover plate
  • 5
    1
    1880635
    OILER; ASSY, commutator end frame
  • 1
    804076
    WICK; oiler
  • 6
    1
    1913564
    FRAME; ASSY, commutator end, composed of (1) bushing (NSS), (1) frame (NSS), (1) oiler 1880635, (1) pin 809062, (1) plug 1911097, (1) wick 804076
  • 9
    1
    1858754
    STUD; POLE ASSY, armature terminal
  • 1
    1885090
    BUSHING; terminal stud insulating
  • 2

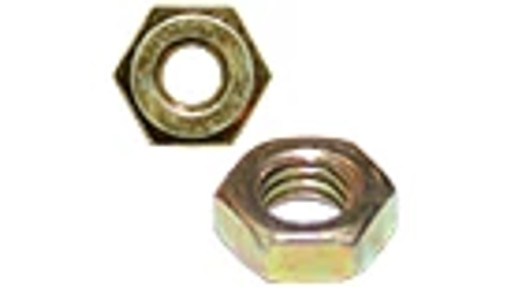

    225-14112
    NUT #12-24; No. 12-24 cd or zn-pltd hex.
  • 1
    1858751
    STUD; armature terminal
  • 1
    1881409
    WASHER; terminal stud
  • 1
    1858753
    WASHER; terminal stud insulating
  • 2
    1904661
    LOCK WASHER; WASHER, terminal stud lock
  • 10
    1
    1850767
    SPRING; third brush
  • 12
    1
    1933144
    PACKAGE; BRUSH PACKAGE
  • 3
    132688
    SCREW Sl Rnd Hd, #6 - 32 x 1/4''; No. 6-32 x 1/4 cd-pltd slt-rd-hd mach
  • 3
    192-15
    LOCK WASHER Helical Spring, #6, 0.145'' ID, CST, ZND; WASHER, brush screw attaching
  • 13
    1
    1872638
    BAND; W/NUT AND SCREW, cover
  • 1
    120614
    NUT Hex, #10 - 32; NUT, #10-32
  • 1
    132926
    SCREW Sl Rnd Hd, #10 - 32 x 1/4''; No. 10-32 x 1-1/4 cd-pltd slt-rd-hd mach
  • 16
    1
    809593
    PIN; drive end frame dowel
  • 17
    1
    1913560
    ARMATURE;
  • 18
    1
    124545
    WOODRUFF KEY #5, 1/8'' x 5/8'', HT;
  • 19
    1
    809945
    BUSHING; WASHER, drive end space
  • 21
    1
    1858751
    STUD; field terminal
  • 1
    1885090
    BUSHING; terminal stud insulating
  • 2
    225-14112
    NUT #12-24; No. 12-24 cd or zn-pltd hex.
  • 1
    1881409
    WASHER; terminal stud
  • 1
    1858753
    WASHER; terminal stud insulating
  • 2
    1904661
    LOCK WASHER; WASHER, terminal stud lock
  • 2
    1843646
    SCREW; pole shoe
  • 24
    1
    1911263
    PLATE; PLATE, ball bearing retainer
  • 3
    1914580
    SCREW; plate retainer
  • 3
    1880781
    WASHER; plate retainer screw
  • 25
    1
    1912008
    FELT; GASKET, retainer plate
  • 26
    1
    954378
    BALL BEARING; BEARING, drive end ball
  • 27
    1
    819104
    WASHER; RETAINER, drive end felt washer
  • 28
    1
    809961
    FELT; WASHER, drive end felt
  • 31
    1
    1880641
    OILER; ASSY, drive end frame
