TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11SHAFT; pickup cyl drive
-
1BACK-UP RING; 1-14 znd hex. jam
-
3WASHER; 1-1/32 x 1-7/16 x 18 ga C-Z (as required)
-
2WASHER; 1-1/32 x 1-1/4 x 16 ga C-Z (as required)
-
1PIN 7/32'' x 1 1/2'', Slotted;
-
21BALL BEARING 25.43mm ID x 52.09mm OD x 16mm W; ASSY, pickup cylinder LH
-
31WASHER; slip clutch retainer
-
46COMPRESSION SPRING; pickup slip clutch
-
51HUB; pickup slip clutch
-
51HUB; pickup slip clutch
-
2LOCK PIN 5/16'' x 1 1/2'', Slotted; Pin, 5/16'' x 1 1/2'', Slotted
-
62KEY Gib, 5/16'' Sq x 1 7/8''; 5/16 x 1-7/8 sq-tapered
-
71SHIELD; ASSY, pickup drive
-
1BOLT; 5/16 x 3/4 C-Z sq-nk crg
-
1NUT 5/16''-18, G5;
-
1LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''
-
1LOCK WASHER Helical Spring, 7/16''; WASHER, LOCK, 7/16''
-
81BLOCK; tightener
-
91BRACKET; pickup idler
-
2BOLT Short NK, 5/16''-18 x 1'', G2, Full Thd; CARRIAGE, Short NK, 5/16''-18 x 1'', G2, Full Thd
-
2CARRIAGE BOLT Short Nk, 5/16'' - 18 x 3/4'', Gr 2, Full Thd; BOLT, 5/16 x 3/4 C-Z sq-nk crg
-
4NUT 5/16''-18, G5;
-
4LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''
-
102LINING; FACING, pickup drive clutch
-
111BUSHING; pickup slip clutch sprocket
-
121SPARE PART; CHAIN, pickup drive, no. 55 stl chain, 28 links
-
131SPROCKET; SPROCKET, pickup slip clutch
-
148NO LONGER SERVICED; FLANGE, pickup pivot drive brg
-
9CARRIAGE BOLT Short Nk, 5/16'' - 18 x 3/4'', Gr 2, Full Thd; BOLT, 5/16 x 3/4 znd sq-nk crg
-
3BOLT Short NK, 5/16''-18 x 1'', G2, Full Thd; CARRIAGE, , 440T Std Baler Short NK, 5/16''-18 x 1'', G2, Full Thd
-
12NUT 5/16''-18, G5;
-
12LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''
-
3HARDWARE Hex, 5/16''-18 x 3/4'', G2; BOLT, 5/16 x 1 znd hex-hd mach, 440 custom T and W balers
-
153BEARING ASSY Ball, 25.43mm ID x 52.09mm OD x 16mm W; ASSY, pickup cylinder RH
-
1613STRIPPER; pickup
-
26VIS A TETE BOMBEE Short Nk, 5/16'' - 18 x 3/4'', Gr 2, Full Thd; BOLT, 5/16 x 3/4 C-Z sq-nk crg
-
26VIS A TETE BOMBEE Short Sq Nk, 5/16'' - 18 x 1/2'', Gr 2; BOLT, 5/16 x 1/2 C-Z sq-nk crg
-
52ECROU 5/16''-18, G5;
-
52RONDELLE FREIN 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''
-
2COUTEAU; 1/8'' x 3/4''
-
2GOUPILLE A TETE 5/16'' x 2.609''; PIN, HEADED, 5/16'' x 2.609''
-
184CAP; REINFORCEMENT, block tightener
-
1CARRIAGE BOLT Sq Nk, 5/8'' - 11 x 3 1/4'', Gr 2; BOLT, 5/8 x 3-1/4 C-Z sq-nk crg
-
1CARRIAGE BOLT Sq Nk, 5/8'' - 11 x 2 3/4'', Gr 2; BOLT, 5/8 x 2-3/4 C-Z sq-nk crg
-
2NUT Hex, 5/8'' - 11, Gr 5; 5/8-11 C-Z hex
-
2LOCK WASHER 5/8''; WASHER, LOCK, 5/8''
-
2WASHER; 21/32 x 1-1/4 x 16 ga C-Z
-
2RONDELLE; 31/32 x 1-1/2 x 9 ga
-
192MOYEU; pickup cyl driving, 440 T std baler
-
2HEADED PIN 5/16'' x 2''; PIN, 5/16 x 2 znp std-hd
-
2KNIFE; 1/8'' x 3/4''
-
208BUSHING; pickup cyl end, for 440 T std baler
-
6BOLT Hex, 5/16'' - 18 x 1'', Gr 2; 5/16 x 1 C-Z hex-hd mach
-
6NUT 5/16''-18, G5;
-
6LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''
-
211END; W/BUSHING, pickup cyl, 2 for 440 T std baler
-
221SHAFT; pickup pivot drive
-
1WASHER; 1-1/32 x 1-1/4 x 16 ga
-
231SPACER; pickup cyl shaft inner
-
241CAM; pickup tooth control
-
251GUIDE; ASSY, tooth bar roller, 440 T std baler
-
1COVER Cross Flat Hd, 5/16''-18 x 5/8''; SCREW, Cross Flat Hd, 5/16''-18 x 5/8''
-
1LATCH 8.28mm ID x 15.21mm OD; 5/16 C-Z csk ext, tooth lock
-
261BALL BEARING 15mm ID x 35mm OD x 11mm W; BEARING ASSY, pickup cyl tine control, 4 for 440 T std baler
-
4COTTER PIN; PIN, 3/'6 x 2-1/2 C-Z cot
-
16WASHER; 2-1/16 x 2-15/16 x 16 ga C-Z (as required)
-
274BAR; ASSY, pickup tooth
-
281SPROCKET; SPROCKET, pickup pivot drive
-
1LOCK PIN 5/16'' x 1 3/4'', Slotted; Pin, 5/16'' x 1 3/4'', Slotted
-
1LOCK PIN 3/16'' x 1 3/4'', Slotted; Pin, 3/16'' x 1 3/4'', Slotted
-
291LEVER; ASSY, pickup
-
2RIVET; 3/8 x 1 C-Z small b-hd
-
1PIN 5/8'' x 1 3/8''; 5/8 x 1-3/8 C-Z std-hd
-
1COTTER PIN 3/16'' x 1 1/4''; PIN, SPLIT (COTTER), 3/16'' x 1 1/4''
-
301SPRING; pickup lever clip
-
1HEADED PIN 5/16'' x 2 3/16''; PIN, HEADED, 5/16'' x 2 3/16''
-
1KNIFE; 1/8'' x 3/4''
-
1WASHER; 11/32 x 3/4 x 16 ga C-Z
-
311GRIP; lever, replaces 938885R1
-
321CLIP; pickup lever
-
331SUPPORT; QUADRANT, pickup lever
-
2CARRIAGE BOLT Short Nk, 5/16'' - 18 x 3/4'', Gr 2, Full Thd; BOLT, 5/16 x 3/4 C-Z sq-nk crg
-
3NUT 5/16''-18, G5;
-
3LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''
-
2WASHER; 13/32 x 3/4 x 11 ga C-Z
-
1BOLT Short NK, 5/16''-18 x 1'', G2, Full Thd; CARRIAGE, Short NK, 5/16''-18 x 1'', G2, Full Thd
-
3413SUPPORT; BRACE, pickup stripper
-
13BOLT Hex, 3/8''-16 x 2 3/4'', G2; 3/8 x 2-3/4 znd hex-hd mach
-
13NUT 3/8'' - 16, Gr 5;
-
13LOCK WASHER Helical Spring, 3/8''; WASHER, LOCK, 3/8''
-
3513SUPPORT; pickup stripper
-
3628CUP WASHER; WASHER, pickup cyl spring tooth
-
28CARRIAGE BOLT Short NK, 5/16''-18 x 1'', G5, Full Thd; BOLT, 5/16 x 1 C-Z sq-nk crg
-
28FLANGE NUT Flg, USR, 5/16''-18; 5/16-18 znd hex lock
-
3728SPRING; pickup tooth
-
381COMPRESSION SPRING; pickup balance
-
391BOLT 3/8'' - 16 x 14.6''; balance spring
-
2NUT 3/8'' - 16, Gr 5;
-
1WASHER; 13/32 x 7/8 x 11 ga C-Z
-
401SUPPORT; BRACKET ASSY, pickup drive shaft pivot RH
-
4BOLT Hex, 7/16''-14 x 1 1/4'', G2; 7/16 x 1-1/4 C-Z hex-hd mach
-
4NO LONGER SERVICED; NUT, 7/16-14 C-Z hex
-
4LOCK WASHER Helical Spring, 7/16''; WASHER, LOCK, 7/16''
-
4WASHER; 15/32 x 1 x 16 ga C-Z
-
411SPROCKET; SPROCKET, pickup pivot drive shaft
-
1GOUPILLE DE BLOCAGE 5/16'' x 2'', Slotted; Pin, 5/16'' x 2'', Slotted
-
1GOUPILLE DE BLOCAGE 3/16'' x 2'', Slotted; Pin, 3/16'' x 2'', Slotted
-
431BRACKET; pickup pivot drive shaft LH
-
2BOLT Hex, 7/16'' - 14 x 1'', Gr 2; 7/16 x 1 C-Z hex-hd mach
-
2NO LONGER SERVICED; NUT, 7/16-14 C-Z hex.
-
2LOCK WASHER Helical Spring, 7/16''; WASHER, LOCK, 7/16''
-
441BLOCK; tightener
-
451SPROCKET; SPROCKET, pickup drive
-
1BOLT Hex, 3/8''-16 x 3 1/2'', G2; 3/8 x 3-1/2 znd hex-hd mach
-
1NUT 3/8'' - 16, Gr 5;
-
1LOCK WASHER Helical Spring, 3/8''; WASHER, LOCK, 3/8''
-
461SPROCKET 9T; SPROCKET ASSY, pickup drive idler, service for 180193C91, replaces 936047R91
-
1BOLT Hex, 5/8''-11 x 4'', G5; 5/8 x 4 C-Z hex-hd mach
-
1NUT Hex, 5/8'' - 11, Gr 5; 5/8-11 C-Z hex
-
1LOCK WASHER 5/8''; WASHER, LOCK, 5/8''
-
1WASHER; 21/32 x 1-1/2 x 16 ga C-Z
-
4WASHER; 21/32 x 1-1/4 x 11 ga C-Z (as required)
Select All
Select
Ref.
Qty
3Availability
Part #
21788R1Description
WASHER; 1-1/32 x 1-7/16 x 18 ga C-Z (as required)Img
Alts
Select
Ref.
Qty
2Availability
Part #
21789R1Description
WASHER; 1-1/32 x 1-1/4 x 16 ga C-Z (as required)Img
Alts
Select
Ref.
2Qty
1Availability
Part #
155264C91Description

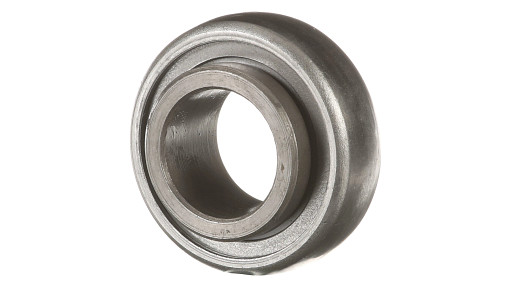

BALL BEARING 25.43mm ID x 52.09mm OD x 16mm W; ASSY, pickup cylinder LHImg
Alts
Select
Ref.
4Qty
6Availability
Part #
M1015Description
COMPRESSION SPRING; pickup slip clutchImg
Alts
Select
Ref.
Qty
2Availability
Part #
576483R1Description
LOCK PIN 5/16'' x 1 1/2'', Slotted; Pin, 5/16'' x 1 1/2'', SlottedImg
Alts
Select
Ref.
6Qty
2Availability
Part #
Q3931Description
KEY Gib, 5/16'' Sq x 1 7/8''; 5/16 x 1-7/8 sq-taperedImg
Alts
Select
Ref.
Qty
1Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''Img
Alts
Select
Ref.
Qty
1Availability
Part #
120383Description
LOCK WASHER Helical Spring, 7/16''; WASHER, LOCK, 7/16''Img
Alts
Select
Ref.
Qty
2Availability
Part #
12872R1Description
BOLT Short NK, 5/16''-18 x 1'', G2, Full Thd; CARRIAGE, Short NK, 5/16''-18 x 1'', G2, Full ThdImg
Alts
Select
Ref.
Qty
2Availability
Part #
16897R1Description
CARRIAGE BOLT Short Nk, 5/16'' - 18 x 3/4'', Gr 2, Full Thd; BOLT, 5/16 x 3/4 C-Z sq-nk crgImg
Alts
Select
Ref.
Qty
4Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''Img
Alts
Select
Ref.
10Qty
2Availability
Part #
662291R1Description
LINING; FACING, pickup drive clutchImg
Alts
Select
Ref.
11Qty
1Availability
Part #
662079R1Description
BUSHING; pickup slip clutch sprocketImg
Alts
Select
Ref.
12Qty
1Availability
Part #
CA320Description
SPARE PART; CHAIN, pickup drive, no. 55 stl chain, 28 linksImg
Alts
Select
Ref.
13Qty
1Availability
Part #
662023R1Description
SPROCKET; SPROCKET, pickup slip clutchImg
Alts
Select
Ref.
14Qty
8Availability
Part #
671682R1Description
NO LONGER SERVICED; FLANGE, pickup pivot drive brgImg
Alts
Select
Ref.
Qty
9Availability
Part #
16897R1Description
CARRIAGE BOLT Short Nk, 5/16'' - 18 x 3/4'', Gr 2, Full Thd; BOLT, 5/16 x 3/4 znd sq-nk crgImg
Alts
Select
Ref.
Qty
3Availability
Part #
12872R1Description
BOLT Short NK, 5/16''-18 x 1'', G2, Full Thd; CARRIAGE, , 440T Std Baler Short NK, 5/16''-18 x 1'', G2, Full ThdImg
Alts
Select
Ref.
Qty
12Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''Img
Alts
Select
Ref.
Qty
3Availability
Part #
18764R1Description
HARDWARE Hex, 5/16''-18 x 3/4'', G2; BOLT, 5/16 x 1 znd hex-hd mach, 440 custom T and W balersImg
Alts
Select
Ref.
15Qty
3Availability
Part #
671681R91Description

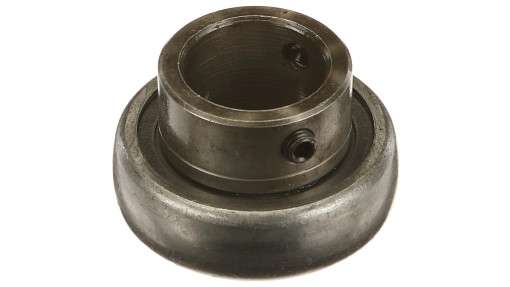

BEARING ASSY Ball, 25.43mm ID x 52.09mm OD x 16mm W; ASSY, pickup cylinder RHImg
Alts
Select
Ref.
Qty
26Availability
Part #
16897R1Description
VIS A TETE BOMBEE Short Nk, 5/16'' - 18 x 3/4'', Gr 2, Full Thd; BOLT, 5/16 x 3/4 C-Z sq-nk crgImg
Alts
Select
Ref.
Qty
26Availability
Part #
18673R1Description
VIS A TETE BOMBEE Short Sq Nk, 5/16'' - 18 x 1/2'', Gr 2; BOLT, 5/16 x 1/2 C-Z sq-nk crgImg
Alts
Select
Ref.
Qty
52Availability
Part #
80681Description
RONDELLE FREIN 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''Img
Alts
Select
Ref.
Qty
2Availability
Part #
23821R1Description
GOUPILLE A TETE 5/16'' x 2.609''; PIN, HEADED, 5/16'' x 2.609''Img
Alts
Select
Ref.
18Qty
4Availability
Part #
673666R1Description
CAP; REINFORCEMENT, block tightenerImg
Alts
Select
Ref.
Qty
1Availability
Part #
21776R1Description
CARRIAGE BOLT Sq Nk, 5/8'' - 11 x 3 1/4'', Gr 2; BOLT, 5/8 x 3-1/4 C-Z sq-nk crgImg
Alts
Select
Ref.
Qty
1Availability
Part #
18723R1Description
CARRIAGE BOLT Sq Nk, 5/8'' - 11 x 2 3/4'', Gr 2; BOLT, 5/8 x 2-3/4 C-Z sq-nk crgImg
Alts
Select
Ref.
Qty
2Availability
Part #
280374Description
NUT Hex, 5/8'' - 11, Gr 5; 5/8-11 C-Z hexImg
Alts
Select
Ref.
Qty
2Availability
Part #
492-11062Description
LOCK WASHER 5/8''; WASHER, LOCK, 5/8''Img
Alts
Select
Ref.
Qty
2Availability
Part #
608701R1Description
WASHER; 21/32 x 1-1/4 x 16 ga C-ZImg
Alts
Select
Ref.
19Qty
2Availability
Part #
659942R1Description
MOYEU; pickup cyl driving, 440 T std balerImg
Alts
Select
Ref.
Qty
2Availability
Part #
378484R1Description
HEADED PIN 5/16'' x 2''; PIN, 5/16 x 2 znp std-hdImg
Alts
Select
Ref.
20Qty
8Availability
Part #
659437R1Description
BUSHING; pickup cyl end, for 440 T std balerImg
Alts
Select
Ref.
Qty
6Availability
Part #
18474R1Description
BOLT Hex, 5/16'' - 18 x 1'', Gr 2; 5/16 x 1 C-Z hex-hd machImg
Alts
Select
Ref.
Qty
6Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''Img
Alts
Select
Ref.
21Qty
1Availability
Part #
667705R11Description
END; W/BUSHING, pickup cyl, 2 for 440 T std balerImg
Alts
Select
Ref.
23Qty
1Availability
Part #
661036R1Description
SPACER; pickup cyl shaft innerImg
Alts
Select
Ref.
25Qty
1Availability
Part #
662318R11Description
GUIDE; ASSY, tooth bar roller, 440 T std balerImg
Alts
Select
Ref.
Qty
1Availability
Part #
133822Description
COVER Cross Flat Hd, 5/16''-18 x 5/8''; SCREW, Cross Flat Hd, 5/16''-18 x 5/8''Img
Alts
Select
Ref.
Qty
1Availability
Part #
134512Description
LATCH 8.28mm ID x 15.21mm OD; 5/16 C-Z csk ext, tooth lockImg
Alts
Select
Ref.
26Qty
1Availability
Part #
ST543Description
BALL BEARING 15mm ID x 35mm OD x 11mm W; BEARING ASSY, pickup cyl tine control, 4 for 440 T std balerImg
Alts
Select
Ref.
Qty
4Availability
Part #
137273Description
COTTER PIN; PIN, 3/'6 x 2-1/2 C-Z cotImg
Alts
Select
Ref.
Qty
16Availability
Part #
21787R1Description
WASHER; 2-1/16 x 2-15/16 x 16 ga C-Z (as required)Img
Alts
Select
Ref.
28Qty
1Availability
Part #
662003R2Description
SPROCKET; SPROCKET, pickup pivot driveImg
Alts
Select
Ref.
Qty
1Availability
Part #
21825R1Description
LOCK PIN 5/16'' x 1 3/4'', Slotted; Pin, 5/16'' x 1 3/4'', SlottedImg
Alts
Select
Ref.
Qty
1Availability
Part #
22969R1Description
LOCK PIN 3/16'' x 1 3/4'', Slotted; Pin, 3/16'' x 1 3/4'', SlottedImg
Alts
Select
Ref.
Qty
1Availability
Part #
663922R1Description
PIN 5/8'' x 1 3/8''; 5/8 x 1-3/8 C-Z std-hdImg
Alts
Select
Ref.
Qty
1Availability
Part #
187988Description
COTTER PIN 3/16'' x 1 1/4''; PIN, SPLIT (COTTER), 3/16'' x 1 1/4''Img
Alts
Select
Ref.
Qty
1Availability
Part #
22753R1Description
HEADED PIN 5/16'' x 2 3/16''; PIN, HEADED, 5/16'' x 2 3/16''Img
Alts
Select
Ref.
31Qty
1Availability
Part #
662340R1Description
GRIP; lever, replaces 938885R1Img
Alts
Select
Ref.
33Qty
1Availability
Part #
674153R1Description
SUPPORT; QUADRANT, pickup leverImg
Alts
Select
Ref.
Qty
2Availability
Part #
16897R1Description
CARRIAGE BOLT Short Nk, 5/16'' - 18 x 3/4'', Gr 2, Full Thd; BOLT, 5/16 x 3/4 C-Z sq-nk crgImg
Alts
Select
Ref.
Qty
3Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''Img
Alts
Select
Ref.
Qty
1Availability
Part #
12872R1Description
BOLT Short NK, 5/16''-18 x 1'', G2, Full Thd; CARRIAGE, Short NK, 5/16''-18 x 1'', G2, Full ThdImg
Alts
Select
Ref.
34Qty
13Availability
Part #
674160R1Description
SUPPORT; BRACE, pickup stripperImg
Alts
Select
Ref.
Qty
13Availability
Part #
18784R1Description
BOLT Hex, 3/8''-16 x 2 3/4'', G2; 3/8 x 2-3/4 znd hex-hd machImg
Alts
Select
Ref.
Qty
13Availability
Part #
120382Description
LOCK WASHER Helical Spring, 3/8''; WASHER, LOCK, 3/8''Img
Alts
Select
Ref.
36Qty
28Availability
Part #
27513KDescription
CUP WASHER; WASHER, pickup cyl spring toothImg
Alts
Select
Ref.
Qty
28Availability
Part #
598803R1Description
CARRIAGE BOLT Short NK, 5/16''-18 x 1'', G5, Full Thd; BOLT, 5/16 x 1 C-Z sq-nk crgImg
Alts
Select
Ref.
Qty
28Availability
Part #
938017R1Description
FLANGE NUT Flg, USR, 5/16''-18; 5/16-18 znd hex lockImg
Alts
Select
Ref.
38Qty
1Availability
Part #
MA731Description
COMPRESSION SPRING; pickup balanceImg
Alts
Select
Ref.
39Qty
1Availability
Part #
674158R1Description
BOLT 3/8'' - 16 x 14.6''; balance springImg
Alts
Select
Ref.
40Qty
1Availability
Part #
674177R1Description
SUPPORT; BRACKET ASSY, pickup drive shaft pivot RHImg
Alts
Select
Ref.
Qty
4Availability
Part #
18795R1Description
BOLT Hex, 7/16''-14 x 1 1/4'', G2; 7/16 x 1-1/4 C-Z hex-hd machImg
Alts
Select
Ref.
Qty
4Availability
Part #
NLSDescription
NO LONGER SERVICED; NUT, 7/16-14 C-Z hexImg
Alts
Select
Ref.
Qty
4Availability
Part #
120383Description
LOCK WASHER Helical Spring, 7/16''; WASHER, LOCK, 7/16''Img
Alts
Select
Ref.
41Qty
1Availability
Part #
662024R2Description
SPROCKET; SPROCKET, pickup pivot drive shaftImg
Alts
Select
Ref.
Qty
1Availability
Part #
21651R1Description
GOUPILLE DE BLOCAGE 5/16'' x 2'', Slotted; Pin, 5/16'' x 2'', SlottedImg
Alts
Select
Ref.
Qty
1Availability
Part #
22004R1Description
GOUPILLE DE BLOCAGE 3/16'' x 2'', Slotted; Pin, 3/16'' x 2'', SlottedImg
Alts
Select
Ref.
43Qty
1Availability
Part #
667717R1Description
BRACKET; pickup pivot drive shaft LHImg
Alts
Select
Ref.
Qty
2Availability
Part #
18794R1Description
BOLT Hex, 7/16'' - 14 x 1'', Gr 2; 7/16 x 1 C-Z hex-hd machImg
Alts
Select
Ref.
Qty
2Availability
Part #
NLSDescription
NO LONGER SERVICED; NUT, 7/16-14 C-Z hex.Img
Alts
Select
Ref.
Qty
2Availability
Part #
120383Description
LOCK WASHER Helical Spring, 7/16''; WASHER, LOCK, 7/16''Img
Alts
Select
Ref.
45Qty
1Availability
Part #
662025R1Description
SPROCKET; SPROCKET, pickup driveImg
Alts
Select
Ref.
Qty
1Availability
Part #
18786R1Description
BOLT Hex, 3/8''-16 x 3 1/2'', G2; 3/8 x 3-1/2 znd hex-hd machImg
Alts
Select
Ref.
Qty
1Availability
Part #
120382Description
LOCK WASHER Helical Spring, 3/8''; WASHER, LOCK, 3/8''Img
Alts
Select
Ref.
46Qty
1Availability
Part #
582415R91Description
SPROCKET 9T; SPROCKET ASSY, pickup drive idler, service for 180193C91, replaces 936047R91Img
Alts
Select
Ref.
Qty
1Availability
Part #
18828R1Description
BOLT Hex, 5/8''-11 x 4'', G5; 5/8 x 4 C-Z hex-hd machImg
Alts
Select
Ref.
Qty
1Availability
Part #
280374Description
NUT Hex, 5/8'' - 11, Gr 5; 5/8-11 C-Z hexImg
Alts
Select
Ref.
Qty
1Availability
Part #
492-11062Description
LOCK WASHER 5/8''; WASHER, LOCK, 5/8''Img
Alts
Select
Ref.
Qty
1Availability
Part #
21782R1Description
WASHER; 21/32 x 1-1/2 x 16 ga C-ZImg
Alts
Select
Ref.
Qty
4Availability
Part #
589068R1Description
WASHER; 21/32 x 1-1/4 x 11 ga C-Z (as required)Img
Alts
