11ATTELAGE DE REMORQUE; HITCH - three point
-
-NOT SOLD SEPARAT; BRACKET;This is bracket showing next to Ref. 3 that does not have a Ref number is NSS the weldment is P/N 101210c1 Can send a print to the dealer on this. This is a weldment of Ref. 1 P/N 101213c2.
-
22STUD; PIN - link
-
2RONDELLE FREIN 7/8''; 7/8''
-
2ECROU 7/8''-14, G5; - hex, 7/8 inch NF
-
31BRACKET; - lift
-
41BOLT; - special
-
1WASHER 13.49mm ID x 31.75mm OD x 5.05mm Thk; - flat, 17/32 x 1-1/4 x 3/16 inch, hardened
-
1SLOTTED NUT 1/2''-13, G5; NUT - hex slotted, 1/2 inch NC
-
1COTTER PIN 3/32'' x 1''; Pin, Split (Cotter), 3/32'' x 1''
-
51PULLEY; - cable
-
1HEADED PIN 19.05mm OD x 66.67mm L; PIN, HEADED, 3/4'' x 2 5/8''
-
1COTTER PIN 1/4'' x 1 1/4''; PIN, SPLIT (COTTER), 1/4'' x 1 1/4''
-
61LUBE NIPPLE 1/8'' - 27 NPTF; FITTING - grease, straight, 1/8 PT x 21/32 inch
-
72BAR; - cable retaining
-
1HEADED PIN 1/2'' x 1 5/8''; PIN - clevis, 1/2 x 1-5/8 inch
-
1COTTER PIN 3/16'' x 1'';
-
1BOLT Hex, 1/2'' - 13 x 1-3/4'', Gr 5;
-
81LOCK NUT 1/2''-13, GB; NUT - hex, self-locking, 1/2 inch NC
-
91CABLE; - three point hitch
-
101CUP; RING - cable end
-
112CLAMP; - 5/16 inch, includes nuts
-
121BOLT; - eye, special
-
1LOCK WASHER 3/4''; 3/4''
-
1NUT 3/4''-10, G5; - hex, 3/4 inch NC
-
131SPACER; - square
Select All
Select
Ref.
1Qty
1Availability
Part #
101213C2Description
ATTELAGE DE REMORQUE; HITCH - three pointImg
Alts
Select
Ref.
Qty
-Availability
Part #
NSSDescription
NOT SOLD SEPARAT; BRACKET;This is bracket showing next to Ref. 3 that does not have a Ref number is NSS the weldment is P/N 101210c1 Can send a print to the dealer on this. This is a weldment of Ref. 1 P/N 101213c2.Img
Alts
Select
Ref.
Qty
2Availability
Part #
425-1114Description
ECROU 7/8''-14, G5; - hex, 7/8 inch NFImg
Alts
Select
Ref.
Qty
1Availability
Part #
396-41053Description
WASHER 13.49mm ID x 31.75mm OD x 5.05mm Thk; - flat, 17/32 x 1-1/4 x 3/16 inch, hardenedImg
Alts
Select
Ref.
Qty
1Availability
Part #
425-128Description

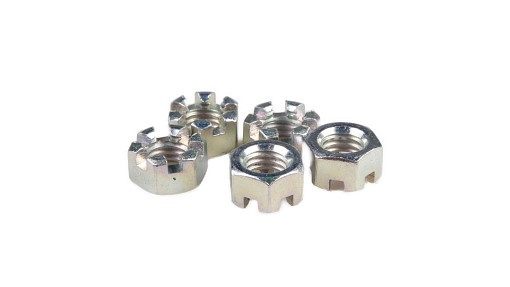

SLOTTED NUT 1/2''-13, G5; NUT - hex slotted, 1/2 inch NCImg
Alts
Select
Ref.
Qty
1Availability
Part #
32-616Description
COTTER PIN 3/32'' x 1''; Pin, Split (Cotter), 3/32'' x 1''Img
Alts
Select
Ref.
Qty
1Availability
Part #
22929R1Description
HEADED PIN 19.05mm OD x 66.67mm L; PIN, HEADED, 3/4'' x 2 5/8''Img
Alts
Select
Ref.
Qty
1Availability
Part #
32-1620Description
COTTER PIN 1/4'' x 1 1/4''; PIN, SPLIT (COTTER), 1/4'' x 1 1/4''Img
Alts
Select
Ref.
6Qty
1Availability
Part #
219-1Description
LUBE NIPPLE 1/8'' - 27 NPTF; FITTING - grease, straight, 1/8 PT x 21/32 inchImg
Alts
Select
Ref.
Qty
1Availability
Part #
21955R1Description
HEADED PIN 1/2'' x 1 5/8''; PIN - clevis, 1/2 x 1-5/8 inchImg
Alts
Select
Ref.
Qty
1Availability
Part #
413-828Description
BOLT Hex, 1/2'' - 13 x 1-3/4'', Gr 5;Img
Alts
Select
Ref.
8Qty
1Availability
Part #
9413967Description
LOCK NUT 1/2''-13, GB; NUT - hex, self-locking, 1/2 inch NCImg
Alts
Select
Ref.
11Qty
2Availability
Part #
552230R91Description
CLAMP; - 5/16 inch, includes nutsImg
Alts
Select
Ref.
Qty
1Availability
Part #
425-1012Description

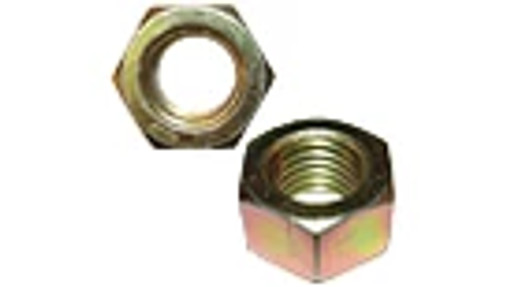

NUT 3/4''-10, G5; - hex, 3/4 inch NCImg
