013 - PTO SLIP CLUTCH
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    86514676
    SLIP CLUTCH; Clutch Assy., 4 plates, Includes: Ref. 2 thru 16, replaces 9827262, 2 plate clutch;Refer To Operator's Manual To Set Clutch To A Higher Torque.
  • 2
    1
    9827259
    SEAL; Ring, Sealing
  • 3
    2
    370018

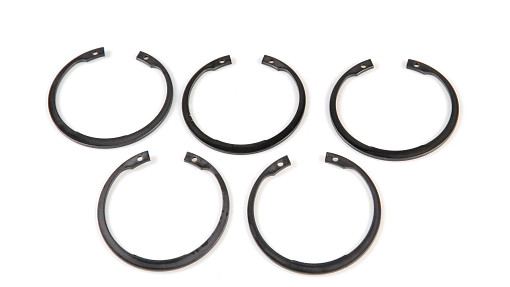

    SNAP RING M72, Int, PHC; RING, SNAP, M72, Int
  • 4
    2
    449318
    RING 56mm ID x 72mm OD x 3mm Thk; Washer
  • 5
    1
    9827258
    HUB;
  • 6
    2
    279442
    SPRING, LEAF;
  • 7
    2
    279448
    KEY; .24'' (6mm) x .51'' (13mm) x 1.95'' (49.5mm)
  • 8
    1
    9827261
    WASHER;
  • 9
    1
    300642

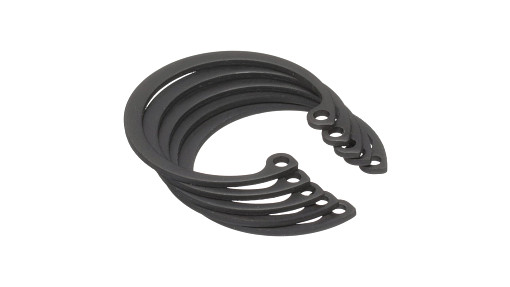

    CIRCLIP M35, Int, PHC; SNAP RING, M35, Int
  • 10
    1
    9502322
    RING; Setting
  • 11
    1
    9827256

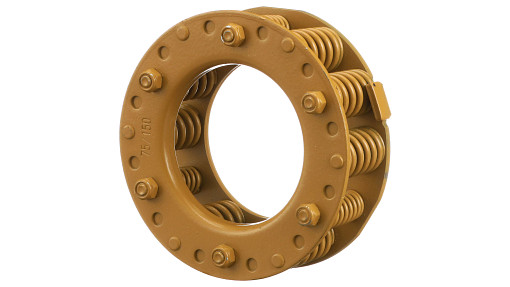

    SPRING Pack; Pack, Spring, for 2 plate clutch
  • 11
    1
    86520860
    CLUTCH PACK; Pack, Spring, for 4 plate clutch
  • 12
    2
    84037045
    CLUTCH DISC; Disc, Friction
  • 13
    1
    86520863
    HOUSING; & Drive Plate Weld Assy.
  • 13
    1
    86520863
    HOUSING; & Drive Plate Weld Assembly, for 4 plate clutch
  • 13A
    1
    86520861
    CLUTCH PLATE 88.5mm ID x 160.5mm OD x 6mm Thk; Driven Plate for 4 plate clutch
  • 13B
    1
    86520862
    DISC; Drive Plate for 4 plate clutch
  • 14
    1
    9509439
    SEALING RING; Seal, Rotary Shaft
  • 15
    1
    9502329
    RING;
  • 16
    1
    9827255
    HOUSING; Clutch, for 2 plate clutch
  • 16
    1
    86520859
    HOUSING; Clutch, for 4 plate clutch
  • 17
    1
    168368

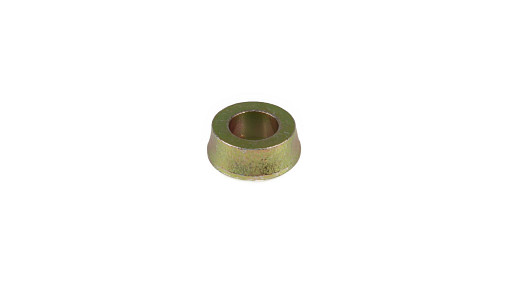

    SPACER 13.4mm ID x 25.4mm OD x 11.1mm OAL;
  • 18
    1
    140045
    BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk; WASHER, BELLEVILLE, M10
  • 19
    1
    120112
    BOLT Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd; HH, CL 8.8, M10 x 1.5 x 40
