PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11HARNESS; HARNESS ASSEMBLY - shaft speed rear
-
22SENSOR; TRANSDUCER - pickup (For straw spreader and feeder)
-
31CASE ASSY.; MONITOR ASSEMBLY - shaft speed (With decal), Includes: Ref. 5
-
31REMAN-ELECT MONITOR; MONITOR ASSEMBLY - shaft speed (With decal), Includes: Ref. 5
-
31CORE-MONITOR; MONITOR ASSEMBLY - shaft speed (With decal), Includes: Ref. 5
-
5UARBULB C2F, #73, 14V; LAMP - trade No. 73, 14 volt
-
61SUPPRESSOR; SUPPRESSOR - audible alarm
-
84TRANSMITTER; TRANSMITTER - monitor control (For rotary air screen, tailings auger, clean grain sensor, beater)
-
101SWITCH; SWITCH - monitor control (For shoe)
-
111MAGNET; MAGNET ASSEMBLY - sensor (For shoe)
-
121SUPPORT; SUPPORT - shoe transmitter
-
132CARRIAGE BOLT Short NK, 5/16''-18 x 1/2'', G2; BOLT - round head square neck, 5/16 NC x 1/2 inch
-
142FLANGE NUT Flg, USR, 5/16''-18; NUT - hex flange lock, 5/16 inch NC
-
173CLAMP; MAGNET ASSEMBLY - sensor (For clean grain, tailings auger, beater)
-
181GROMMET 12.7mm ID x 41.1mm OD x 26.9mm Thk; GROMMET - harness
-
191NUT; NUT - jam
-
251MAGNET; MAGNET ASSEMBLY - sensor (For rotary air screen)
-
262SELF-TAP SCREW Sl Pan Hd, #8 x 1/2''; SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2''
-
271CHANNEL; CHANNEL - rotary air screen sensor mounting
-
283SERRATED SCREW 5/16'' - 18 x 3/4''; SCREW - slotted truss head, 5/16 NC x 3/4 inch
-
293FLANGE NUT Flg, USR, 5/16''-18; NUT - hex flange lock, 5/16 inch NC
-
301RUBBER WASHER; WASHER - rubber
-
311WASHER; WASHER - flat, 11/32 x 11/16 x 3/64 inch
-
341SUPPORT; ANGLE - rotary air screen sensor adjustment
-
361BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5; BOLT, Hex, 5/16''-18 x 3/4'', G5, Full Thd
-
371LOCK WASHER Helical Spring, 0.318'' ID, CST, ZND; WASHER, LOCK, 5/16''
-
381NUT 5/16'' - 18, Gr 5; NUT, 5/16''-18, G5
-
442COLLAR; COLLAR - clean grain and tailings elevator shaft locking
-
462BRACKET; BRACKET - tailing sensor
-
471SUPPORT; COVER - tailings sensor bracket
-
484SELF-TAP SCREW Hex Wash Hd, 1/4'' x 1/2''; SCREW, SELF TAPPING, Hex Wash Hd, 1/4'' x 1/2''
-
52UARCLIP; CLIP - harness
-
53UARCLAMP 9.53mm ID, 10.32mm Bolt Hole, P Type; CLIP - harness (1-3/8 inch long)
-
53UARCLAMP J, 9/16'' Insul, 3/8'' Bolt; CLIP - harness (1-1/2 inch long)
-
54UARCLIP; CLIP - front monitor harness long
-
551WIRE HARNESS; HARNESS ASSEMBLY - shaft speed front
-
581SPROCKET ASSY.; SPROCKET - feeder sensor (Without rock trap or feeder reverser)
-
601SUPPORT; SUPPORT - beater shaft sensor
-
611SUPPORT; COVER - beater shaft sensor
-
624SCREW Slotted Pan Hd, #8-32 x 3/8''; SCREW - slotted machine, No. 8-32 x 3/8 inch
-
634LOCK WASHER #8; WASHER, LOCK, #8
-
642SET SCREW Hex Skt, 1/4''-20 x 3/8''; SET SCREW, Hex Soc, 1/4''-20 x 3/8''
-
681SUPPORT; SUPPORT - feeder sensor (With rock trap or feeder reverser)
-
691WIRE HARNESS; HARNESS - clean grain adapter
Select All
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Ref.
1Qty
1Availability
Part #
245238C1Description
HARNESS; HARNESS ASSEMBLY - shaft speed rearImg
Alts
Ref.
2Qty
2Availability
Part #
245193C2Description
SENSOR; TRANSDUCER - pickup (For straw spreader and feeder)Img
Alts
Ref.
3Qty
1Availability
Part #
245275C91Description
CASE ASSY.; MONITOR ASSEMBLY - shaft speed (With decal), Includes: Ref. 5Img
Alts
Ref.
3Qty
1Availability
Part #
1935072C1Description
REMAN-ELECT MONITOR; MONITOR ASSEMBLY - shaft speed (With decal), Includes: Ref. 5Img
Alts
Ref.
3Qty
1Availability
Part #
1935071C1Description
CORE-MONITOR; MONITOR ASSEMBLY - shaft speed (With decal), Includes: Ref. 5Img
Alts
Ref.
5Qty
UARAvailability
Part #
28628R1Description
BULB C2F, #73, 14V; LAMP - trade No. 73, 14 voltImg
Alts
Ref.
6Qty
1Availability
Part #
178876C1Description
SUPPRESSOR; SUPPRESSOR - audible alarmImg
Alts
Ref.
8Qty
4Availability
Part #
245365C1Description
TRANSMITTER; TRANSMITTER - monitor control (For rotary air screen, tailings auger, clean grain sensor, beater)Img
Alts
Ref.
10Qty
1Availability
Part #
245364C1Description
SWITCH; SWITCH - monitor control (For shoe)Img
Alts
Ref.
11Qty
1Availability
Part #
187996C1Description
MAGNET; MAGNET ASSEMBLY - sensor (For shoe)Img
Alts
Ref.
13Qty
2Availability
Part #
111-229Description
CARRIAGE BOLT Short NK, 5/16''-18 x 1/2'', G2; BOLT - round head square neck, 5/16 NC x 1/2 inchImg
Alts
Ref.
14Qty
2Availability
Part #
938017R1Description
FLANGE NUT Flg, USR, 5/16''-18; NUT - hex flange lock, 5/16 inch NCImg
Alts
Ref.
17Qty
3Availability
Part #
178800C1Description

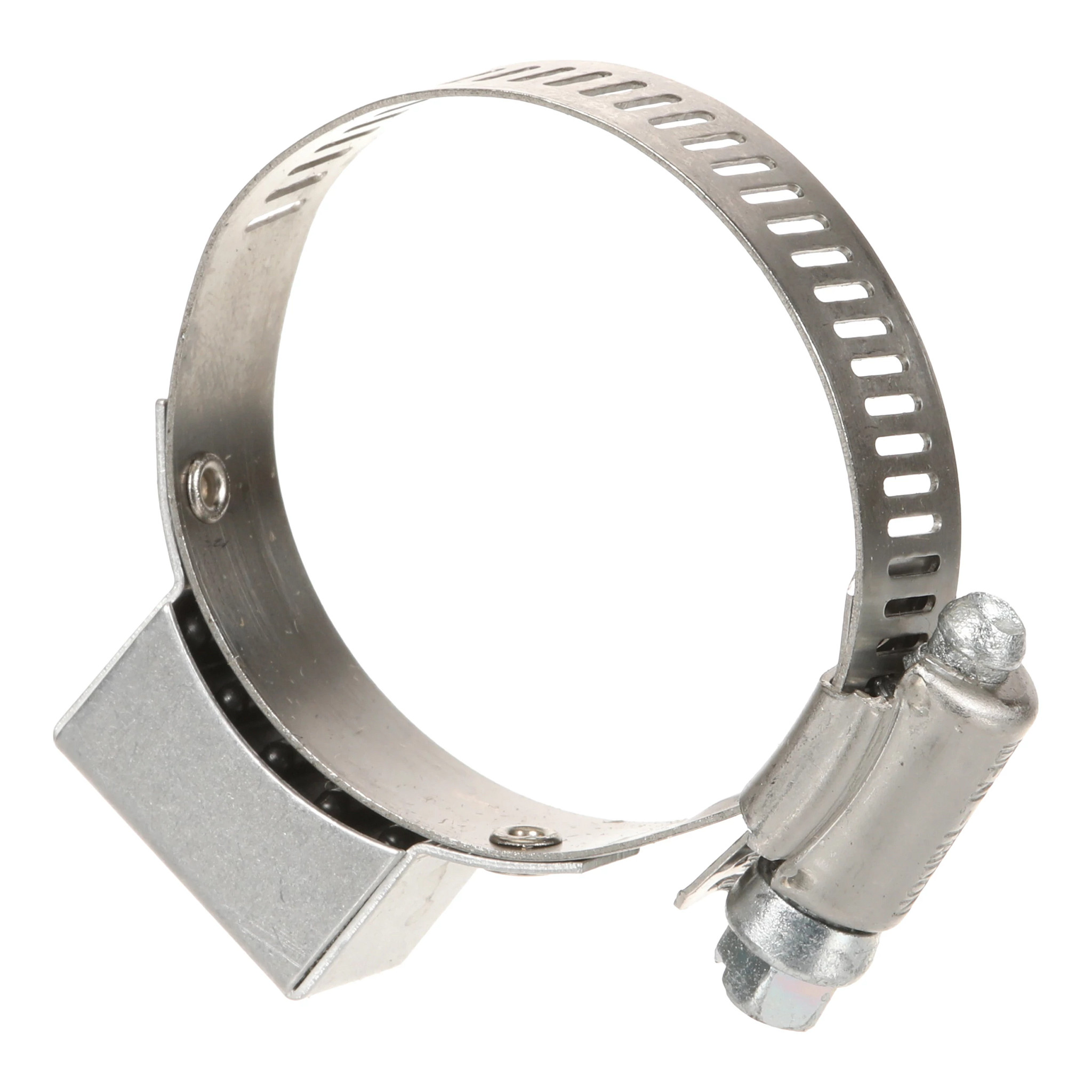

CLAMP; MAGNET ASSEMBLY - sensor (For clean grain, tailings auger, beater)Img
Alts
Ref.
18Qty
1Availability
Part #
198824C1Description
GROMMET 12.7mm ID x 41.1mm OD x 26.9mm Thk; GROMMET - harnessImg
Alts
Ref.
25Qty
1Availability
Part #
196987C1Description
MAGNET; MAGNET ASSEMBLY - sensor (For rotary air screen)Img
Alts
Ref.
26Qty
2Availability
Part #
125932Description
SELF-TAP SCREW Sl Pan Hd, #8 x 1/2''; SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2''Img
Alts
Ref.
27Qty
1Availability
Part #
1329865C1Description
CHANNEL; CHANNEL - rotary air screen sensor mountingImg
Alts
Ref.
28Qty
3Availability
Part #
135270Description
SERRATED SCREW 5/16'' - 18 x 3/4''; SCREW - slotted truss head, 5/16 NC x 3/4 inchImg
Alts
Ref.
29Qty
3Availability
Part #
938017R1Description
FLANGE NUT Flg, USR, 5/16''-18; NUT - hex flange lock, 5/16 inch NCImg
Alts
Ref.
31Qty
1Availability
Part #
28588R1Description
WASHER; WASHER - flat, 11/32 x 11/16 x 3/64 inchImg
Alts
Ref.
34Qty
1Availability
Part #
1301560C1Description
SUPPORT; ANGLE - rotary air screen sensor adjustmentImg
Alts
Ref.
36Qty
1Availability
Part #
113-102Description
BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5; BOLT, Hex, 5/16''-18 x 3/4'', G5, Full ThdImg
Alts
Ref.
37Qty
1Availability
Part #
192-20Description
LOCK WASHER Helical Spring, 0.318'' ID, CST, ZND; WASHER, LOCK, 5/16''Img
Alts
Ref.
38Qty
1Availability
Part #
9635082Description
NUT 5/16'' - 18, Gr 5; NUT, 5/16''-18, G5Img
Alts
Ref.
44Qty
2Availability
Part #
178801C1Description
COLLAR; COLLAR - clean grain and tailings elevator shaft lockingImg
Alts
Ref.
47Qty
1Availability
Part #
187616C1Description
SUPPORT; COVER - tailings sensor bracketImg
Alts
Ref.
48Qty
4Availability
Part #
23986R1Description
SELF-TAP SCREW Hex Wash Hd, 1/4'' x 1/2''; SCREW, SELF TAPPING, Hex Wash Hd, 1/4'' x 1/2''Img
Alts
Ref.
53Qty
UARAvailability
Part #
362120R1Description
CLAMP 9.53mm ID, 10.32mm Bolt Hole, P Type; CLIP - harness (1-3/8 inch long)Img
Alts
Ref.
53Qty
UARAvailability
Part #
363444R1Description
CLAMP J, 9/16'' Insul, 3/8'' Bolt; CLIP - harness (1-1/2 inch long)Img
Alts
Ref.
54Qty
UARAvailability
Part #
362666R1Description
CLIP; CLIP - front monitor harness longImg
Alts
Ref.
55Qty
1Availability
Part #
245242C1Description
WIRE HARNESS; HARNESS ASSEMBLY - shaft speed frontImg
Alts
Ref.
58Qty
1Availability
Part #
1317973C2Description
SPROCKET ASSY.; SPROCKET - feeder sensor (Without rock trap or feeder reverser)Img
Alts
Ref.
60Qty
1Availability
Part #
187629C1Description
SUPPORT; SUPPORT - beater shaft sensorImg
Alts
Ref.
61Qty
1Availability
Part #
187630C1Description
SUPPORT; COVER - beater shaft sensorImg
Alts
Ref.
62Qty
4Availability
Part #
436693Description
SCREW Slotted Pan Hd, #8-32 x 3/8''; SCREW - slotted machine, No. 8-32 x 3/8 inchImg
Alts
Ref.
64Qty
2Availability
Part #
125735Description
SET SCREW Hex Skt, 1/4''-20 x 3/8''; SET SCREW, Hex Soc, 1/4''-20 x 3/8''Img
Alts
Ref.
68Qty
1Availability
Part #
1317950C1Description
SUPPORT; SUPPORT - feeder sensor (With rock trap or feeder reverser)Img
Alts
Ref.
69Qty
1Availability
Part #
245235C1Description
WIRE HARNESS; HARNESS - clean grain adapterImg
Alts
