8-004 - MAINTENANCE PARTS MX MAGNUM - LIGHTING
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

232450A2

Description

COURTESY LIGHT 12V; Right Hand, UK Only


Alts

Select

Ref.

1

Qty

1

Availability

Part #

232448A2

Description

COURTESY LIGHT Halogen/Incandescent, 12V, Clear; Right Hand, Not For UK


Alts

Select

Ref.

1

Qty

1

Availability

Part #

232449A2

Description

COURTESY LIGHT Halogen/Incandescent, 12V, Clear; LH, Not for UK


Alts

Select

Ref.

1

Qty

1

Availability

Part #

232451A2

Description

COURTESY LIGHT Halogen/Incandescent, 12V, Clear; Left Hand, UK Only


Alts

Select

Ref.

1

Qty

1

Availability

Part #

232452A2

Description

HEADLIGHT; Right Hand


Alts

Select

Ref.

1

Qty

1

Availability

Part #

232453A2

Description

HEADLIGHT; Left Hand


Alts

Select

Ref.

2

Qty

2

Availability

Part #

301891A2

Description

LAMP Halogen, 12V, 55W, Clear;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

303595A2

Description

FLASHER UNIT; Flash And Position, Right Hand


Alts

Select

Ref.

3

Qty

1

Availability

Part #

303597A2

Description

LIGHT; Flash And Position, Left Hand


Alts

Select

Ref.

4

Qty

1

Availability

Part #

313163A1

Description

BEACON ROTATING; BEACON


Alts

Select

Ref.

5

Qty

1

Availability

Part #

372892A1

Description

LAMP;


Alts

Select

Ref.

6

Qty

1

Availability

Part #

1983391C1

Description

LAMP 12V, 10W;


Alts

Select

Ref.

7

Qty

2

Availability

Part #

178345A1

Description

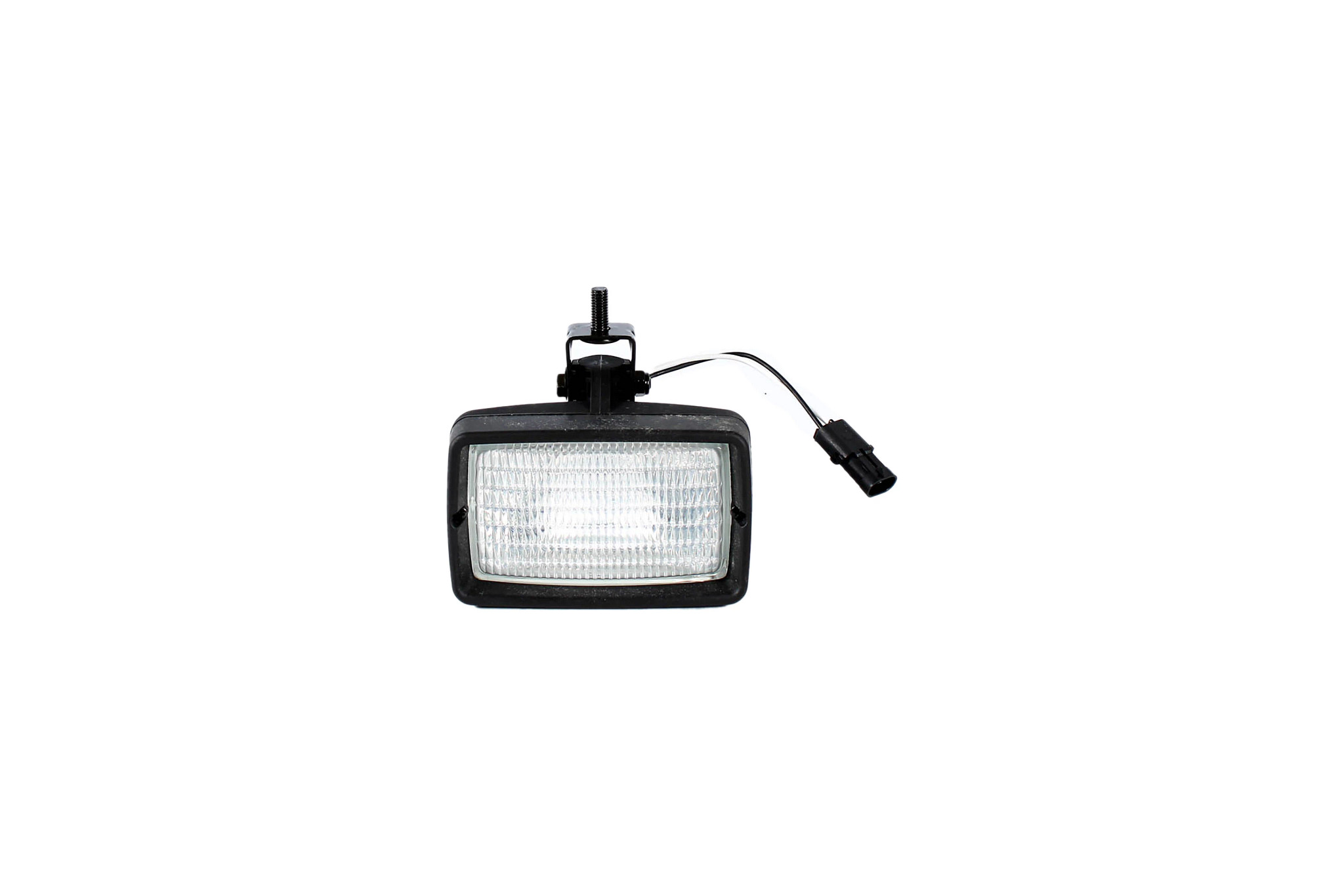

LAMP, WORK Halogen, 12V, 55W, Clear; LIGHT, WORK


Alts

Select

Ref.

8

Qty

1

Availability

Part #

279227A1

Description

WORK LAMP; LH, Front


Alts

Select

Ref.

8

Qty

1

Availability

Part #

279228A1

Description

WORK LAMP Halogen, 12V, 37.5W, Amber/Clear; RH, Front


Alts

Select

Ref.

8

Qty

1

Availability

Part #

279229A1

Description

WARNING LIGHT; RH, Rear


Alts

Select

Ref.

8

Qty

1

Availability

Part #

279231A1

Description

WARNING LIGHT; LH, Rear


Alts

Select

Ref.

9

Qty

2

Availability

Part #

3231505R91

Description

LIGHT ASSY.; License Plate


Alts

Select

Ref.

10

Qty

1

Availability

Part #

279225A1

Description

WORK LAMP 12V, Amber/Red/White; LH


Alts

Select

Ref.

10

Qty

1

Availability

Part #

279226A1

Description

WORK LAMP 12V, Amber/Red/White; RH


Alts

Select

Ref.

11

Qty

2

Availability

Part #

239758A1

Description

HEADLIGHT;


Alts

Select

Ref.

12

Qty

1

Availability

Part #

232454A2

Description

WORK LAMP Halogen, 12V, 60W, Clear; Halogen


Alts

Select

Ref.

12

Qty

1

Availability

Part #

232455A2

Description

WORK LAMP HID, 12V, 35W, Clear; High Intensity Discharge


Alts

Select

Ref.

13

Qty

2

Availability

Part #

359608A1

Description

HEADLIGHT; USA


Alts

Select

Ref.

13

Qty

1

Availability

Part #

359607A1

Description

HEADLIGHT; EUROPE


Alts

Select

Ref.

14

Qty

2

Availability

Part #

92190C1

Description

LIGHT 12V, 10W; Number Plate


Alts
