9D-028 - CYLINDER HEAD AND RELATED PARTS / ENGINE BLOCK HEATER
TABLE DES MATIÈRES
SCHÉMA
LISTE DES PIÈCES
EFFACER TOUT
Fenêtre N° de série
Date de construction
Sélectionner Tout
Ref.
Qté
N° de pièce
Alts
Description
  • 1
    1
    676088C5
    COUVERCLE; valve;Used with 1466, 1566, 4166, Hydro 100, 986, Hydro 186 and 3688 tractors, 1486 tractors with engines BSN 63705, 1586 tractors with engines BSN 63694, 4186 tractors with engines BSN 63721, 1460 combines with engines BSN 63635, 1440 combine.
  • 1
    1
    690339C3
    COUVERCLE DE SOUPAPE; Used with 1486 tractors with engines ASN 63706, 1586 tractors with engines ASN 63695, 3388, 5088, and 6388 tractors, 4186 tractors with engines ASN 63722, 1460 combines with engines ASN 63636, 1480 combines.
  • 6
    326-524
    VIS Hex, 5/16'' - 18 x 1-1/2'', Gr 8; (Replaces bolt 25654R1)
  • 1
    689324C1
    GOUJON Stud, 5/16'' - 24 - 5/16'' - 18 x 2.30''; valve cover, used with 5088 tractors with turbocharger oil inlet tube clamp bracket
  • 2
    1
    1342828C1

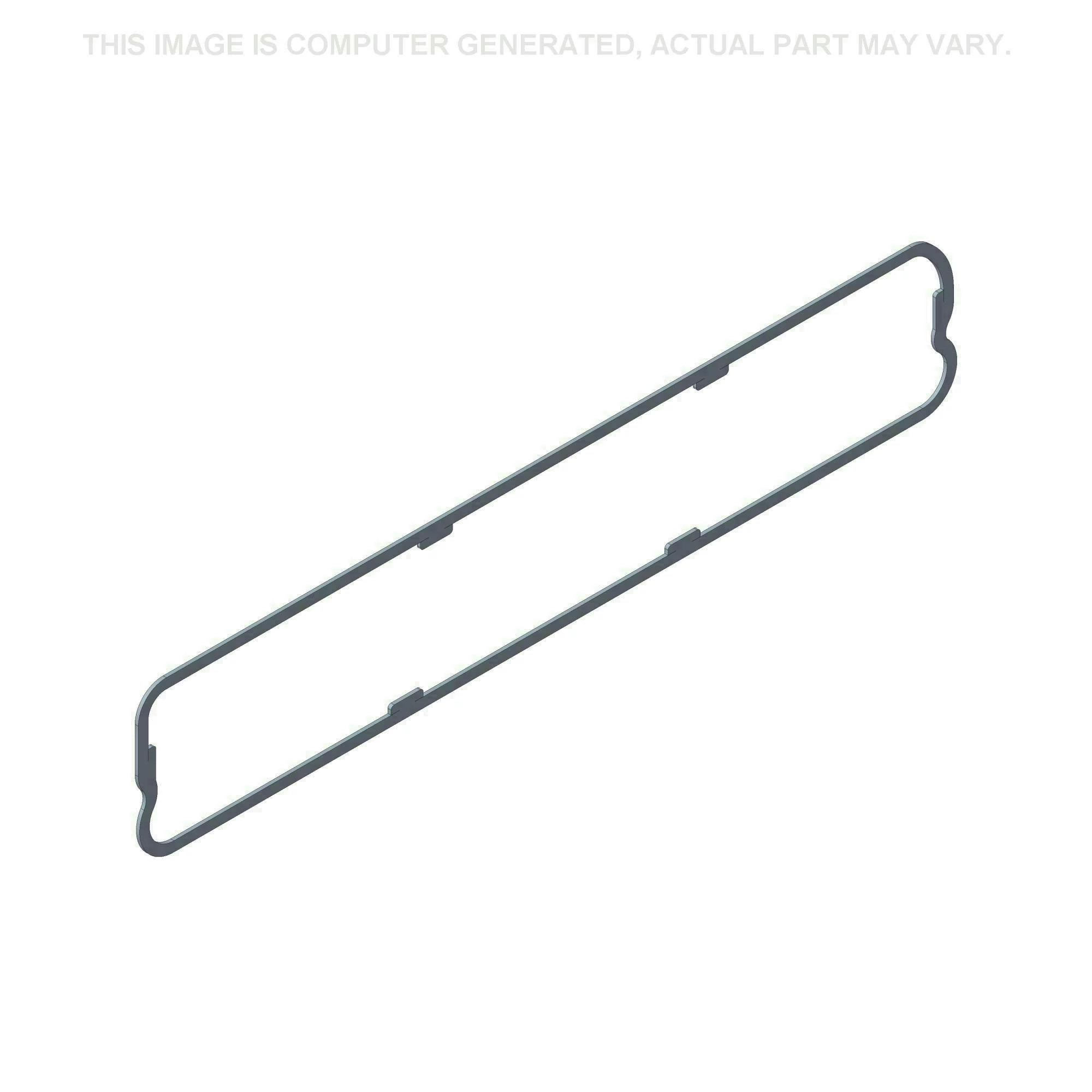

    GASKET VALVE COVER GASKET; valve cover (Replaces gasket 675109C2)
  • 3
    1
    675660C92
    ARBRE; rocker arm
  • 4
    2
    41-109
    BOUCHON Cup, 9/16''; rocker arm shaft (Replaces plug 291171C1)
  • 5
    2
    100-1184
    ANNEAU D'ARRET #84, Ext; Replaces 24577R1
  • 6
    12
    682260C91

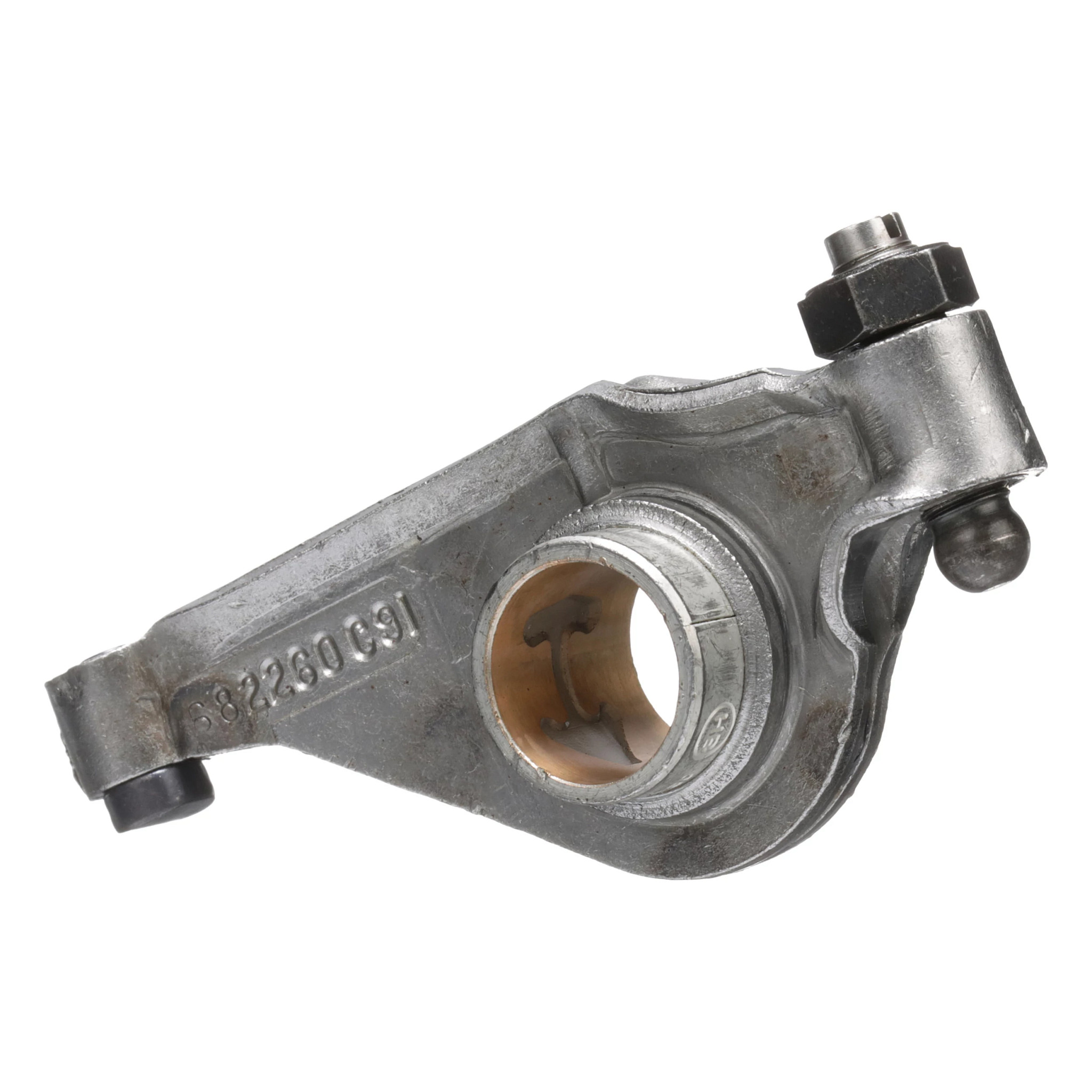

    LEVIER; valve rocker arm, engines BSN 46359
  • 6
    12
    1820830C92
    CULBUTEUR; valve rocker arm, engines ASN 46359 (Replaces arm 688999C93)
  • 7
    1
    133093R1
    ECROU Hex, 3/8'' - 24; adjusting screw
  • 8
    1
    16067DA
    VIS DE REGLAGE 3/8'' - 24; rocker arm adjusting
  • 9
    6
    675547C2
    BRACKET; rocker arm shaft, order bracket 1802461C3
  • 9
    2
    1802461C3
    SUPPORT; rocker arm shaft bracket, used at cylinder numbers 2 and 5, order kit 1802464C92
  • 9
    2
    1802462C2
    BRACKET; rocker arm shaft, used at cylinder no. 4, no longer used, order bracket 1802461C3
  • 10
    5
    675105C1
    RESSORT; rocker arm shaft
  • 11
    2
    675455C1
    ŒIL; lifting
  • 2
    25830R1
    VIS Hex, 9/16'' - 12 x 1 1/4'', Gr 8; hex, 9/16 NC x 1-1/4 inch
  • 1
    1800901C91
    CULASSE; new, used with 986, Hydro 100, Hydro 186 and 3688 tractors, 1440 combines and 1640 combines BSN JJC0034705 (Replaces head assembly 684400C92), Includes: Ref. 12-27
  • 1
    691876C91
    CULASSE; no longer used, order head assembly 749635C92, Includes: Ref. 12-27;Used with 1466, 1566, 4166 and 4186 tractors, 1486 tractors with engines BSN 100078, 1586 tractors with engines BSN 100394, 1460 combines with engines BSN 100008, 1480 combines with engines BSN 103042.
  • 1
    1928111C1
    CULASSE A RENOVER; no longer used, order head assembly 749635C92, Includes: Ref. 12-27;Used with 1466, 1566, 4166 and 4186 tractors, 1486 tractors with engines BSN 100078, 1586 tractors with engines BSN 100394, 1460 combines with engines BSN 100008, 1480 combines with engines BSN 103042.
  • 1
    749635C92
    CULASSE RENOVE; no longer used, order head assembly 749635C92, Includes: Ref. 12-27;Used with 1466, 1566, 4166 and 4186 tractors, 1486 tractors with engines BSN 100078, 1586 tractors with engines BSN 100394, 1460 combines with engines BSN 100008, 1480 combines with engines BSN 103042.
  • 1
    1816969C91
    CULASSE; (Replaces head assemblies 687199C92 and 691877C91), Includes: Ref. 12-27;Used with 1486 tractors with engines ASN 100078, 1586 tractors with engines ASN 100394, 1460 combines with engines ASN 100008, 1480 combines with engines ASN 103042, 3388, 5088 and 6388 tractors.
  • 12
    2
    221-667
    BOUCHON DE VIDANGE Hex Soc, 1/2'' NPT; square socket, magnetic, 1/2 '' PT (replaces plug 445751)
  • 13
    6
    41-1618
    BOUCHON Cup, 1 1/8'', Stainless; cup, 1-1/8'' (replaces plug 21427R1)
  • 14
    6
    41-1624
    BOUCHON Cup, 1 1/2'', Stainless; cup, 1-1/2'' (replaces plug 601093C1)
  • 15
    1
    NSS
    PAS VENDU SÉPARÉMENT; Head - cylinder, order head assembly
  • 16
    6
    675442C1
    CHEMISE; injector
  • 17
    24
    41339D
    CLE; Lock - valve spring retainer
  • 18
    12
    682221C92
    SOUPAPE; Rotator - valve, top (replaces rotator 1811581C91)
  • 1
    1342827C1
    SHIELD; Shield - oil (replaces oil shield 681234C1)
  • 19
    12
    682064C1
    RESSORT; valve
  • 20
    12
    675443C1
    SIEGE CONDUCTEUR; valve spring
  • 21
    12
    675439C1
    GUIDE; valve
  • 22
    6
    671559C1
    INSERT; intake valve seat, 0.002'' oversize
  • 22
    6
    671561C1
    INSERT; intake valve seat, 0.015'' oversize
  • 23
    6
    671563C2
    INSERT; exhaust valve seat, 0.002'' oversize
  • 23
    6
    671565C1
    INSERT; exhaust valve seat, 0.015'' oversize
  • 24
    6
    675046C4

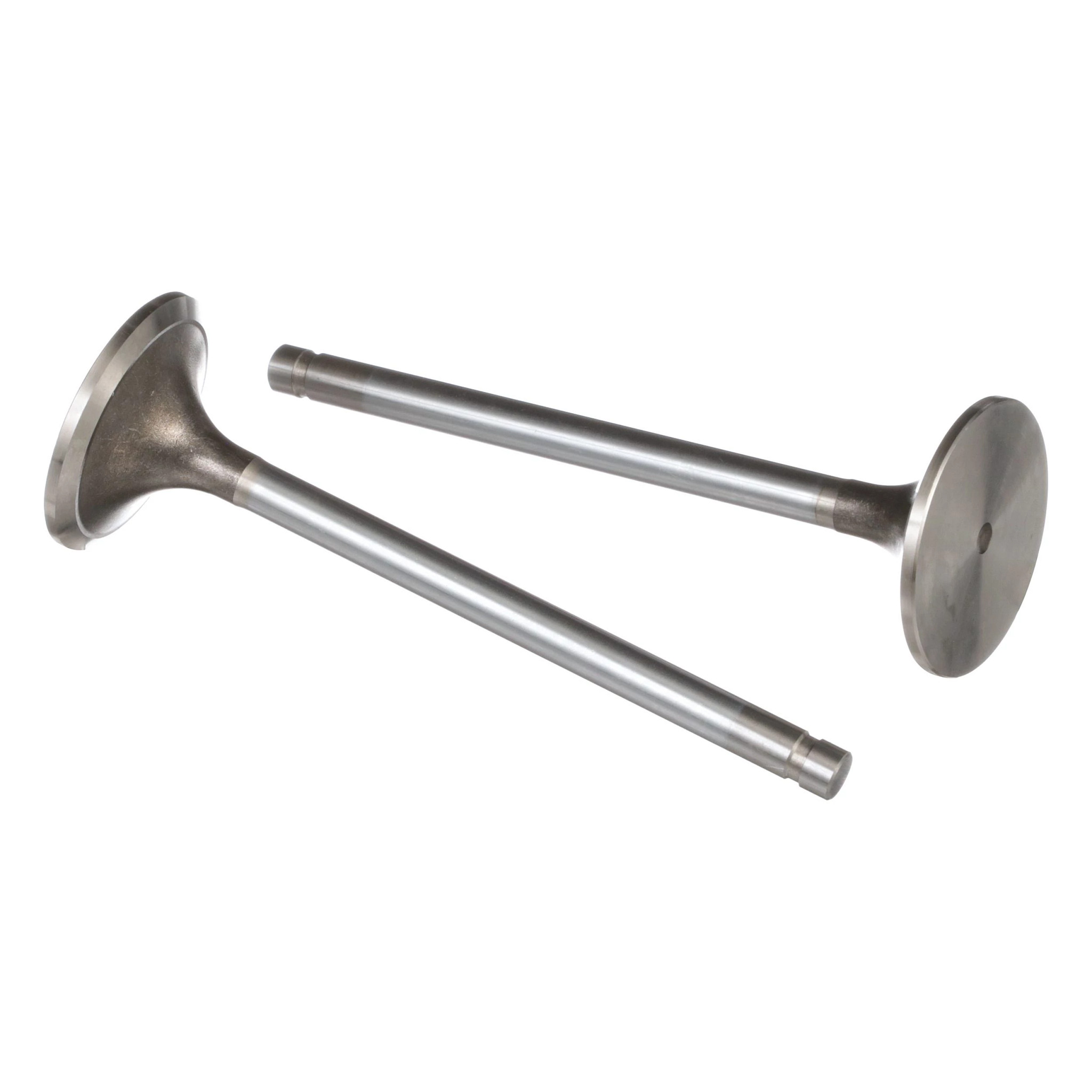

    SOUPAPE; VALVE INTAKE intake
  • 25
    6
    676865C4
    SOUPAPE; exhaust
  • 26
    12
    682840C1
    GOUJON; exhaust manifold, no longer available, order bolt 1809774c1
  • 12
    682987C1
    ECROU; hex
  • 12
    684034C1

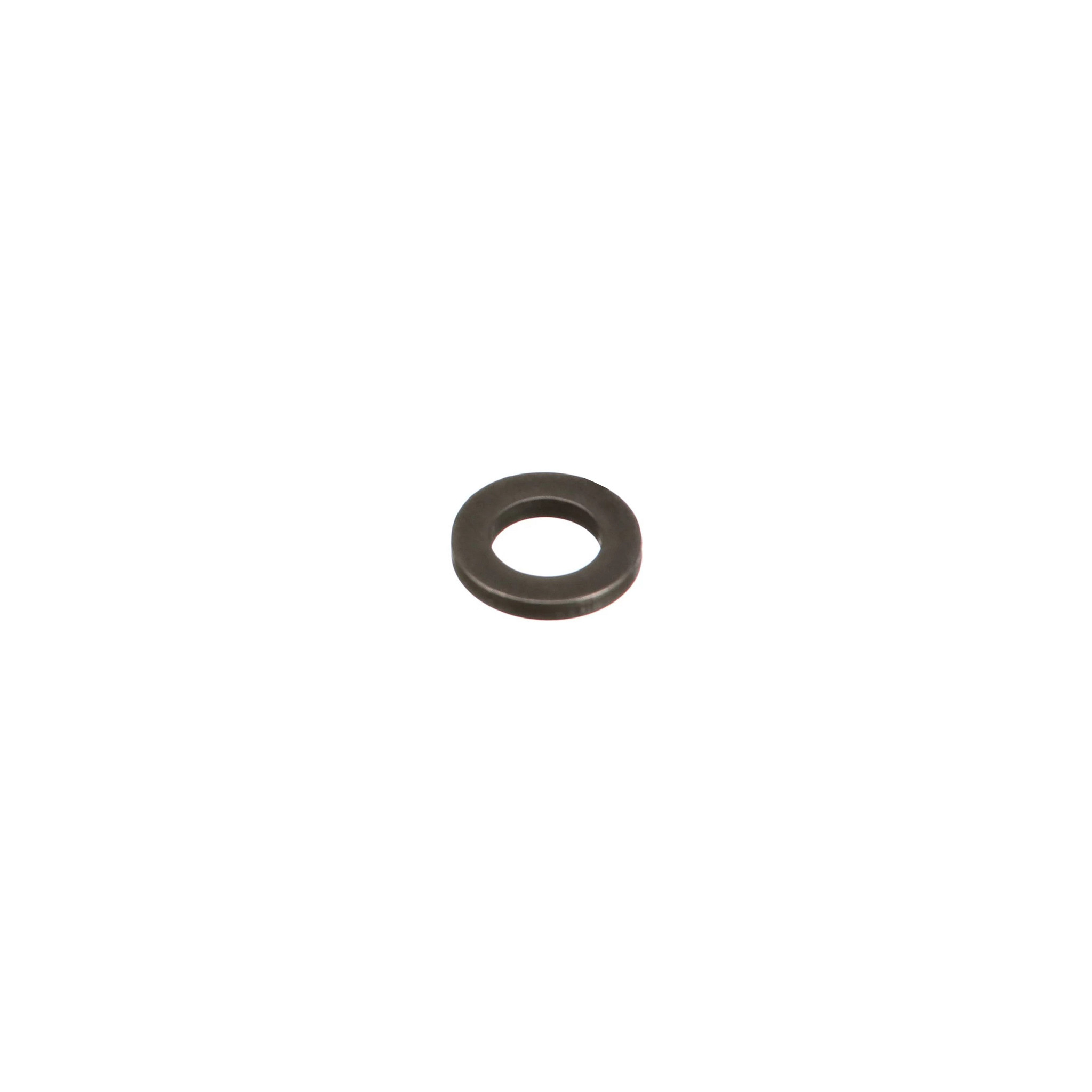

    RONDELLE 11.91mm ID x 21.34mm OD x 3.17mm Thk; flat, 15/32 x 27/32 x 1/8 inch
  • 27
    12
    675045C1
    DEFLECTEUR; water, engines BSN 119232
  • 27
    12
    691183C1
    DEFLECTEUR; water, engines ASN 119232
  • 12
    1809774C1
    GOUJON Hex, 7/16'' - 14 x 1.50''; hex bolt prevailing torque, 7/16 NC x 1-1/2 inch
  • 28
    1
    1342421C2
    JOINT DE CULASSE; cylinder head (Replaces gasket 676108C2)
  • 29
    6
    1342830C1
    SEAL; valve cover grommet (Replaces grommets 313971R1 and 677692C1)
  • 30
    1
    1800248C1
    SHIELD; heat, used with 5088 tractors only
  • 2
    326-612
    VIS Hex, 3/8'' - 16 x 3/4'', Gr 8; (Replaces bolt 24839R1)
  • 2
    396-21041
    RONDELLE 10.31mm ID x 20.63mm OD x 2.26mm Thk; flat, 13/32 x 13/16 x 3/32 inch, hardened
  • 2
    492-11038
    RONDELLE FREIN 3/8''; (Replaces washer 115093)
  • 6
    676119C1
    VIS; cylinder head long
  • 20
    676120C1
    VIS; cylinder head short
  • 26
    252018R1
    RONDELLE 15.11mm ID x 25.4mm OD x 4.83mm Thk; cylinder head bolt
  • 31
    1
    71151C91
    CHAUFFAGE; engine block, 115 volt;Used with Hydro 100, Hydro 186, 986, 1466, 1486, 1566, 1586, 3388, 3688, 4166, 4186, 5088 and 6388 tractors, 1440, 1460 and 1480 combines.
  • 32
    1
    A44813
    RALLONGE DE CABLE; engine block heater, 12 inch (305 mm) long (Replaces cable 71150C1);Ref #32: A44813 is 1ft. long. For 6ft. long cord, order J905113 or 196466A1. 4/12/02 CJK-TSG
