7-04 - CRANKCASE FRONT COVER AND IDLER GEAR
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    341523R11
    COVER; - injection pump, no longer available
  • 4
    27768R1
    BOLT Hex, 3/8'' - 16 x 7/8'', Gr 8; SCREW - hex, 3/8 NC x 7/8 inch (Replaces screw 311979R1)
  • 2
    1
    326582R2
    GASKET; - injection pump cover
  • 2
    425-116
    NUT 3/8'' - 24, Gr 5; - hex, 3/8 inch NF (Replaces nut 103026).
  • 5
    413-644
    BOLT Hex, 3/8'' - 16 x 2-3/4'', Gr 5; - hex, 3/8 NC x 2-3/4 inch (Replaces bolt 179850)
  • 2
    25778R1
    BOLT Hex, 3/8'' - 24 x 2 3/4'', Gr 8; SCREW - hex, 3/8 NC x 2-3/4 inch (Replaces screw 181384)
  • 7
    92-11038
    LOCK WASHER 3/8''; WASHER, LOCK, (Replaces washer 103321) 3/8''
  • 4
    1
    670033C1
    BOLT (SPREADER); BOLT - counterbore, left-hand
  • 5
    1
    326583R2
    SHAFT; - idler gear
  • 1
    601740C1
    WASHER; SPACER - idler gear shaft
  • 6
    1
    327185R91

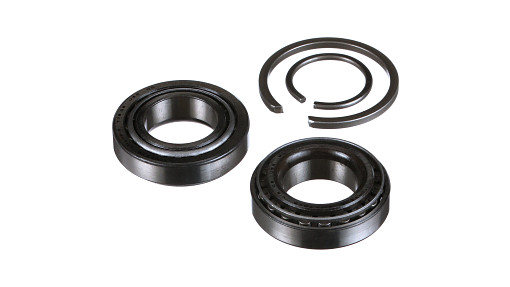

    BEARING ASSY 31.75mm ID x 59.16mm OD x 36.75mm W; - idler gear
  • 7
    1
    326612R1
    PINION; GEAR - injection pump idler
  • 8
    1
    326580R1
    GASKET; - front cover
  • 9B
    2
    37-148

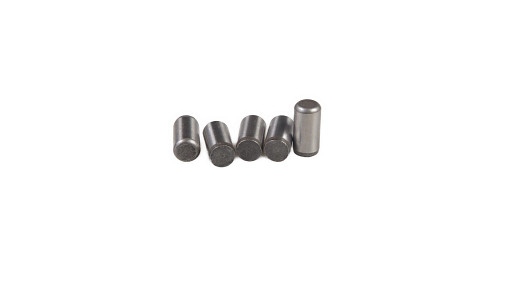

    DOWEL 1/4'' x 1/2''; PIN - dowel, 3/8 x 3/4 inch, hardened (Replaces pin 19841R1), not illustrated
  • 4
    413-614
    BOLT Hex, 3/8'' - 16 x 7/8'', Gr 5; (Replaces screw 179838) Hex, 3/8''-16 x 7/8'', G5, Full Thd
  • 4
    92-11038
    LOCK WASHER 3/8''; WASHER, LOCK, (Replaces washer 103321) 3/8''
  • 10
    1
    328735R1
    GASKET; - front plate
  • 1
    606780C93
    KIT; KIT - oil seal, crankcase front, Includes: Ref. 11
  • 11
    1
    NSS
    NOT SOLD SEPARAT; SEAL - oil, order kit 606780C93
  • 12
    1
    606779C2
    SLEEVE; - wear
  • 13
    1
    606792C91
    BUTTON; - thrust
