55.100.AA[01] - UCM
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

47922813

Description

FRAME; UCM, Red


Alts

Select

Ref.

2

Qty

4

Availability

Part #

84382751

Description

FLANGE BOLT Hex, M6 x 1 x 80mm, Cl 8.8;


Alts

Select

Ref.

3

Qty

2

Availability

Part #

86511838

Description

FLANGE BOLT Hvy Hex, M5 x 12mm, Cl 8.8, Full Thd;


Alts

Select

Ref.

4

Qty

12

Availability

Part #

10444721

Description

BOLT Hex, M4 x 0.7 x 14mm, Cl 8.8, Full Thd, ZND;


Alts

Select

Ref.

5

Qty

4

Availability

Part #

9804276

Description

FLANGE NUT Hex, M6 x 1, Cl 8;


Alts

Select

Ref.

6

Qty

2

Availability

Part #

86512495

Description

FLANGE NUT Hex, M5, Cl 8;


Alts

Select

Ref.

7

Qty

12

Availability

Part #

100012

Description

NUT Hex, M4 x 0.7, Cl 8, ZND;


Alts

Select

Ref.

8

Qty

8

Availability

Part #

13604411

Description

SPACER 6.5mm ID x 15mm OD x 25mm L;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

47632823

Description

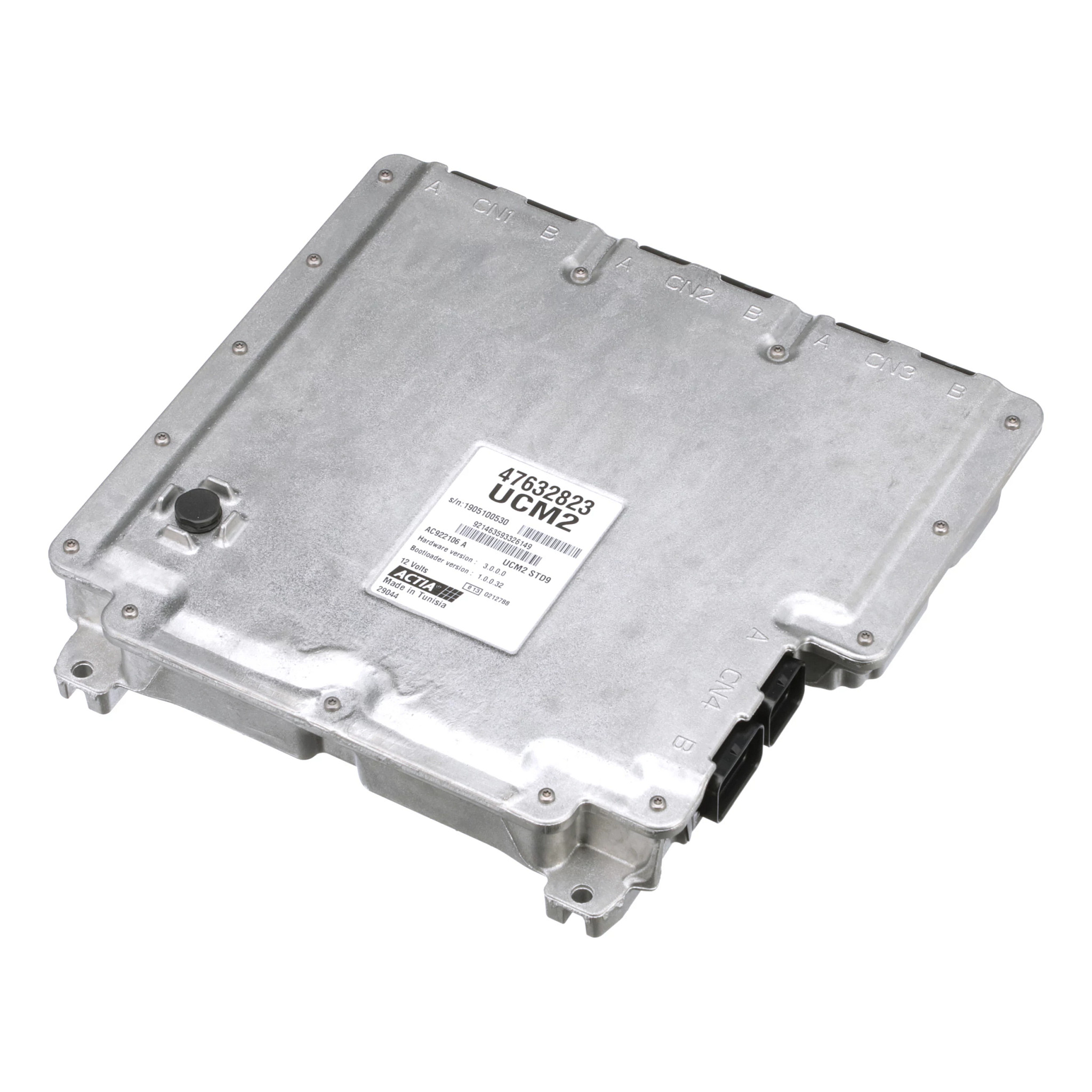

ECU; UCM


Alts

Select

Ref.

10

Qty

1

Availability

Part #

48131350

Description

WIRE HARNESS; UCM Interface


Alts

Select

Ref.

11

Qty

1

Availability

Part #

47922815

Description

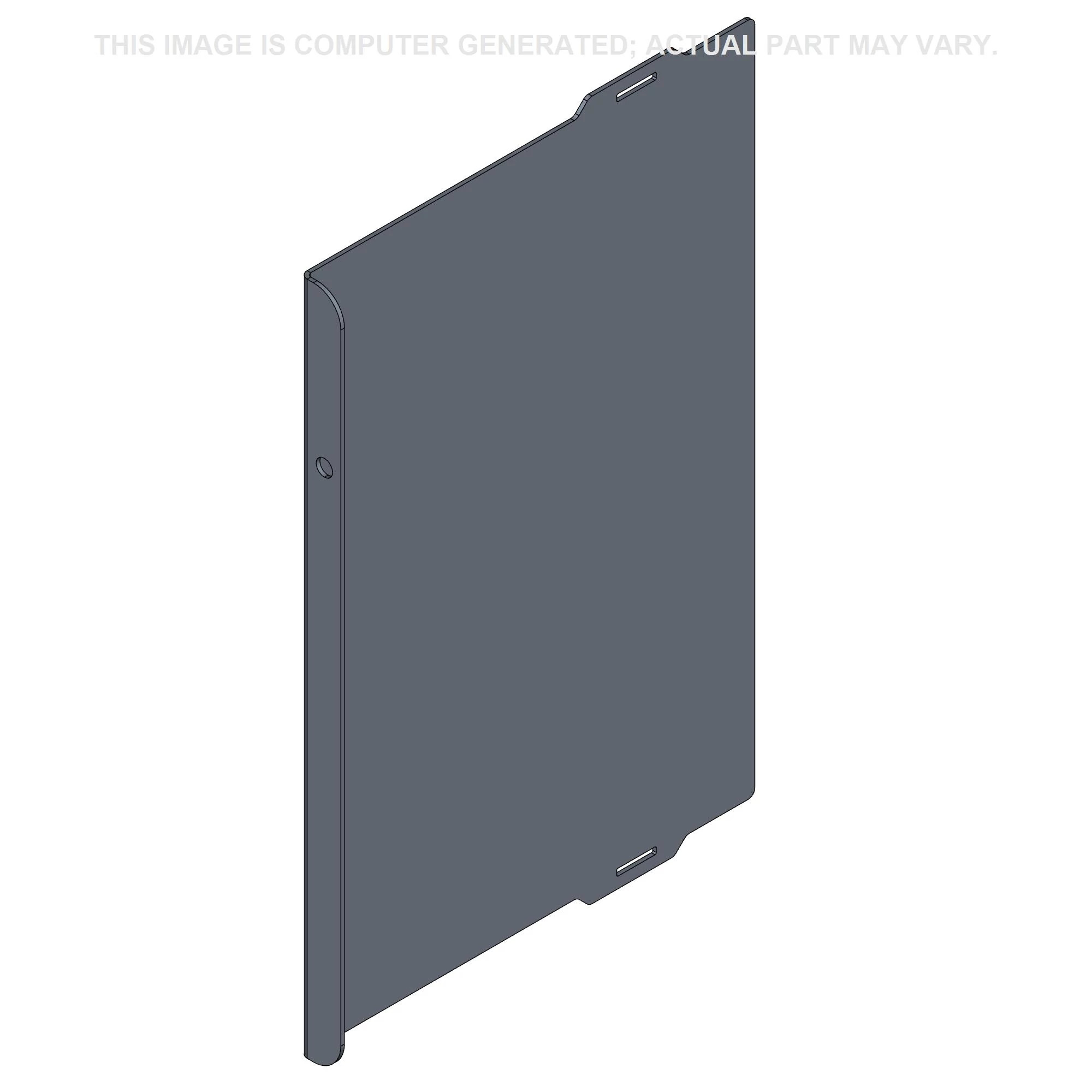

COVER; UCM, Red


Alts

Select

Ref.

12

Qty

1

Availability

Part #

86508947

Description

LINCH PIN 18.8mm OD;


Alts

Select

Ref.

13

Qty

4

Availability

Part #

87556072

Description

NUT Flng, 11.8mm OD x 19.8mm L;


Alts
