55.629.AE[02] - BALE SHAPE SENSOR
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

47568952

Description

HOUSING; Bale Shape Sensor


Alts

Select

Ref.

2

Qty

1

Availability

Part #

86505745

Description

SPRING Torsion;


Alts

Select

Ref.

3

Qty

1

Availability

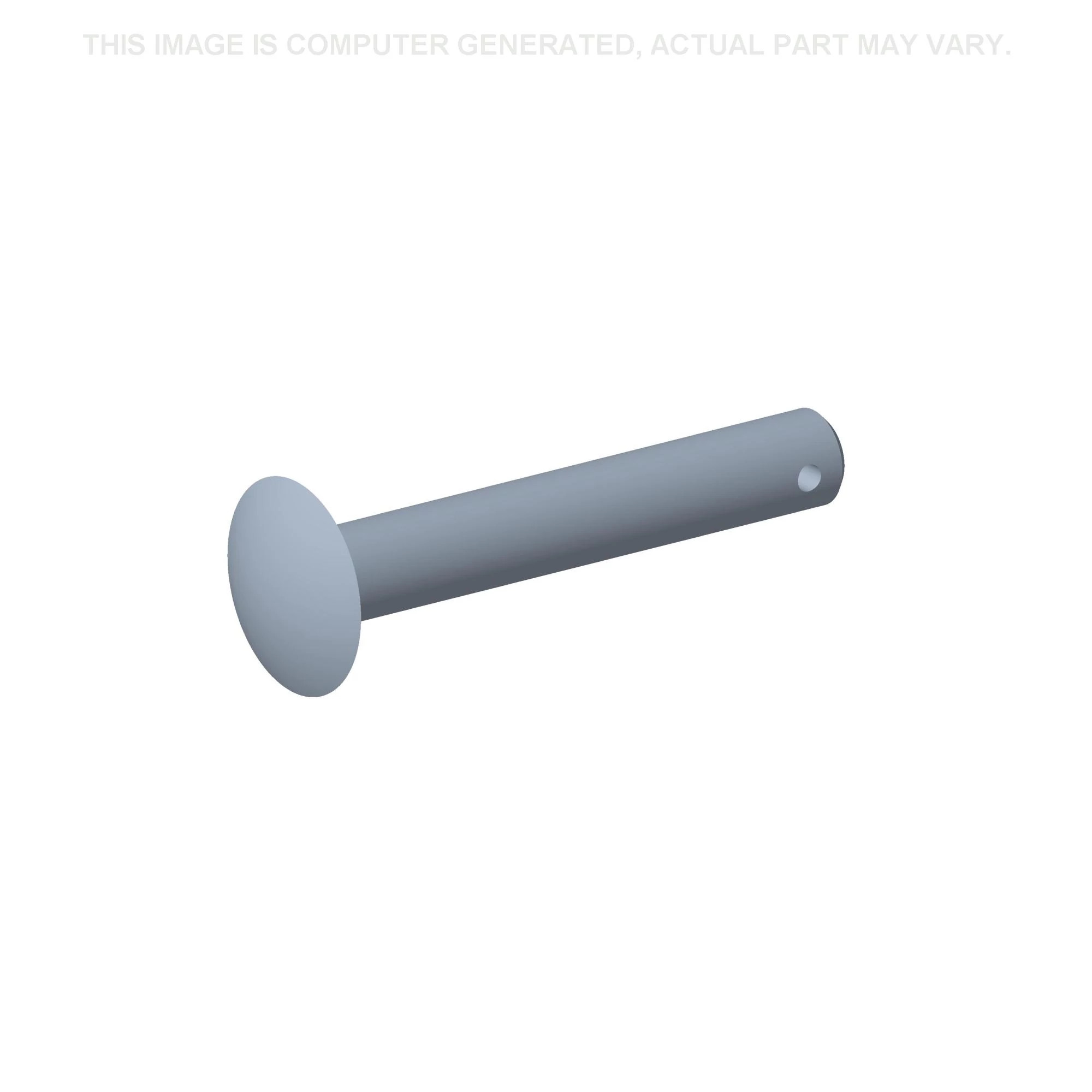

Part #

47389853

Description

PIN 12.7mm OD x 82.55mm L;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

216698

Description

COTTER PIN 0.125'' OD x 1.75'' L;


Alts

Select

Ref.

5

Qty

1

Availability

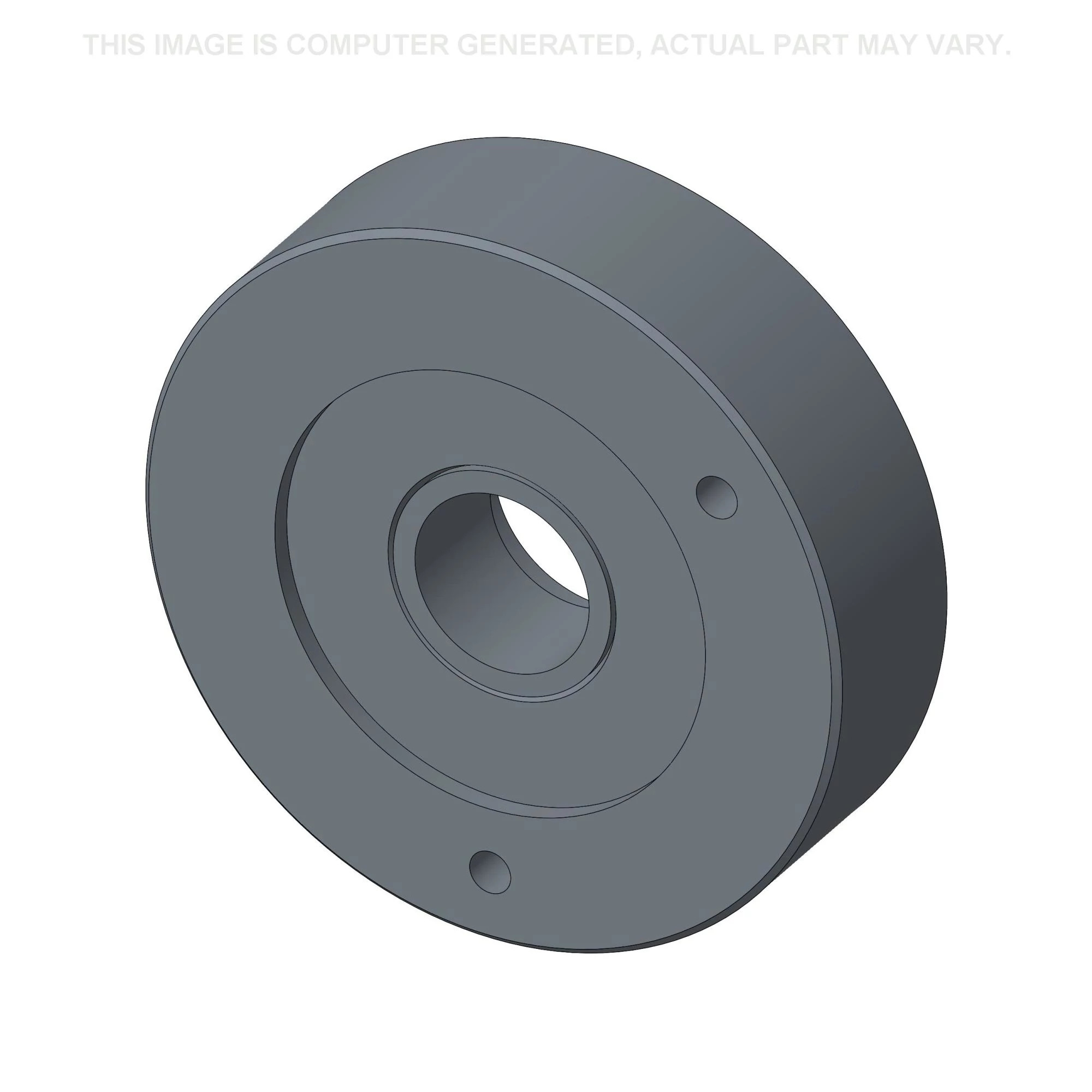

Part #

47568958

Description

MOUNT; Potentiometer, Incl 16


Alts

Select

Ref.

6

Qty

1

Availability

Part #

86977396

Description

POTENTIOMETER 3000 Ohm, 16 VDC;


Alts

Select

Ref.

7

Qty

1

Availability

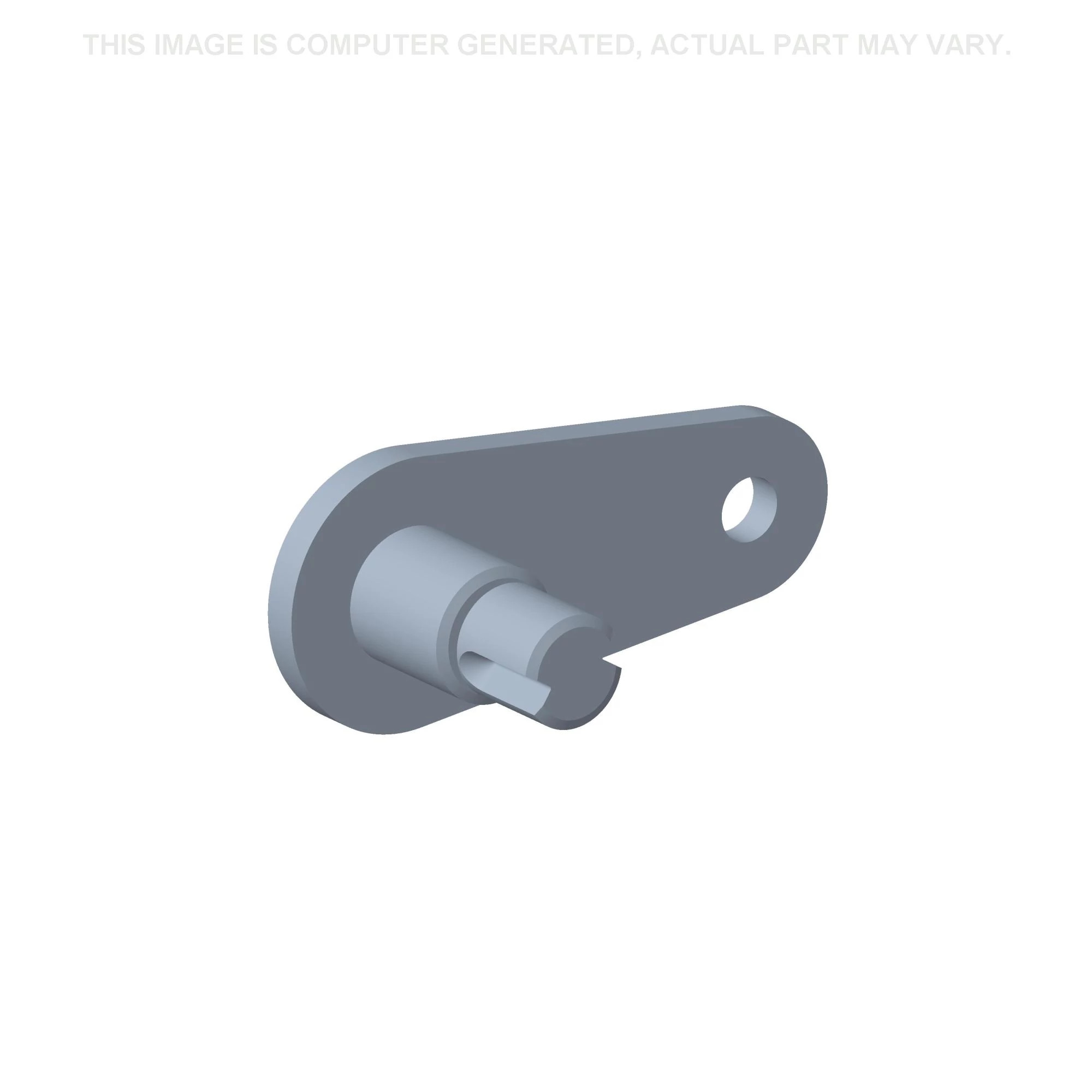

Part #

84543049

Description

ARMATURE; Potentiometer


Alts

Select

Ref.

8

Qty

1

Availability

Part #

9821714

Description

CLIP; Armature Rod


Alts

Select

Ref.

9

Qty

1

Availability

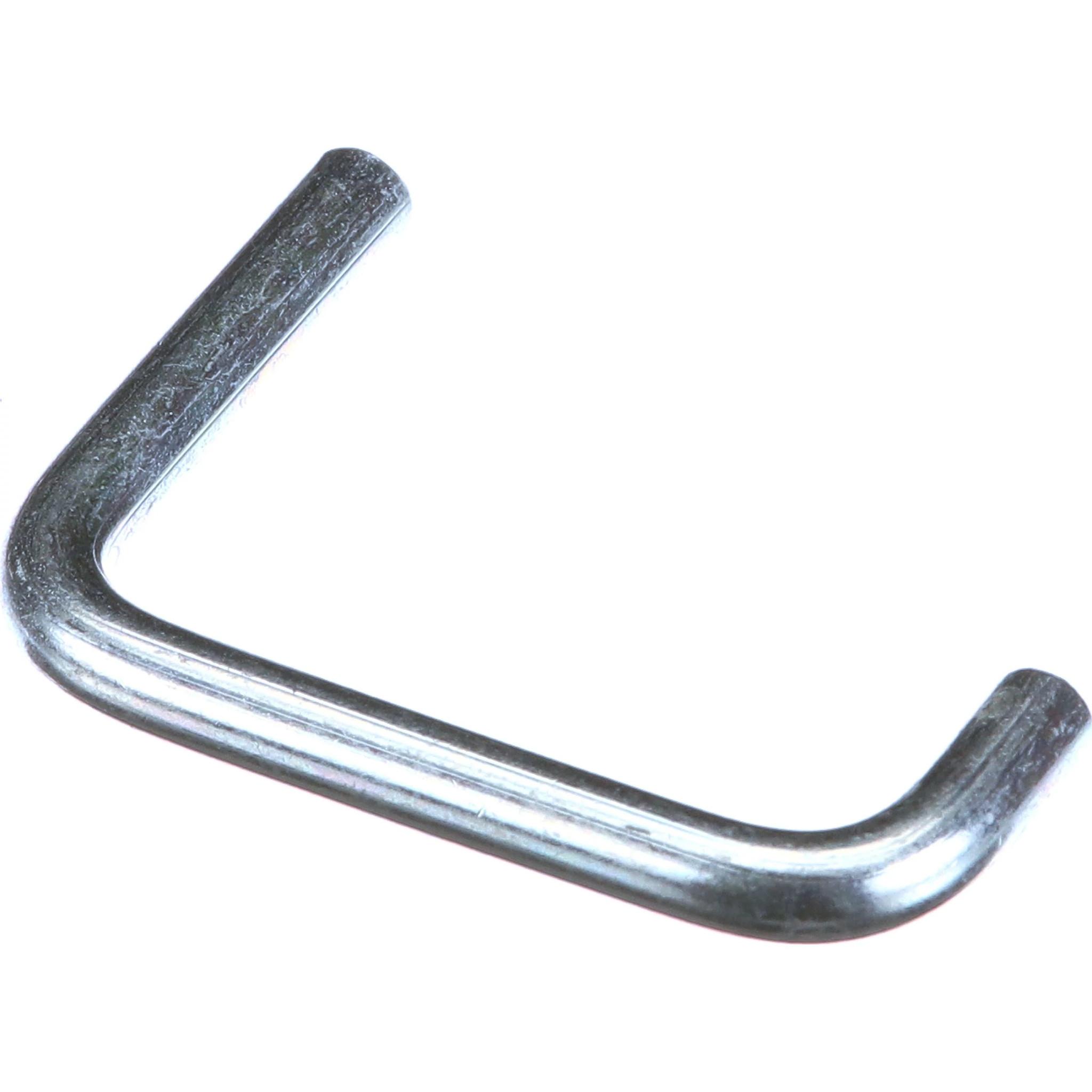

Part #

84544242

Description

ROD; Armature Link


Alts

Select

Ref.

10

Qty

1

Availability

Part #

86000439

Description

SNAP RING 0.288'' ID x 0.66'' OD x 0.037'' Thk, External;


Alts

Select

Ref.

11

Qty

1

Availability

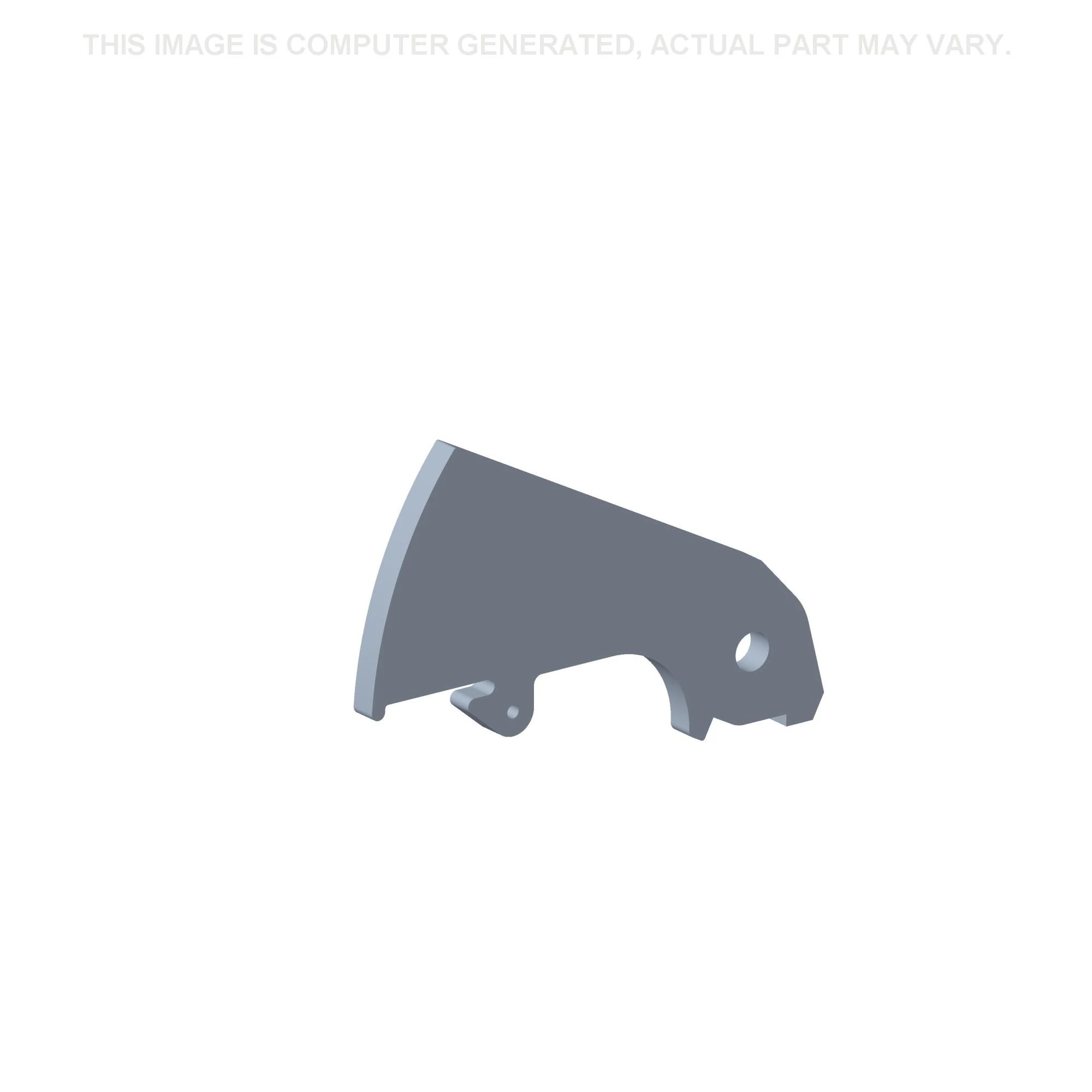

Part #

47941856

Description

WEDGE; Bale Shape


Alts

Select

Ref.

12

Qty

2

Availability

Part #

9672521

Description

LOCK WASHER Ext Tooth, #10;


Alts

Select

Ref.

13

Qty

2

Availability

Part #

412255

Description

BOLT Hex, M4 x 0.7 x 20mm, Cl 8.8, Full Thd;


Alts

Select

Ref.

14

Qty

1

Availability

Part #

86613601

Description

WASHER 14.88mm ID x 28.69mm OD x 7.35mm Thk;


Alts

Select

Ref.

15

Qty

1

Availability

Part #

130282

Description

O-RING 12.4mm ID x 1.78mm Thk, NBR;


Alts

Select

Ref.

16

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Bushing, Incl in 5


Alts
