06.05[1] - WIRE HARNESS, ELECTRONICS, BALE COMMAND™, P.I.N. Y9N043084 & PRIOR
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    86622152
    WIRE HARNESS; Net
  • 2
    1

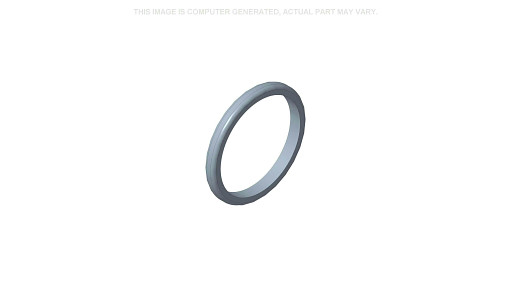

    792026
    LOCKING RING 1.06'' ID x 1.25'' OD x 0.13'' Thk; Split, Int, 1.00''
  • 3
    1
    84074635
    CONTACT HOUSING Female, 3 Pole; Net Counter, 3-Pin
  • 4
    2
    9619682
    BUSHING; MS3420-12
  • 5
    3
    248712
    BODY;
  • 6
    3
    900613
    TERMINAL; E18
  • 7
    1
    86564210
    MULTIPOLE CONNECTOR Female, 19 Pole; DEU Plug, 19-Pin
  • AR
    86575791
    SOCKET; 16 Ga.
  • 6
    900302
    TERMINAL; E18
  • 8
    1

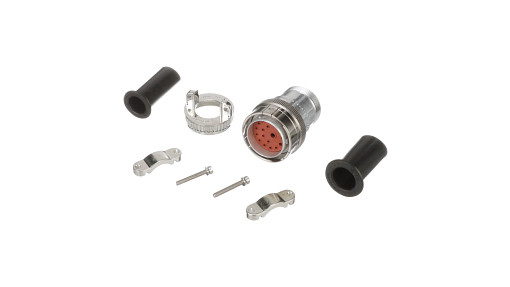

    86520117
    ELEC CONNECTOR Male, 16 - 8 SAE; DEU Plug, 18-Cav Pin
  • 1
    900786
    ELEC. TERMINAL PIN Male, 5 - 8 mm2; E18
  • 2
    900316
    ELEC. TERMINAL PIN Male, 2 -3.5 mm2; E18
  • 8
    900363
    TERMINAL; E18
  • 9
    5
    86624601
    MULTIPOLE CONNECTOR Female, 3 Pole; Potentiometer, 3-Pin
  • 10
    1
    84074631
    CONTACT HOUSING Female, 2 Pole; Tailgate Latch, 2-Pin
  • 2
    86575791
    SOCKET; 16 Ga.
  • 11
    AR
    PL
    PROCURE LOCALLY; Ring Terminal
  • 12
    AR
    86624602
    ELEC. TERMINAL PIN Tin, 0.80 - 1.00mm; Point;Not Illustrated
Select All

Select

Ref.

1

Qty

1

Availability

Part #

86622152

Description

WIRE HARNESS; Net


Alts

Select

Ref.

2

Qty

1

Availability

Part #

792026

Description

LOCKING RING 1.06'' ID x 1.25'' OD x 0.13'' Thk; Split, Int, 1.00''


Alts

Select

Ref.

3

Qty

1

Availability

Part #

84074635

Description

CONTACT HOUSING Female, 3 Pole; Net Counter, 3-Pin


Alts

Select

Ref.

4

Qty

2

Availability

Part #

9619682

Description

BUSHING; MS3420-12


Alts

Select

Ref.

5

Qty

3

Availability

Part #

248712

Description

BODY;


Alts

Select

Ref.

6

Qty

3

Availability

Part #

900613

Description

TERMINAL; E18


Alts

Select

Ref.

7

Qty

1

Availability

Part #

86564210

Description

MULTIPOLE CONNECTOR Female, 19 Pole; DEU Plug, 19-Pin


Alts

Select

Ref.

Qty

AR

Availability

Part #

86575791

Description

SOCKET; 16 Ga.


Alts

Select

Ref.

Qty

6

Availability

Part #

900302

Description

TERMINAL; E18


Alts

Select

Ref.

8

Qty

1

Availability

Part #

86520117

Description

ELEC CONNECTOR Male, 16 - 8 SAE; DEU Plug, 18-Cav Pin


Alts

Select

Ref.

Qty

1

Availability

Part #

900786

Description

ELEC. TERMINAL PIN Male, 5 - 8 mm2; E18


Alts

Select

Ref.

Qty

2

Availability

Part #

900316

Description

ELEC. TERMINAL PIN Male, 2 -3.5 mm2; E18


Alts

Select

Ref.

Qty

8

Availability

Part #

900363

Description

TERMINAL; E18


Alts

Select

Ref.

9

Qty

5

Availability

Part #

86624601

Description

MULTIPOLE CONNECTOR Female, 3 Pole; Potentiometer, 3-Pin


Alts

Select

Ref.

10

Qty

1

Availability

Part #

84074631

Description

CONTACT HOUSING Female, 2 Pole; Tailgate Latch, 2-Pin


Alts

Select

Ref.

Qty

2

Availability

Part #

86575791

Description

SOCKET; 16 Ga.


Alts

Select

Ref.

11

Qty

AR

Availability

Part #

PL

Description

PROCURE LOCALLY; Ring Terminal


Alts

Select

Ref.

12

Qty

AR

Availability

Part #

86624602

Description

ELEC. TERMINAL PIN Tin, 0.80 - 1.00mm; Point;Not Illustrated


Alts
