TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1COVER;
-
1GASKET;
-
1PISTON;
-
1O-RING 0.551'' ID x 0.07'' Width; SEAL
-
1FITTING; SEAT
-
11COVER; regulator, safety, and flow control valve housing
-
4BOLT Hex, 5/16''-18 x 1 1/4'', G5; cap, hex-hd., cd-pltd., 5/16-18NC x 1-1/4''
-
4LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''
-
31GASKET; regulator, safety, and flow control valve housing cover
-
41O-RING 0.551'' ID x 0.07'' Width; RING, seal, regulator valve piston
-
51PISTON ASSY.; PISTON, regulator valve, w/retainer, rod and spring (Used w/housing, (NSS) 364844R1 - See Note A - order package, 366650R91)
-
51PISTON; regulator valve, w/retainer, rod and spring (Used w/housings, (NSS) 364844R2, R3 and R4 - See Note A)
-
2WASHER 0.53'' ID x 1.06'' OD x 0.1'' Thk; plain, 17/32'' ID x 1-1/16'' OD x No. 13 ga. (Used under the piston when it is reversed 180 degrees when used with allied equipment) (Not included with the valve, assembly)
-
61SEAT; regulator valve (Used w/housing, (NSS) 364844R1 - See Note A - order package, 366650R91)
-
61FITTING; SEAT, regulator valve (Used w/housings, (NSS) 364844R2, R3 and R4 - See Note A)
-
71BALL 9/16'' Dia;
-
81DRIVER SEAT; RIDER, regulator valve ball
-
91SPRING; regulator valve ball rider
-
101PLUG; AND SCREEN, safety valve orifice
-
111SPRING; safety valve
-
121RETAINER; safety valve spring
-
131RING; snap, safety valve piston
-
141PISTON; safety valve
-
1PLUG;
-
1O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro; RING
-
161O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk, seal, regulator, safety and flow control valve housing plug (used with plug, 364845R1)
-
161O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro; RING, seal, regulator, safety, and flow control valve housing (Used with plug, 9410359)
-
171PLUG; regulator, safety, and flow control valve housing (3/4NF thread)
-
182SNAP RING 0.938'', Int, #93; Ring, Snap, , flow control valve 0.938'', Int, #93
-
191RETAINER; w/pin, flow control valve spring
-
202O-RING 0.07'' Thk x 0.801'' ID, -19, Cl 5, 75 Duro; RING, seal, flow control valve spring retainer
-
211SPRING; flow control valve (For International 300 Series Utility Tractor)
-
211SPRING; flow control valve (For International 350 Series Utility Tractor) (S/N; (SN Break) Between 501 and 4939)
-
211COMPRESSION SPRING; flow control valve (For International 350 Series Utility Tractors) (S/N 4940 up)
-
231RETAINER; flow control valve
-
241SPRING; auxiliary, safety valve
-
251BALL; cr-stl., grade 2, 3/16''
-
1PACKAGE; service, regulator valve piston (Will work for piston, 352940R21 and seat, 360628R1), Composed Of
-
1GASKET;
-
1PISTON;
-
1FITTING; SEAT
Select All
Ref.
1Qty
1Availability
Part #
360629R21Description
COVER; regulator, safety, and flow control valve housingImg
Alts
Ref.
Qty
4Availability
Part #
180081Description
BOLT Hex, 5/16''-18 x 1 1/4'', G5; cap, hex-hd., cd-pltd., 5/16-18NC x 1-1/4''Img
Alts
Ref.
Qty
4Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''Img
Alts
Ref.
3Qty
1Availability
Part #

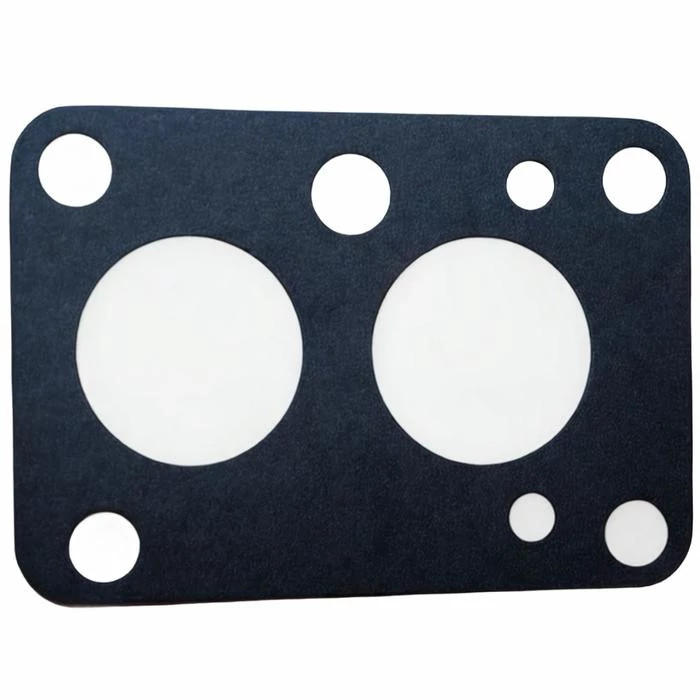

360630R1Description
GASKET; regulator, safety, and flow control valve housing coverImg
Alts
Ref.
4Qty
1Availability
Part #
352024R2Description
O-RING 0.551'' ID x 0.07'' Width; RING, seal, regulator valve pistonImg
Alts
Ref.
5Qty
1Availability
Part #
352940R21Description
PISTON ASSY.; PISTON, regulator valve, w/retainer, rod and spring (Used w/housing, (NSS) 364844R1 - See Note A - order package, 366650R91)Img
Alts
Ref.
5Qty
1Availability
Part #
366638R91Description
PISTON; regulator valve, w/retainer, rod and spring (Used w/housings, (NSS) 364844R2, R3 and R4 - See Note A)Img
Alts
Ref.
Qty
2Availability
Part #
395-11053Description
WASHER 0.53'' ID x 1.06'' OD x 0.1'' Thk; plain, 17/32'' ID x 1-1/16'' OD x No. 13 ga. (Used under the piston when it is reversed 180 degrees when used with allied equipment) (Not included with the valve, assembly)Img
Alts
Ref.
6Qty
1Availability
Part #
360628R1Description
SEAT; regulator valve (Used w/housing, (NSS) 364844R1 - See Note A - order package, 366650R91)Img
Alts
Ref.
6Qty
1Availability
Part #
366665R1Description
FITTING; SEAT, regulator valve (Used w/housings, (NSS) 364844R2, R3 and R4 - See Note A)Img
Alts
Ref.
8Qty
1Availability
Part #
350084R2Description
DRIVER SEAT; RIDER, regulator valve ballImg
Alts
Ref.
10Qty
1Availability
Part #
370766R91Description
PLUG; AND SCREEN, safety valve orificeImg
Alts
Ref.
Qty
1Availability
Part #
570828R1Description
O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro; RINGImg
Alts
Ref.
16Qty
1Availability
Part #
364839R1Description
O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk, seal, regulator, safety and flow control valve housing plug (used with plug, 364845R1)Img
Alts
Ref.
16Qty
1Availability
Part #
570828R1Description
O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro; RING, seal, regulator, safety, and flow control valve housing (Used with plug, 9410359)Img
Alts
Ref.
17Qty
1Availability
Part #
9410359Description
PLUG; regulator, safety, and flow control valve housing (3/4NF thread)Img
Alts
Ref.
18Qty
2Availability
Part #
364838R1Description
SNAP RING 0.938'', Int, #93; Ring, Snap, , flow control valve 0.938'', Int, #93Img
Alts
Ref.
19Qty
1Availability
Part #
364848R11Description
RETAINER; w/pin, flow control valve springImg
Alts
Ref.
20Qty
2Availability
Part #
364840R1Description
O-RING 0.07'' Thk x 0.801'' ID, -19, Cl 5, 75 Duro; RING, seal, flow control valve spring retainerImg
Alts
Ref.
21Qty
1Availability
Part #
364847R1Description
SPRING; flow control valve (For International 300 Series Utility Tractor)Img
Alts
Ref.
21Qty
1Availability
Part #
364847R1Description
SPRING; flow control valve (For International 350 Series Utility Tractor) (S/N; (SN Break) Between 501 and 4939)Img
Alts
Ref.
21Qty
1Availability
Part #
367833R1Description
COMPRESSION SPRING; flow control valve (For International 350 Series Utility Tractors) (S/N 4940 up)Img
Alts
Ref.
Qty
1Availability
Part #
366650R91Description
PACKAGE; service, regulator valve piston (Will work for piston, 352940R21 and seat, 360628R1), Composed OfImg
Alts
