Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
12LIGHT; ASSY, shock proof head, only serviceable items are sealed beam unit, 373662R91 and rubber retainer, 676078R1
-
8SCREW Phillips Drive, Flat HD, 1/4'' x 1''; head light support
-
21SUPPORT; ASSY, rear light bracket
-
31SPACER; combination rear light
-
41CLAMP; combination rear light
-
51LIGHT ASSY.; LIGHT ASSY, combination rear and tail, only serviceable items are sealed beam unit, 371461R91, rubber retainer, 676078R1 and lamp, 455490
-
1NUT 1/2''-13, G5;
-
62LIGHT; ASSY, square vertical warning, only serviceable items are lamp, 9417866, lens, red 537011R1, lens, amber 537012R1, two gaskets, 537010R1 and eight screws, 167048
-
2NUT 1/2''-20, G5;
-
2LOCK WASHER Ext Tooth, 1/2''; WASHER, 1/2-C-Z ext-tooth lock
-
72WASHER; GASKET, flashing warning light
-
2BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5; 3/8-16 x 1-1/4 hex-hd cap
-
2WASHER 3/8''; (13/32 x 13/16 x .060) 3/8''
-
91FLASHER UNIT; FLASHER, warning light
-
101SEAL; ABSORBER, flasher mounting
-
111FASTENER; BRACKET, flasher mounting
-
121SWITCH; transmission oil pressure
-
131SPADE TERMINAL Male; TERMINAL, transmission oil pressure switch straight
-
141IGNITION SWITCH; SWITCH ASSY, neutral starting
-
161SOCKET; ASSY, breakaway connector
-
2LOCK WASHER #8; WASHER, LOCK, #8
-
2NUT Hex, 1/4'' - 20, Gr 5;
-
2BOLT Hex, 1/4'' - 20 x 3/4'', Gr 5;
-
2BOLT Hex, 1/4'' - 20 x 3/4'', Gr 5; Tractors w/o deluxe fenders Hex, 1/4''-20 x 3/4'', G5, Full Thd
-
1BOLT Hex, 1/4'' - 20 x 2 1/4'', Gr 2; SCREW, 1/4-20 x 2-1/4 znd hex-hd cap
-
2BOLT Hex, 1/4'' - 20 x 2 1/4'', Gr 2; SCREW, 1/4-20 x 2-1/4 znd hex-hd cap, tractors w/deluxe fenders
-
2LOCK WASHER 1/4''; WASHER, LOCK, 1/4''
-
1BOLT; 3/8-16 x 5/8 short sq-nk crg
-
1NUT 3/8''-16, G5;
-
181ROD; neutral starting switch
-
1NO LONGER SERVICED; PIN, 1/16 x 1/2 cot
-
1WASHER; 17/64 x 5/8 x .065
-
191CABLE; STRAP ASSY; (SN Break) Between battery and ground
-
1BOLT; ASSY, terminal
-
201CABLE; ASSY, head light; (SN Break) Between junction and ground
-
211HARNESS; ASSY, main cable, 1466; (SN Break) Up to 10324
-
211HARNESS; ASSY, main cable, 1466; (SN Break) From 10325
-
211HARNESS; ASSY, main cable, all 1468 tractors
-
1GROMMET; main cable harness, in upper hear shield
-
221CABLE; ASSY, platform to rear frame ground
-
232BOOT; INSULATOR, terminal
-
241HARNESS; ASSY, instrument panel cable
-
251WIRE HARNESS; ASSY, combination and flashing warning light
-
261CABLE; ASSY, battery to solenoid switch
-
261CABLE; ASSY, battery to solenoid switch, tractors w/air conditioned cab
-
1BOLT; ASSY, terminal
-
273COVER; battery cable terminal
-
281CABLE CLIP; CLIP, breakaway connector cable, tractors w/o deluxe fenders
-
2BOLT Hex, 3/8'' - 16 x 1 3/4'', Gr 5; SCREW, 3/8-16 x 1-3/4 hex-hd cap
-
2WASHER; 13/32 x 1-1/4 x 11 ga
-
2WASHER; 13/32 x 3/4 x 11 ga
-
2NUT 3/8''-16, G5;
-
351HORN; ASSY, electric
-
1BOLT Hex, 5/16'' - 18 x 1/2'', Gr 5, Full Thd;
-
361CABLE PULLING GRIP; CABLE ASSY, harness junction to breakaway connector socket, tractors w/o deluxe fenders
-
361HARNESS; CABLE ASSY, harness junction to breakaway connector socket, tractors w/deluxe fenders
-
371CABLE; ASSY, breakaway connector; (SN Break) Between socket and ground
-
381NEG BATTERY CABLE; CABLE ASSY; (SN Break) Between battery and battery
-
2BOLT; ASSY, terminal
-
402REFLECTOR; red rear
-
4SCREW Self Tap, Cross Pan Hd, #8 - 18 x 1/2''; 8-18 x 1/2 C-Z cr-rec-pan-hd tap
-
411CABLE; ASSY, fuel gauge to sending unit
-
1FUSE 1 Amp, Type 3AG; cartridge type AGC-1
-
421CABLE PULLING GRIP; CABLE ASSY, fuse housing to lighting switch
-
431CABLE; ASSY, key switch to junction block
-
541LAMP; LIGHT ASSY, transmission oil pressure, replaces 392441R91, by also furnishing cable assy, 121626C1
-
551BULB C2B, #257, 14V; LAMP, no. 257 12 volt
-
561LAMP BASE; LIGHT ASSY, shift quadrant
-
571BULB 2C2R, #1155, 13.5V; LAMP, no. 1155 12 volt
-
591CABLE; ASSY, horn switch to harness junction
-
641SOCKET; ASSY, fuel gauge instrument light
-
651SOCKET; ASSY, tachometer instrument light
-
661SOCKET; ASSY, gauge cluster instrument light
-
671WIRE HARNESS; SOCKET ASSY, charge & air indicator instrument light
-
697BULB C2F, #1895, 14V; LAMP, no. 1895 12 volt
-
711CABLE PULLING GRIP; CABLE ASSY, vacuum switch to ground, 1466 tractors
-
721BOOT; COVER, battery terminal small
-
731RESISTOR; RESISTANCE UNIT, 1466; (SN Break) From 10325
-
731RESISTOR; RESISTANCE UNIT, all 1468 tractors
-
1BOLT Hex, 1/4''-20 x 1/2'', Gr 5; SCREW, 1/4-20 x 1/2 znd hex-hd cap
-
1LOCK WASHER 1/4''; WASHER, LOCK, 1/4''
-
741CABLE; ASSY, ether; (SN Break) Between solenoid and ground
-
751CABLE ASSY.; CABLE ASSY, trans. oil pressure warning light
Select All
Ref.
1Qty
2Availability
Part #
533063R91Description
LIGHT; ASSY, shock proof head, only serviceable items are sealed beam unit, 373662R91 and rubber retainer, 676078R1Img
Alts
Ref.
Qty
8Availability
Part #
533081R1Description
SCREW Phillips Drive, Flat HD, 1/4'' x 1''; head light supportImg
Alts
Ref.
5Qty
1Availability
Part #
387729R92Description
LIGHT ASSY.; LIGHT ASSY, combination rear and tail, only serviceable items are sealed beam unit, 371461R91, rubber retainer, 676078R1 and lamp, 455490Img
Alts
Ref.
6Qty
2Availability
Part #
537328R91Description
LIGHT; ASSY, square vertical warning, only serviceable items are lamp, 9417866, lens, red 537011R1, lens, amber 537012R1, two gaskets, 537010R1 and eight screws, 167048Img
Alts
Ref.
Qty
2Availability
Part #
493-41052Description
LOCK WASHER Ext Tooth, 1/2''; WASHER, 1/2-C-Z ext-tooth lockImg
Alts
Ref.
7Qty
2Availability
Part #
394262R1Description
WASHER; GASKET, flashing warning lightImg
Alts
Ref.
Qty
2Availability
Part #
179841Description
BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5; 3/8-16 x 1-1/4 hex-hd capImg
Alts
Ref.
Qty
2Availability
Part #
95-11041Description
WASHER 3/8''; (13/32 x 13/16 x .060) 3/8''Img
Alts
Ref.
9Qty
1Availability
Part #
394132R91Description
FLASHER UNIT; FLASHER, warning lightImg
Alts
Ref.
13Qty
1Availability
Part #
384396R1Description
SPADE TERMINAL Male; TERMINAL, transmission oil pressure switch straightImg
Alts
Ref.
14Qty
1Availability
Part #
121629C1Description
IGNITION SWITCH; SWITCH ASSY, neutral startingImg
Alts
Ref.
Qty
2Availability
Part #
413-412Description
BOLT Hex, 1/4'' - 20 x 3/4'', Gr 5; Tractors w/o deluxe fenders Hex, 1/4''-20 x 3/4'', G5, Full ThdImg
Alts
Ref.
Qty
1Availability
Part #
18660R1Description
BOLT Hex, 1/4'' - 20 x 2 1/4'', Gr 2; SCREW, 1/4-20 x 2-1/4 znd hex-hd capImg
Alts
Ref.
Qty
2Availability
Part #
18660R1Description
BOLT Hex, 1/4'' - 20 x 2 1/4'', Gr 2; SCREW, 1/4-20 x 2-1/4 znd hex-hd cap, tractors w/deluxe fendersImg
Alts
Ref.
Qty
2Availability
Part #
492-11025Description
LOCK WASHER 1/4''; WASHER, LOCK, 1/4''Img
Alts
Ref.
19Qty
1Availability
Part #
378760R91Description
CABLE; STRAP ASSY; (SN Break) Between battery and groundImg
Alts
Ref.
20Qty
1Availability
Part #
534374R1Description
CABLE; ASSY, head light; (SN Break) Between junction and groundImg
Alts
Ref.
21Qty
1Availability
Part #
534368R1Description
HARNESS; ASSY, main cable, 1466; (SN Break) Up to 10324Img
Alts
Ref.
21Qty
1Availability
Part #
538995R1Description
HARNESS; ASSY, main cable, 1466; (SN Break) From 10325Img
Alts
Ref.
21Qty
1Availability
Part #
538995R1Description
HARNESS; ASSY, main cable, all 1468 tractorsImg
Alts
Ref.
Qty
1Availability
Part #
86982772Description
GROMMET; main cable harness, in upper hear shieldImg
Alts
Ref.
22Qty
1Availability
Part #
405219R1Description
CABLE; ASSY, platform to rear frame groundImg
Alts
Ref.
24Qty
1Availability
Part #
534367R1Description
HARNESS; ASSY, instrument panel cableImg
Alts
Ref.
25Qty
1Availability
Part #
534370R1Description
WIRE HARNESS; ASSY, combination and flashing warning lightImg
Alts
Ref.
26Qty
1Availability
Part #
383726R91Description
CABLE; ASSY, battery to solenoid switchImg
Alts
Ref.
26Qty
1Availability
Part #
537063R1Description
CABLE; ASSY, battery to solenoid switch, tractors w/air conditioned cabImg
Alts
Ref.
28Qty
1Availability
Part #
395228R1Description
CABLE CLIP; CLIP, breakaway connector cable, tractors w/o deluxe fendersImg
Alts
Ref.
Qty
2Availability
Part #
179845Description
BOLT Hex, 3/8'' - 16 x 1 3/4'', Gr 5; SCREW, 3/8-16 x 1-3/4 hex-hd capImg
Alts
Ref.
Qty
1Availability
Part #
88574Description
BOLT Hex, 5/16'' - 18 x 1/2'', Gr 5, Full Thd;Img
Alts
Ref.
36Qty
1Availability
Part #
405889R1Description
CABLE PULLING GRIP; CABLE ASSY, harness junction to breakaway connector socket, tractors w/o deluxe fendersImg
Alts
Ref.
36Qty
1Availability
Part #
405877R1Description
HARNESS; CABLE ASSY, harness junction to breakaway connector socket, tractors w/deluxe fendersImg
Alts
Ref.
37Qty
1Availability
Part #
404395R1Description
CABLE; ASSY, breakaway connector; (SN Break) Between socket and groundImg
Alts
Ref.
38Qty
1Availability
Part #
534376R1Description

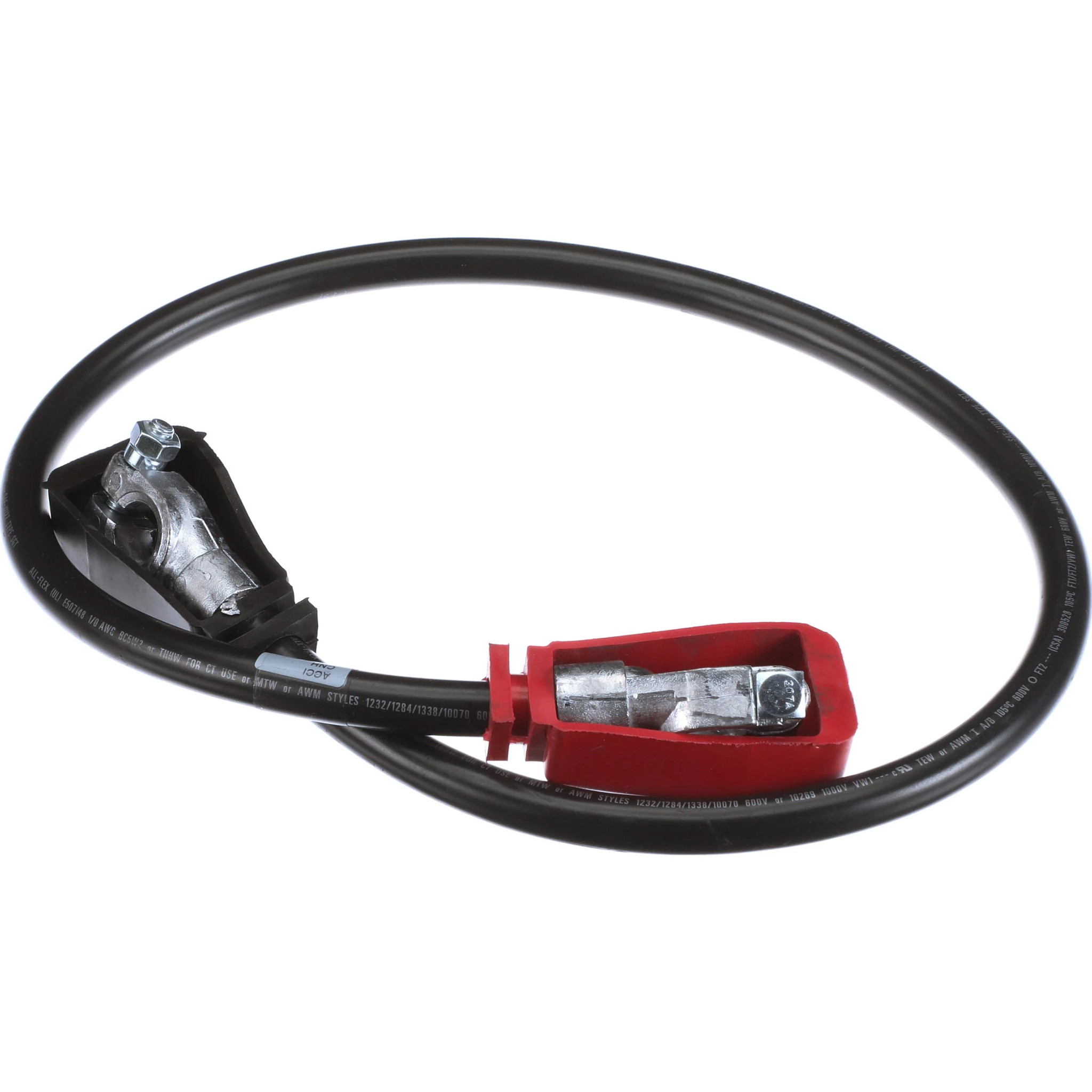

NEG BATTERY CABLE; CABLE ASSY; (SN Break) Between battery and batteryImg
