8-002 - HYDRAULIC, OIL COOLER AND PIPES, 5130/5230 AND 5140/5240 TRACTORS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1

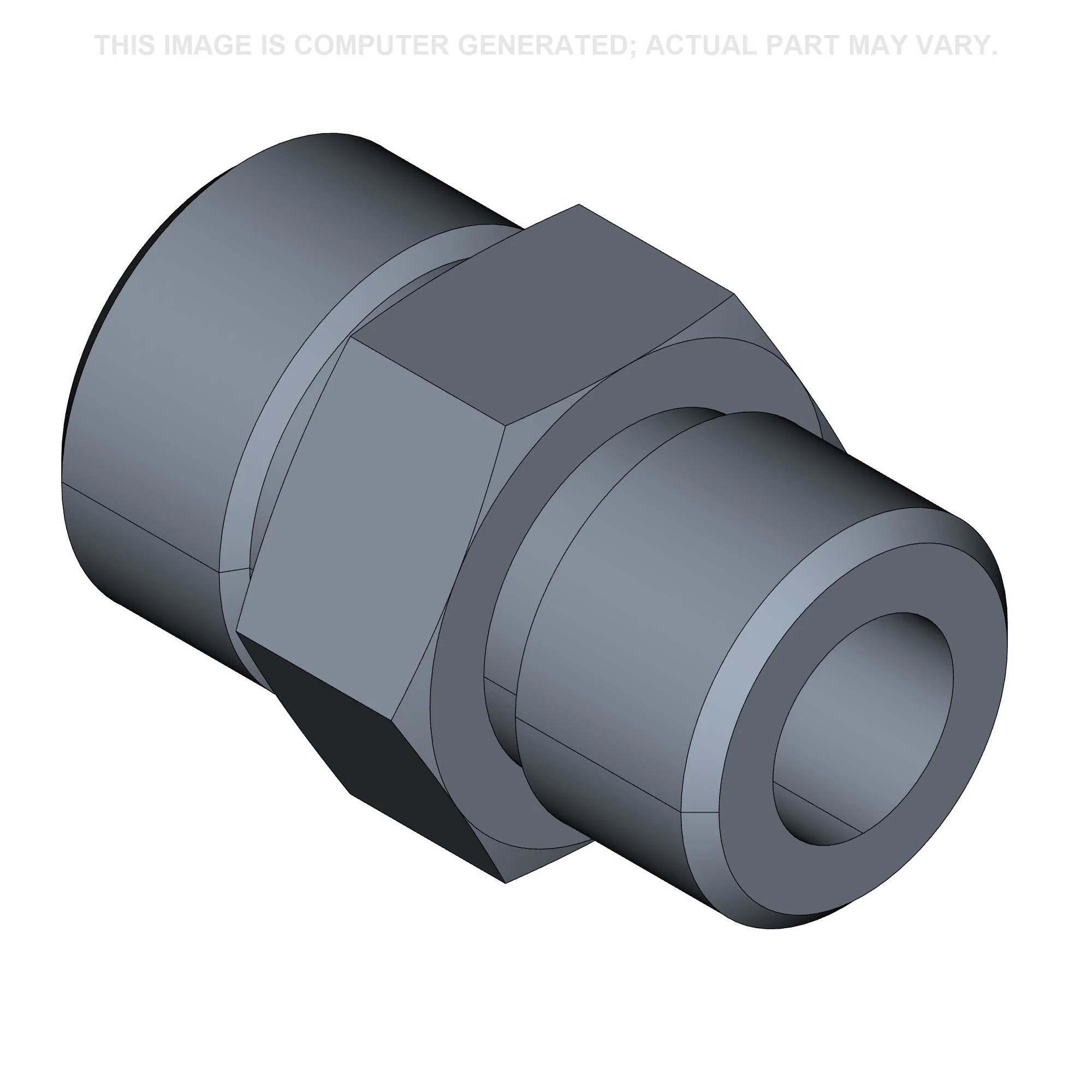

    201-103
    HYD CONNECTOR 1'' - 14 Male ORFS x 7/8'' - 14 Male ORB; CONNECTOR, HYD., , Includes Ref. 2, 3 1''-14 ORFS x 7/8''-14 ORB
  • 2
    1

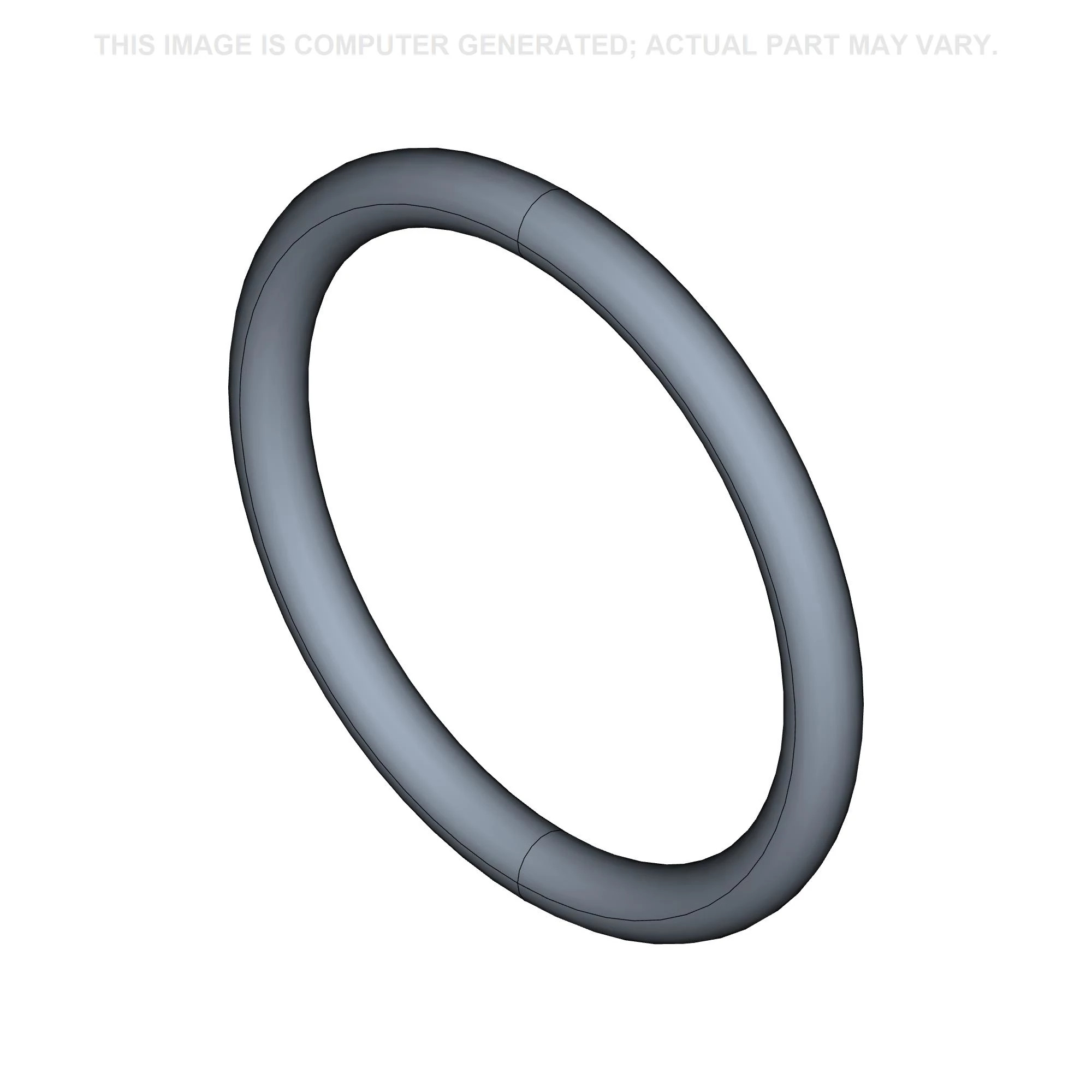

    238-6016
    O-RING 0.07'' Thk x 0.614'' ID, -16, Cl 6, 90 Duro;
  • 3
    1
    237-6010
    O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk
  • 4
    1
    T103992
    PIPE 16 mm OD x 495, 540 mm L; TUBE - oil cooler, rear, Includes Ref: 5
  • 5
    1

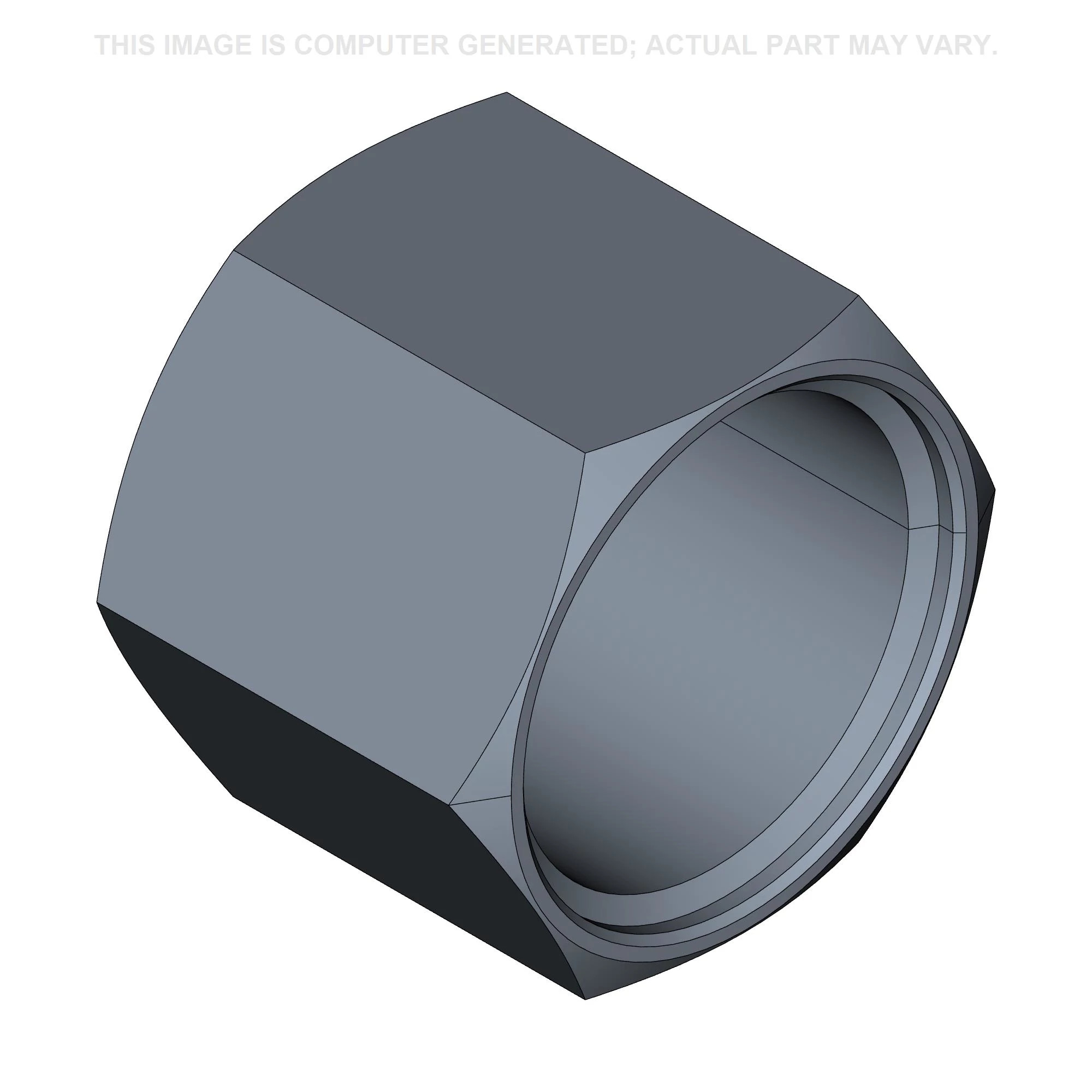

    203-903
    TUBE NUT 1''-14 ORFS; NUT - hex, tube, 1-14 inch face seal
  • 6
    1
    T103141
    TUBE; - oil cooler, front
  • 7
    1
    1531120C1
    HYD TUBE 16 mm OD, 1090, 260 mm Length; TUBE - oil cooler return, front
  • 8
    1
    189480A1
    HYD TUBE; TUBE - oil cooler return, rear
  • 9
    1
    1531843C1
    HYDRAULIC HOSE; HOSE - 0.52m (Tractors Without Air Conditioning)
  • 9
    1
    1531845C1
    HYDRAULIC HOSE; HOSE - 0.78m (Tractors With Air Conditioning)
  • 10
    1
    1531842C1
    HYDRAULIC HOSE; HOSE - 0.46m (Tractors Without Air Conditioning)
  • 10
    1
    1531844C1
    HYDRAULIC HOSE; HOSE - 0.70m (Tractors With Air conditioning)
  • 11
    2
    1531840C1
    HYDRAULIC HOSE 15.9mm ID x 90mm L, SAE 100R3; HOSE - 0.09m
  • 12
    8
    905894R1
    COLLAR 16mm - 27mm, Worm Gear; CLAMP - pipe
  • 13
    1
    T101941
    BRACKET; - fitted to hood support
  • 14
    1
    614-8020
    BOLT Hex, M8 x 1.25 x 20mm; - hex, full threads, 8 - 1.25 x 20 mm
  • 15
    3
    T102453
    CLAMP; - pipe
  • 17
    1
    825-1406
    NUT M6, Cl 8;
  • 18
    1
    895-11006
    WASHER 6.6mm ID x 12mm OD x 1.6mm Thk;
  • 19
    1
    814-6035
    BOLT Hex, M6 x 1 x 35mm, Cl 8.8;
  • 20
    2
    T102969
    CLAMP; - pipe
  • 21
    1
    A189071
    COOLER, OIL; COOLER - oil
  • 21
    1
    A184952
    COOLER, OIL; COOLER - oil (Tractors Without Air Conditioning)
  • 22
    1
    A189060
    BRACKET; SUPPORT - hinge
  • 23
    1
    A184695
    PIN; - hinge
  • 24
    2
    100-1531
    SNAP RING #31, Ext; Ring, Snap, #31, Ext
  • 25
    3
    614-8016
    BOLT Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd; - hex, full threads, 8 - 1.25 x 16 mm
  • 26
    3
    895-11008
    WASHER 9mm ID x 16mm OD x 1.6mm Thk; - flat, 9 x 16 x 1.6 mm
  • 27
    1
    T102948
    PIPE; - brake lube
  • 28
    1

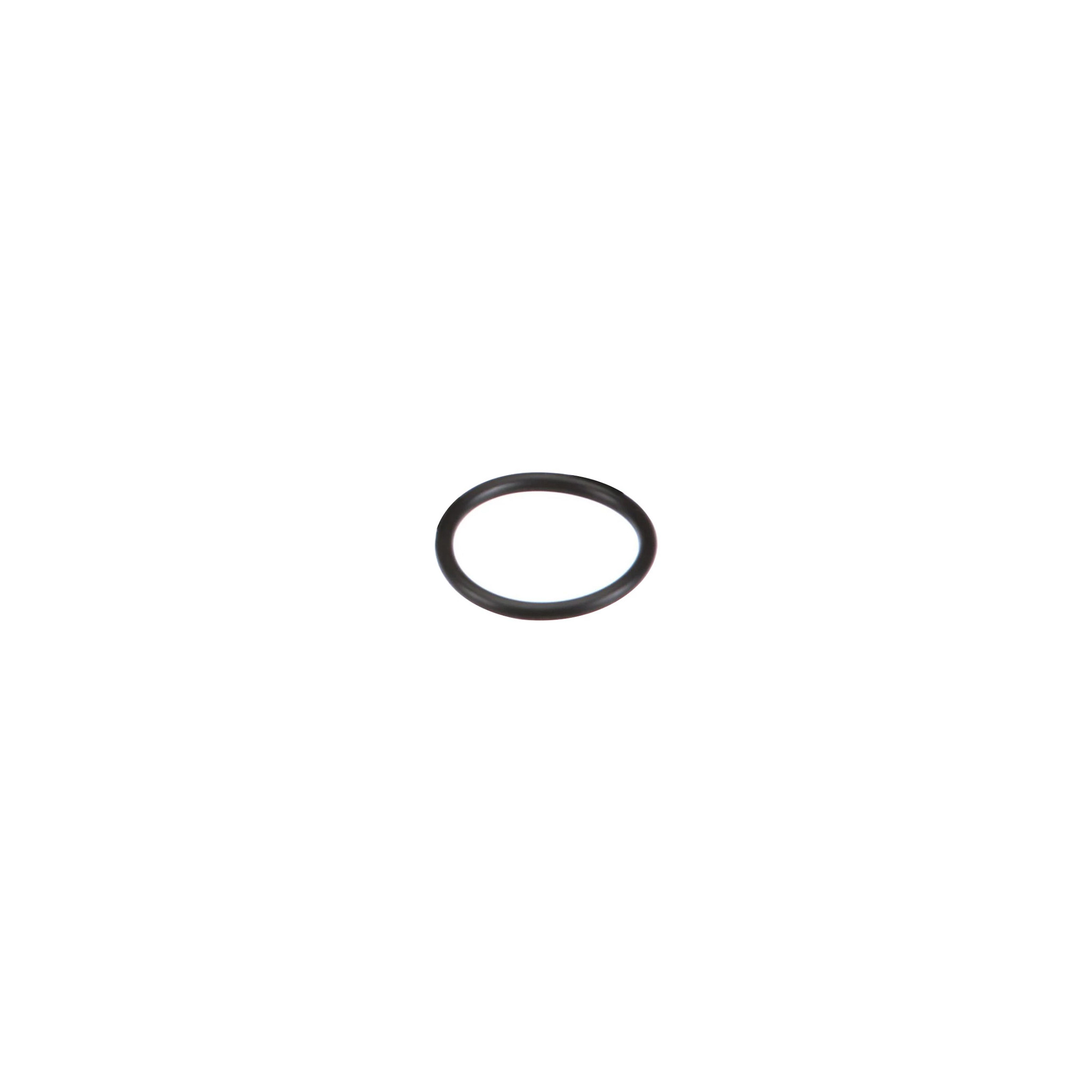

    T102297
    O-RING 1.78mm Thk x 15.6mm ID, 90 Duro;
  • 29
    1
    T103149
    CLAMP; - pipe, double
  • 30
    1
    814-6035
    BOLT Hex, M6 x 1 x 35mm, Cl 8.8;
  • 31
    1

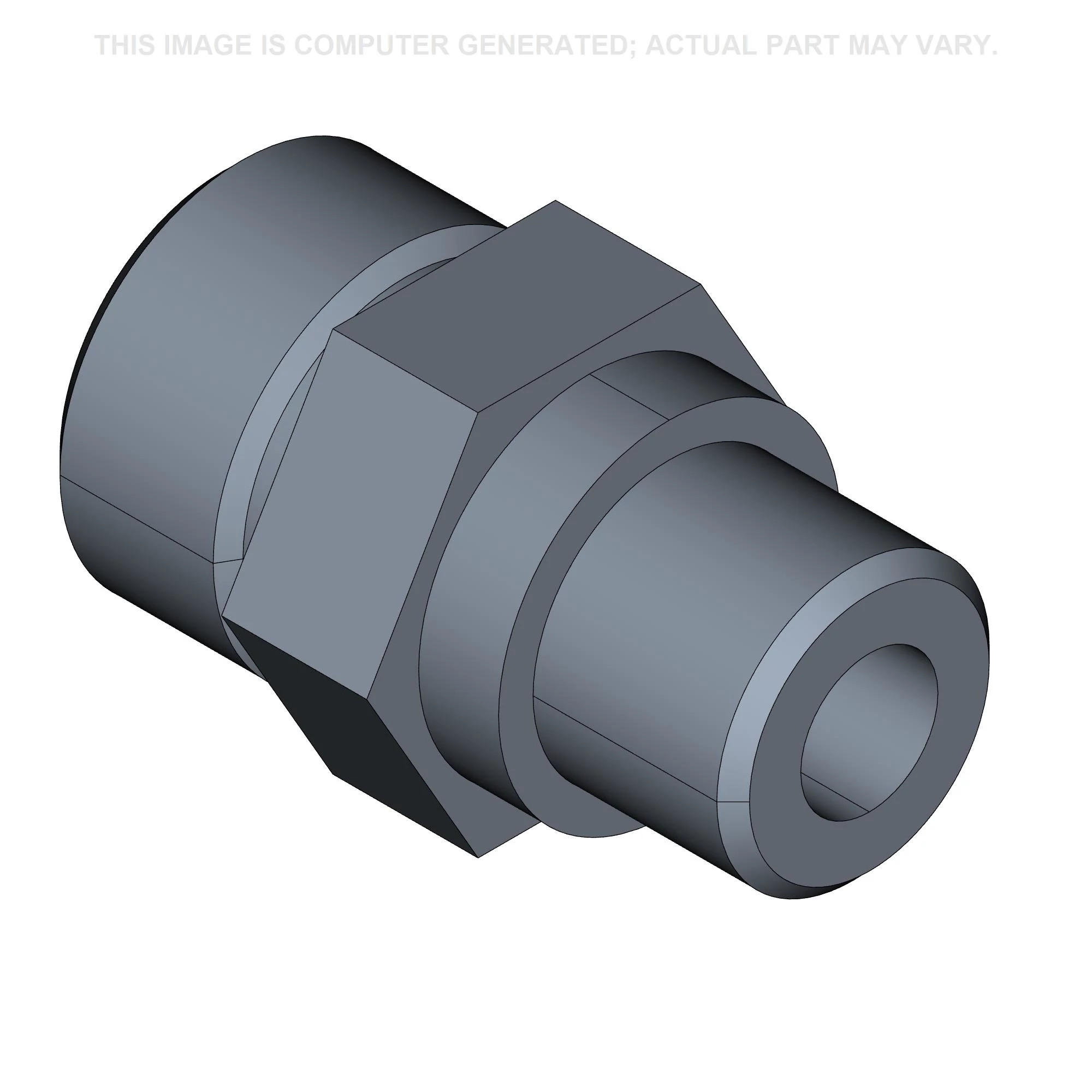

    201-115
    HYD CONNECTOR 1'' - 14 Male ORFS x 3/4'' - 16 Male ORB; CONNECTOR - straight, 1-14 face x 3/4-16 boss, Includes Ref: 32, 33
  • 32
    1
    237-6008
    O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro; 8-1, 90 Duro, .644'' ID x .087'' Thk
  • 33
    1
    238-6016
    O-RING 0.07'' Thk x 0.614'' ID, -16, Cl 6, 90 Duro;
  • 34
    1
    1534602C1
    SUPPORT; BRACKET - oil cooler pipes
  • 35
    1
    905855R1
    SCREW Wing, M8 x 12mm; BOLT - wing, 8 x 12 mm
  • 36
    1
    1533017C1
    SUPPORT ASSY.; BRACKET - pipe (JJF1028850 - )
  • 37
    1
    614-10020
    BOLT Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd; (SN Break) From JJF1028850
  • 16
    3
    814-6040
    BOLT Hex, M6 x 1 x 40mm, Cl 8.8;
