02-43 - GASKET KIT - BASIC SERVICE ENGINE, 4-390 EMISSIONS CERTIFIED ENGINE (FOR BASIC ENGINE 349469A1)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    A77993
    GASKET KIT; Incl. 1 - 21, 4-390 Emissions Certified Engine, Use With Basic Engine 349469A1
  • 1
    2
    222-993
    GASKET 3/8 Tube, Fl, Copper; Not Used In This Application
  • 2
    2
    238-5013
    O-RING 0.07'' Thk x 0.426'' ID, -13, Cl 5, 75 Duro; See Figure 02-07, Not Illustrated
  • 3
    1
    J912220

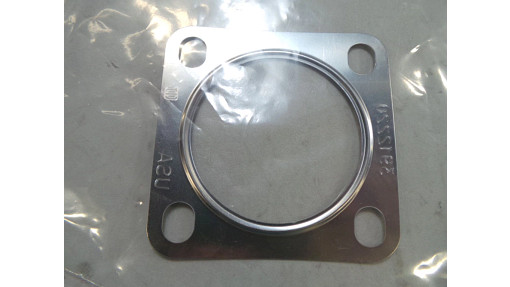

    GASKET 0.4mm Thk; Pipe, See Figure 02-02
  • 4
    2
    J937706
    GASKET 0.79mm Thk; Mounting, Not Used In This Application
  • 5
    1
    J919369

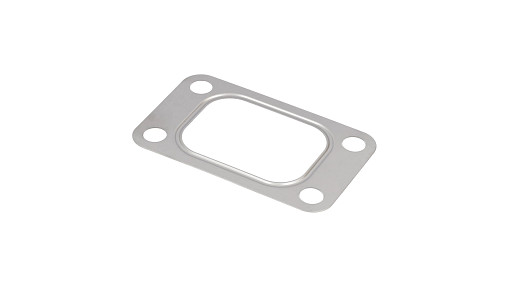

    GASKET Bolt Hole (Ctr to Ctr) 44mm x 86mm; Mounting, Not Used In This Application
  • 6
    1
    J902425
    SEALING WASHER 22.2mm ID x 26.9mm OD x 1.75mm Thk; Not Used In This Application
  • 7
    4
    J903380
    SEAL; See Figure 03-02, 03-03
  • 8
    1
    J903475
    SEALING RING 72.39mm ID x 90.39mm OD x 9mm Thk; See Figure 02-09, 02-10
  • 9
    4
    J937142

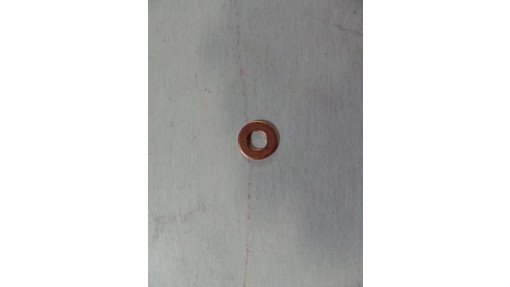

    SEAL 7mm ID x 15mm OD x 1.5mm Thk; 1,5 mm, Not Used In This Application
  • 10
    1
    J906696
    SEAL 41mm ID x 43mm OD x 2.5mm H; 38 mm ID, See Figure 02-25, 02-26
  • 11
    1
    J906697
    SEAL Square, 5.16mm Thk x 50.17mm ID; 50 mm ID, See Figure 02-25, 02-26
  • 12
    4
    J909356

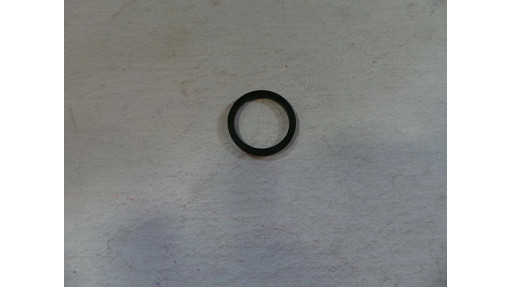

    SEAL Square, 1.68mm Thk x 15.6mm ID, -16; See Figure 03-11, 03-12
  • 13
    1
    J910517
    O-RING; See Figure 02-25, 02-26
  • 14
    1
    J912473
    SEAL 157mm ID x 163.18mm OD x 7.03mm Thk; SEALRING See Figure 02-30
  • 15
    1
    J914385
    GASKET 1.02mm Thk; Cover, See Figure 02-10
  • 16
    4
    J927154
    GASKET 0.38mm Thk; Manifold, See Figure 02-12
  • 17
    1
    87413428
    GASKET 1.2mm Thk; Mounting, Replaces J931607, See Figure 03-08
  • 18
    1
    J939258
    GASKET 1.21mm Thk; Mounting, See Figure 03-03, 03-05
  • 19
    1
    J938153
    MANIFOLD GASKET 0.8mm Thk; Manifold, See Figure 02-12
  • 20
    3
    222-101
    SLEEVE 3/16'' Tube; 3/16 OD, See Figure 03-03
  • 21
    4
    87415913

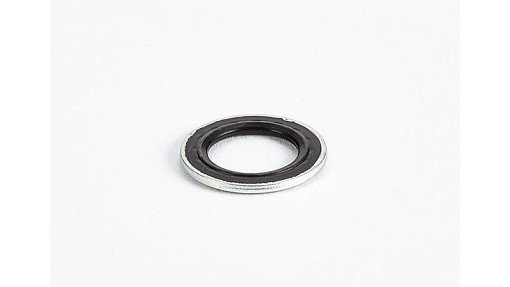

    SEALING WASHER 11.71mm ID x 19.3mm OD x 1.27mm Thk; 12 x 19 x 1,5 mm, Replaces J935171, See Figure 02-05, 03-03
  • 22
    4
    222-103
    SLEEVE 5/16'' Tube; See Figure 03-03
