09-05 - SICKLE AND GUARDS - SINGLE SICKLE HEADERS - DOUBLE HEAT TREATED, 2152-2162 STD
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    3
    87422041
    GUARD; Sickle, Drive End
  • 2
    1
    84399893
    KIT; Hold Down Clip, Package of 25 Total
  • 2
    1

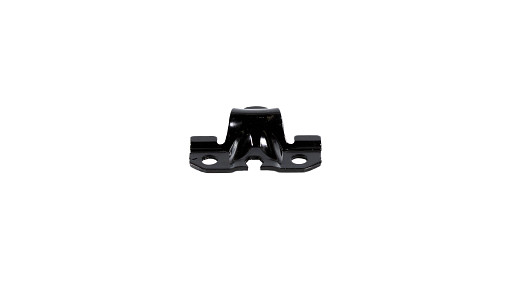

    87407812
    GUIDE; Hold Down;2152 Only;20.0 Foot Header
  • 2
    1
    87407812
    GUIDE; Hold Down;2142 And 2152 Only;25.0 Foot Header
  • 2
    2
    87407812
    GUIDE; Hold Down;2142 And 2152 Only;30.0 Foot Header
  • 2
    2
    87407812
    GUIDE; Hold Down;2162 Only;30.0 Foot Header
  • 2
    2
    87407812
    GUIDE; Hold Down;2142 And 2152 Only;35.0 Foot Header
  • 2
    2
    87407812
    GUIDE; Hold Down;2162 Only;35.0 Foot Header
  • 2
    2
    87407812
    GUIDE; Hold Down;40.0 Foot Header;2152 Only
  • 2
    2
    87407812
    GUIDE; Hold Down;40.0 Foot Header;2162 Only
  • 3
    1
    87422039
    GUARD; Sickle, Outboard, Left Hand
  • 4
    1
    87422040
    GUARD; Sickle, Outboard, Right Hand
  • 5
    35
    87421451
    GUARD; Sickle;2152 Only;20.0 Foot Header
  • 5
    45
    87421451
    GUARD; Sickle;2142 And 2152 Only;25.0 Foot Header
  • 5
    55
    87421451
    GUARD; Sickle;30.0 Foot Header
  • 5
    65
    87421451
    GUARD; Sickle;35.0 Foot Header
  • 5
    75
    87421451
    GUARD; Sickle;40.0 Foot Header
  • 6
    20

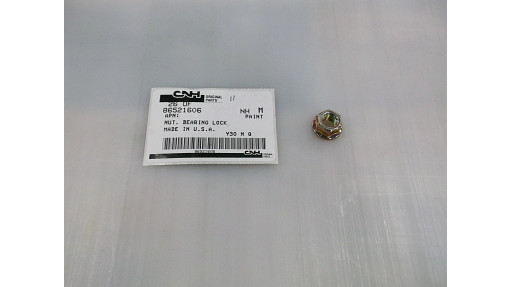

    86521606
    FLANGE NUT Hex, 3/8'' - 16, Gr 5; 2152 Only;20.0 Foot Header
  • 6
    25
    86521606
    FLANGE NUT Hex, 3/8'' - 16, Gr 5; 2142 And 2152 Only;25.0 Foot Header
  • 6
    30
    86521606
    FLANGE NUT Hex, 3/8'' - 16, Gr 5; 2142 And 2152 Only;30.0 Foot Header
  • 6
    29
    86521606
    FLANGE NUT Hex, 3/8'' - 16, Gr 5; 2162 Only;30.0 Foot Header
  • 6
    35
    86521606
    FLANGE NUT Hex, 3/8'' - 16, Gr 5; 2142 And 2152 Only;35.0 Foot Header
  • 6
    33
    86521606
    FLANGE NUT Hex, 3/8'' - 16, Gr 5; 2162 Only;35.0 Foot Header
  • 6
    40
    86521606
    FLANGE NUT Hex, 3/8'' - 16, Gr 5; 40.0 Foot Header;2152 Only
  • 6
    39
    86521606
    FLANGE NUT Hex, 3/8'' - 16, Gr 5; 40.0 Foot Header;2162 Only
  • 7
    1

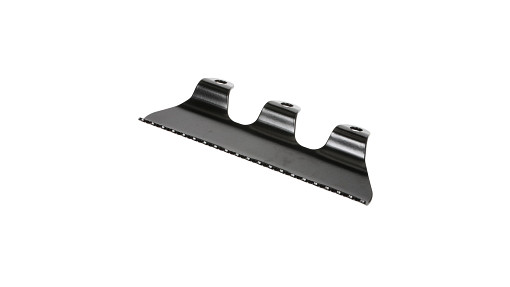

    87561244
    RETAINER; Right Hand End;2142 And 2152 Only
  • 8
    1
    87561242
    RETAINER; Left Hand End;2142 And 2152 Only
  • 9
    8

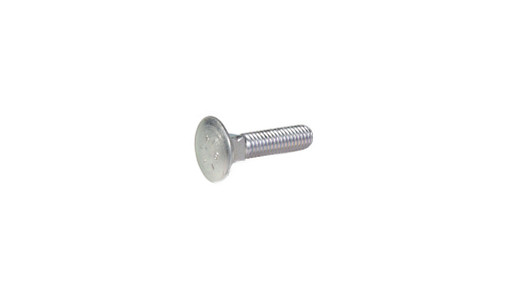

    87533767
    BOLT Regular Sq Nk, 7/16 - 14 x 44.5mm, Gr 5;
  • 10
    77

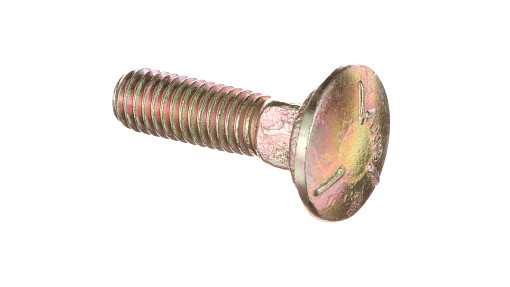

    87533769
    BOLT Hex, 7/16 - 14 x 38, Gr 5; 2152 Only;20.0 Foot Header
  • 10
    97
    87533769
    BOLT Hex, 7/16 - 14 x 38, Gr 5; 2142 And 2152 Only;25.0 Foot Header
  • 10
    117
    87533769
    BOLT Hex, 7/16 - 14 x 38, Gr 5; 2142 And 2152 Only;30.0 Foot Header
  • 10
    112
    87533769
    BOLT Hex, 7/16 - 14 x 38, Gr 5; 2162 Only;30.0 Foot Header
  • 10
    137
    87533769
    BOLT Hex, 7/16 - 14 x 38, Gr 5; 2142 And 2152 Only;35.0 Foot Header
  • 10
    132
    87533769
    BOLT Hex, 7/16 - 14 x 38, Gr 5; 2162 Only;35.0 Foot Header
  • 10
    160
    87533769
    BOLT Hex, 7/16 - 14 x 38, Gr 5; 40.0 Foot Header;2152 Only
  • 10
    152
    87533769
    BOLT Hex, 7/16 - 14 x 38, Gr 5; 40.0 Foot Header;2162 Only
  • 11
    40
    87532221
    WEAR PLATE; Molded Plastic, Cutterbar;2152 Only;20.0 Foot Header
  • 11
    50
    87532221
    WEAR PLATE; Molded Plastic, Cutterbar;2142 And 2152 Only;25.0 Foot Header
  • 11
    60
    87532221
    WEAR PLATE; Molded Plastic, Cutterbar;30.0 Foot Header
  • 11
    70
    87532221
    WEAR PLATE; Molded Plastic, Cutterbar;35.0 Foot Header
  • 11
    80
    87532221
    WEAR PLATE; Molded Plastic, Cutterbar;40.0 Foot Header
  • 37
    2
    REF
    INSTRUCTION; COVER, Hinge;See Figure 09-02;2162 Only
  • 38
    4
    REF
    INSTRUCTION; BAR, Hinge;See Figure 09-02;2162 Only
  • B
    -
    280717
    NUT 7/16''-14, G5;
  • C
    -
    88703
    BOLT Hex, 3/8'' x 5/8'', Gr 5, Full Thd;
  • 1
    NSS
    NOT SOLD SEPARAT; KIT, Cutterbar Poly;Available Through Whole Goods Only, Order B4865;20.0 Foot Header
  • 1
    NSS
    NOT SOLD SEPARAT; KIT, Cutterbar Poly;Available Through Whole Goods Only, Order B4838;25.0 Foot Header
  • 1
    NSS
    NOT SOLD SEPARAT; KIT, Cutterbar Poly;30.0 Foot Header;Available Through Whole Goods Only, Order B4839
  • 1
    NSS
    NOT SOLD SEPARAT; KIT, Cutterbar Poly;Available Through Whole Goods Only, Order B4840;35.0 Foot Header
  • 1
    NSS
    NOT SOLD SEPARAT; KIT, Cutterbar Poly;40.0 Foot Header;Available Through Whole Goods Only, Order B4841
  • -
    NSS
    NOT SOLD SEPARAT; KIT, Cutterbar Poly;45.0 Foot Header;Available Through Whole Goods Only, Order B5114
Select All

Select

Ref.

1

Qty

3

Availability

Part #

87422041

Description

GUARD; Sickle, Drive End


Alts

Select

Ref.

2

Qty

1

Availability

Part #

84399893

Description

KIT; Hold Down Clip, Package of 25 Total


Alts

Select

Ref.

2

Qty

1

Availability

Part #

87407812

Description

GUIDE; Hold Down;2152 Only;20.0 Foot Header


Alts

Select

Ref.

2

Qty

1

Availability

Part #

87407812

Description

GUIDE; Hold Down;2142 And 2152 Only;25.0 Foot Header


Alts

Select

Ref.

2

Qty

2

Availability

Part #

87407812

Description

GUIDE; Hold Down;2142 And 2152 Only;30.0 Foot Header


Alts

Select

Ref.

2

Qty

2

Availability

Part #

87407812

Description

GUIDE; Hold Down;2162 Only;30.0 Foot Header


Alts

Select

Ref.

2

Qty

2

Availability

Part #

87407812

Description

GUIDE; Hold Down;2142 And 2152 Only;35.0 Foot Header


Alts

Select

Ref.

2

Qty

2

Availability

Part #

87407812

Description

GUIDE; Hold Down;2162 Only;35.0 Foot Header


Alts

Select

Ref.

2

Qty

2

Availability

Part #

87407812

Description

GUIDE; Hold Down;40.0 Foot Header;2152 Only


Alts

Select

Ref.

2

Qty

2

Availability

Part #

87407812

Description

GUIDE; Hold Down;40.0 Foot Header;2162 Only


Alts

Select

Ref.

3

Qty

1

Availability

Part #

87422039

Description

GUARD; Sickle, Outboard, Left Hand


Alts

Select

Ref.

4

Qty

1

Availability

Part #

87422040

Description

GUARD; Sickle, Outboard, Right Hand


Alts

Select

Ref.

5

Qty

35

Availability

Part #

87421451

Description

GUARD; Sickle;2152 Only;20.0 Foot Header


Alts

Select

Ref.

5

Qty

45

Availability

Part #

87421451

Description

GUARD; Sickle;2142 And 2152 Only;25.0 Foot Header


Alts

Select

Ref.

5

Qty

55

Availability

Part #

87421451

Description

GUARD; Sickle;30.0 Foot Header


Alts

Select

Ref.

5

Qty

65

Availability

Part #

87421451

Description

GUARD; Sickle;35.0 Foot Header


Alts

Select

Ref.

5

Qty

75

Availability

Part #

87421451

Description

GUARD; Sickle;40.0 Foot Header


Alts

Select

Ref.

6

Qty

20

Availability

Part #

86521606

Description

FLANGE NUT Hex, 3/8'' - 16, Gr 5; 2152 Only;20.0 Foot Header


Alts

Select

Ref.

6

Qty

25

Availability

Part #

86521606

Description

FLANGE NUT Hex, 3/8'' - 16, Gr 5; 2142 And 2152 Only;25.0 Foot Header


Alts

Select

Ref.

6

Qty

30

Availability

Part #

86521606

Description

FLANGE NUT Hex, 3/8'' - 16, Gr 5; 2142 And 2152 Only;30.0 Foot Header


Alts

Select

Ref.

6

Qty

29

Availability

Part #

86521606

Description

FLANGE NUT Hex, 3/8'' - 16, Gr 5; 2162 Only;30.0 Foot Header


Alts

Select

Ref.

6

Qty

35

Availability

Part #

86521606

Description

FLANGE NUT Hex, 3/8'' - 16, Gr 5; 2142 And 2152 Only;35.0 Foot Header


Alts

Select

Ref.

6

Qty

33

Availability

Part #

86521606

Description

FLANGE NUT Hex, 3/8'' - 16, Gr 5; 2162 Only;35.0 Foot Header


Alts

Select

Ref.

6

Qty

40

Availability

Part #

86521606

Description

FLANGE NUT Hex, 3/8'' - 16, Gr 5; 40.0 Foot Header;2152 Only


Alts

Select

Ref.

6

Qty

39

Availability

Part #

86521606

Description

FLANGE NUT Hex, 3/8'' - 16, Gr 5; 40.0 Foot Header;2162 Only


Alts

Select

Ref.

7

Qty

1

Availability

Part #

87561244

Description

RETAINER; Right Hand End;2142 And 2152 Only


Alts

Select

Ref.

8

Qty

1

Availability

Part #

87561242

Description

RETAINER; Left Hand End;2142 And 2152 Only


Alts

Select

Ref.

9

Qty

8

Availability

Part #

87533767

Description

BOLT Regular Sq Nk, 7/16 - 14 x 44.5mm, Gr 5;


Alts

Select

Ref.

10

Qty

77

Availability

Part #

87533769

Description

BOLT Hex, 7/16 - 14 x 38, Gr 5; 2152 Only;20.0 Foot Header


Alts

Select

Ref.

10

Qty

97

Availability

Part #

87533769

Description

BOLT Hex, 7/16 - 14 x 38, Gr 5; 2142 And 2152 Only;25.0 Foot Header


Alts

Select

Ref.

10

Qty

117

Availability

Part #

87533769

Description

BOLT Hex, 7/16 - 14 x 38, Gr 5; 2142 And 2152 Only;30.0 Foot Header


Alts

Select

Ref.

10

Qty

112

Availability

Part #

87533769

Description

BOLT Hex, 7/16 - 14 x 38, Gr 5; 2162 Only;30.0 Foot Header


Alts

Select

Ref.

10

Qty

137

Availability

Part #

87533769

Description

BOLT Hex, 7/16 - 14 x 38, Gr 5; 2142 And 2152 Only;35.0 Foot Header


Alts

Select

Ref.

10

Qty

132

Availability

Part #

87533769

Description

BOLT Hex, 7/16 - 14 x 38, Gr 5; 2162 Only;35.0 Foot Header


Alts

Select

Ref.

10

Qty

160

Availability

Part #

87533769

Description

BOLT Hex, 7/16 - 14 x 38, Gr 5; 40.0 Foot Header;2152 Only


Alts

Select

Ref.

10

Qty

152

Availability

Part #

87533769

Description

BOLT Hex, 7/16 - 14 x 38, Gr 5; 40.0 Foot Header;2162 Only


Alts

Select

Ref.

11

Qty

40

Availability

Part #

87532221

Description

WEAR PLATE; Molded Plastic, Cutterbar;2152 Only;20.0 Foot Header


Alts

Select

Ref.

11

Qty

50

Availability

Part #

87532221

Description

WEAR PLATE; Molded Plastic, Cutterbar;2142 And 2152 Only;25.0 Foot Header


Alts

Select

Ref.

11

Qty

60

Availability

Part #

87532221

Description

WEAR PLATE; Molded Plastic, Cutterbar;30.0 Foot Header


Alts

Select

Ref.

11

Qty

70

Availability

Part #

87532221

Description

WEAR PLATE; Molded Plastic, Cutterbar;35.0 Foot Header


Alts

Select

Ref.

11

Qty

80

Availability

Part #

87532221

Description

WEAR PLATE; Molded Plastic, Cutterbar;40.0 Foot Header


Alts

Select

Ref.

37

Qty

2

Availability

Part #

REF

Description

INSTRUCTION; COVER, Hinge;See Figure 09-02;2162 Only


Alts

Select

Ref.

38

Qty

4

Availability

Part #

REF

Description

INSTRUCTION; BAR, Hinge;See Figure 09-02;2162 Only


Alts

Select

Ref.

B

Qty

-

Availability

Part #

280717

Description

NUT 7/16''-14, G5;


Alts

Select

Ref.

C

Qty

-

Availability

Part #

88703

Description

BOLT Hex, 3/8'' x 5/8'', Gr 5, Full Thd;


Alts

Select

Ref.

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; KIT, Cutterbar Poly;Available Through Whole Goods Only, Order B4865;20.0 Foot Header


Alts

Select

Ref.

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; KIT, Cutterbar Poly;Available Through Whole Goods Only, Order B4838;25.0 Foot Header


Alts

Select

Ref.

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; KIT, Cutterbar Poly;30.0 Foot Header;Available Through Whole Goods Only, Order B4839


Alts

Select

Ref.

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; KIT, Cutterbar Poly;Available Through Whole Goods Only, Order B4840;35.0 Foot Header


Alts

Select

Ref.

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; KIT, Cutterbar Poly;40.0 Foot Header;Available Through Whole Goods Only, Order B4841


Alts

Select

Ref.

Qty

-

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; KIT, Cutterbar Poly;45.0 Foot Header;Available Through Whole Goods Only, Order B5114


Alts
