00.00GH024[01] - MAINTENANCE PARTS, WOBBLE BOX
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    9811397
    BEARING, ROLLER, CYL 25mm ID x 62mm OD x 17mm W;
  • 2
    1
    9501697
    SHAFT;
  • 3
    1
    9811632
    BEARING, ROLLER, CYL 30mm ID x 72mm OD x 19mm W;
  • 4
    1
    9513024
    OIL SEAL 30mm ID x 40mm OD x 7mm Thk;

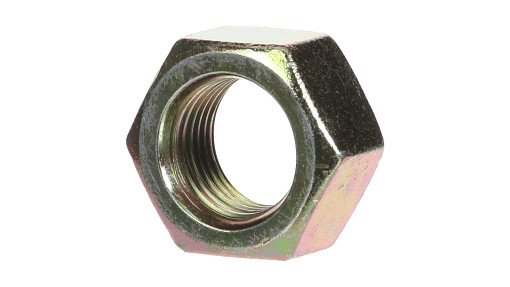

  • 5
    1
    12164121
    NUT Hex, M16 x 1.5, Cl 10, ZND;
  • 6
    1
    850119
    ECROU;
  • 7
    2

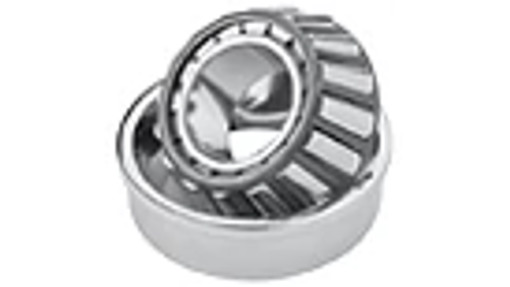

    796504
    TAPERED BEARING Tapared Roller, 50mm ID x 84mm OD x 22mm W;
  • 8
    1
    850123
    BEARING ASSY;
  • 9
    2
    168100
    SHIM .036'' Thk;
  • 10
    1
    9513490
    YOKE M20 x 1.5; (11)

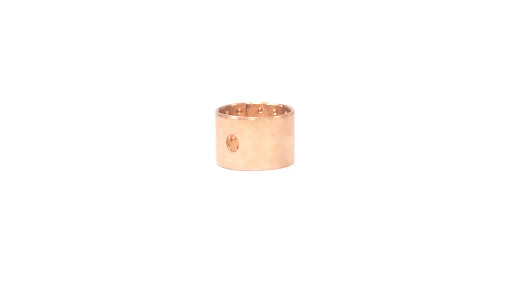

  • 11
    2
    709063
    BAGUE 25.43mm ID x 28.73mm OD x 9.53mm L;
  • 12
    2
    847547
    PIN 25.41mm OD x 44.5mm L;

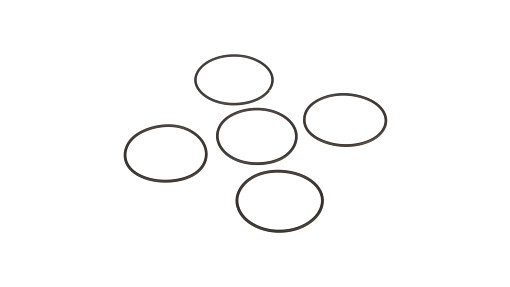

  • 13
    1
    165216
    O-RING 2.487'' ID x 2.693'' OD x 0.103'';

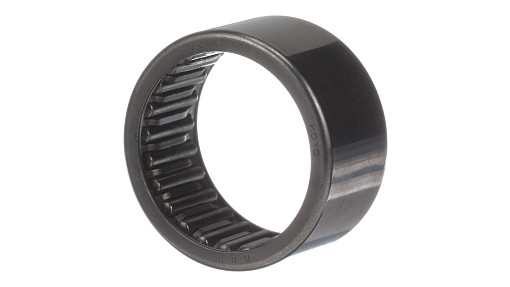

  • 14
    2
    87021857
    ROULEMENT A AIGUILLE 41.28mm ID x 50.8mm OD x 25.4mm W;

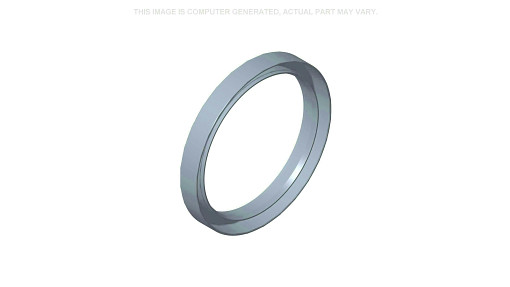

  • 15
    1
    796503
    OIL SEAL 41.27mm ID x 50.8mm OD x 6.39mm Thk;
  • 16
    1
    84017247
    ARM; (17)
  • 16
    1
    87389510
    ARM; (17)

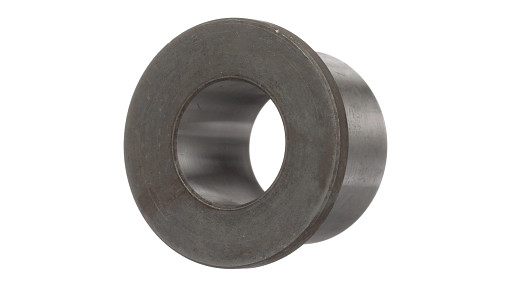

  • 17
    1
    84017250
    BUSHING 15.93mm ID x 32mm OD x 19.5mm L;
  • 18
    1

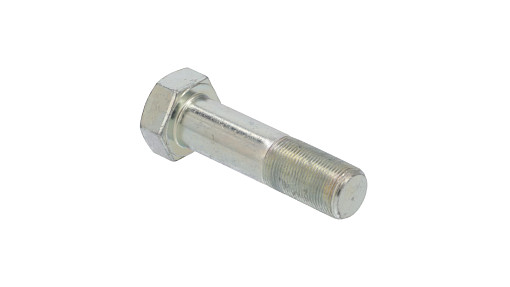

    412681
    BOLT Hex, M16 x 1 x 60mm, Cl 10.9;
  • 19
    1
    394631
    WASHER 17mm ID x 34mm OD x 4mm Thk;
  • 20
    1
    850053
    WASHER 20.5mm ID x 55mm OD x 6mm Thk;

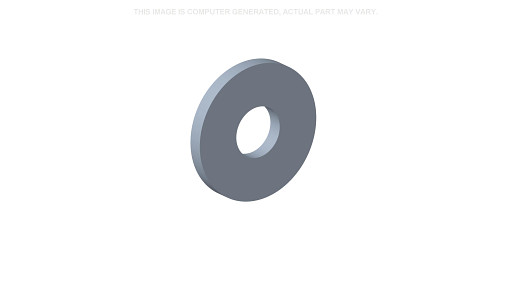

  • 20
    1
    47471097
    WASHER 20.5mm ID x 55mm OD x 6mm Thk;
  • 21
    1
    9513487
    PLATE;
  • 22
    1
    100085
    NUT Hex, M20 x 1.5, Cl 8, ZND;
  • 23
    1
    85000175C
    CORE-WOBBLE BOX WOBBLE BOX;

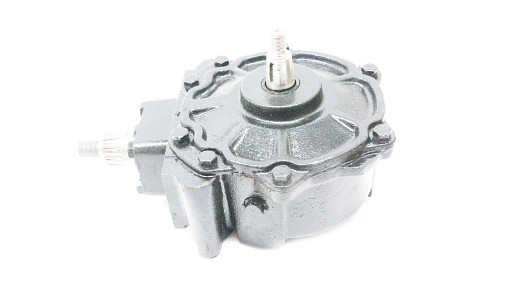

  • 23
    1
    85000175R
    REMAN-WOBBLE BOX WOBBLE BOX;
  • 23
    1
    85000175
    WOBBLE BOX;
