Ref.
Qty
Part #
Alts
Description
-
11SHIELD; WA-forming
-
26SERRATED BOLT Hex, 3/8'' - 16 x 1'';
-
318FLANGE NUT Flg, 3/8''-16; hex flange top lock, 3/8-16 GR/G
-
42SPACER;
-
52CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1 1/4'', Gr 5;
-
64FLANGE NUT Flg, 1/2''-13; hex flange top lock, 1/2-13 GR/G
-
712SERRATED BOLT Hex, 3/8'' - 16 x 1 1/4, Spcl; hex flange, 3/8-16 x 1-1/4 GR. 8
-
82PLATE;
-
92BOLT Hex, 1/2'' - 13 x 1-1/2'', Gr 5;
-
101ROLL; TICOR, right spiral
-
116CARRIAGE BOLT Short NK, 5/16''-18 x 1'', G5;
-
126WASHER 11/32'' x 11/16'' x 0.89'', HDN;
-
136NUT 5/16''-18 NC, G5;
-
141COVER;
-
151SHIELD; WA-forming
-
161ROLL; TICOR, left spiral
Select All
Select
Ref.
2Qty
6Availability
Part #
121-226Description
SERRATED BOLT Hex, 3/8'' - 16 x 1'';Img
Alts
Select
Ref.
3Qty
18Availability
Part #

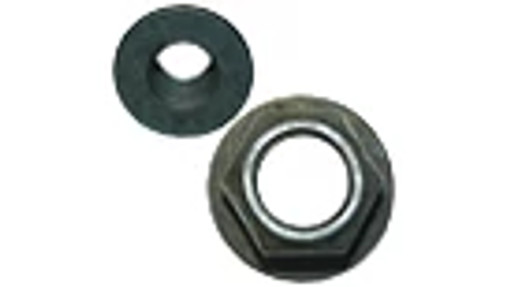

232-5316Description
FLANGE NUT Flg, 3/8''-16; hex flange top lock, 3/8-16 GR/GImg
Alts
Select
Ref.
5Qty
2Availability
Part #

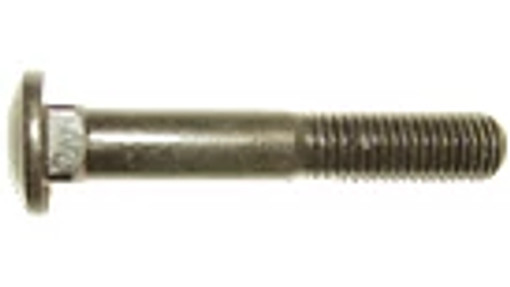

433-820Description
CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1 1/4'', Gr 5;Img
Alts
Select
Ref.
6Qty
4Availability
Part #

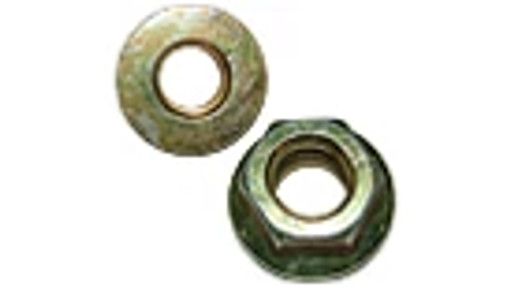

231-5348Description
FLANGE NUT Flg, 1/2''-13; hex flange top lock, 1/2-13 GR/GImg
Alts
Select
Ref.
7Qty
12Availability
Part #

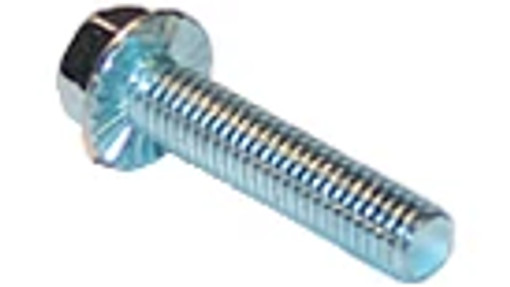

121-237Description
SERRATED BOLT Hex, 3/8'' - 16 x 1 1/4, Spcl; hex flange, 3/8-16 x 1-1/4 GR. 8Img
Alts
Select
Ref.
9Qty
2Availability
Part #
413-824Description
BOLT Hex, 1/2'' - 13 x 1-1/2'', Gr 5;Img
Alts
Select
Ref.
11Qty
6Availability
Part #
111-237Description
CARRIAGE BOLT Short NK, 5/16''-18 x 1'', G5;Img
Alts
Select
Ref.
12Qty
6Availability
Part #
496-21034Description
WASHER 11/32'' x 11/16'' x 0.89'', HDN;Img
Alts
